Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC

Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,10m Dca LSZH
Varenummer: O8322S10OM3

Produktinformation til Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,10m Dca LSZH

EFB sets standards in high quality

For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with LC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.

Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol

Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test

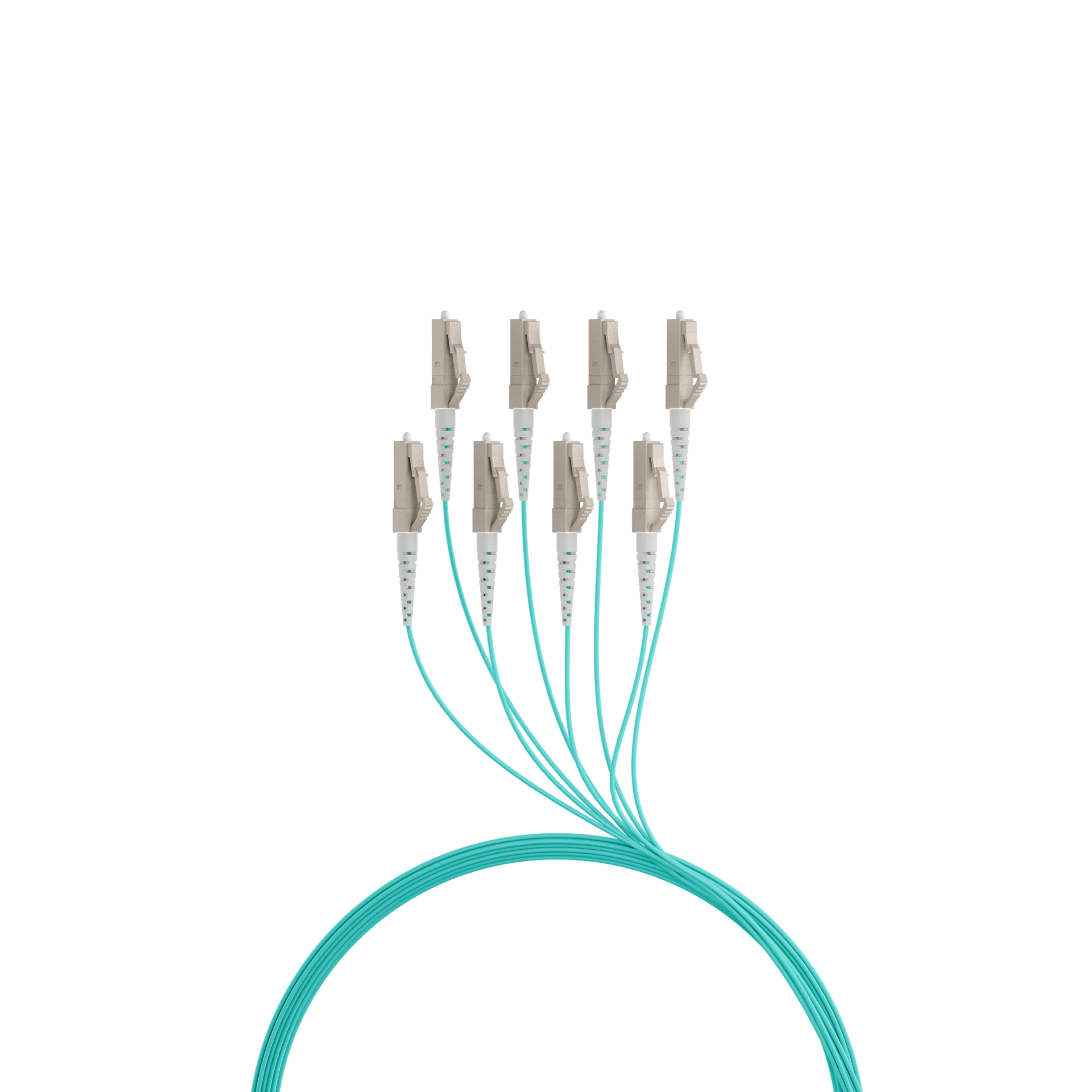

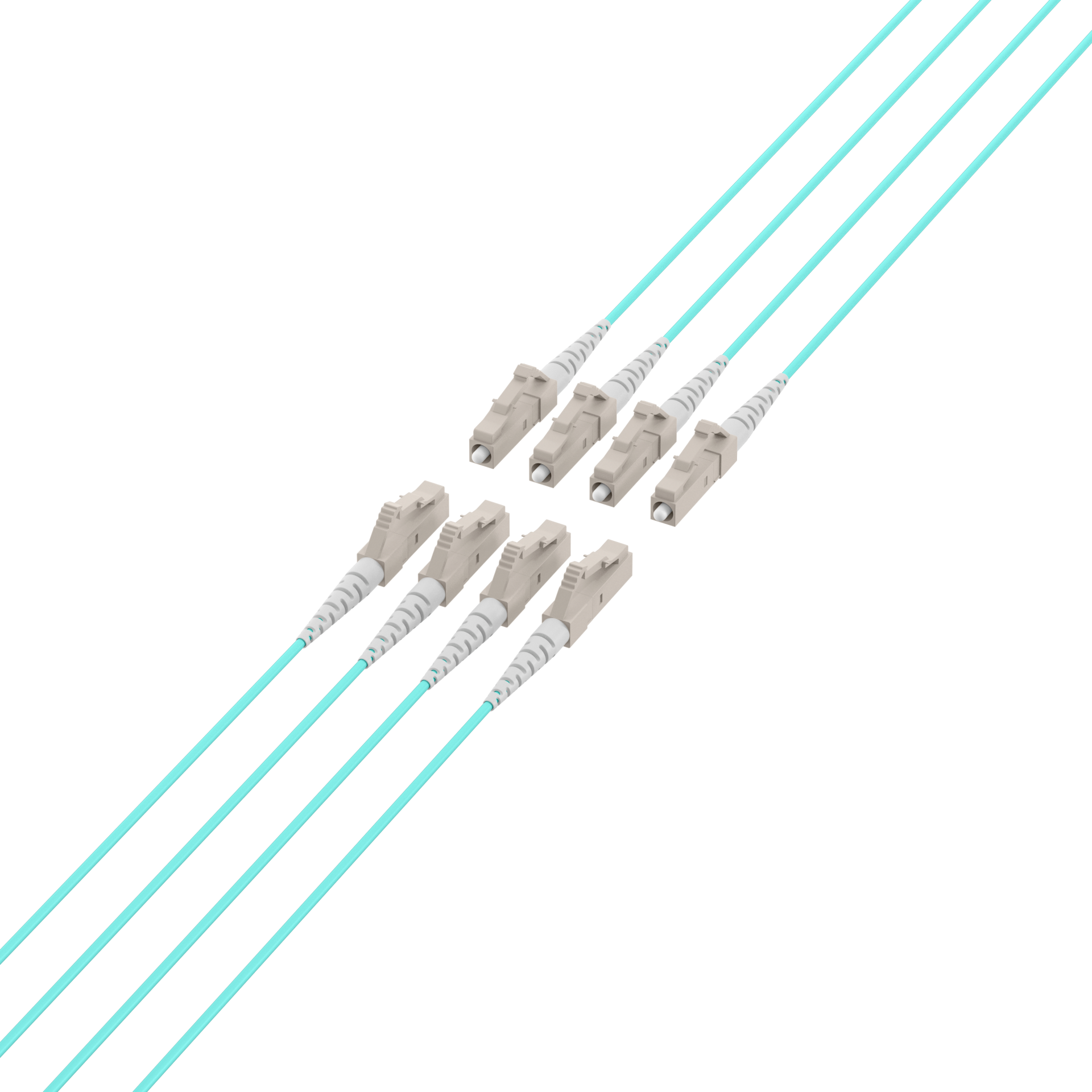

Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided

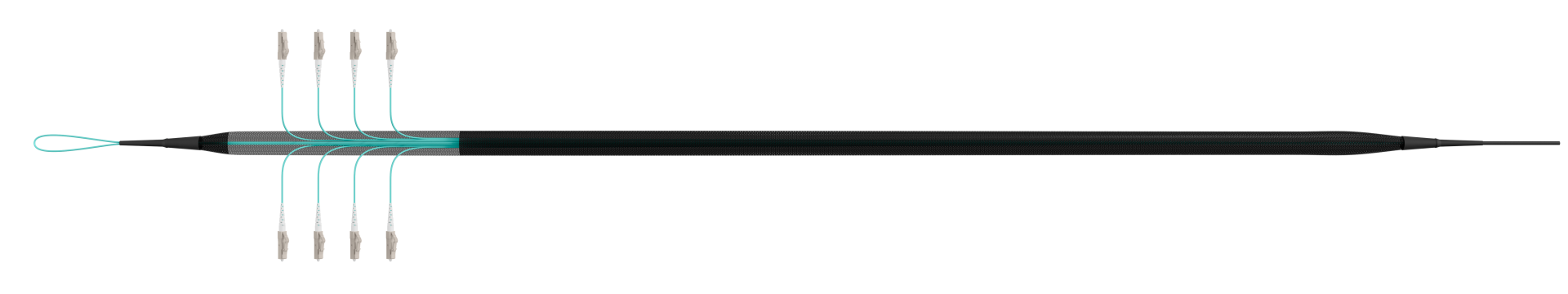

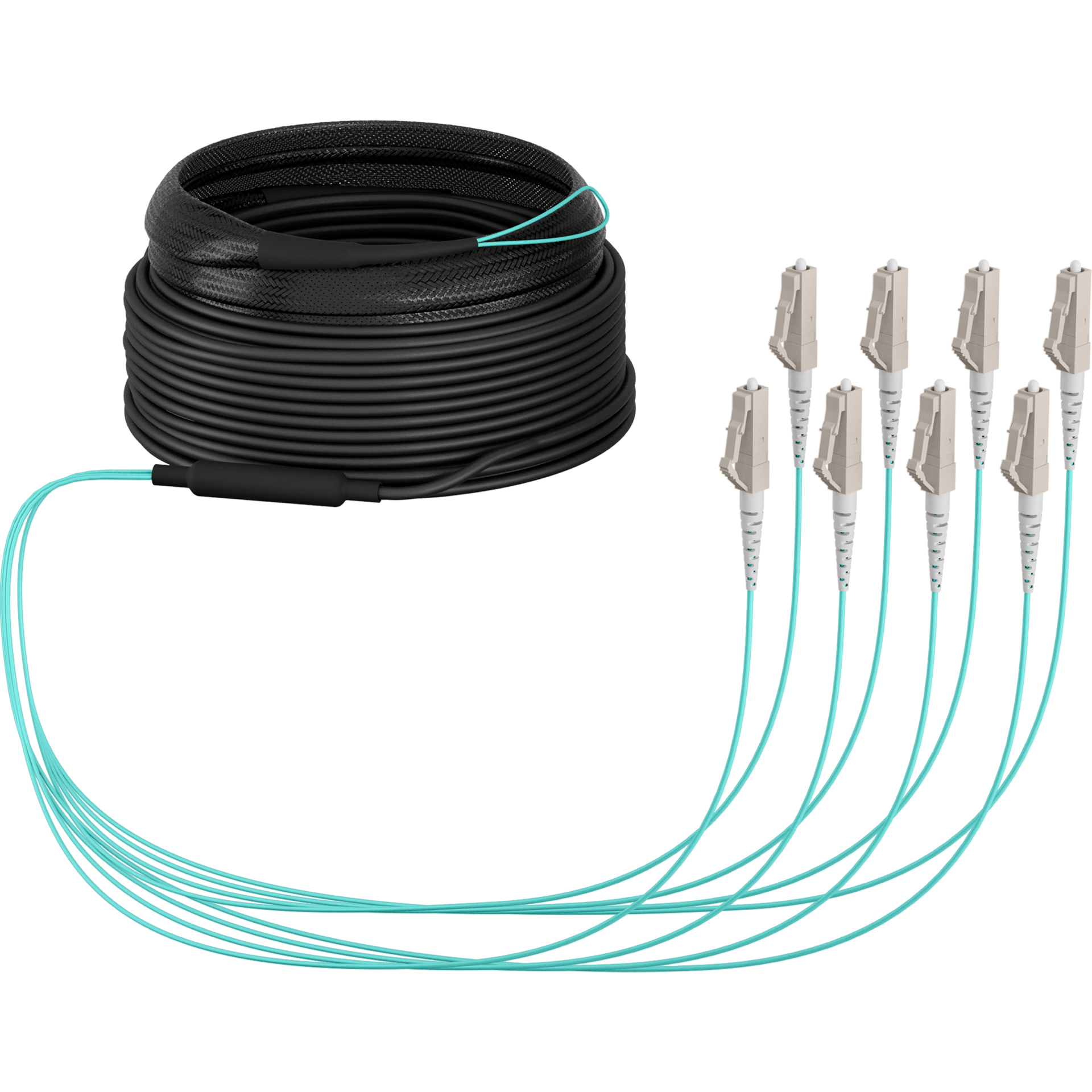

Delivery on both sides with fabric hose as drawing-in tube
Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca
Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm

Tekniske egenskaber

APC-version: False
Anti-kink sleeve: put-on
Bend optimized fiber: no
Cable Construction: Multifiber
Cable type: U-DQ (ZN) BH
Cable Ø: 6.0 mm
Category: OM3
Colour outer sheath: black
Connector colour 1: beige
Connector colour 2: beige
Dimension Cable divider: 11.5 x 212 mm
Fibre type: Multimode 50/125
Jacket Material: LSZH
Max. Tension: 200 N
Min. Bending radius (Dynamic): 180 mm
Min. Bending radius (Static): 90 mm
Number of fibres: 8

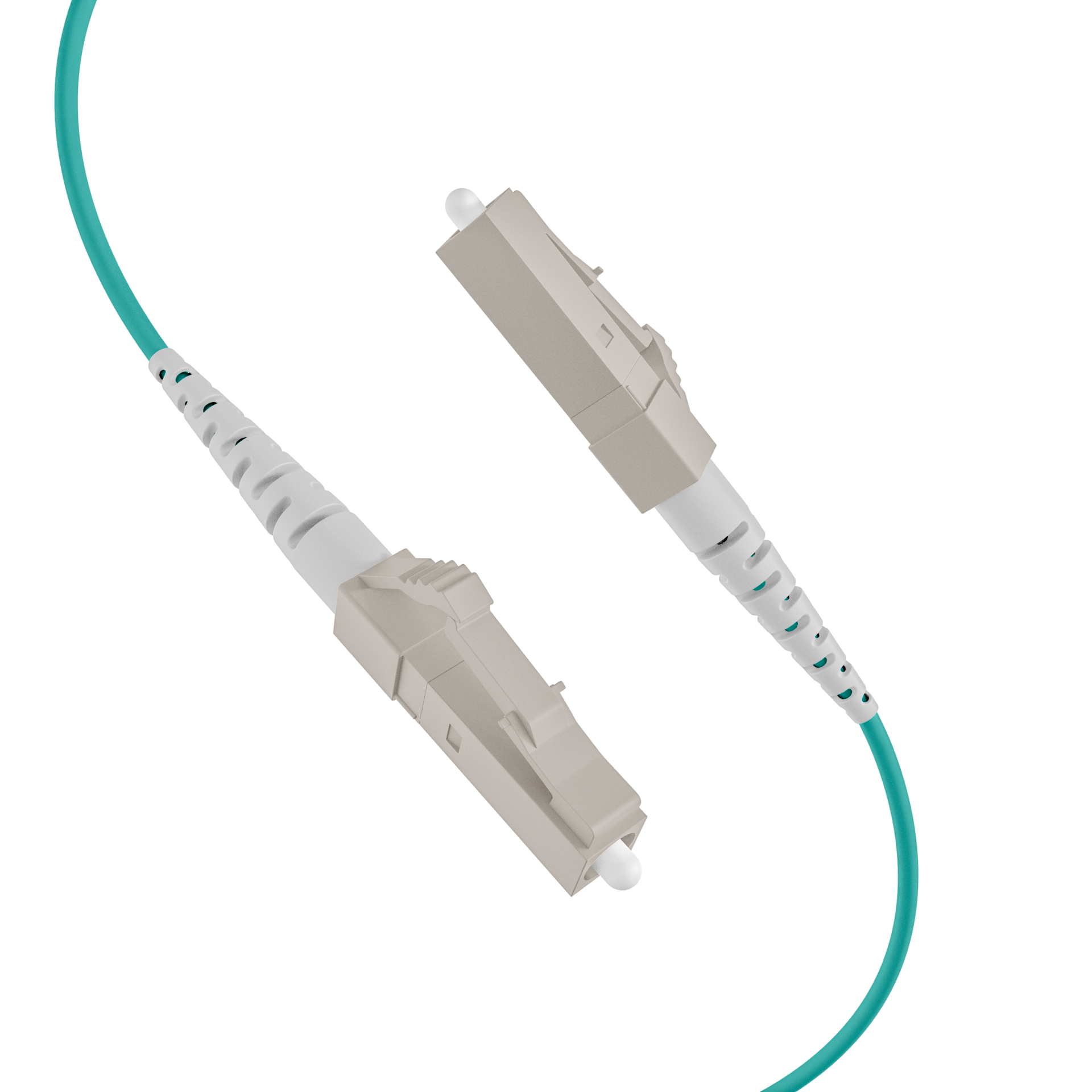

Type of connector connection 1: 8 x LC
Type of connector connection 2: 8 x LC

Varianten

Art. Nr. Bezeichnung Length Length tolerance
O8322S10OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,10m Dca LSZH 10.0 m ±5 %
O8322S20OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,20m Dca LSZH 20.0 m ±5 %
O8322S30OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,30m Dca LSZH 30.0 m ±5 %
O8322S40OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,40m Dca LSZH 40 m ±5 %
O8322S50OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,50m Dca LSZH 50 m ±5 %
O8322S60OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,60m Dca LSZH 60 m ±5 %
O8322S70OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,70m Dca LSZH 70 m ±5 %
O8322S80OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,80m Dca LSZH 80 m ±5 %
O8322S90OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,90m Dca LSZH 90 m ±5 %
O8322S100OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,100m Dca LSZH 100 m ±5 %
O8322S110OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,110m Dca LSZH 110 m ±5 %
O8322S120OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,120m Dca LSZH 120 m ±5 %
O8322S130OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,130m Dca LSZH 130 m ±5 %
O8322S140OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,140m Dca LSZH 140 m ±5 %
O8322S150OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,150m Dca LSZH 150 m ±5 %
O8322S160OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,160m Dca LSZH 160 m ±5 %
O8322S170OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,170m Dca LSZH 170 m ±5 %
O8322S180OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,180m Dca LSZH 180 m ±5 %
O8322S190OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,190m Dca LSZH 190 m ±5 %
O8322S200OM3 Trunk cable U-DQ(ZN)BH OM3 8G (1x8) LC-LC,200m Dca LSZH 200 m ±5 %
