Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC

Priser kun synlige for indloggede brugere

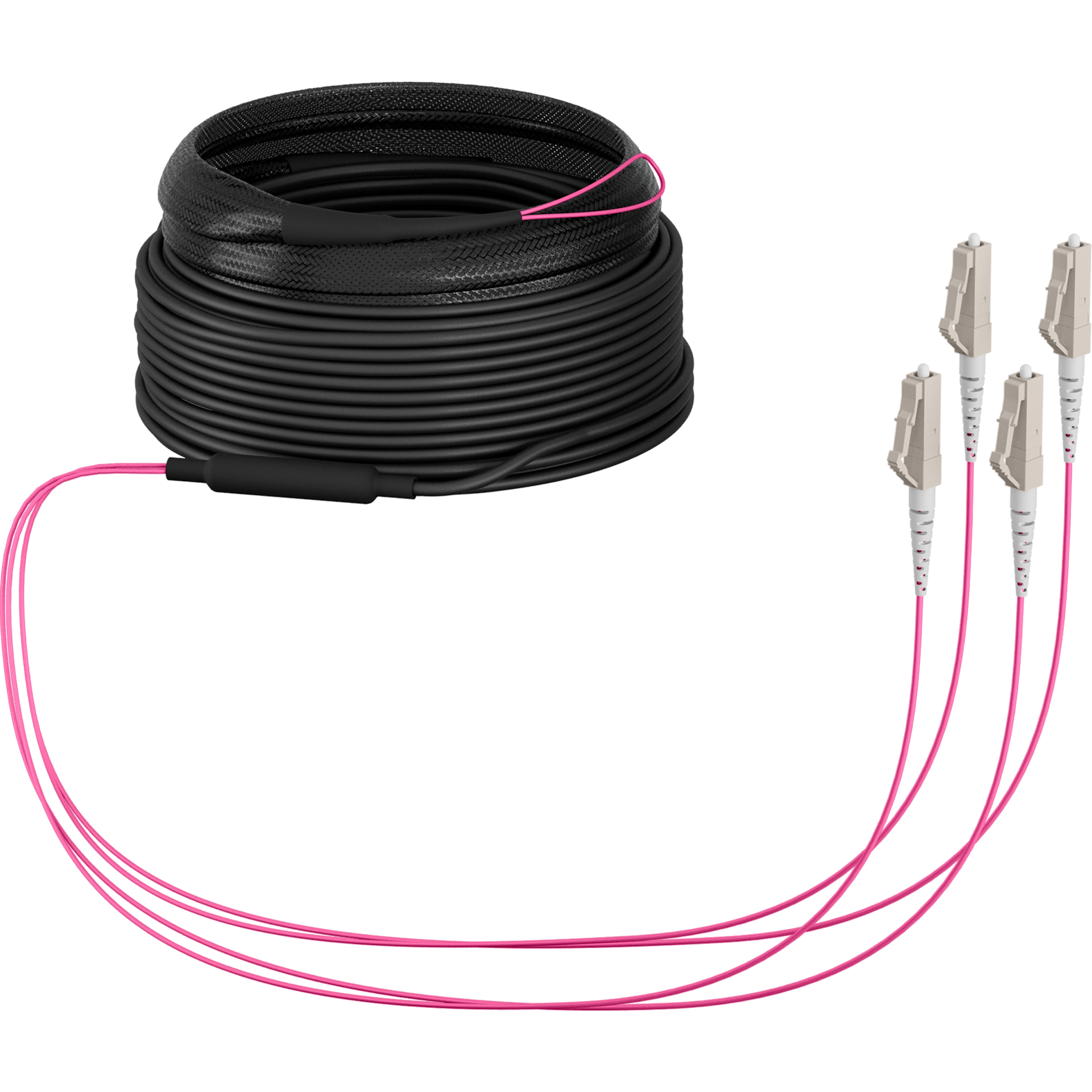

Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,10m Dca LSZH
Varenummer: O8303S10OM4
Stück

Produktinformation für Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,10m Dca LSZH

EFB sets standards in high quality

For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with LC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.

Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol

Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test

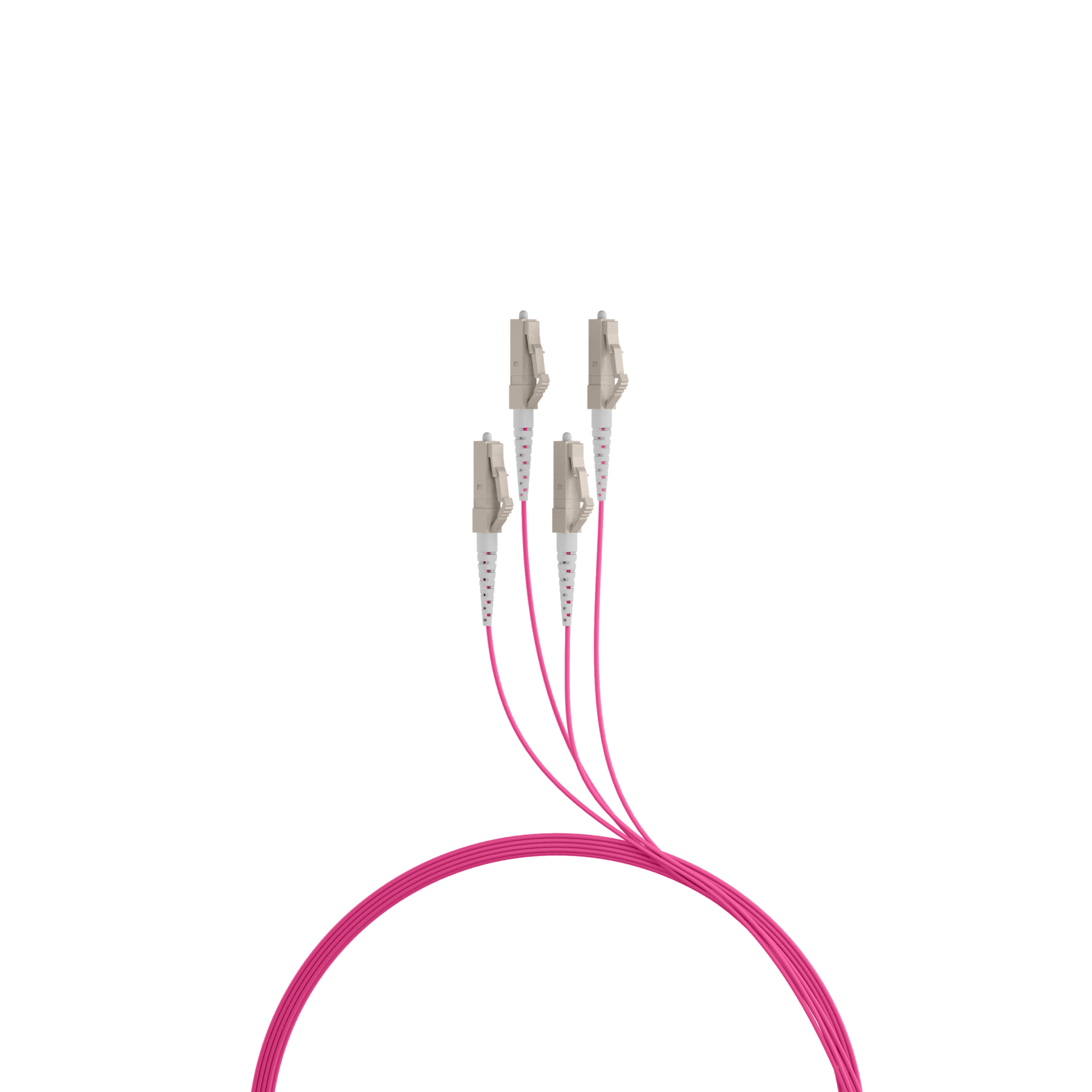

Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided

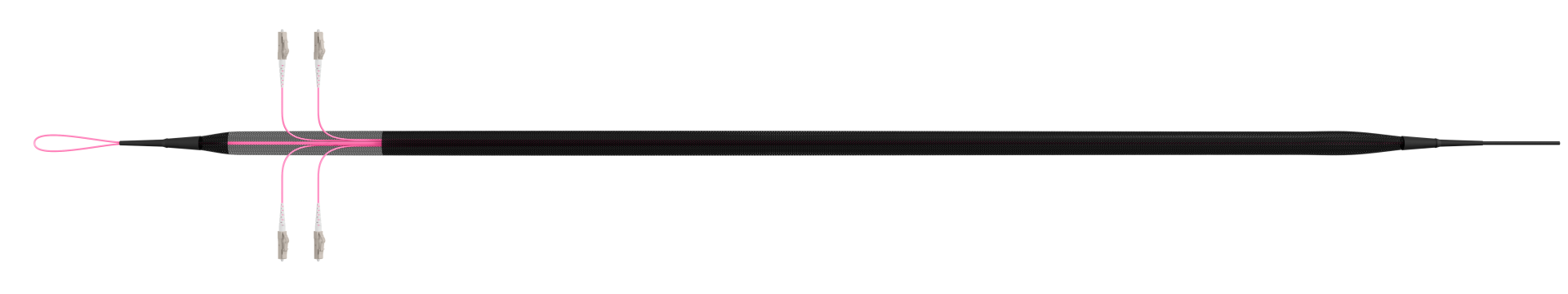

Delivery on both sides with fabric hose as drawing-in tube
Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca
Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm

Tekniske egenskaber

APC-version: False
Anti-kink sleeve: put-on
Bend optimized fiber: no
Cable Construction: Multifiber
Cable type: U-DQ (ZN) BH
Cable Ø: 6.0 mm
Category: OM4
Colour outer sheath: black
Connector colour 1: beige
Connector colour 2: beige
Dimension Cable divider: 11.5 x 112 mm
Fibre type: Multimode 50/125
Jacket material: LSZH
Max. Tension: 200 N
Min. Bending radius (Dynamic): 180 mm
Min. Bending radius (Static): 90 mm
Number of fibres: 4

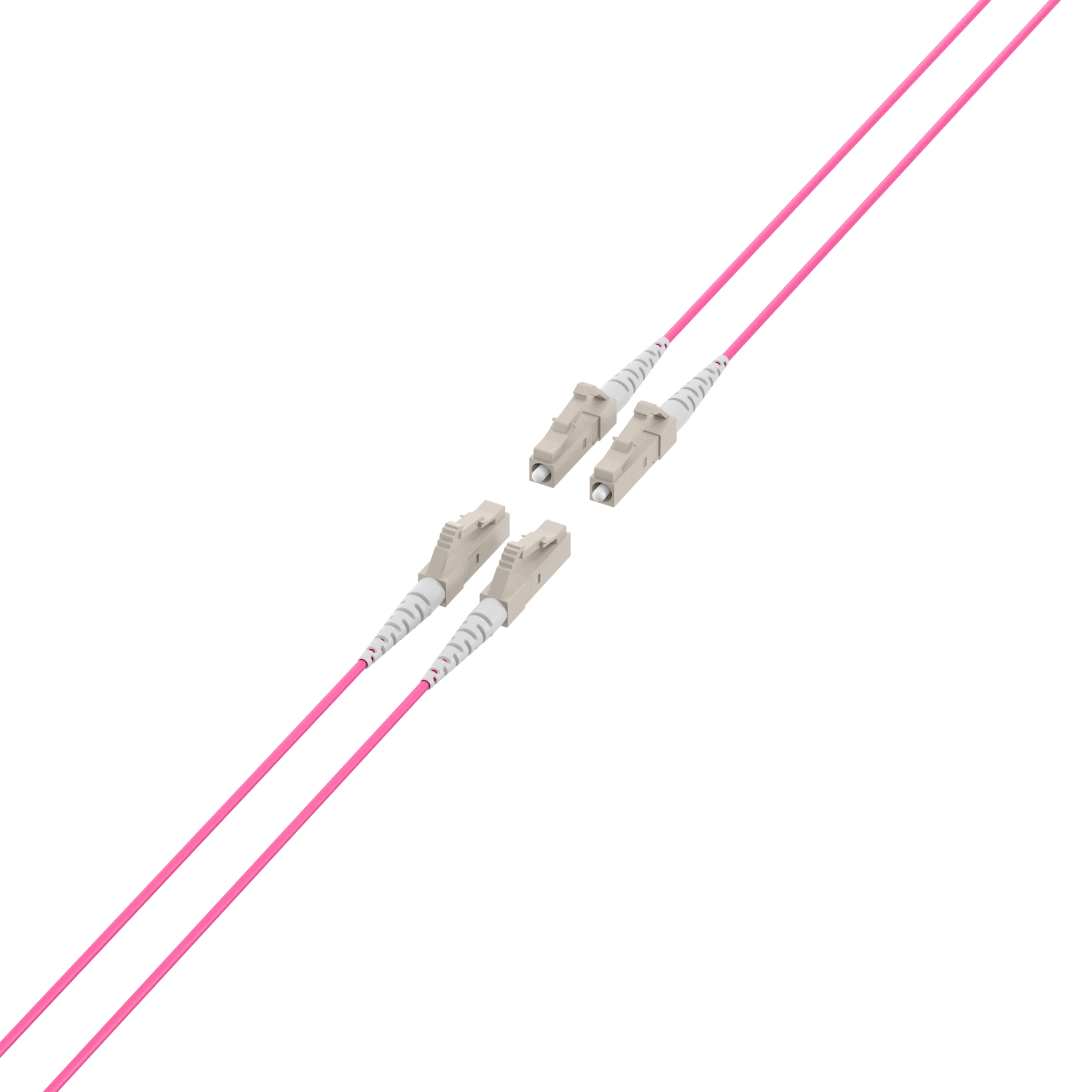

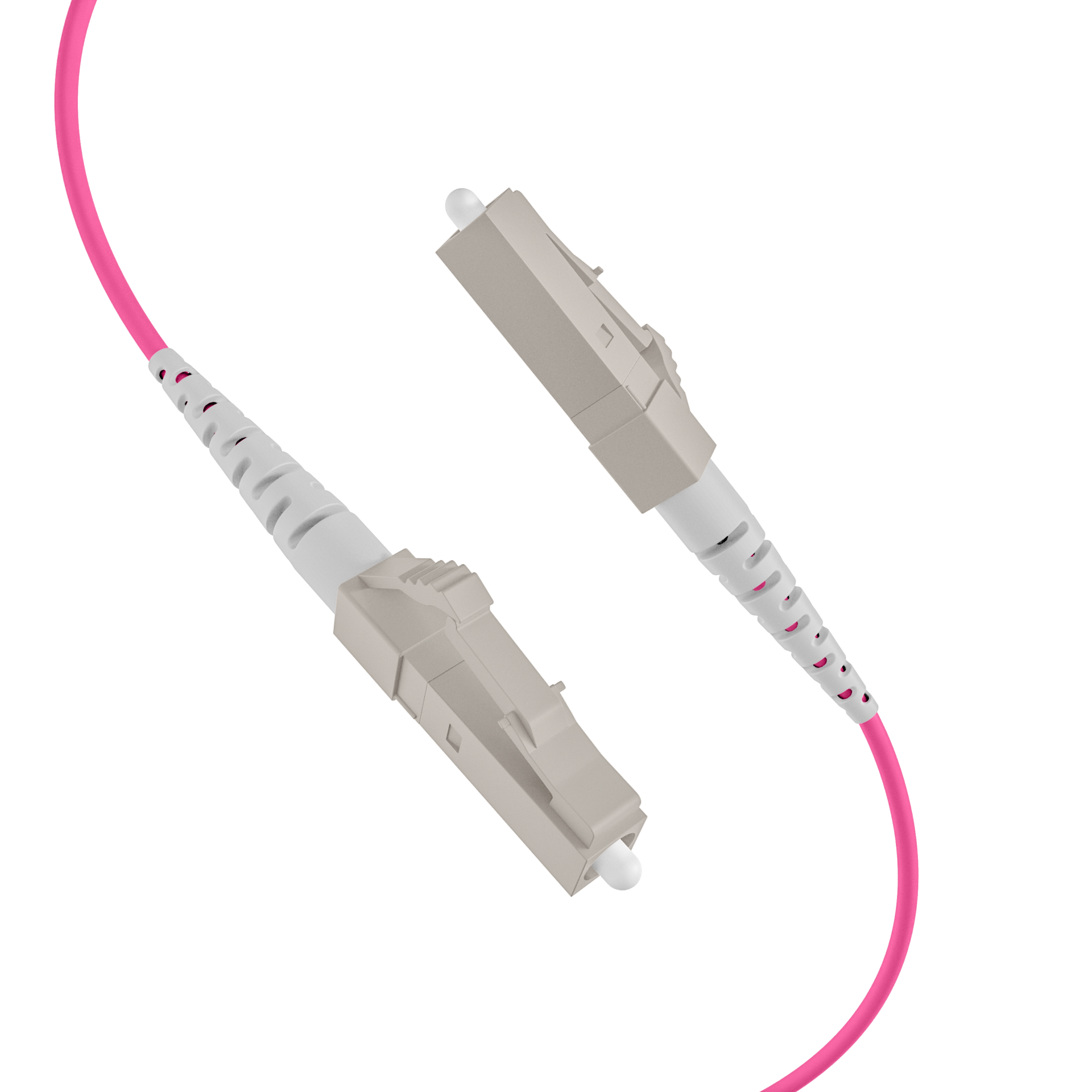

Type of connector connection 1: 4 x LC
Type of connector connection 2: 4 x LC

Varianter

Art. Nej. Betegnelse Length Length tolerance
O8303S10OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,10m Dca LSZH 10.0 m ±5 %
O8303S20OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,20m Dca LSZH 20.0 m ±5 %
O8303S30OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,30m Dca LSZH 30.0 m ±5 %
O8303S40OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,40m Dca LSZH 40 m ±5 %
O8303S50OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,50m Dca LSZH 50 m ±5 %
O8303S60OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,60m Dca LSZH 60 m ±5 %
O8303S70OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,70m Dca LSZH 70 m ±5 %
O8303S80OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,80m Dca LSZH 80 m ±5 %
O8303S90OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,90m Dca LSZH 90 m ±5 %
O8303S100OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,100m Dca LSZH 100 m ±5 %
O8303S110OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,110m Dca LSZH 110 m ±5 %
O8303S120OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,120m Dca LSZH 120 m ±5 %
O8303S130OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,130m Dca LSZH 130 m ±5 %
O8303S140OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,140m Dca LSZH 140 m ±5 %
O8303S150OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,150m Dca LSZH 150 m ±5 %
O8303S160OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,160m Dca LSZH 160 m ±5 %
O8303S170OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,170m Dca LSZH 170 m ±5 %
O8303S180OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,180m Dca LSZH 180 m ±5 %
O8303S190OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,190m Dca LSZH 190 m ±5 %
O8303S200OM4 Trunk cable U-DQ(ZN)BH OM4 4G (1x4) LC-LC,200m Dca LSZH 200 m ±5 %
