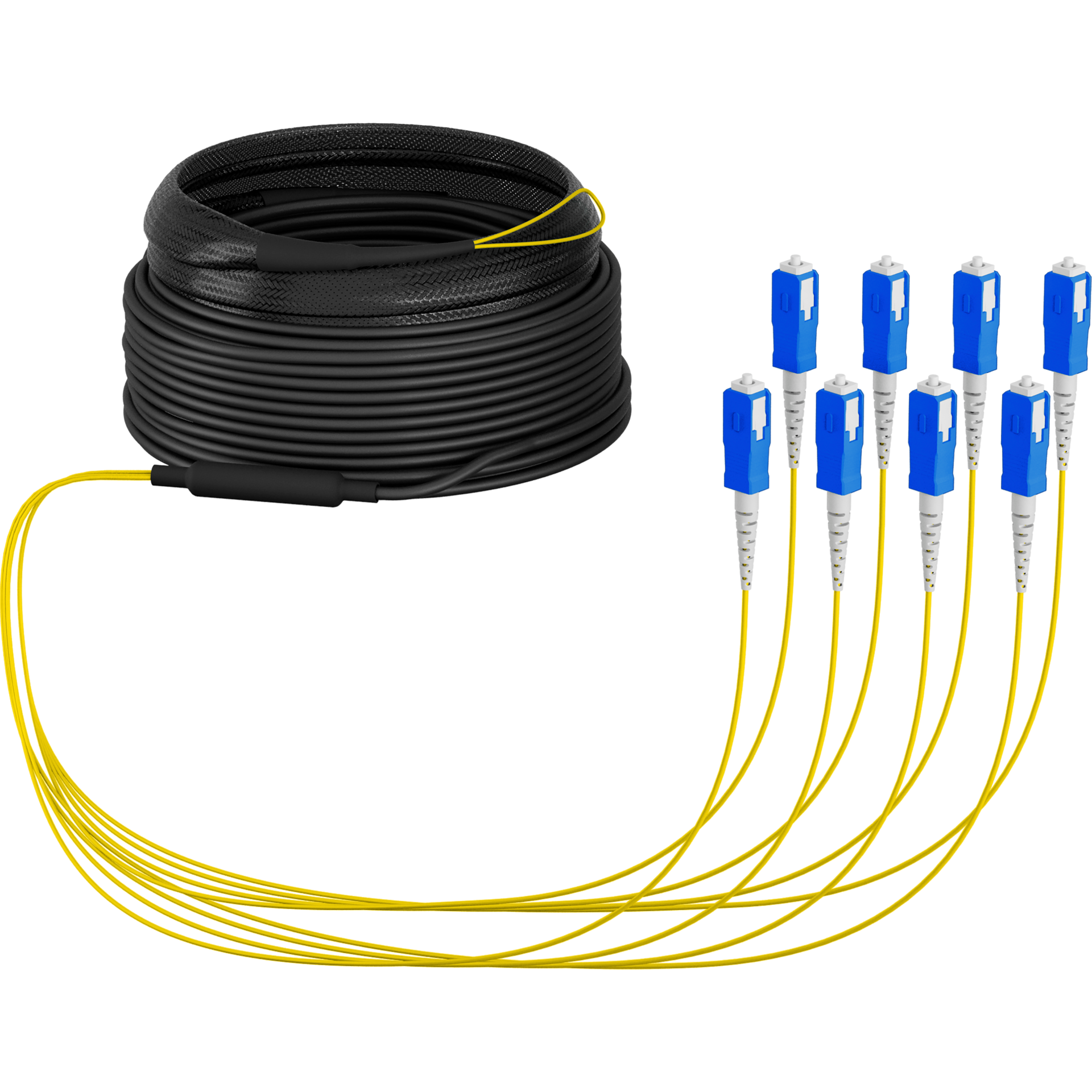

Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC
Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,10m Dca LSZH
Varenummer:
O8321S10OS2
Produktinformationen für Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,10m Dca LSZH
EFB sets standards in high quality
For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with SC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.
Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol
Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test

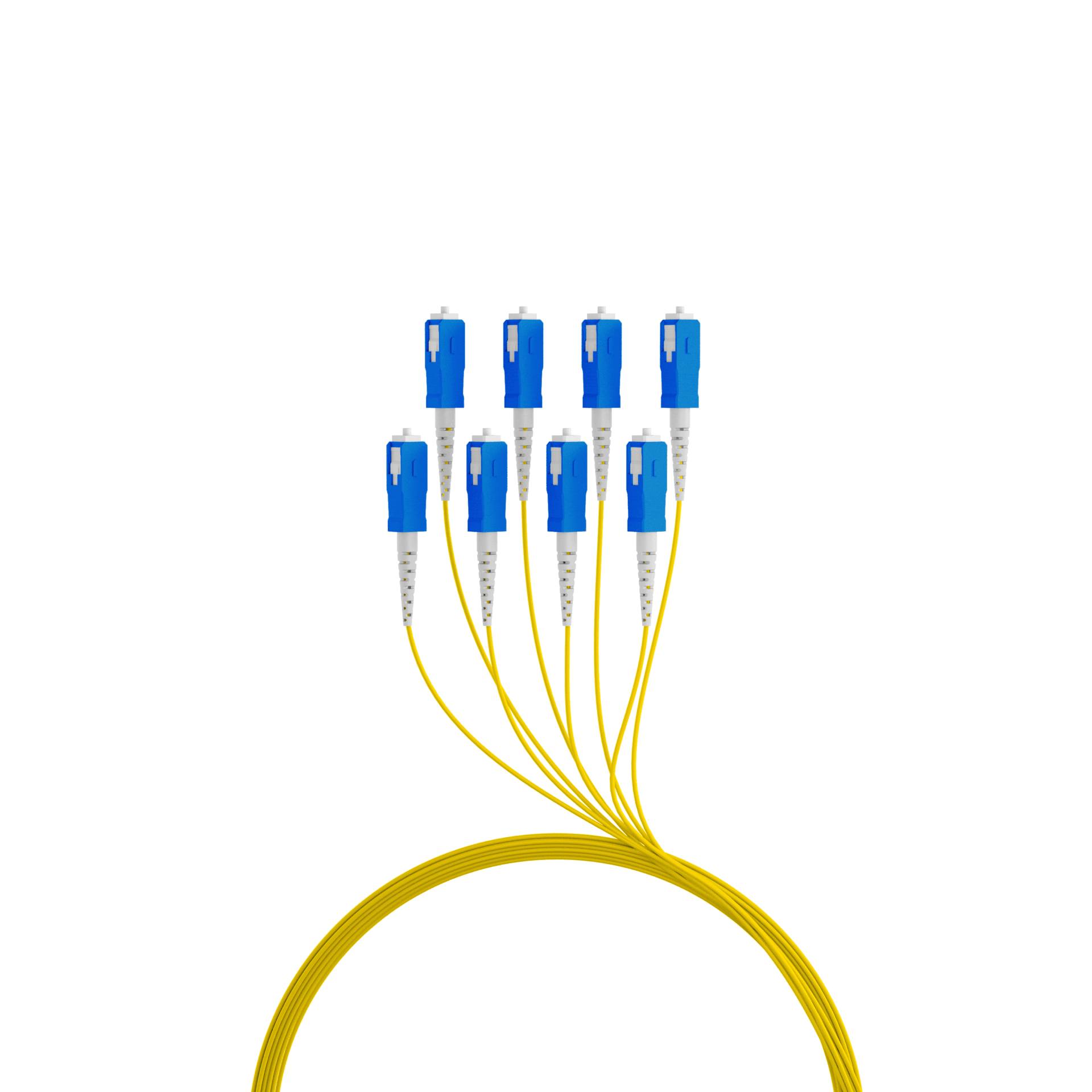

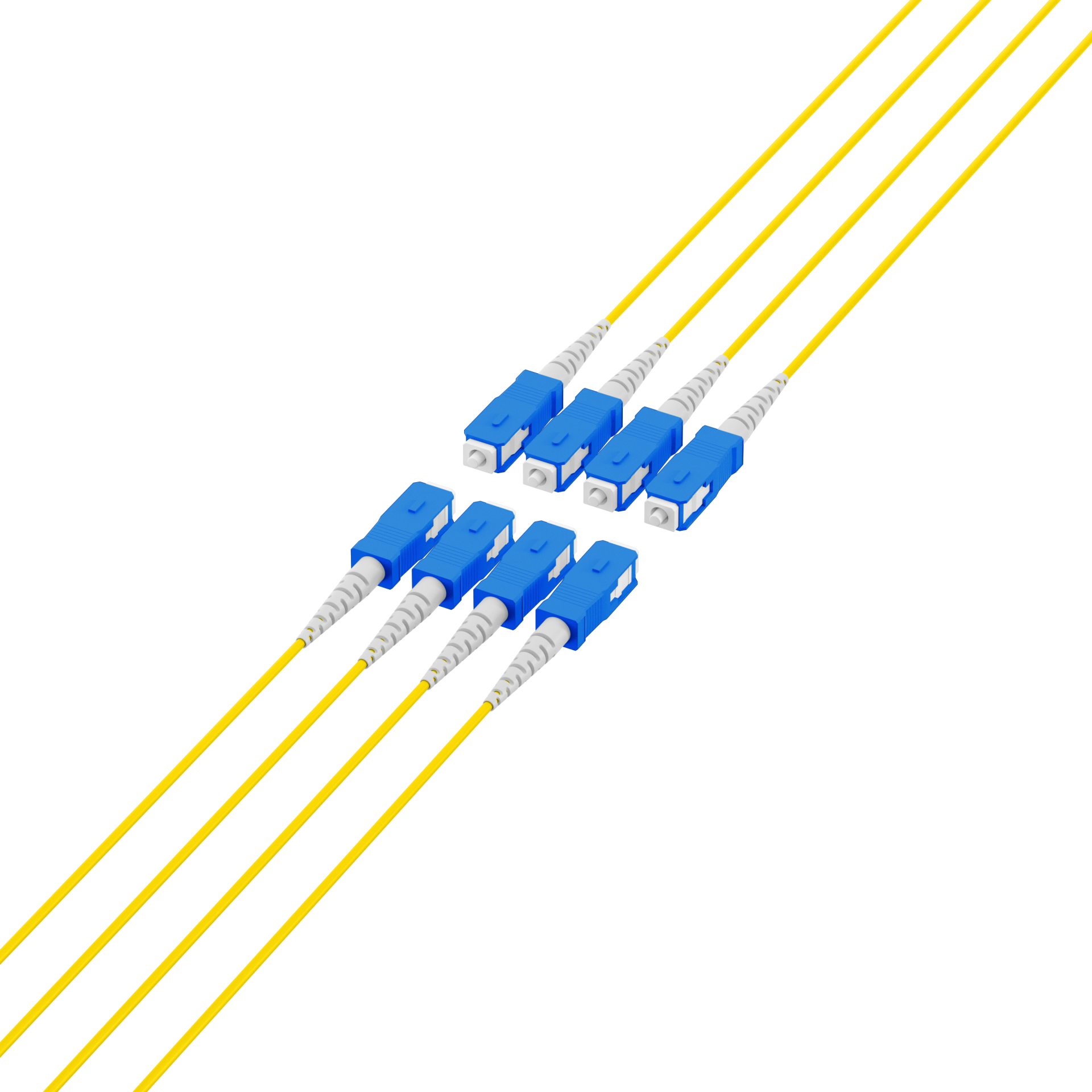

Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided

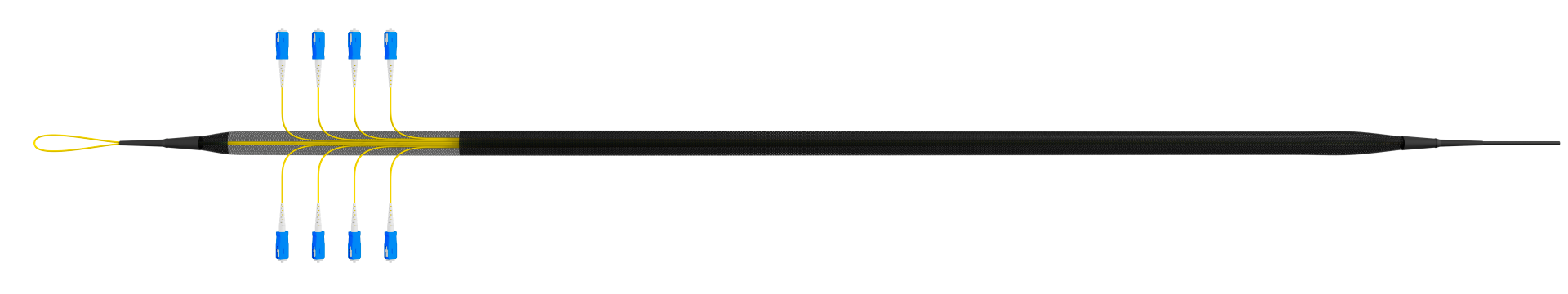

Delivery on both sides with fabric hose as drawing-in tube
Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca
Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm
For many years, EFB has been offering individual fiber optic assemblies from its own production for insertion into cable ducts and shafts. Now there is also a standard line, which is kept in stock. These are pre-assembled trunk cables with SC connectors in the OS2, OM3 and OM4 categories. The stocked lengths can be found in the overview below.
Advantages:
Fast delivery: standard lengths up to 200 m in standard quantities available from stock
Reduction of installation costs: No splicing and assembly equipment required
Reduced installation time: cable ready for direct installation
Traceable quality: cable with serial number and measurement protocol
Performance features:
4, 8 or 12 fibers per cable
Fibre class OS2, OM3 or OM4
Factory production, polishing and function test
Double-sided assembled stepped cable whips (longest length 1 m)
Identification of the remote individual cables with cable markers (numbers)
Serial number on the cable
Attenuation protocol for each individual fiber is provided
Delivery on both sides with fabric hose as drawing-in tube
Delivery up to 40 m in polybag, from 50 m on disposable drum
Raw cable: CPR-Class Dca
Length of the draw-in tube of 130cm, diameter: 4 fiber approx. 10mm, 8 fiber approx. 15mm, 12 fiber approx. 20mm
Technische Eigenschaften
| APC-version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Cable Construction: | Multifiber |
| Cable type: | U-DQ (ZN) BH |
| Cable Ø: | 6.0 mm |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour outer sheath: | black |
| Connector colour 1: | blue |
| Connector colour 2: | blue |
| Dimension Cable divider: | 11.5 x 192 mm |
| Fibre type: | Singlemode 9/125 |
| Jacket material: | LSZH |
| Max. Tension: | 200 N |
| Min. Bending radius (Dynamic): | 180 mm |
| Min. Bending radius (Static): | 90 mm |
| Number of fibres: | 8 |

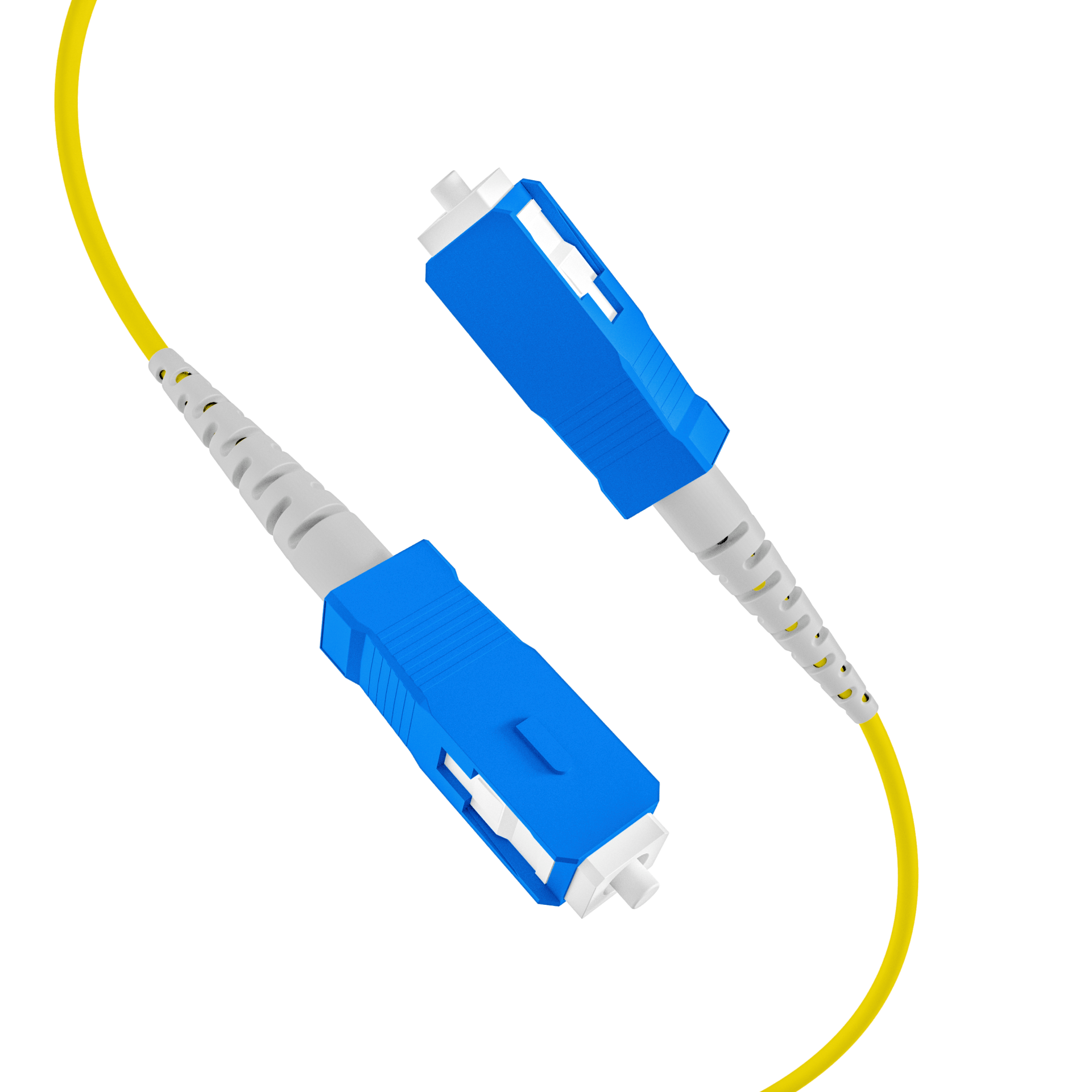

| Type of connector connection 1: | 8 x SC |
| Type of connector connection 2: | 8 x SC |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| O8321S10OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,10m Dca LSZH | 10.0 m | ±5 % | |
| O8321S20OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,20m Dca LSZH | 20.0 m | ±5 % | |
| O8321S30OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,30m Dca LSZH | 30.0 m | ±5 % | |
| O8321S40OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,40m Dca LSZH | 40 m | ±5 % | |
| O8321S50OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,50m Dca LSZH | 50 m | ±5 % | |
| O8321S60OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,60m Dca LSZH | 60 m | ±5 % | |
| O8321S70OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,70m Dca LSZH | 70 m | ±5 % | |
| O8321S80OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,80m Dca LSZH | 80 m | ±5 % | |
| O8321S90OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,90m Dca LSZH | 90 m | ±5 % | |
| O8321S100OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,100m Dca LSZH | 100 m | ±5 % | |
| O8321S110OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,110m Dca LSZH | 110 m | ±5 % | |
| O8321S120OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,120m Dca LSZH | 120 m | ±5 % | |
| O8321S130OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,130m Dca LSZH | 130 m | ±5 % | |
| O8321S140OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,140m Dca LSZH | 140 m | ±5 % | |
| O8321S150OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,150m Dca LSZH | 150 m | ±5 % | |
| O8321S160OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,160m Dca LSZH | 160 m | ±5 % | |
| O8321S170OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,170m Dca LSZH | 170 m | ±5 % | |
| O8321S180OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,180m Dca LSZH | 180 m | ±5 % | |
| O8321S190OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,190m Dca LSZH | 190 m | ±5 % | |
| O8321S200OS2 | Trunk cable U-DQ(ZN)BH OS2 8E (1x8) SC-SC,200m Dca LSZH | 200 m | ±5 % |
