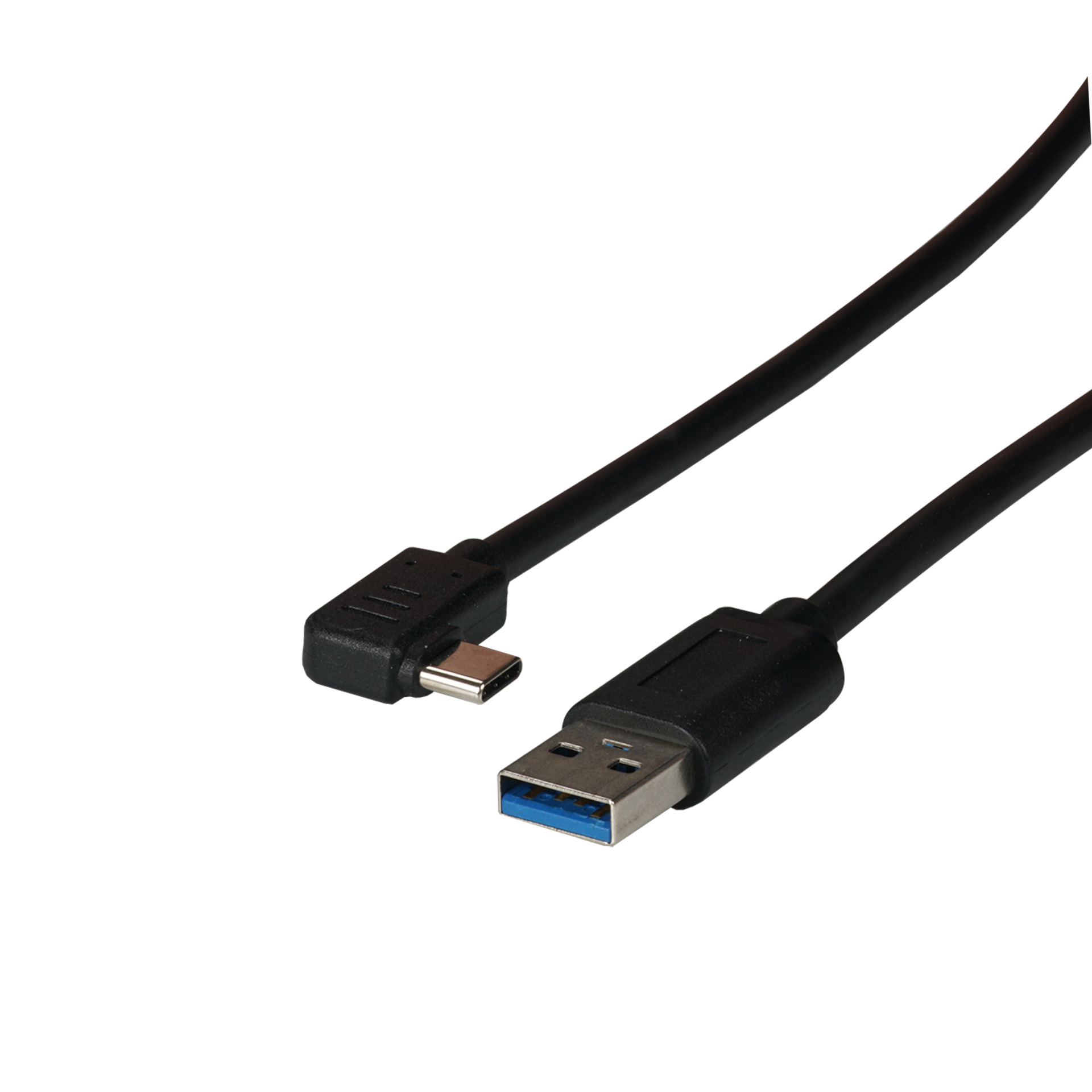

USB 3.2 Gen1 5Gbit 3A Cable, Type-A - Type-C 90° angled
USB 3.2 Gen1 5Gbit 3A Cable, Type-A m - Type-C m, 3.0m
Varenummer:
EBUSBC-USBC5GAK.3
EAN-nr.:
4049759271954
Produktinformation til USB 3.2 Gen1 5Gbit 3A Cable, Type-A m - Type-C m, 3.0m
USB 3.2 SuperSpeed connection cable Type-A male to 90° angled Type-C plug – maximum possible data transfer rate 5 Gbit/s
Max.current 3000 mA
Max. possible electrical power 15 W
Type-C plug twist-proof
Max.current 3000 mA
Max. possible electrical power 15 W
Type-C plug twist-proof
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 5 Gbit/s |
| Beding radius (dynamic/static): | 12 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Compliant with: | USB Charger, USB PSU, Powerbank, Smartphone |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 90° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |
| Dust cover: | No |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC |
| Material Inner Conductor: | BC |
| Material jacket: | PVC |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 4 |
| Number of shieldings: | double |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 26.9mm x 16mm x7mm |
| Plug dimensions Side 2: | 26mm x12.5mm x7mm |
| Printing: | E320450 RU AWM STYLE 2725 80℃ 30V VW-1 |
| Scope of delivery: | 1 x USB Cable |
| Shielded: | True |
| Speed: | 5 Gbit/s |
| Storage Temperature: | -10 – 60 °C |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | USB-A |
| Type of packaging: | recycled plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Version: | USB 3.2 Gen 1 |
| Warranty: | 24 months |
| With termination resistor: | False |
| eARC: | False |
Variants
| ON | Label | Color | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| EBUSBC-USBC5GAK.0,5 | USB 3.2 Gen1 5Gbit 3A Cable, Type-A m - Type-C m, 0.5m | black | 0.5 m | 4.5 mm | 30AWG | |
| EBUSBC-USBC5GAK.1 | USB 3.2 Gen1 5Gbit 3A Cable, Type-A m - Type-C m, 1.0m | black | 1.0 m | 4.5 mm | 30AWG | |
| EBUSBC-USBC5GAK.3 | USB 3.2 Gen1 5Gbit 3A Cable, Type-A m - Type-C m, 3.0m | black | 3.0 m | 4.5 mm | 30AWG |
Sikkerhedsanvisninger
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
