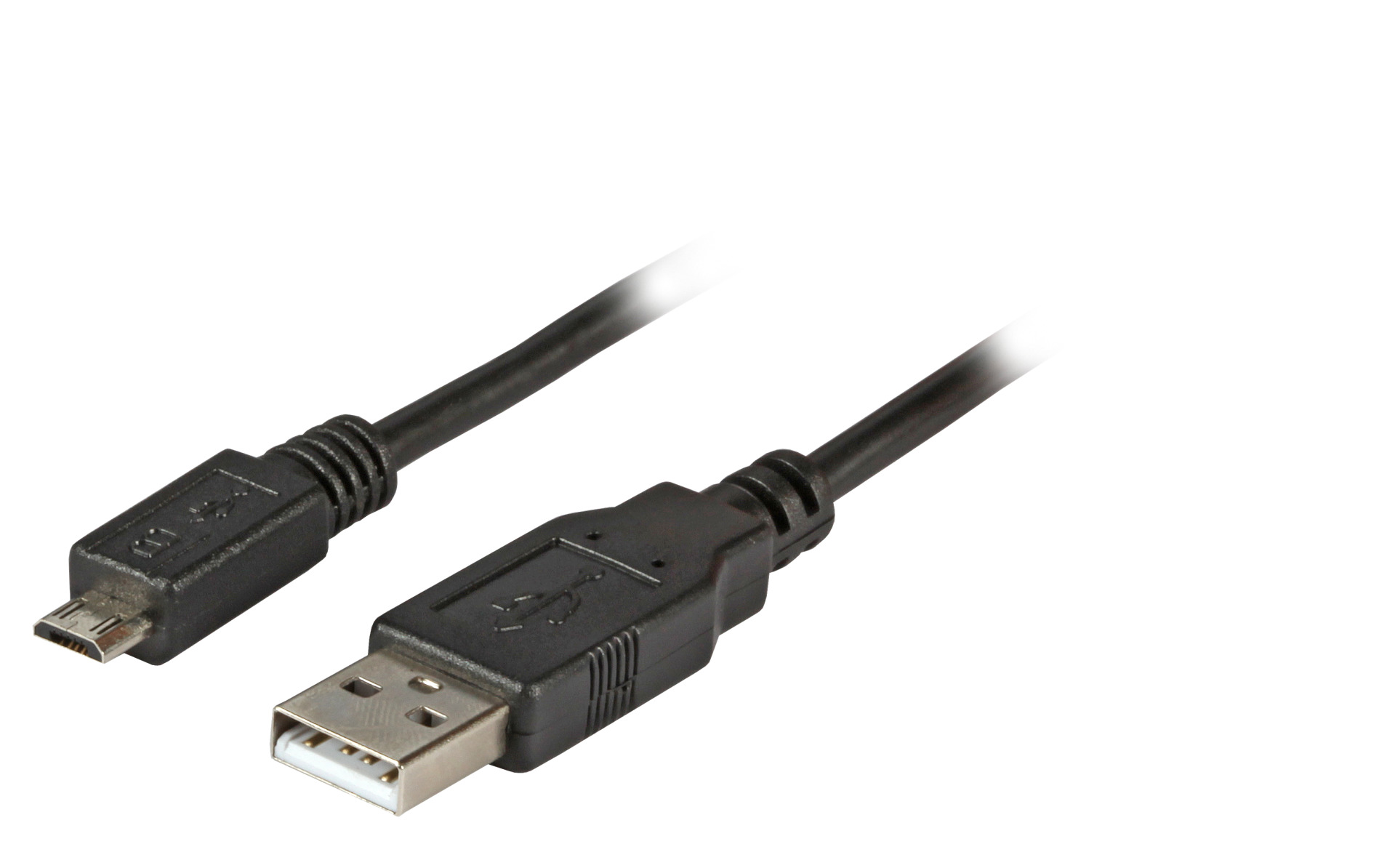

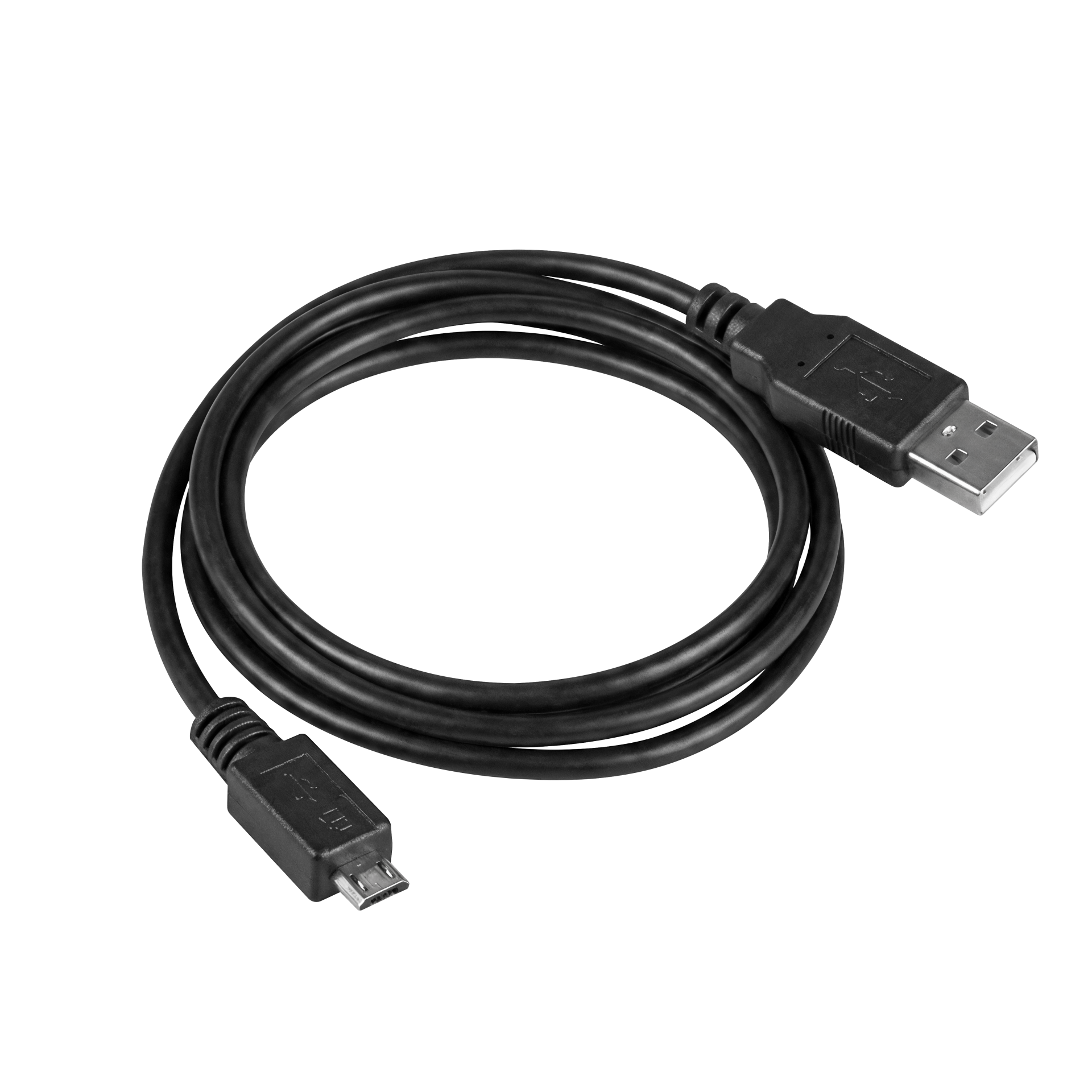

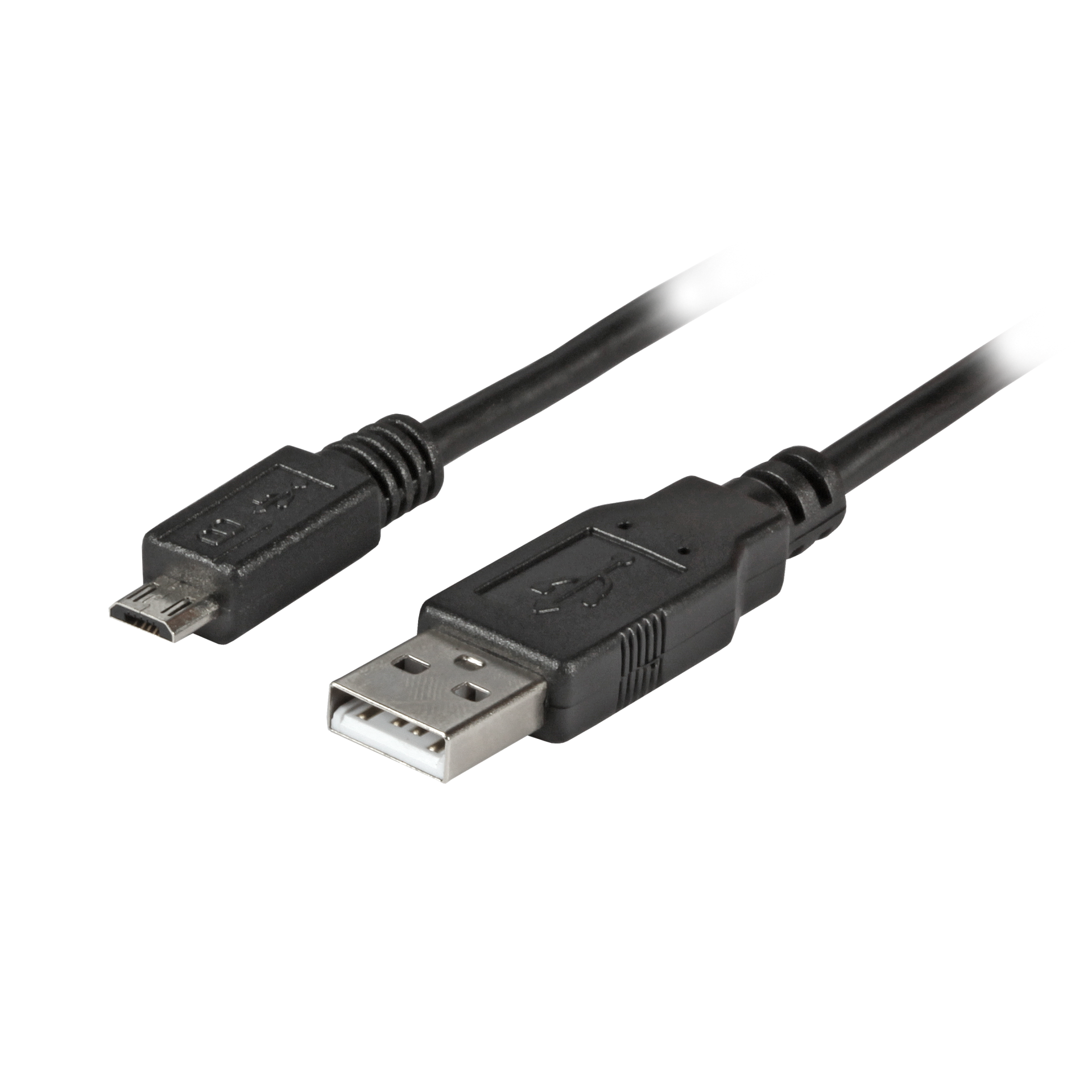

USB2.0 Connection Cable Type-A Plug to Type Micro-B Plug, Premium
USB2.0 Connection Cable A-Micro-B 5pol., M-M, 0.5m, black, Premium
Varenummer:
K5232SW.0,5
EAN Nr.:
4049759133702
Produktinformation til USB2.0 Connection Cable A-Micro-B 5pol., M-M, 0.5m, black, Premium
Supports data transfer rates up to 480 Mbps. Conductor material: copper. Conductor construction: AWG28 / AWG24. Shielding: foil + 80% braided shield. PVC jacket.
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 480 Mbit/s |
| Beding radius (dynamic/static): | 45 mm |
| CEC: | False |
| Cable set: | False |
| Chip: | False |
| Compliant with: | Smartphone,ipad,MP3 player,Printer,Keyboard,Mouse |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | TC |
| Material jacket: | PVC |
| Max. Transfer Rate: | 480 Mbit/s |
| Max. mating cycles: | 1500 |
| Model: | Round Cable |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 5 |
| Number of shieldings: | double |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 36.7mm x 12mm x 4.5mm |
| Plug dimensions Side 2: | 13.6mm x 6.85mm x 1.8mm |
| Printing: | HI-SPEED USB Revision 2.0 SHIELDED 28AWG/1PR+24AWG/2C VW-1 80°C 30V |
| Scope of delivery: | 1 x USB Cable |
| Shielded: | True |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB-A |
| Type of connector connection 2: | USB Micro-B |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 2 x 0.5m |
| Version: | USB 2.0 High-Speed |
| Warranty: | 24 months |
| With termination resistor: | False |
| eARC: | False |
Varianten
| Art. Nr. | Bezeichnung | Colour | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| K5232SW.0,5 | USB2.0 Connection Cable A-Micro-B 5pol., M-M, 0.5m, black, Premium | black | 0.5 m | 4.5 mm | 24+28AWG | |
| K5232SW.1 | USB2.0 Connection Cable A-Micro-B 5pol., M-M, 1.0m, black, Premium | black | 1.0 m | 4.5 mm | 24+28AWG | |
| K5232SW.1,8 | USB2.0 Connection Cable A-Micro-B 5pol., M-M, 1.8m, black, Premium | black | 1.8 m | - | - |
