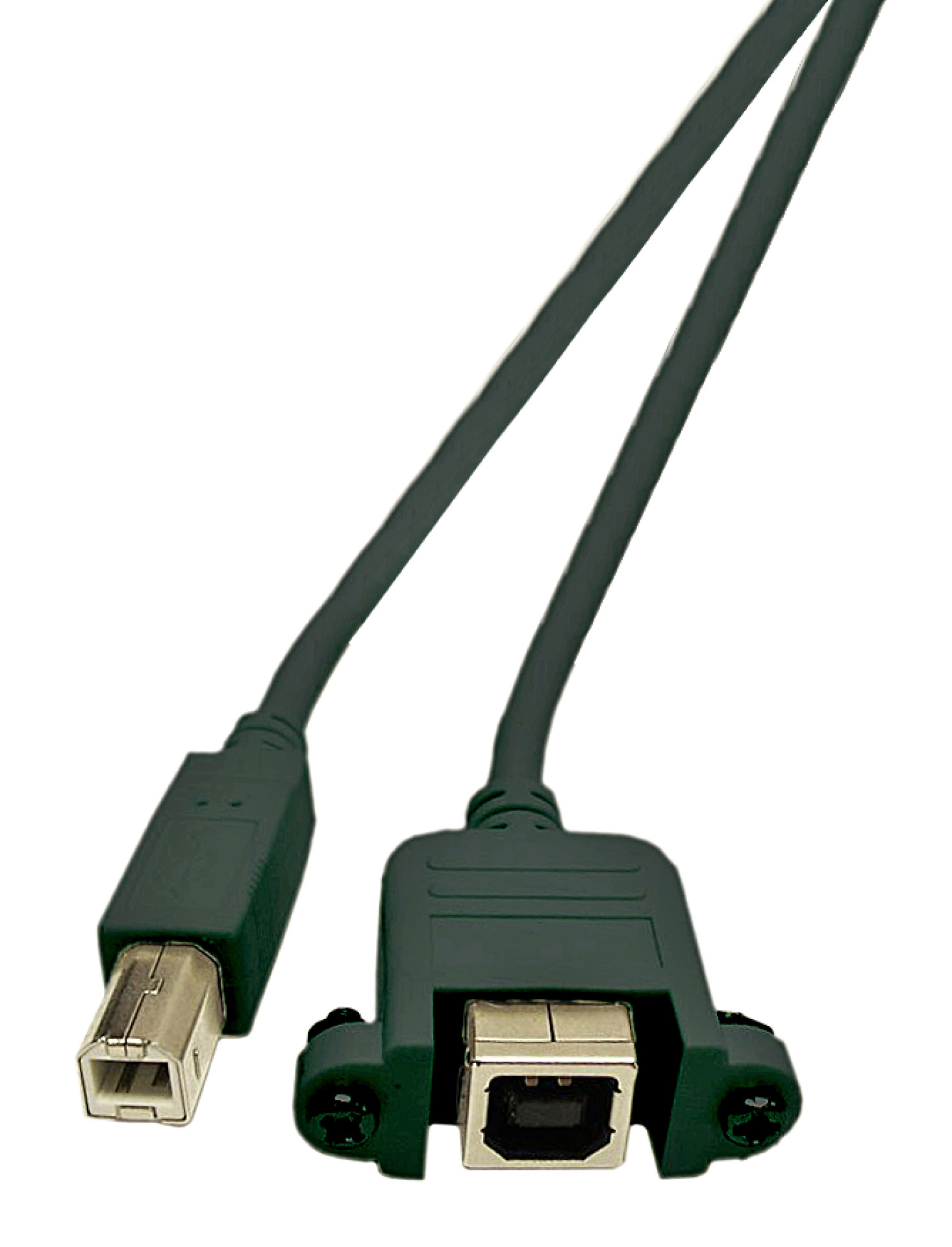

USB2.0 Extension Cable Type B Plug to Type B Panel jack, Classic
USB2.0 Extension Cable Type B Plug to Type B Panel jack, Classic
Varenummer:
K5293SW.3V2
EAN Nr.:
4049759132545
Produktinformation til USB2.0 Extension Cable Type B Plug to Type B Panel jack, Classic
Supports data transmission rates up to 480 Mbit/s. Wire construction: AWG28 / AWG24. Shielded: folie + braiding. Plug moulded.
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 480 Mbit/s |
| Beding radius (dynamic/static): | 45 mm |
| CEC: | False |
| Cable set: | False |
| Chip: | False |
| Compliant with: | Scanner,Printer,External hard drive,Medical equipment |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Jack |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | TC |
| Material jacket: | PVC |
| Max. mating cycles: | 1500 |
| Model: | Round Cable |
| Number of poles connection 1: | 4 |
| Number of poles connection 2: | 4 |
| Number of shieldings: | double |
| Operating temperature: | -10 – 80 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 36.5mm x 8mm x 6.6mm |
| Plug dimensions Side 2: | 21.6mm x 8mm x 7.26mm |
| Printing: | HI-SPEED USB Revision 2.0 SHIELDED 28AWG/1PR+ 24AWG/2C VW-1 80°C 30V |
| Scope of delivery: | 1 x USB Cable |
| Shielded: | True |
| Speed: | 480 Mbit/s |
| Storage Temperature: | -10 – 80 °C |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB-B |
| Type of connector connection 2: | USB-B |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 2 x 1m |
| Version: | USB 2.0 High-Speed |
| Warranty: | 24 months |
| With termination resistor: | False |
| eARC: | False |
Varianten
| Art. Nr. | Bezeichnung | Color | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| K5293SW.0,5V2 | USB2.0 Extension Cable B-B, M-F (panel type), 0.5m, black, Classic | black | 0.5 m | - | - | |
| K5293SW.1V2 | USB2.0 Extension Cable B-B, M-F (panel type), 1.0m, black, Classic | black | 1.0 m | 4.5 mm | 24+28AWG | |
| K5293SW.1,8V2 | USB2.0 Extension Cable B-B, M-F (panel type), 1.8m, black, Classic | black | 1.8 m | 4.5 mm | 24+28AWG | |
| K5293SW.3V2 | USB2.0 Extension Cable Type B Plug to Type B Panel jack, Classic | black | 3.0 m | 4.5 mm | 24+28AWG |
Sikkerhedsanvisninger
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
