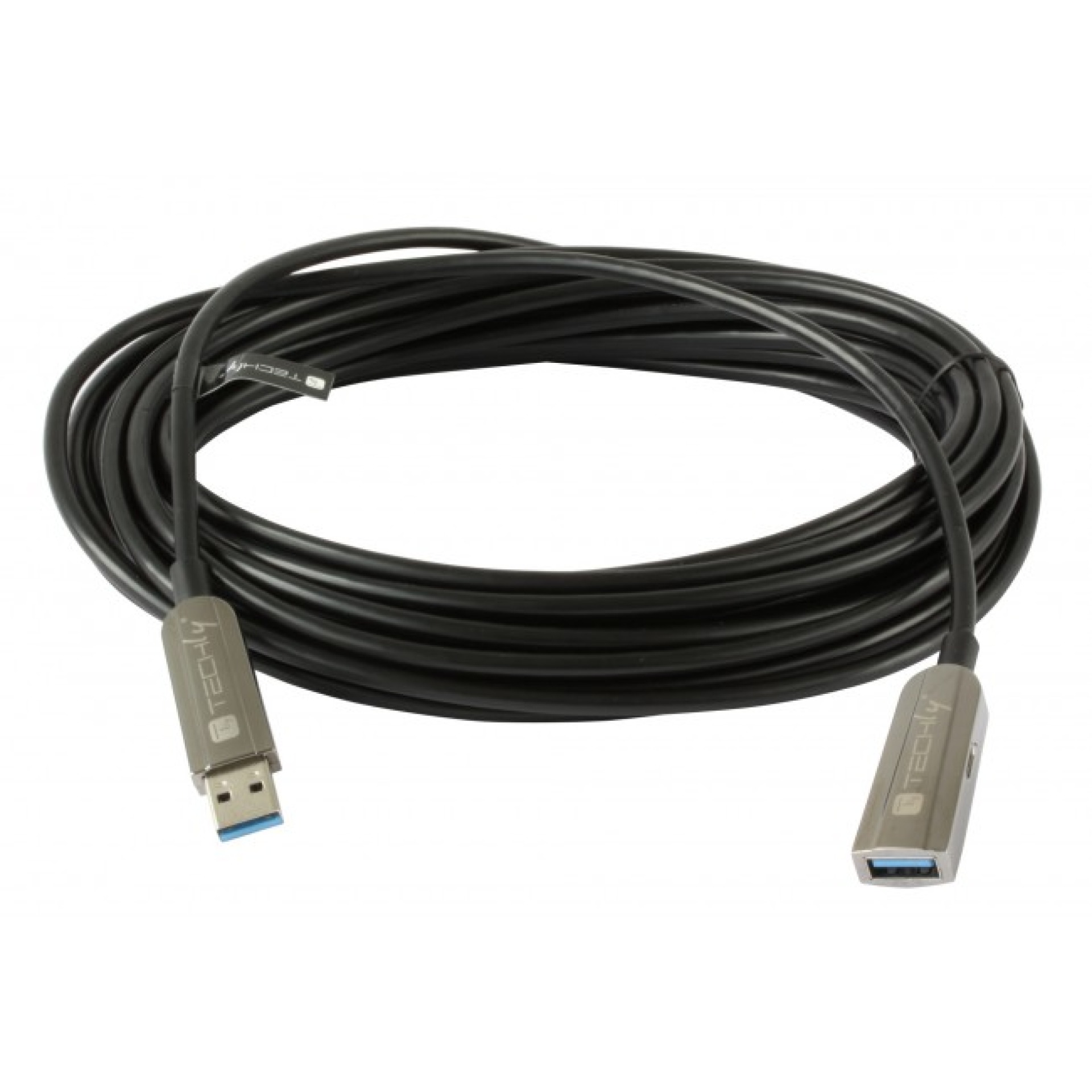

USB3.0 SuperSpeed AOC Extender cable, A-A, M-F, up to 100m

Priser kun synlige for indloggede brugere

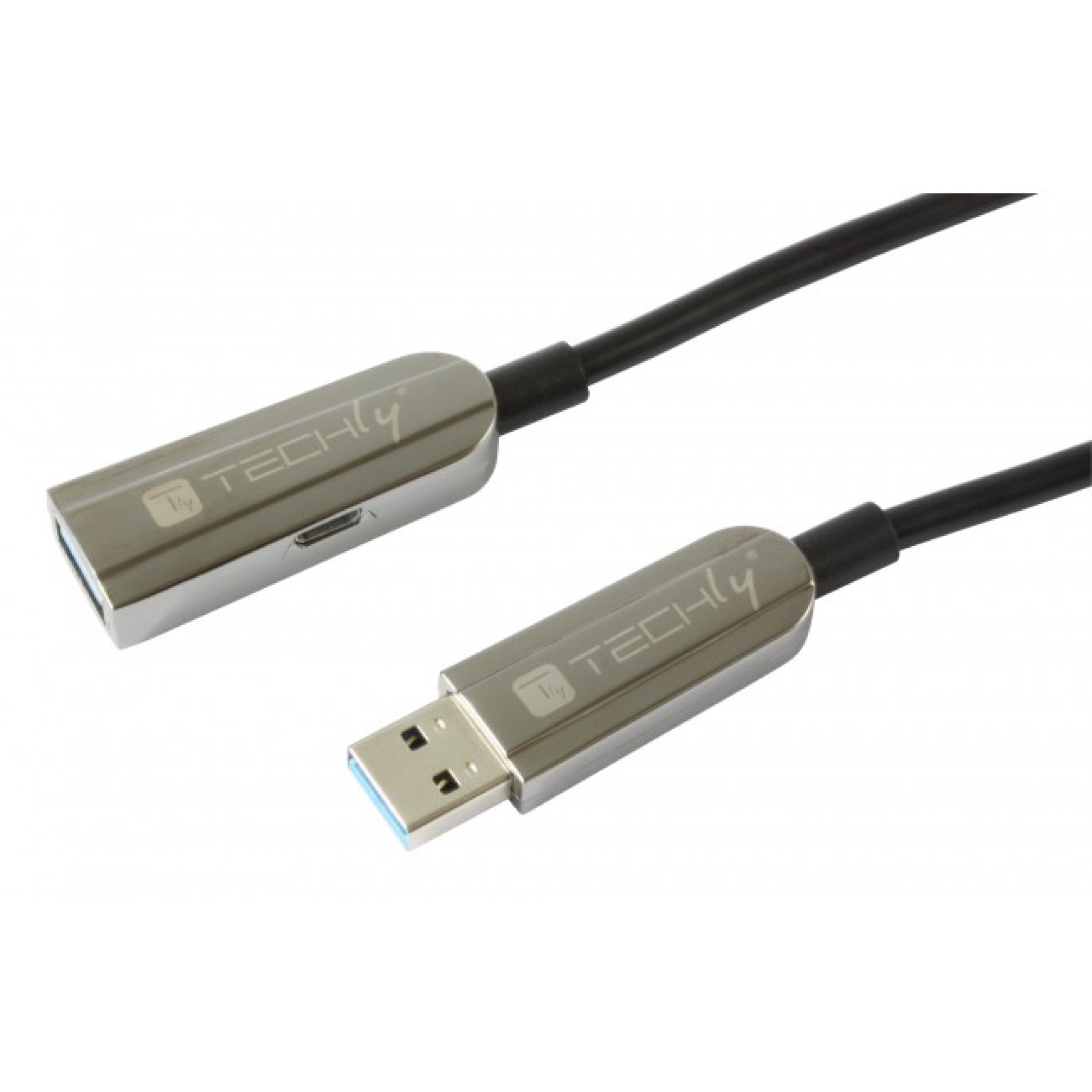

USB3.0 AOC Cable, A-A, M-F., black 10 m
Varenummer: ICOC-U3AMF-HY-010
EAN nr.: 8051128108200

Produktinformation für USB3.0 AOC Cable, A-A, M-F., black 10 m

The USB 3.0 active optical cable is designed to be fully compliant with SuperSpeed ​​USB electrical specifications and uses electrical-to-optical conversion on the cable ends to improve cable speed and distance performance that supports much longer distances than standard cable in copper, with lengths up to 100 meters. Thanks to an ultra-thin profile and a long reach, USB 3.0 AOC breaks the distance barrier and introduces USB 3.0 devices into a completely new range of applications, such as long-distance viewing, security and high-definition surveillance, the control of industrial and medical machines.
AOC offers a quick solution to provide longer cables for the USB 3.0 application.

• Convert the USB electrical data signal into an optical signal
• Metal connector covers for superior EMI performance
• Low energy consumption
• Plug and play, no driver installation required
• Lighter, thinner, cable diameter of only 4.6 mm
• Windows and Mac compatible

Technical specifications
• USB3.0 AOC fiber optic hybrid cable
• Supports maximum bandwidth up to 5 Gbps
• OD cable: 4.6 mm
• Maximum range up to 100 meters
• Thinner, lighter and softer than ordinary copper wire
• Connectors: USB type A male / female
• USB extension length: 100 meters
• Only USB3.0 compatible, not compatible to USB2.0. Before ordering please check USB Version of your USB device
Package Contents
• USB 3.0 AOC fiber optic extension 100m
• USB A / Micro B cable 1 meter
• 5V 2.1A USB power supply

Tekniske egenskaber

Connection type connection 1: plug
Connection type connection 2: Jack
Number of poles connection 1: 9
Number of poles connection 2: 9
Type of connector connection 1: USB-A
Type of connector connection 2: USB-A


Art. Nej. Betegnelse Colour Length Diameter
ICOC-U3AMF-HY-010 USB3.0 AOC Cable, A-A, M-F., black 10 m black 10.0 m 4.6 mm Vælg varianter
ICOC-U3AMF-HY-020 USB3.0 AOC Cable, A-A, M-F., black 20 m black 20.0 m 4.6 mm Vælg varianter
ICOC-U3AMF-HY-030 USB3.0 AOC Kabel, A-A, St-Bu.,Schwarz 30 m black 30.0 m 4.6 mm Vælg varianter
ICOC-U3AMF-HY-050 USB3.0 AOC Cable, A-A, M-F., black 50 m black 50.0 m 4.6 mm Vælg varianter
ICOC-U3AMF-HY-100 USB3.0 AOC Cable, A-A, M-F., black 100 m black 100.0 m 4.6 mm Vælg varianter
