Fiber Optic Module for WX4500

Priser kun synlige for indloggede brugere

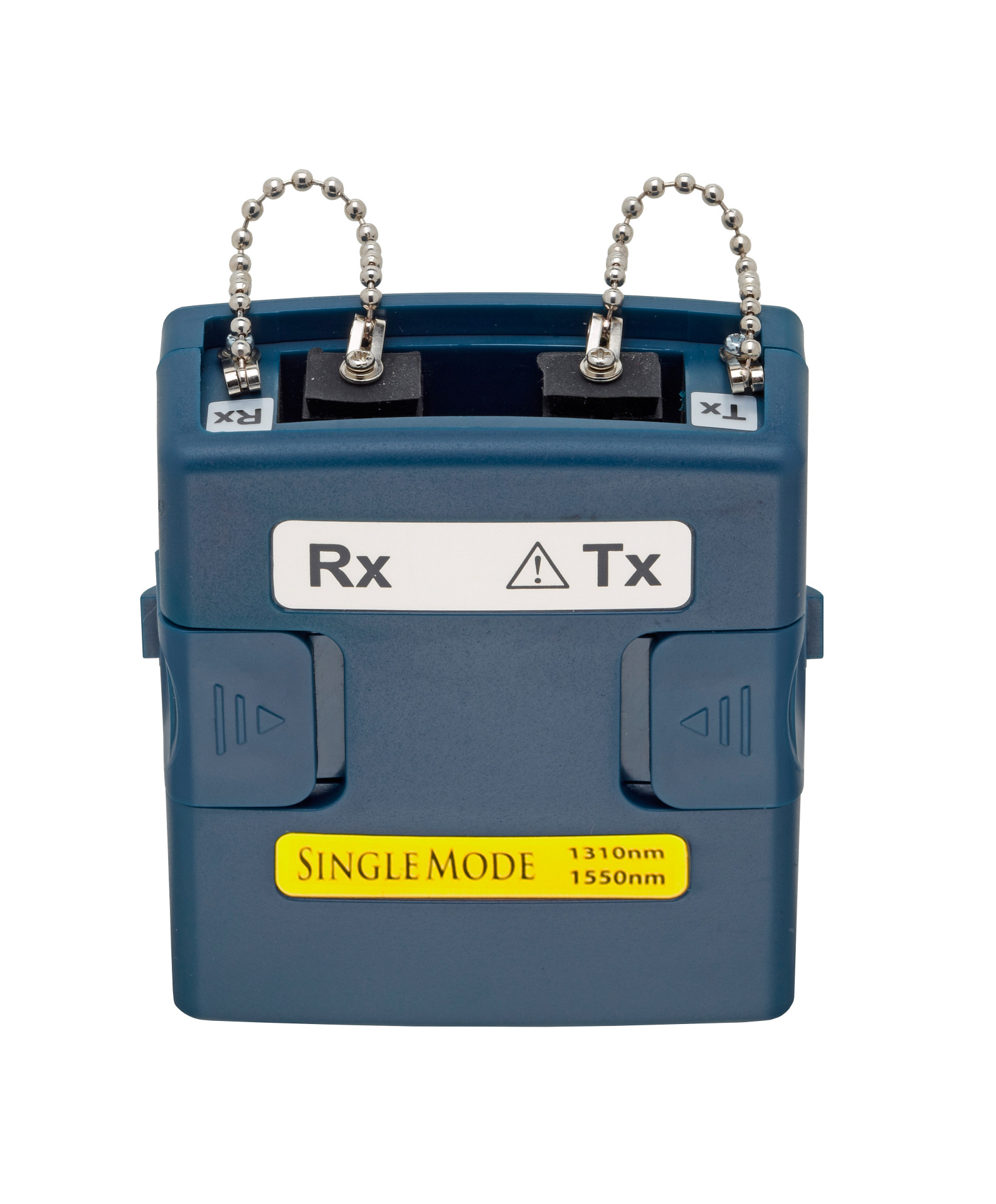

WX4500 Singlemode-FO- measurement modul(1310nm and 1550nm)
Varenummer: WX_AD_SM2
EAN nr.: 4049759114732

Produktinformation für WX4500 Singlemode-FO- measurement modul(1310nm and 1550nm)

For precise standard, compliant certification of structured cabling systems with a frequency range of 1 to 1600 MHz.
Standards: ISO/IEC11801, Cenelec EN50173 and TIA568.
• TP-cable certification 1 to 1600 MHz for:
C / D / E / EA / F / FA / & Cat.3 / 5e / 6 / 6A / 7 / 7A
• Operating concept: Dual-control system (DCS“TM“) with two identical handsets
• High precision, exceeds Level IV
• Professional documentation generator
• Impact-proof case, fall and shock-proof-design, long battery life
Optional WireXpert Fiber Adapters offer full certification testing for multimode and singlemode fiber installations. Dual wavelength end-to-end testing is supported for
both SM and MM fibers.
• Power Supply
• Removable / rechargeable Lo-ion accu provide about 8 hours of continuous operation
• External power adapter: 100..240 V AC, plugs into the power jack of the unit
• Dimensions 232 x 126 x 86.7 mm, weight ca. 1.4 kg
• More than 500 MByte (more than 2000 test results) of internal flash memory
• USB flash driver (1 GB included, 32 GB max.) allows for flexible test record storage

Tekniske egenskaber

Measured value memory: True
Suitable for network protocol measurement: False
Type of indication: LCD/monitor
With PC/printer interface: True
