10" Wall Housings, Depth 300 mm

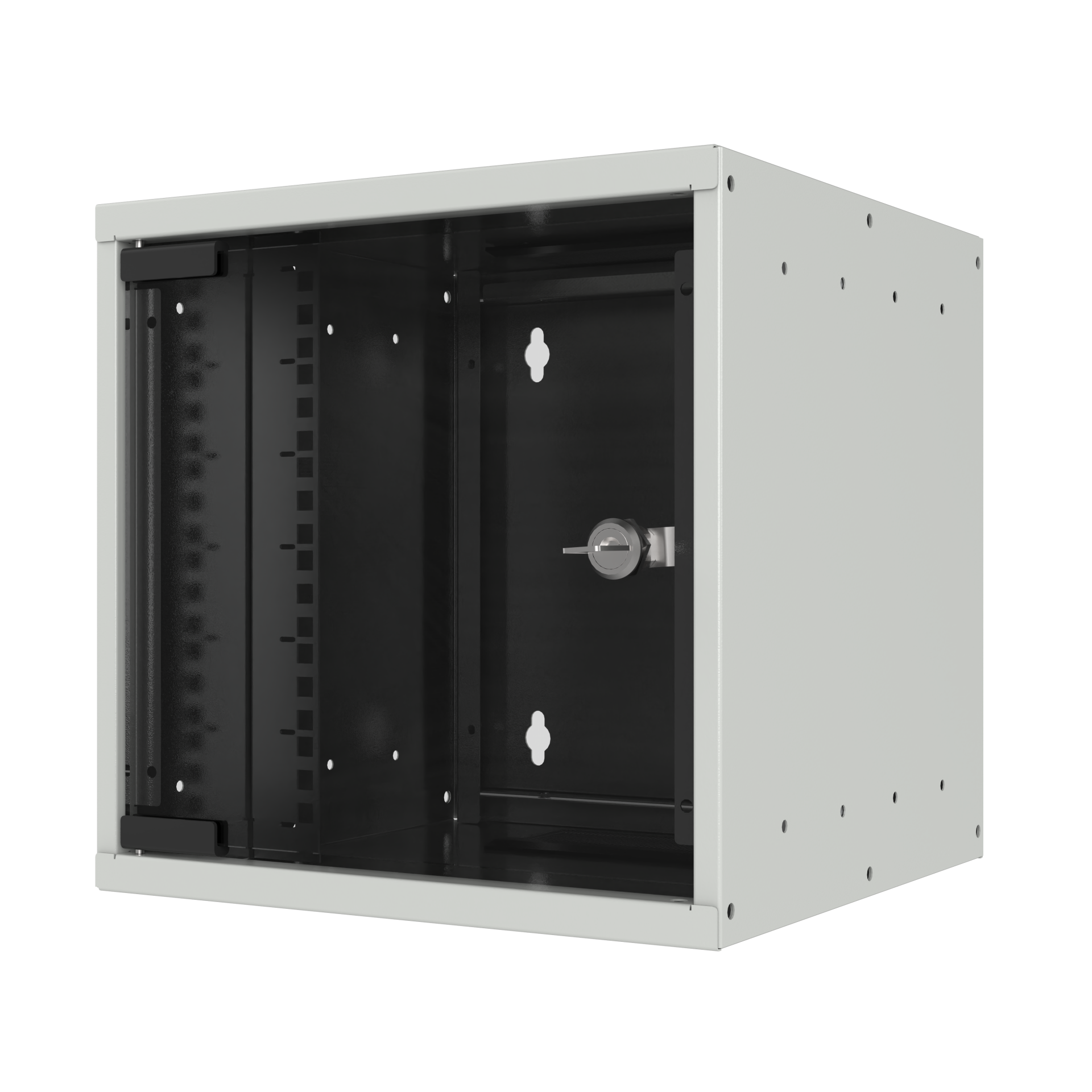

10“ 4U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL7035
Varenummer:
WGB-1004GR.30
EAN Nr.:
4049759312732
Produktinformation til 10“ 4U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL7035
Steel sheet housing, self-ventilated, screwed, pre-assembled

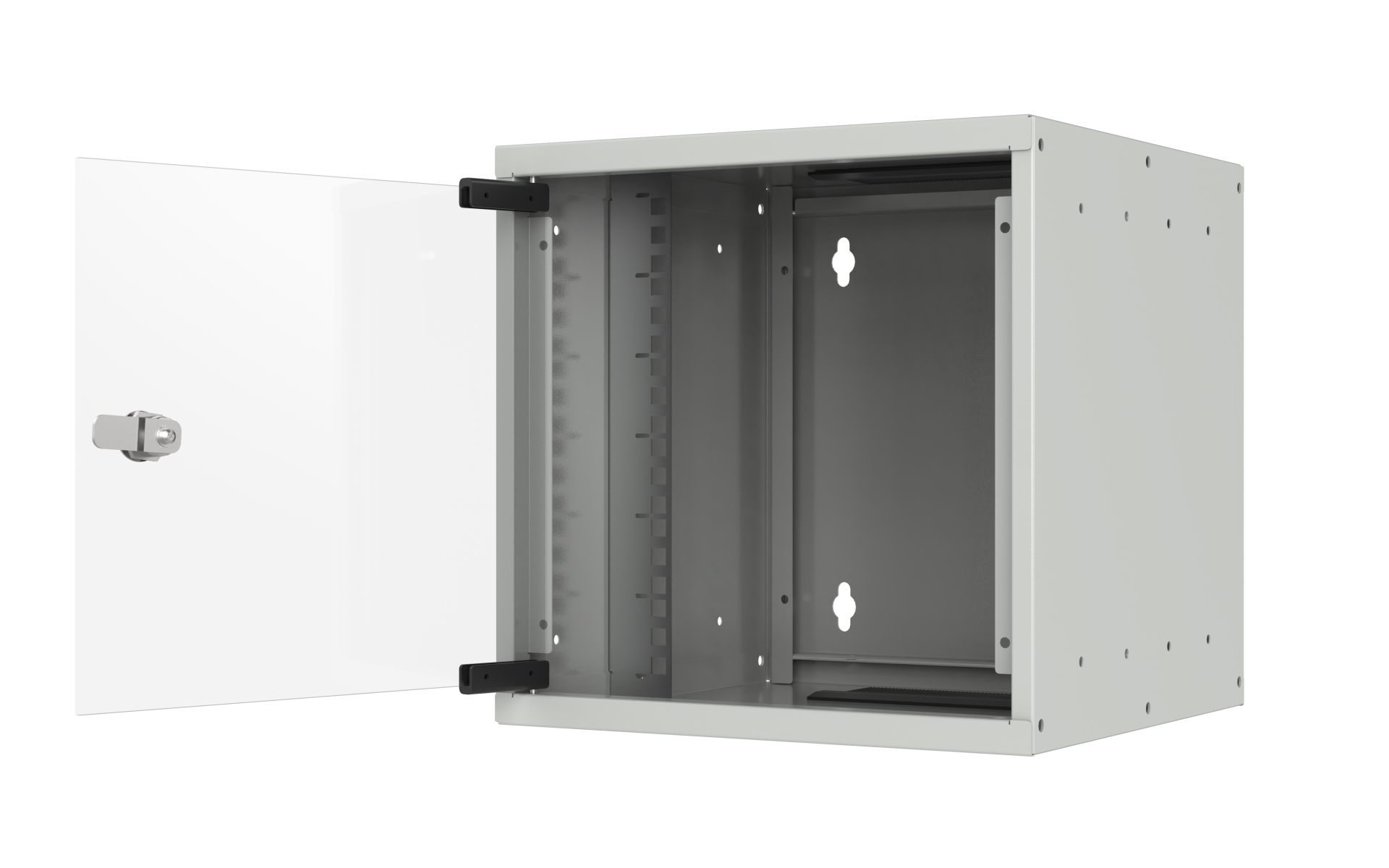

Front door lockable, with latch, door opening angle 120°
Front door fully made of certified safety glass (4 mm)
Door stop left-sided
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 10“ profile rails, depth adjustable in 60 mm raster
Max. mounting depth 230 mm (at delivery: ca. 170 mm)
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure white
Width 312 mm, height 300 mm
Max. load 30 kg, protection degree IP20
Delivery incl. 1 x brush, 1 x plastic cover, key
Front door lockable, with latch, door opening angle 120°
Front door fully made of certified safety glass (4 mm)
Door stop left-sided
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 10“ profile rails, depth adjustable in 60 mm raster
Max. mounting depth 230 mm (at delivery: ca. 170 mm)
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, pure white
Width 312 mm, height 300 mm
Max. load 30 kg, protection degree IP20
Delivery incl. 1 x brush, 1 x plastic cover, key
Tekniske egenskaber
| Cabinet Series: | 10" Wall Housing BASIC, pre-assembled |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 254 mm (10 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | Powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianten
| Art. Nr. | Bezeichnung | Max. Load | Width | Color | Depth | Number of height units | Height | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| WGB-1004GR.30 | 10“ 4U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL7035 | 30 kg | 312 mm | grey | 300 mm | 4 U | 215 mm | 7035 | |
| WGB-1004TS.30 | 10“ 4U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL9005 | 30 kg | 312 mm | black | 300 mm | 4 U | 215 mm | 9005 | |
| WGB-1004WS.30 | 10“ 4U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL9010 | 30 kg | 312 mm | white | 300 mm | 4 U | 215 mm | 9010 | |
| WGB-1006GR.30 | 10“ 6U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL7035 | 30 kg | 312 mm | grey | 300 mm | 6 U | 30 mm | 7035 | |
| WGB-1006TS.30 | 10“ 6U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL9005 | 30 kg | 312 mm | black | 300 mm | 6 U | 30 mm | 9005 | |
| WGB-1006WS.30 | 10“ 6U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL9010 | 30 kg | 312 mm | white | 300 mm | 6 U | 30 mm | 9010 | |
| WGB-1009GR.30 | 10“ 9U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL7035 | 30 kg | 312 mm | grey | 300 mm | 9 U | 437 mm | 7035 | |
| WGB-1009TS.30 | 10“ 9U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL9005 | 30 kg | 312 mm | black | 300 mm | 9 U | 437 mm | 9005 | |
| WGB-1009WS.30 | 10“ 9U Wall Housing, Depth 300 mm, 1-piece, pre-assembled, RAL9010 | 30 kg | 312 mm | white | 300 mm | 9 U | 437 mm | 9010 |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
