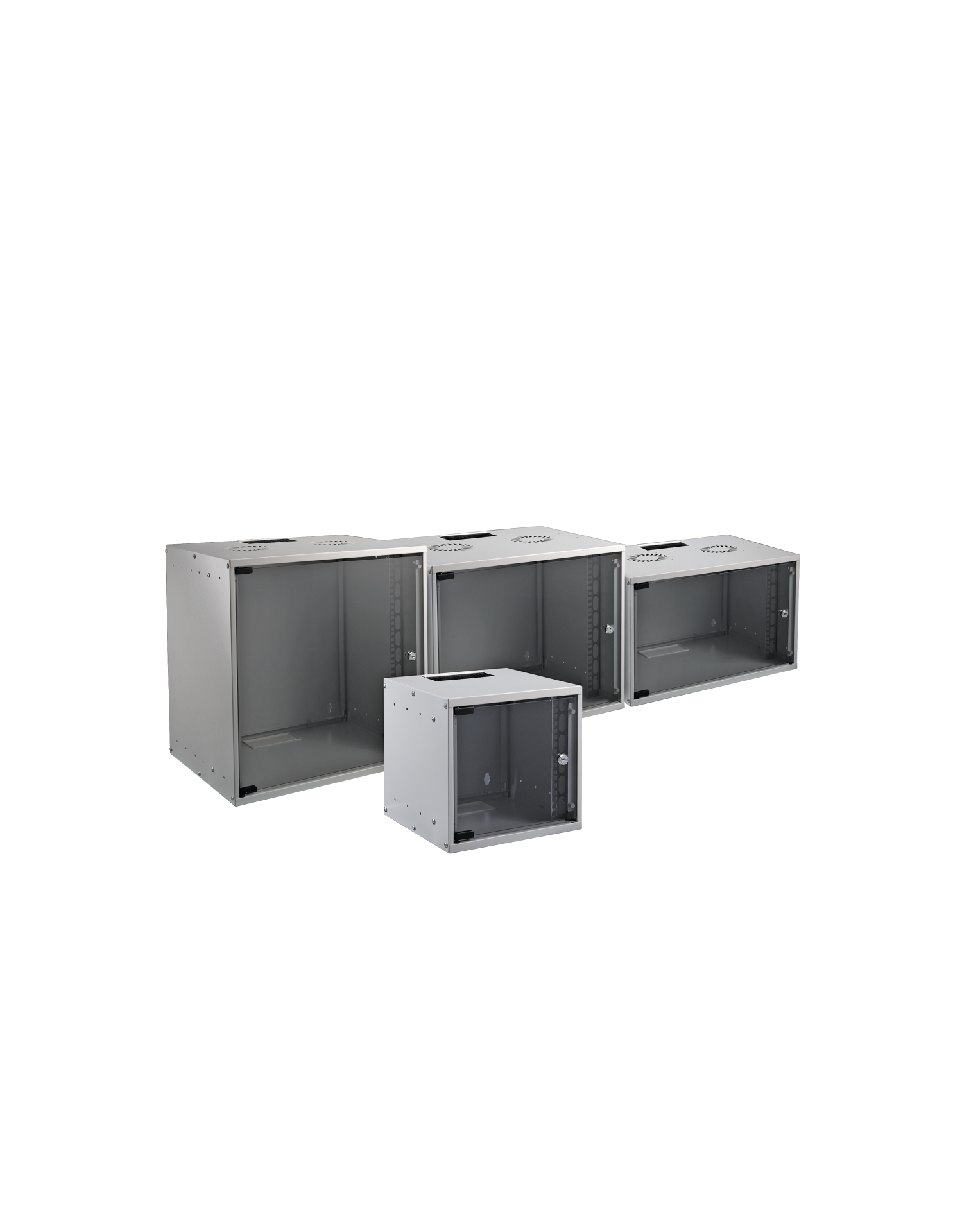

19" Wall Housing BASIC, Depth 450 mm, RAL7035



19“ 06U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL7035
Varenummer:
WGB-1906GR.45
EAN Nr.:
4049759206925
Produktinformation til 19“ 06U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL7035
19" Wall housing 1-part, type Flat Pack
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-adjustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key
Delivery unassembled in 1 carton with handle
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-adjustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key
Delivery unassembled in 1 carton with handle
Tekniske egenskaber
Degree of protection: | IP20 |
---|---|
Demountable: | True |
Material: | steel |
Model: | With permanent frame |
Modular spacing: | 482.6 mm (19 inch) |
Mounting level: | Front side |
Number of cartons: | 1 |
Number of doors: | 1 |
Surface finishing: | powder coating |
Type of profile rail: | L-shaped |
Type of ventilation: | Passive |
With earthing: | True |
With front door: | True |
With roof plate: | True |
With sidewall: | True |
Varianten
Art. Nr. | Bezeichnung | Colour | Width | Max. Load | Depth | Number of height units | Height | RAL-number | |
---|---|---|---|---|---|---|---|---|---|
WGB-1906GR.45 | 19“ 06U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL7035 | grey | 535 mm | 80 kg | 450 mm | 6 U | 304 mm | 7035 | |
WGB-1909GR.45 | 19“ 09U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL7035 | grey | 535 mm | 80 kg | 450 mm | 9 U | 437 mm | 7035 | |
WGB-1912GR.45 | 19“ 12U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL7035 | grey | 535 mm | 80 kg | 450 mm | 12 U | 571 mm | 7035 | |
WGB-1915GR.45 | 19“ 15U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL7035 | grey | 535 mm | 80 kg | 450 mm | 15 U | 707 mm | 7035 |
