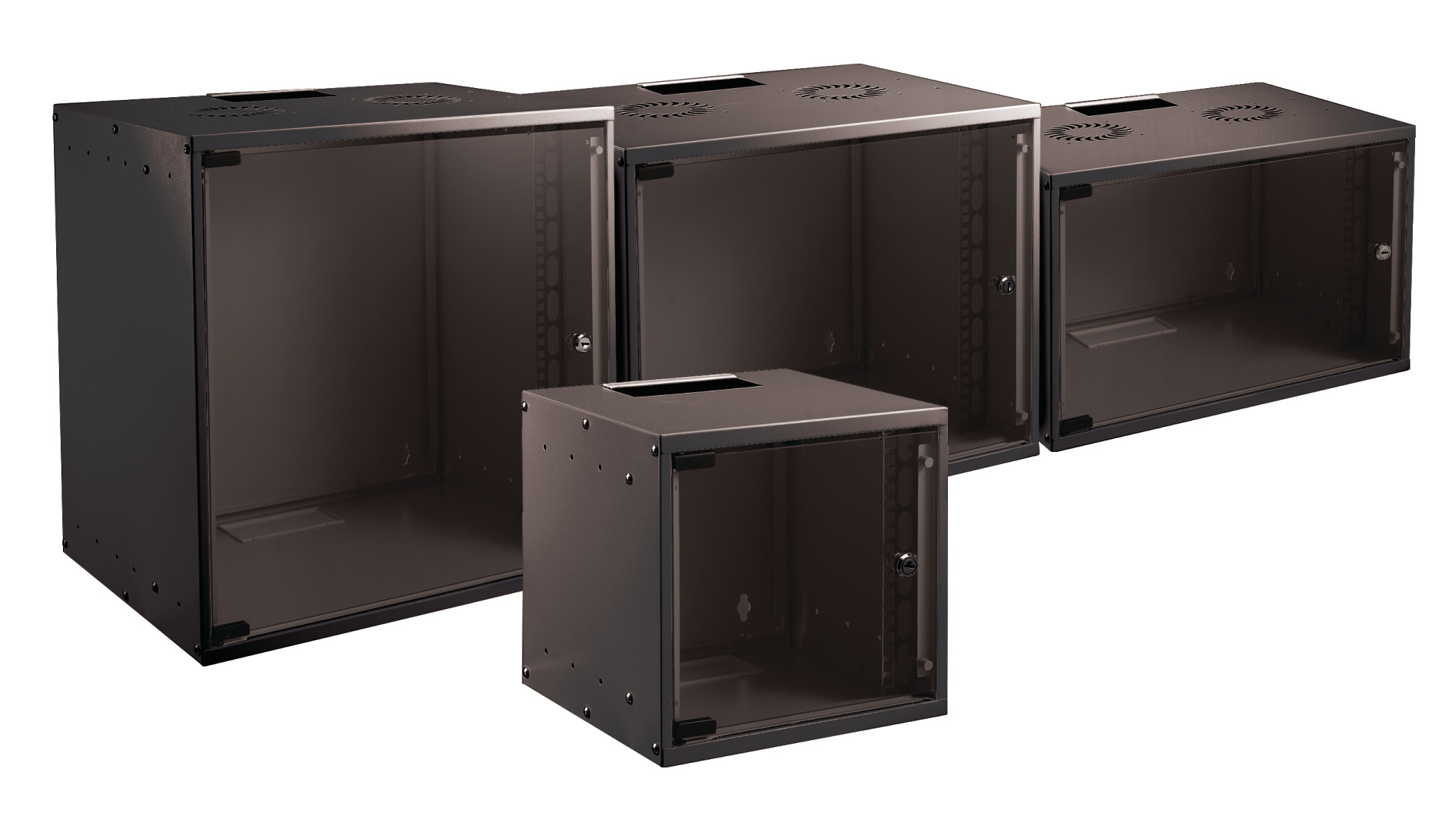

19" Wall Housing BASIC, Depth 450 mm, RAL9005

19“ 06U Wall Housing Basic, Depth 450 mm,1-Part, Flat Pack, RAL9005
Varenummer: WGB-1906TS.45
EAN-nr.: 4049759206949
Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:
Piece

Giv mig besked, når produktet er på lager igen.

Produktinformation til 19“ 06U Wall Housing Basic, Depth 450 mm,1-Part, Flat Pack, RAL9005

19" Wall housing 1-part, type Flat Pack
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key

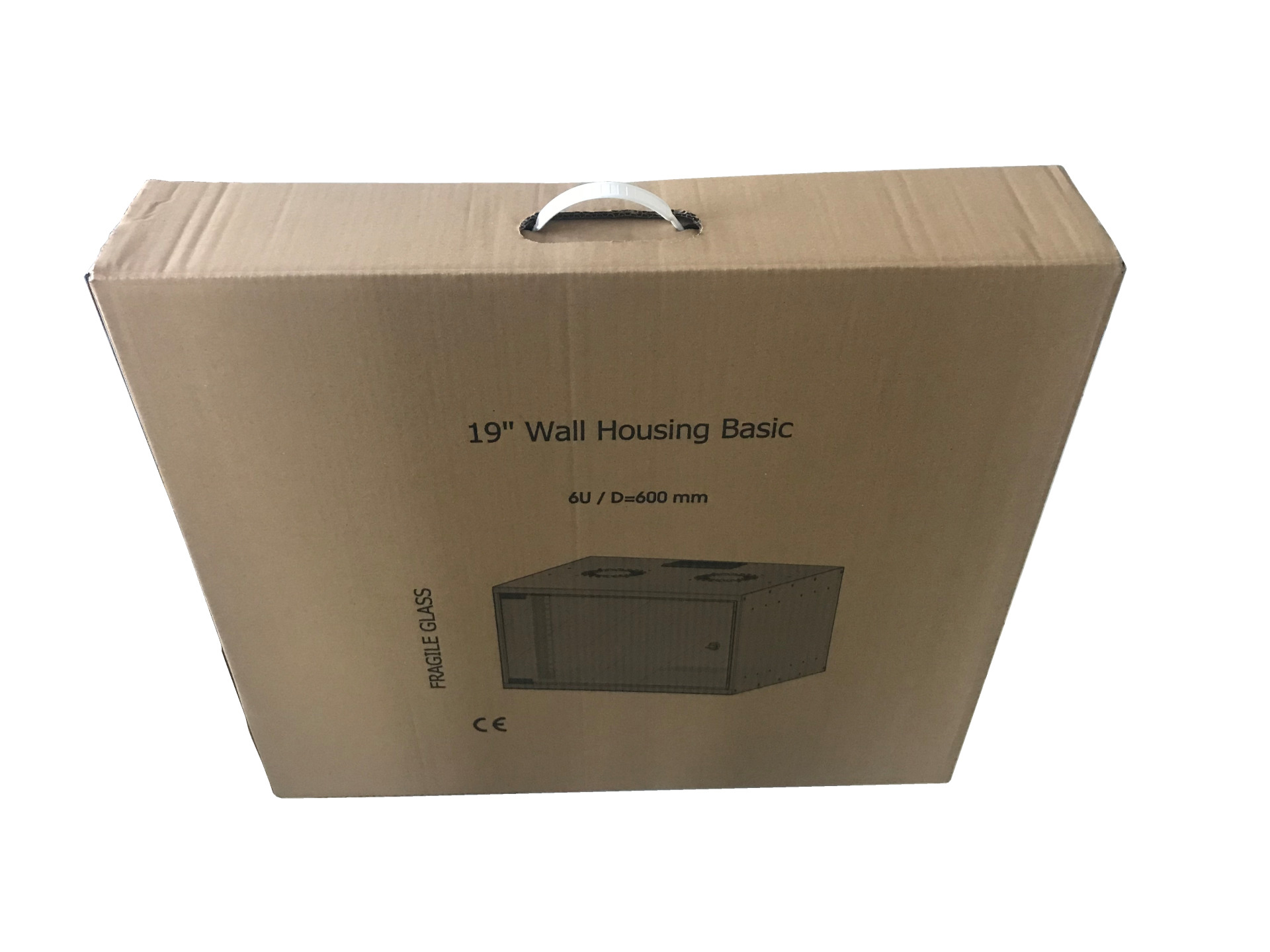

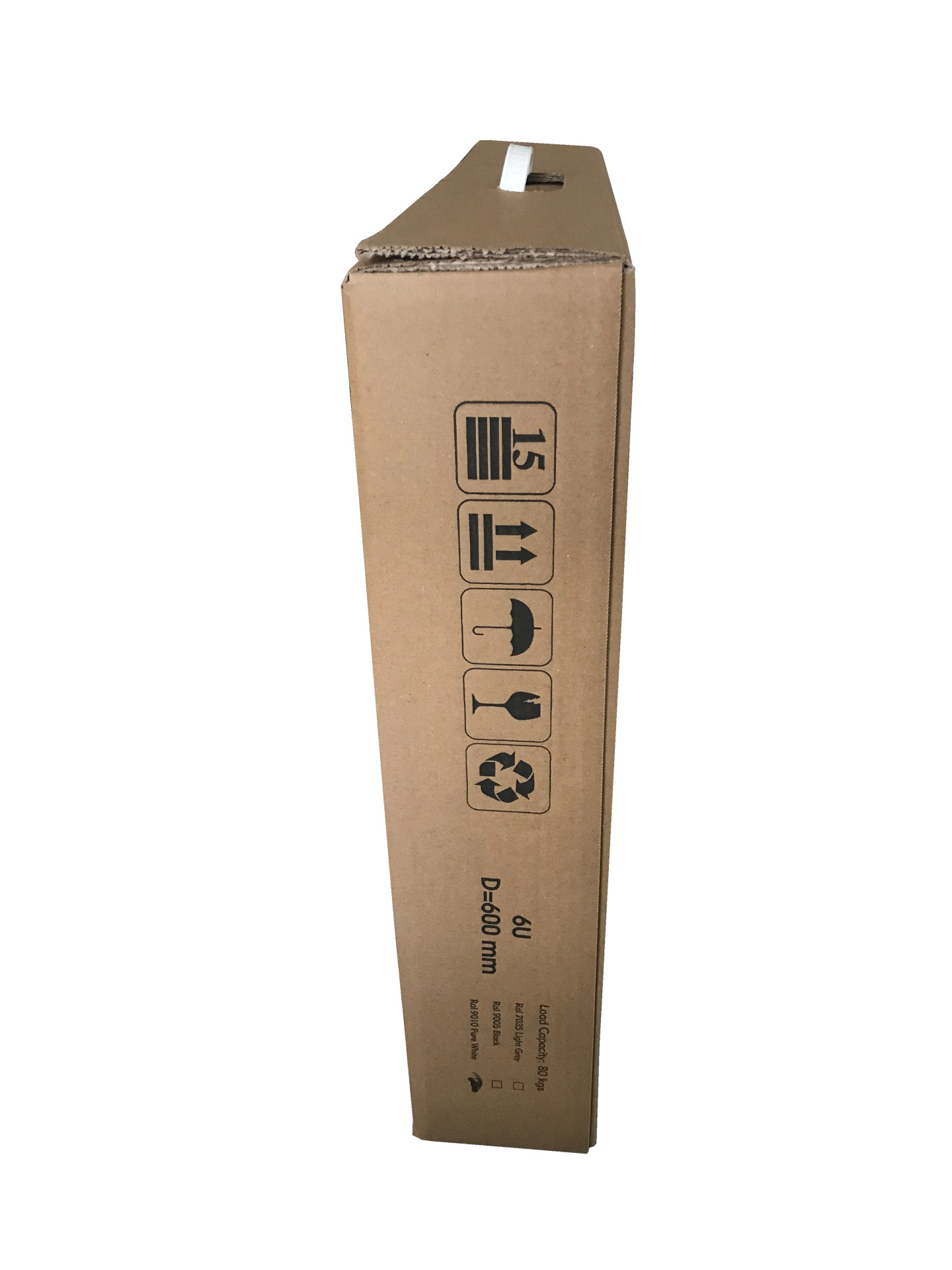

Delivery unassembled in 1 carton with handle

Tekniske egenskaber

Cabinet Series: 19" Wall Housing BASIC, un-assembled
Cable entry roof/floor: Roof + Baase, each 145 x 70 mm
Degree of protection: IP20
Demountable: True
Door hinge reversible front door: Yes, by rotating the case 180°
Door opening angle front door: 120 °
Frame: screwed together, unassembled
Installation depth min. - max.: 63 - 402 mm
Material: Steel
Model: With permanent frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front side
Number of cartons: 1
Number of doors: 1
PHC replaceable front door: No
Packaging: 1 cardboard box with carrying handle
Scope of delivery: 1x Cabinet, 1x brush strip, 1x plastic cover, Mounting accessories, 2x keys
Structure/Use: 19" wall-mounted enclosure, one-piece, type Flat Pack. Screw-on sheet steel enclosure, not pre-assembled.
Surface finishing: powder coating
Type of front door: Full glass door made of certified safety glass (4 mm), lockable, smoke-colored
Type of profile rail: L-shaped
Type of ventilation: Passive
With earthing: False
With front door: True
With roof plate: True
With sidewall: Yes, not openable

Variants

ON Label Color Number of height units Depth Width Height Max. Load RAL-number
WGB-1906TS.45 19“ 06U Wall Housing Basic, Depth 450 mm,1-Part, Flat Pack, RAL9005 black 6 U 450 mm 535 mm 304 mm 80 kg 9005
WGB-1909TS.45 19“ 09U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9005 black 9 U 450 mm 535 mm 437 mm 80 kg 9005
WGB-1912TS.45 19“ 12U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9005 black 12 U 450 mm 535 mm 571 mm 80 kg 9005
WGB-1915TS.45 19“ 15U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9005 black 15 U 450 mm 535 mm 707 mm 80 kg 9005

Sikkerhedsanvisninger


Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation. Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse. Important safety information to prevent accidents and damage during installation: Hazard: If the raised floor is used incorrectly, it may break. Action: Avoid walking on the raised floor unless the correct loads and load specifications are taken into account. Incorrect loading Hazard: Incorrect loading can lead to instability and damage. Action: Ensure that the load is even and prescribed according to the manufacturer's instructions. Enclosure falls due to weight being exceeded Hazard: Exceeding the maximum weight limit can destabilize the enclosure. Action: Check the maximum permissible load of the enclosure and ensure that this is not exceeded. Falling components due to inadequate fastening Hazard: Inadequately fastened components can fall and cause injury. Action: Ensure that all parts are properly and securely assembled. Housing parts breaking out due to incorrect loading Danger: Inadmissible loading leads to material damage and possible housing parts breaking out. Action: Ensure that the load is distributed correctly and that the recommended load is used. Risk of tipping due to uneven floor Danger: An uneven floor can cause the cabinet or device to tip over. Action: Make sure that the surface is level and stable to avoid the risk of tipping. Risk of tipping due to insufficient load-bearing capacity of the surface Danger: Insufficient load-bearing capacity of the surface can encourage the cabinet to tip over. Action: Check the load-bearing capacity of the surface before installation and ensure that it can safely support the weight. Cabinet can tip over if heavy server unit is pulled forward Danger: Pulling heavy server units forward can cause the cabinet to tip over. Action: Always secure cabinets and server units with suitable brackets and seek assistance when handling heavy equipment. Risk of tipping over with heavy cooling unit without safety measures Hazard: Improper fastening of cooling units to external brackets can cause the cabinet or device to tip over. Action: Secure cooling units with suitable devices to prevent tipping. Side walls fall off - sash lock not used correctly Hazard: Incorrectly used sash locks can cause the side walls of the cabinet to fall off. Action: Regularly check that all sash locks are correctly and securely fitted. Load capacity not provided Hazard: An insufficient load capacity can destabilise the system. Action: Before installation, check the load capacity information and ensure that the base and the shelves are sufficiently stable. Inadequate fastening when fitting accessories Hazard: Loosely fitted accessories can fall down dangerously. Action: Fasten all accessories carefully and regularly check them for strength. Insufficient wall statics - housing falls down Danger: Insufficient wall statics can cause the housing to fall down. Action: Before installation, make sure that the wall has sufficient static load-bearing capacity and that the housing can be installed safely. Injury from falling attachments Danger: Insufficiently secured attachments can fall down and cause injuries. Action: Make sure that all attachments are correctly secured and check them regularly.
