19" Wall Housing BASIC, Depth 450 mm, RAL9010
19“ 06U Wall Housing Basic, Depth 450 mm,1-Part, Flat Pack, RAL9010
Varenummer:
WGB-1906WS.45
EAN Nr.:
4049759206963
Produktinformation til 19“ 06U Wall Housing Basic, Depth 450 mm,1-Part, Flat Pack, RAL9010

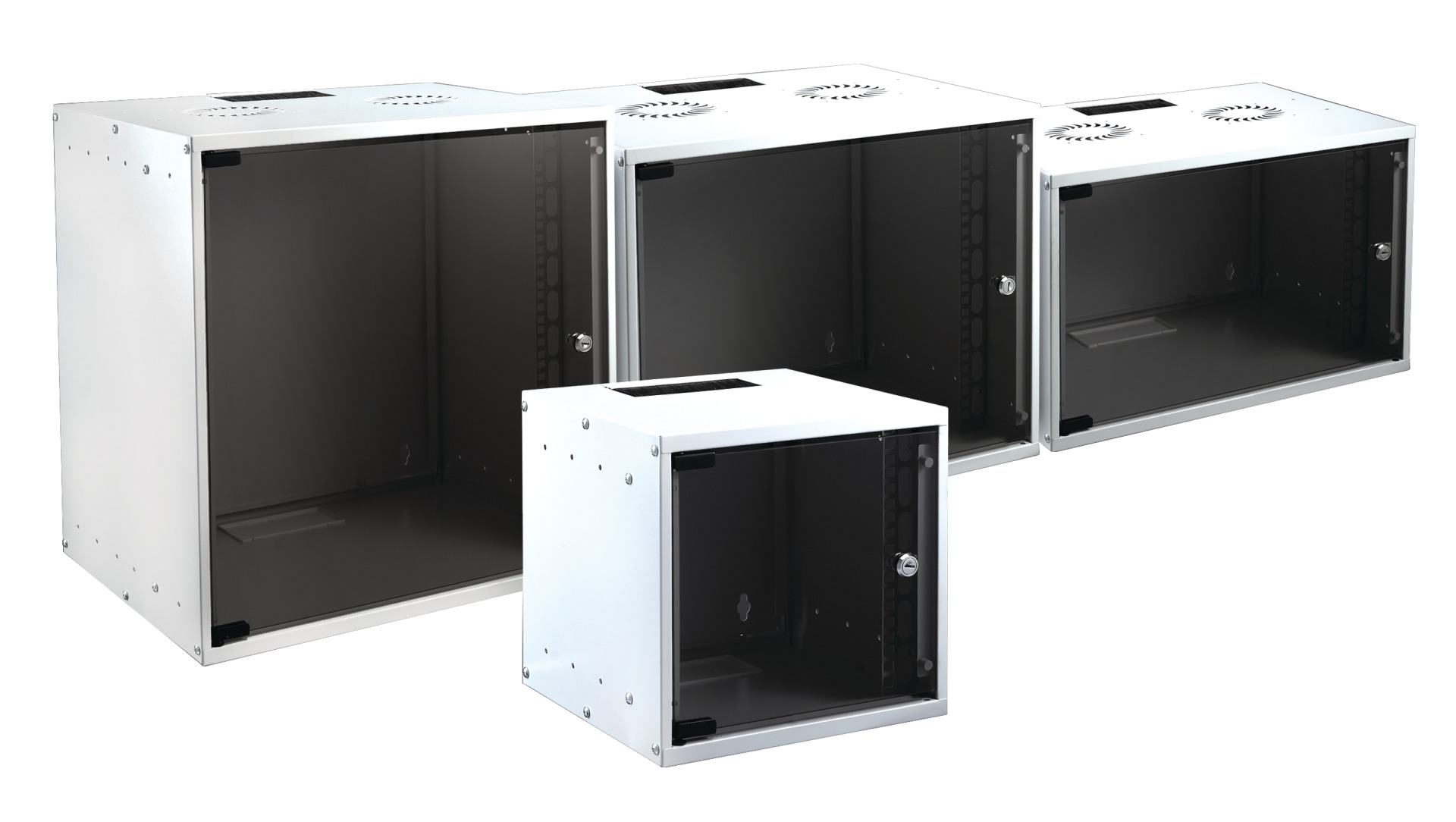

19" Wall housing 1-part, type Flat Pack
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key

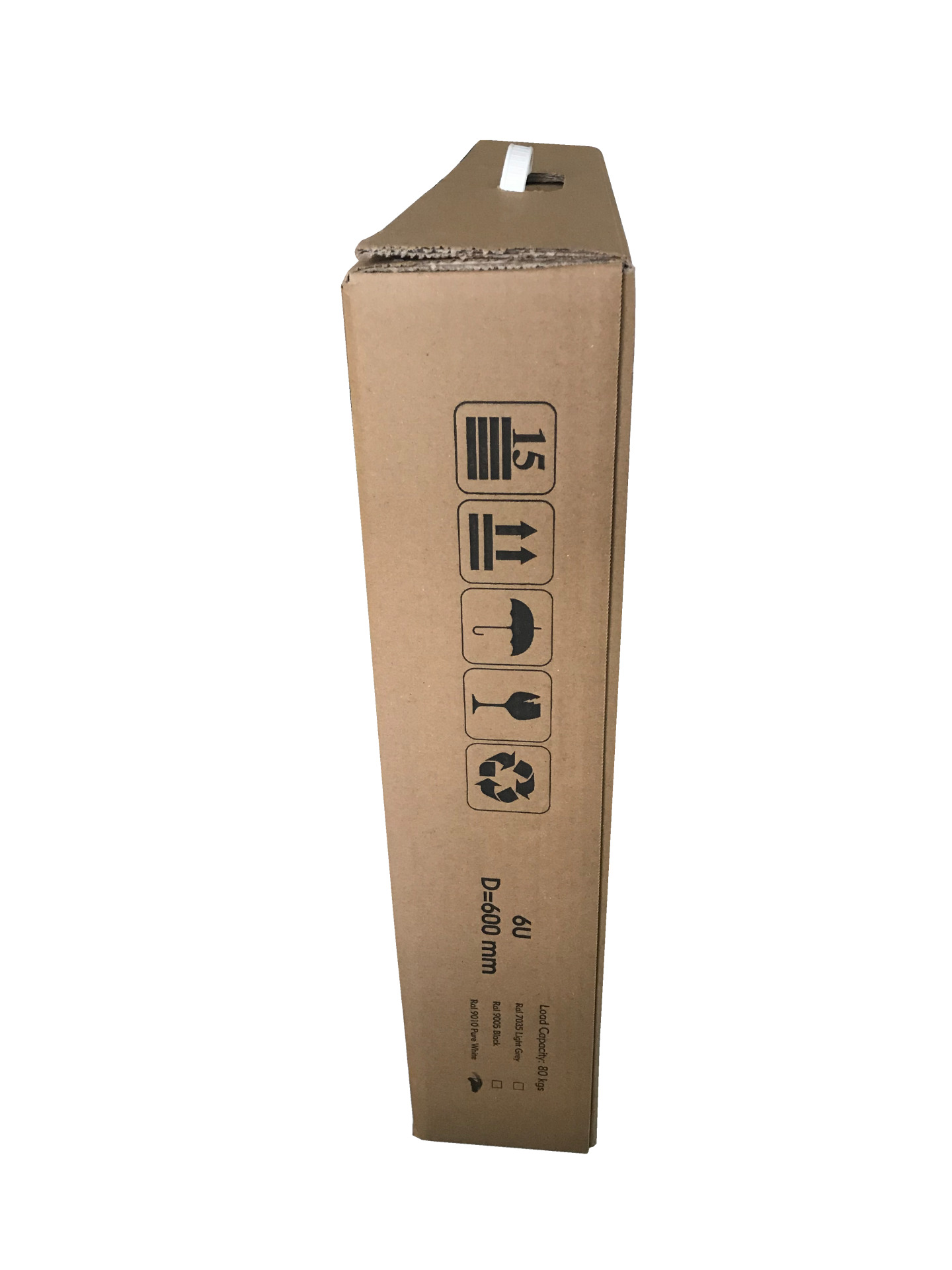

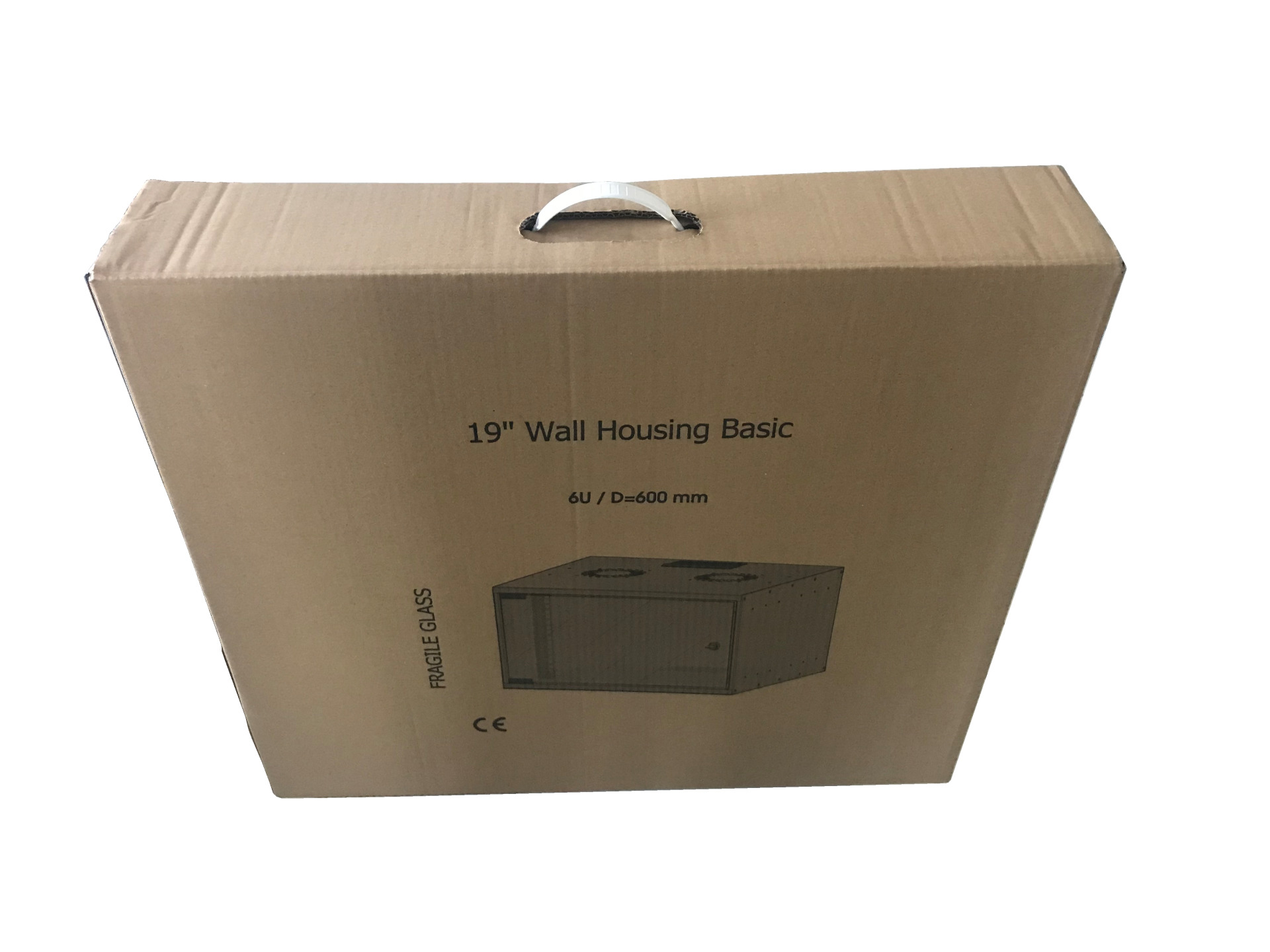

Delivery unassembled in 1 carton with handle
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key
Delivery unassembled in 1 carton with handle
Tekniske egenskaber
| Anzahl Packstücke: | 1 |
|---|---|
| Anzahl der Türen: | 1 |
| Art der Lüftung: | passiv |
| Ausführung: | mit Festrahmen |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Ausführung der Profilschiene: | L-förmig |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Montage-Ebene: | vorne |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schrankserie: | Wandgehäuse Basic |
| Schutzart: | IP20 |
| Werkstoff: | Stahl |
| Zerlegbar: | Ja |
Varianten
| Art. Nr. | Bezeichnung | Tiefe | Farbe | Breite | Traglast | Anzahl der Höheneinheiten (HE) | Höhe | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| WGB-1906WS.45 | 19“ 06U Wall Housing Basic, Depth 450 mm,1-Part, Flat Pack, RAL9010 | 450 mm | weiß | 535 mm | 80 kg | 6 HE | 304 mm | 9010 | |
| WGB-1909WS.45 | 19“ 09U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9010 | 450 mm | weiß | 535 mm | 80 kg | 9 HE | 437 mm | 9010 | |
| WGB-1912WS.45 | 19“ 12U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9010 | 450 mm | weiß | 535 mm | 80 kg | 12 HE | 571 mm | 9010 | |
| WGB-1915WS.45 | 19“ 15U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9010 | 450 mm | weiß | 535 mm | 80 kg | 15 HE | 707 mm | 9010 |
