19" Wall Housing BASIC, Depth 450 mm, RAL9010
Priser kun synlige for indloggede brugere

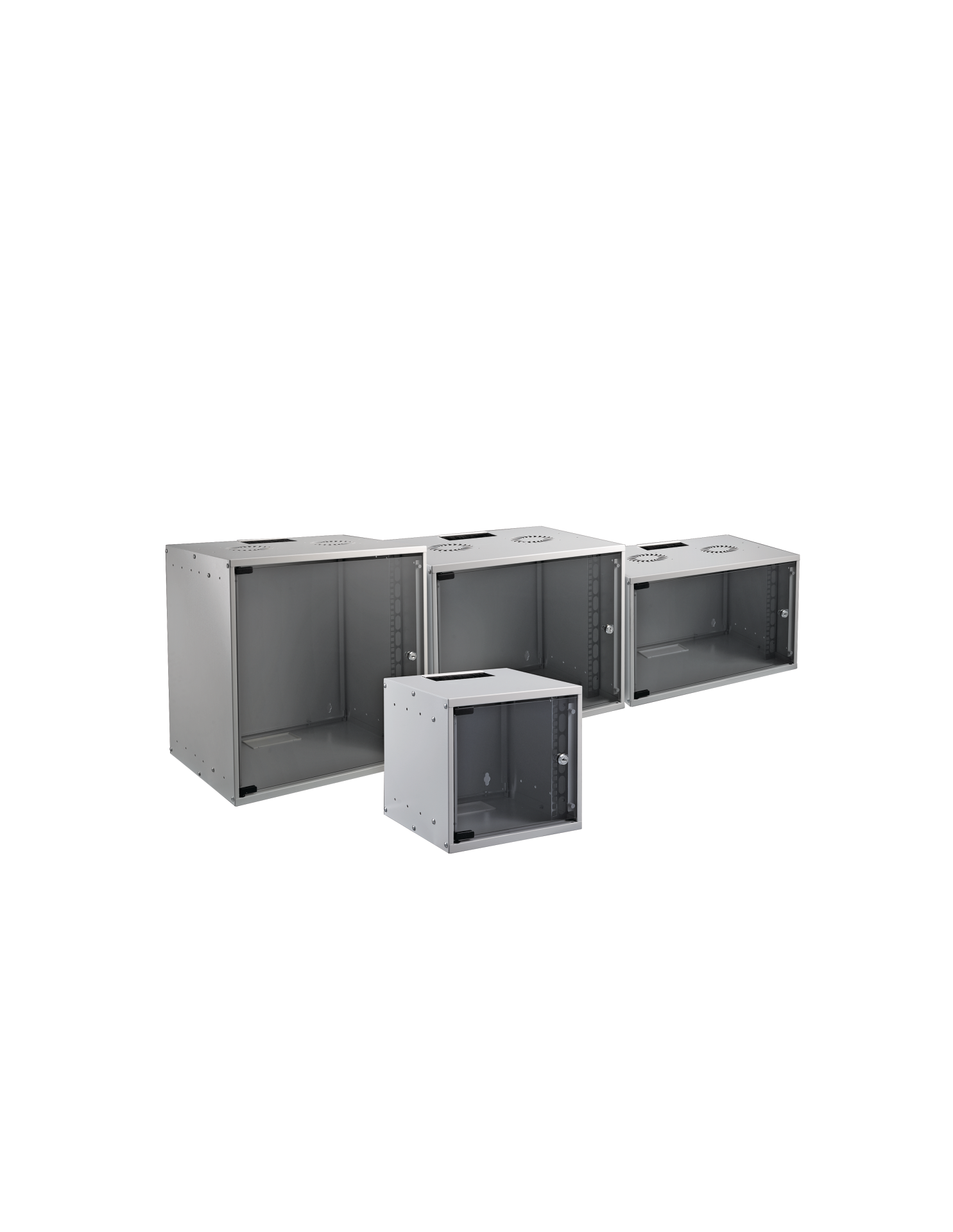

19“ 09U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9010
Varenummer:
WGB-1909WS.45
EAN nr.:
4049759207021
Produktinformation für 19“ 09U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9010
19" Wall housing 1-part, type Flat Pack
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key

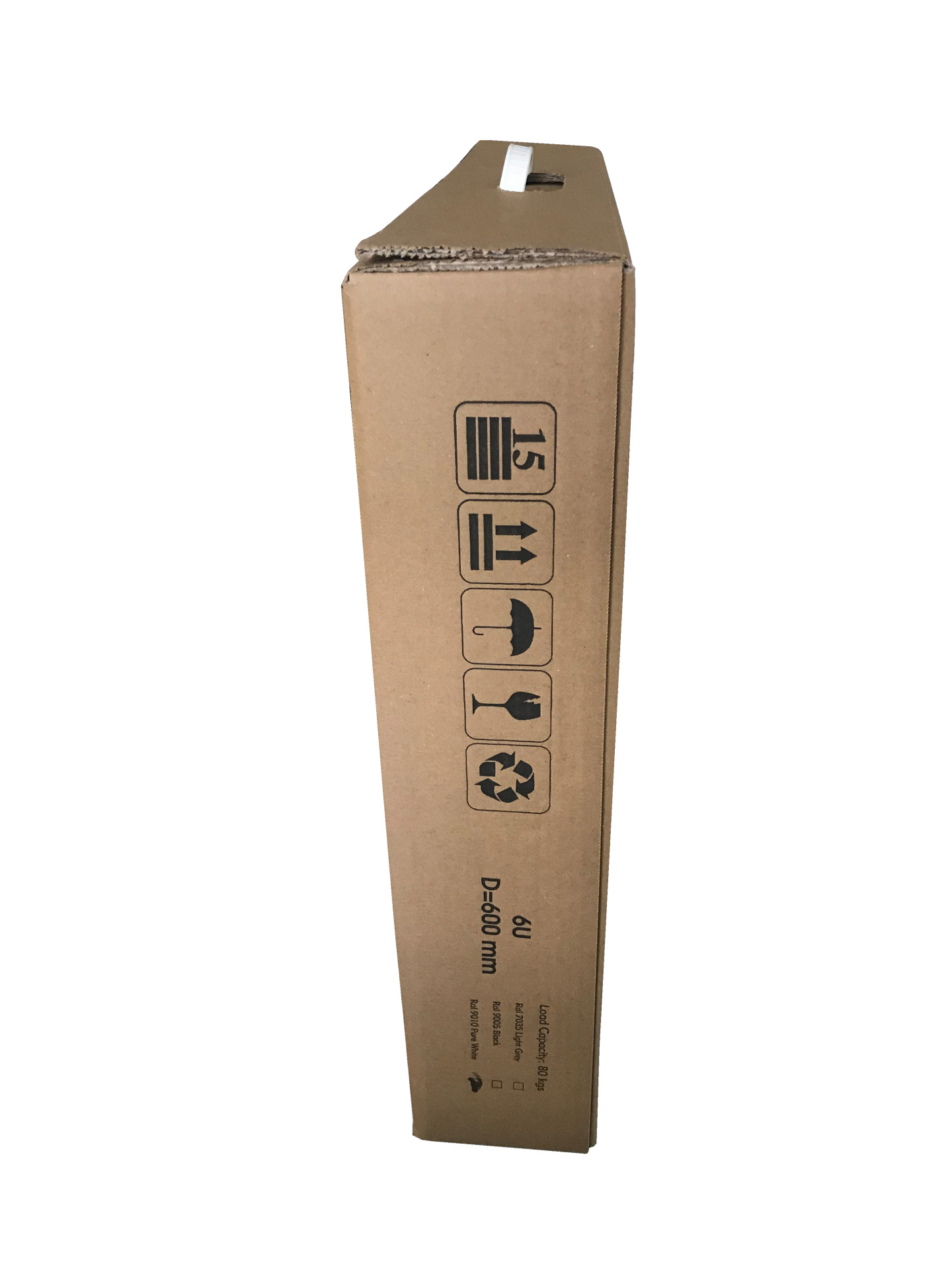

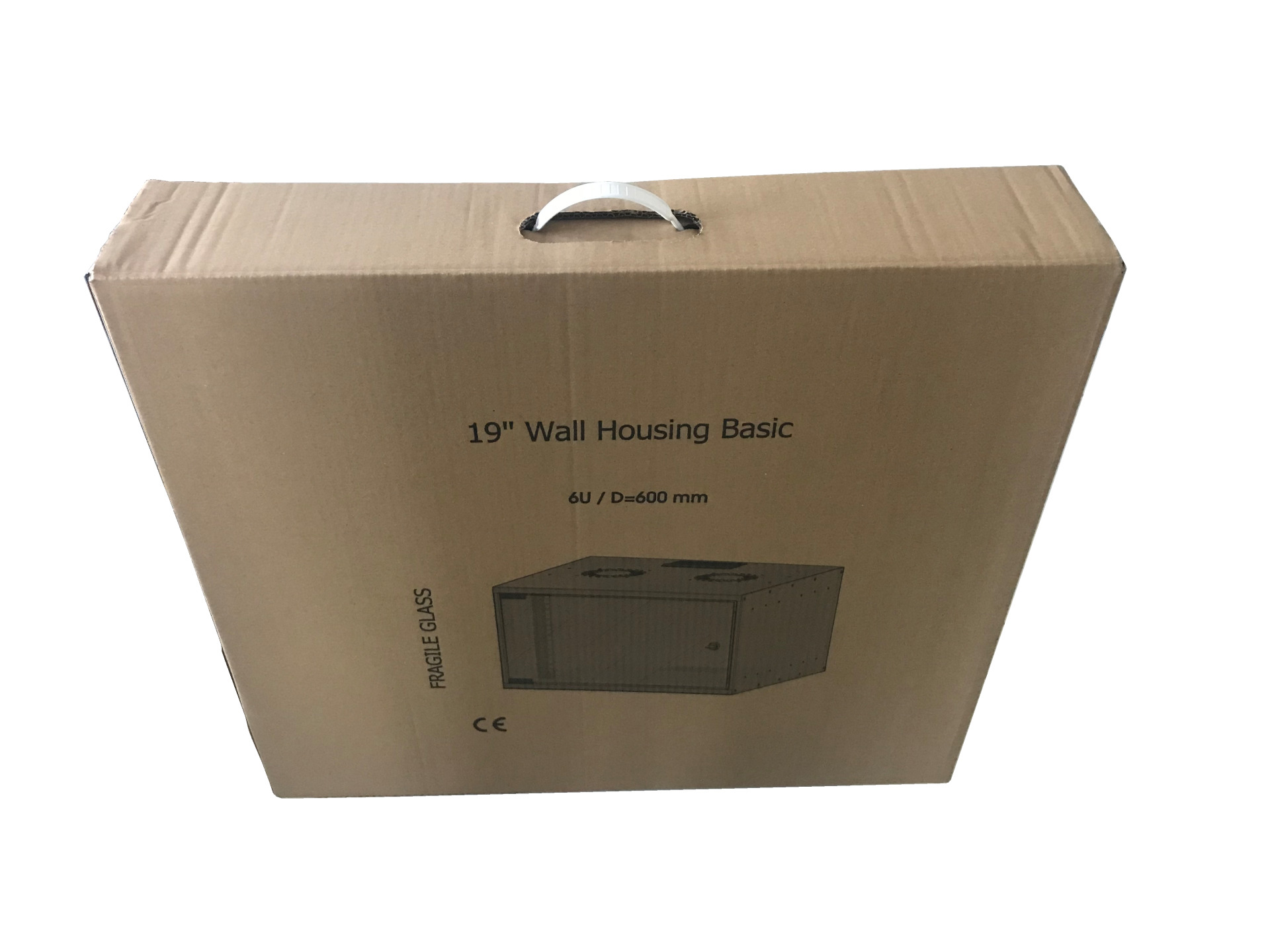

Delivery unassembled in 1 carton with handle
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key
Delivery unassembled in 1 carton with handle
Tekniske egenskaber
| Degree of protection: | IP20 |
|---|---|
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianter
| Art. Nej. | Betegnelse | Colour | Width | Max. Load | Depth | Number of height units | Height | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| WGB-1906WS.45 | 19“ 06U Wall Housing Basic, Depth 450 mm,1-Part, Flat Pack, RAL9010 | white | 535 mm | 80 kg | 450 mm | 6 U | 304 mm | 9010 | |
| WGB-1909WS.45 | 19“ 09U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9010 | white | 535 mm | 80 kg | 450 mm | 9 U | 437 mm | 9010 | |
| WGB-1912WS.45 | 19“ 12U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9010 | white | 535 mm | 80 kg | 450 mm | 12 U | 571 mm | 9010 | |
| WGB-1915WS.45 | 19“ 15U Wall Housing Basic, Depth 450 mm, 1-Part, Flat Pack, RAL9010 | white | 535 mm | 80 kg | 450 mm | 15 U | 707 mm | 9010 |
