19" Wall Housing BASIC, Depth 600 mm, RAL7035
19“ 06U Wall Housing Basic, Depth 600 mm,1-Part, Flat Pack, RAL7035
Varenummer:
WGB-1906GR.60
EAN Nr.:
4049759206932
Produktinformationen für 19“ 06U Wall Housing Basic, Depth 600 mm,1-Part, Flat Pack, RAL7035

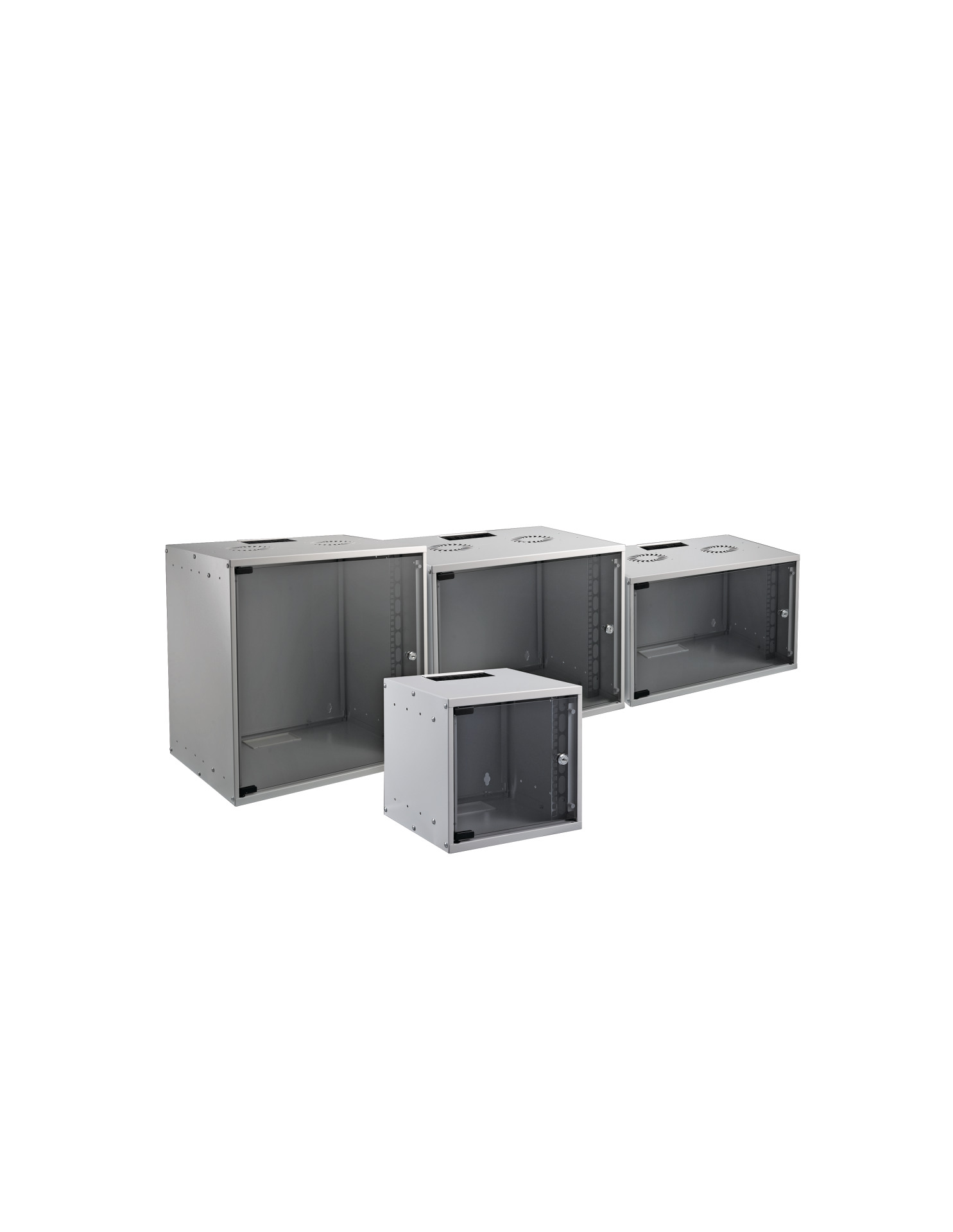

19" Wall housing 1-part, type Flat Pack
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key

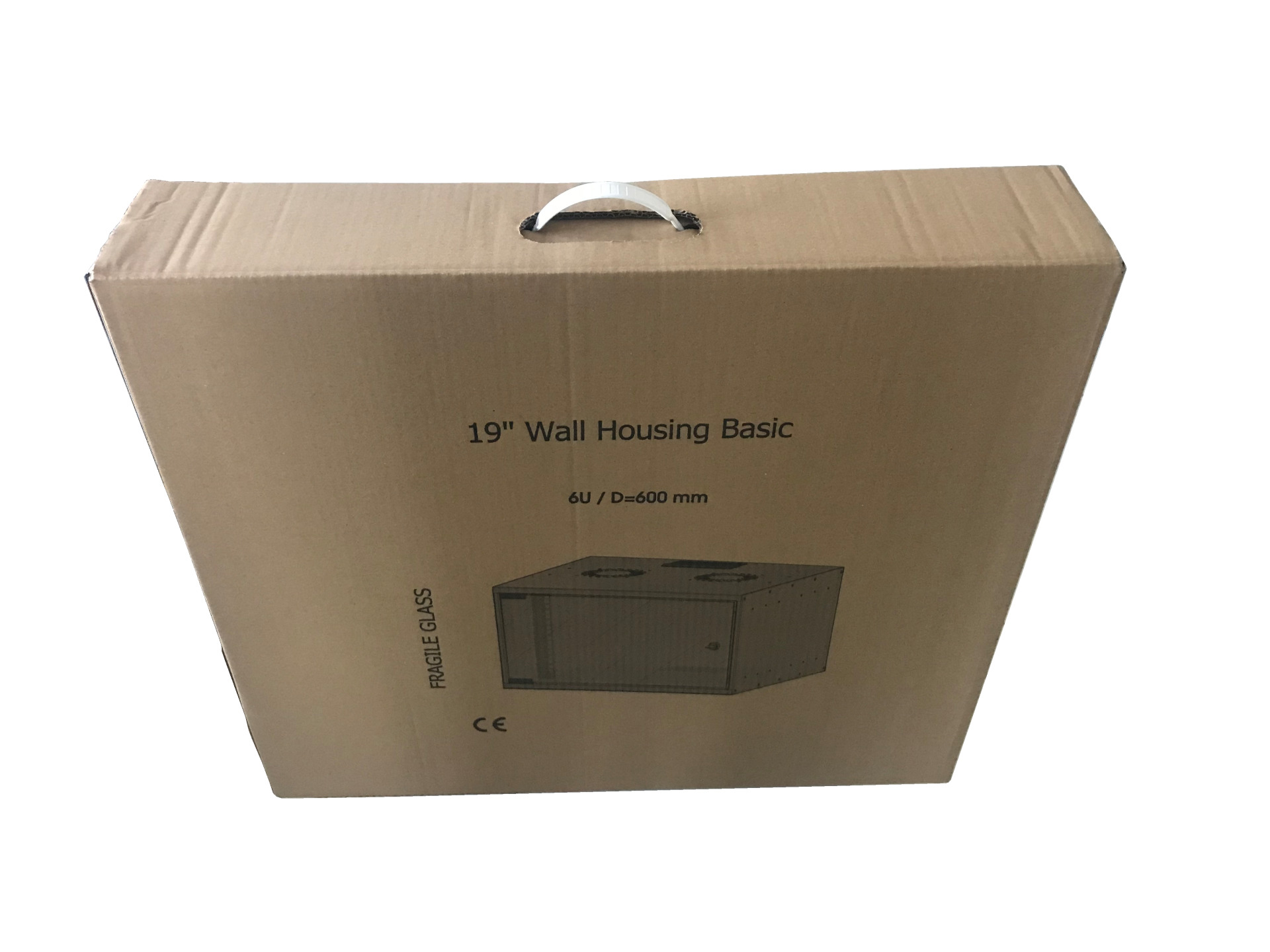

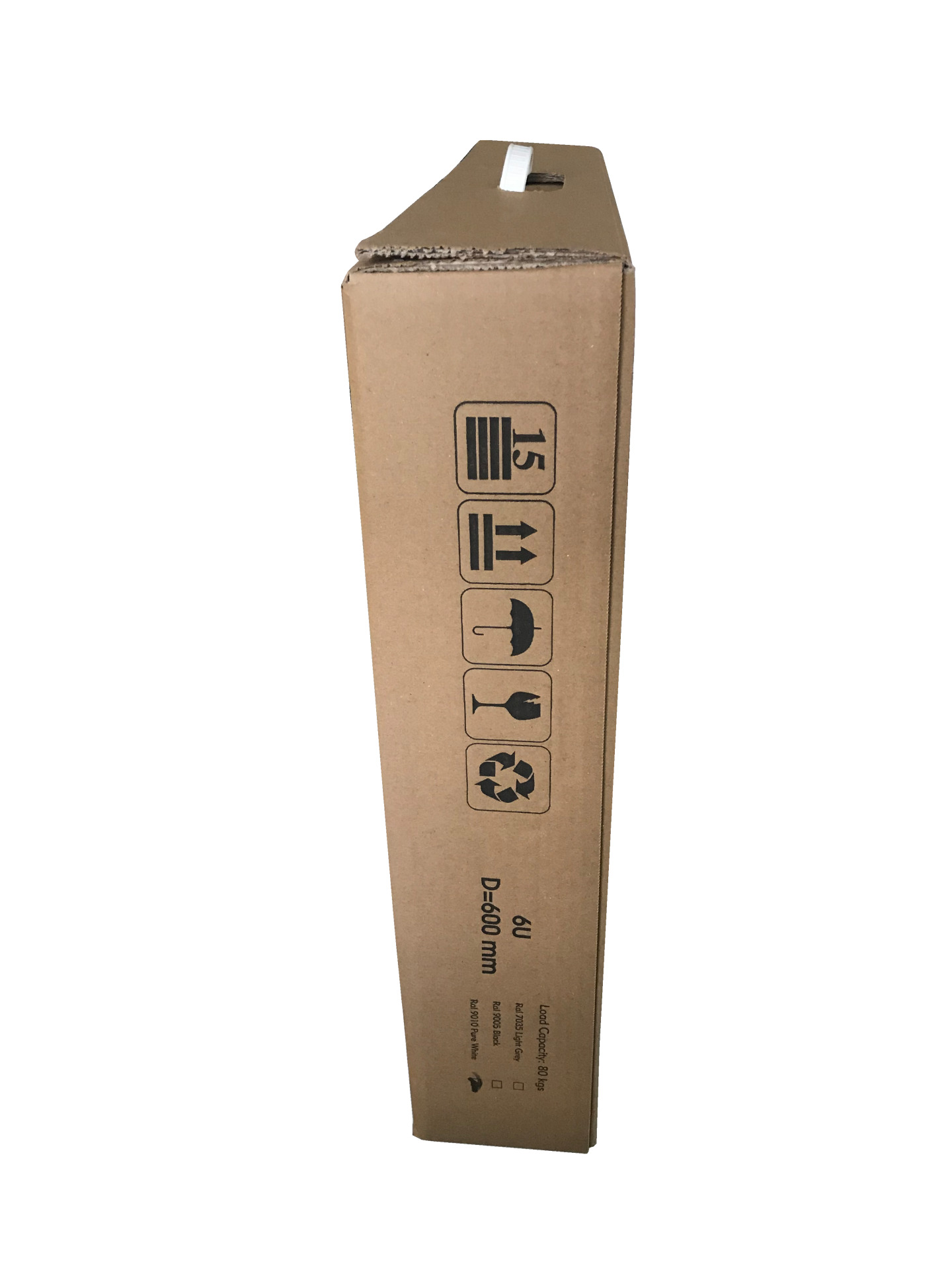

Delivery unassembled in 1 carton with handle
Steel sheet housing screwable, not pre-assembled
Front door fully made of certified safety glass, thickness 4 mm, smoked, tempered, smoothed, antistatic
Front door lockable, Door opening angle 120°
Door stop easy changeable (right/left)
Sidewalls not detachable
Roof prepared for mounting of 2 x single fans
Roof and bottom with cable entry 145 x 70 mm
Inside 2 x 19" profile rails, depth-dajustable, with lateral opening for cable routing
Paint finish RAL7035 light grey / RAL9005 (jet black) / RAL9010 (pure white)
Width 535 mm, depth 450 / 600 mm
Max. load 80 kg (static, equally distributed)
Protection degree IP20
Incl. key
Delivery unassembled in 1 carton with handle
Technische Eigenschaften
| Degree of protection: | IP20 |
|---|---|
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianten
| Art. Nr. | Bezeichnung | Depth | Colour | Width | Max. Load | Number of height units | Height | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| WGB-1906GR.60 | 19“ 06U Wall Housing Basic, Depth 600 mm,1-Part, Flat Pack, RAL7035 | 600 mm | grey | 535 mm | 80 kg | 6 U | 304 mm | 7035 | |
| WGB-1909GR.60 | 19“ 09U Wall Housing Basic, Depth 600 mm, 1-Part, Flat Pack, RAL7035 | 600 mm | grey | 535 mm | 80 kg | 9 U | 437 mm | 7035 | |
| WGB-1912GR.60 | 19“ 12U Wall Housing Basic, Depth 600 mm, 1-Part, Flat Pack, RAL7035 | 600 mm | grey | 535 mm | 80 kg | 12 U | 571 mm | 7035 | |
| WGB-1915GR.60 | 19“ 15U Wall Housing Basic, Depth 600 mm, 1-Part, Flat Pack, RAL7035 | 600 mm | grey | 535 mm | 80 kg | 15 U | 707 mm | 7035 |
