19" 1U Heavy-Duty Shelves, Depth-Adjust., Max. Load 150 kg

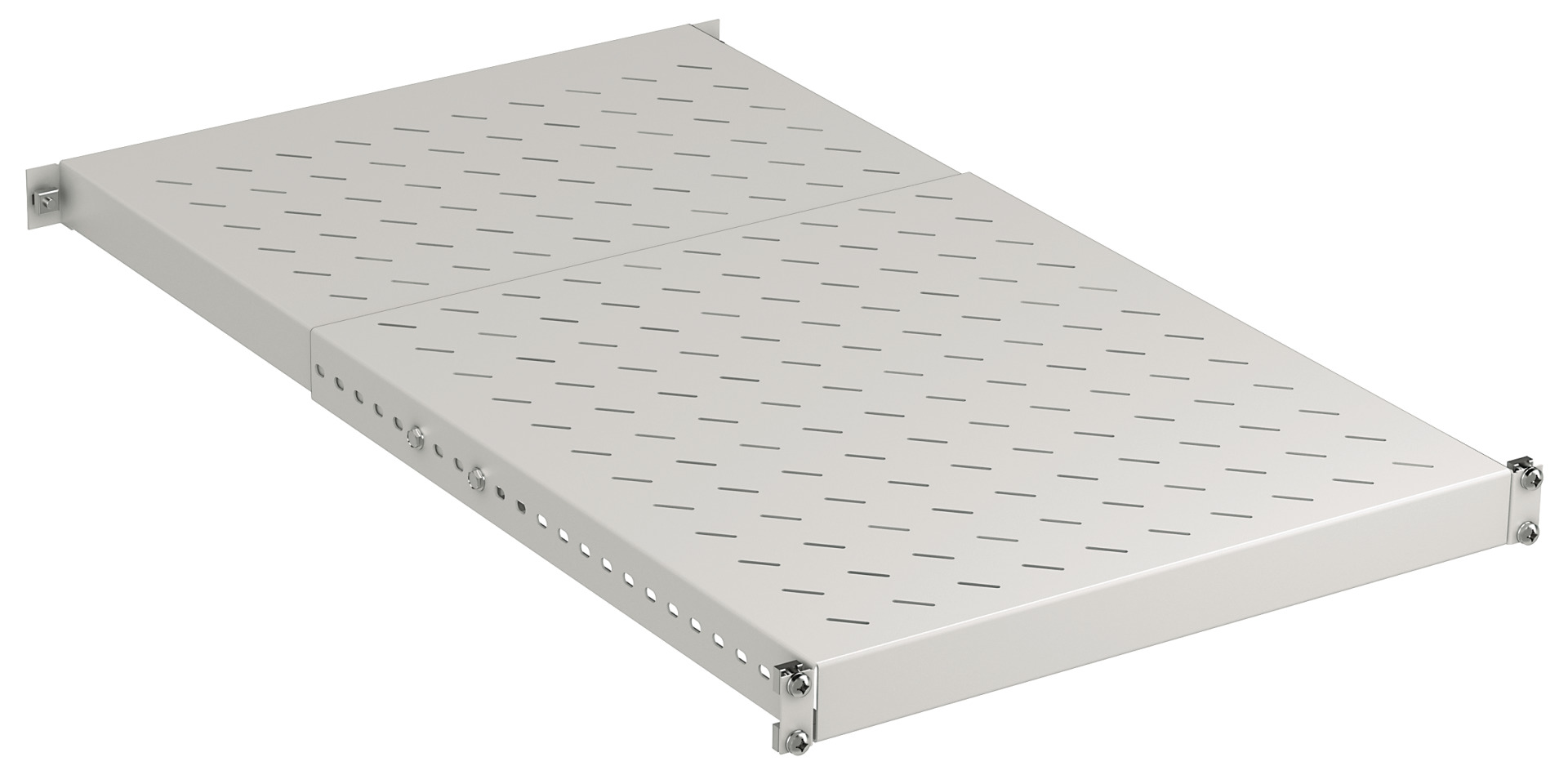

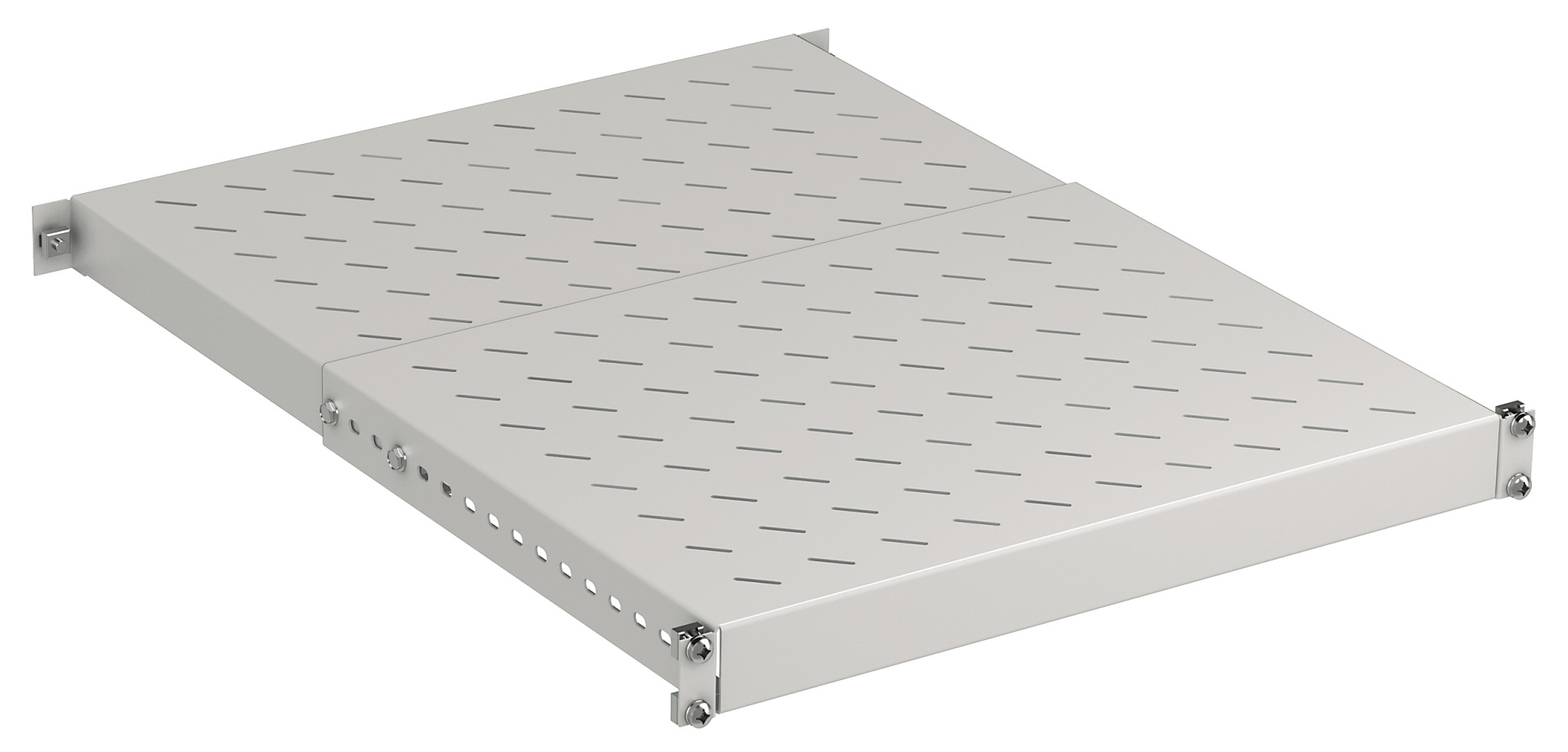

19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL7035
Varenummer:
691653GR.6
EAN Nr.:
4049759252670
Produktinformationen für 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL7035
For use in all 19" network and server cabinets
Fixing at the front and rear-sided 19" profiles necessary

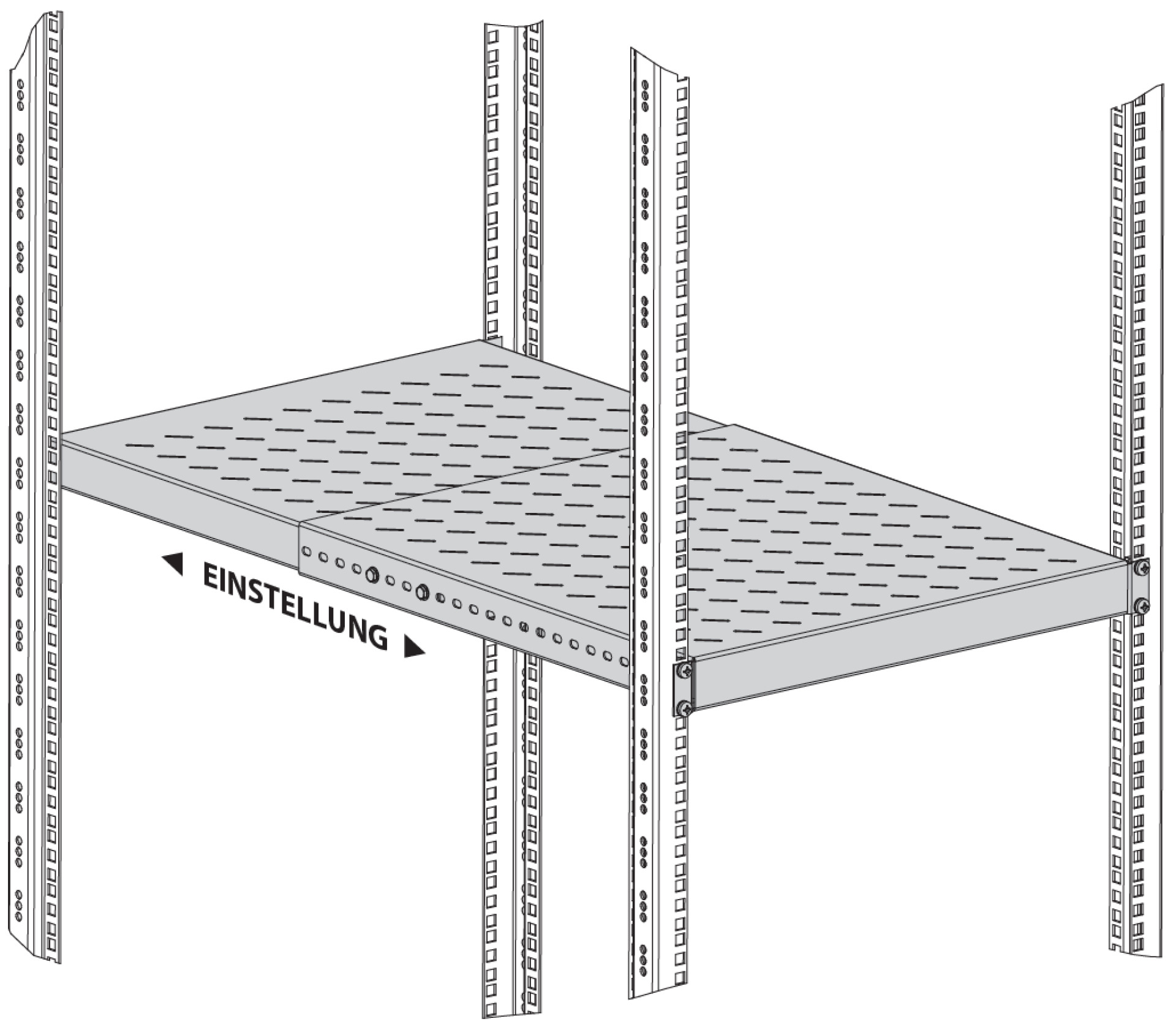

Mounting depth adjustable with self-tapping screws
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Fixing at the front and rear-sided 19" profiles necessary
Mounting depth adjustable with self-tapping screws
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Technische Eigenschaften
| Material: | Metal |
|---|---|
| Model: | Shelf |
Varianten
| Art. Nr. | Bezeichnung | Max. Load | Colour | Adjustment | Depth | Width | Height | RAL-number | Usable Width | For Cabinet Depth | Usable Depth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 691653GR.6 | 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL7035 | 150 kg | grey | 350 – 600 mm | 350 – 600 mm | 482.6 mm | 44 mm | 7035 | 440 mm | 600 mm | 350 – 600 mm | |
| 691653GR.80 | 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 800..1000, RAL7035 | 150 kg | grey | 500 – 900 mm | 500 – 900 mm | 482.6 mm | 44 mm | 7035 | 440 mm | 800 - 1000 mm | 500 – 900 mm | |
| 691653TS.6 | 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL9005 | 150 kg | black | 350 – 600 mm | 350 – 600 mm | 482.6 mm | 44 mm | 9005 | 440 mm | 600 mm | 350 – 600 mm | |
| 691653TS.80 | 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 800..1000, RAL9005 | 150 kg | black | 500 – 900 mm | 500 – 900 mm | 482.6 mm | 44 mm | 9005 | 440 mm | 800 - 1000 mm | 500 – 900 mm |
