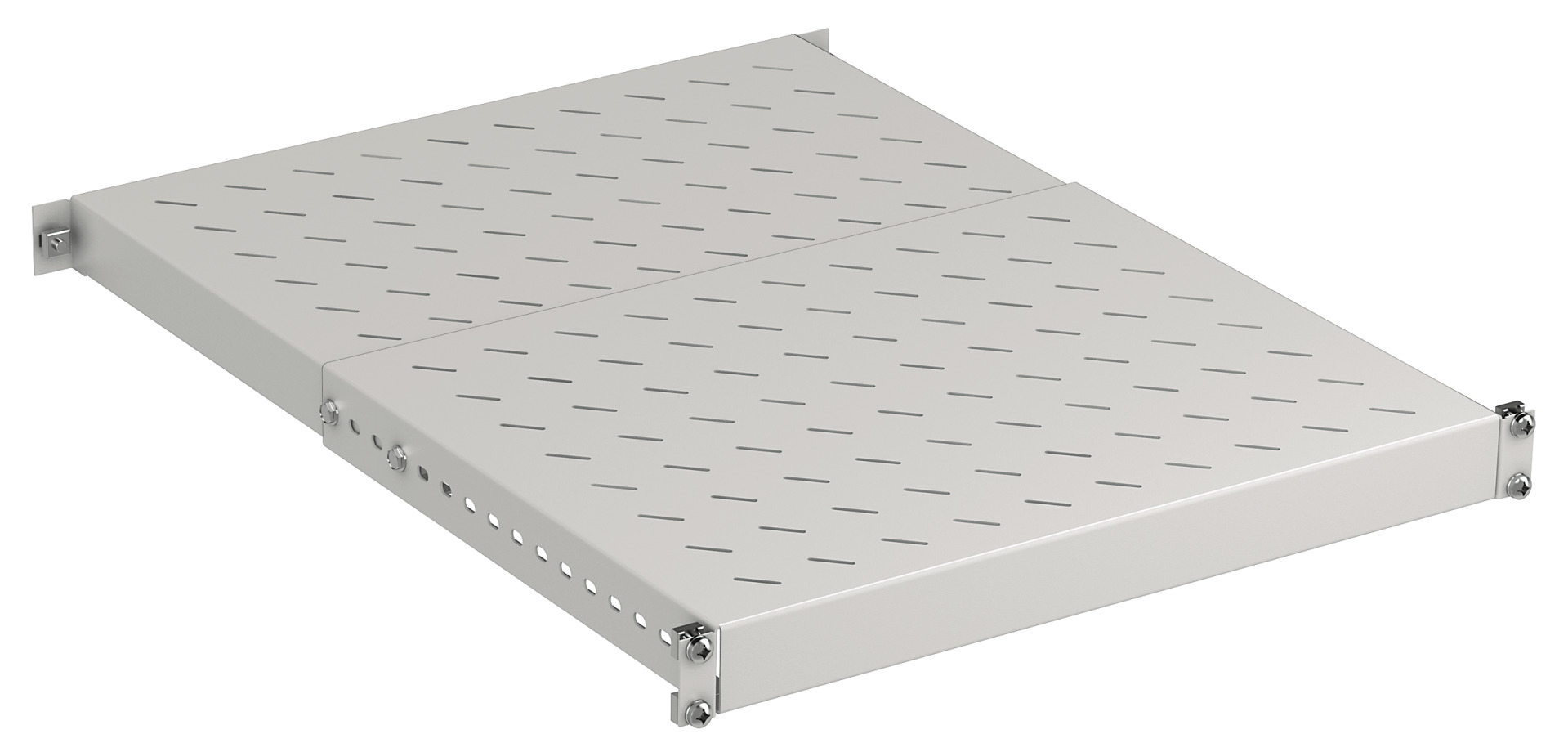

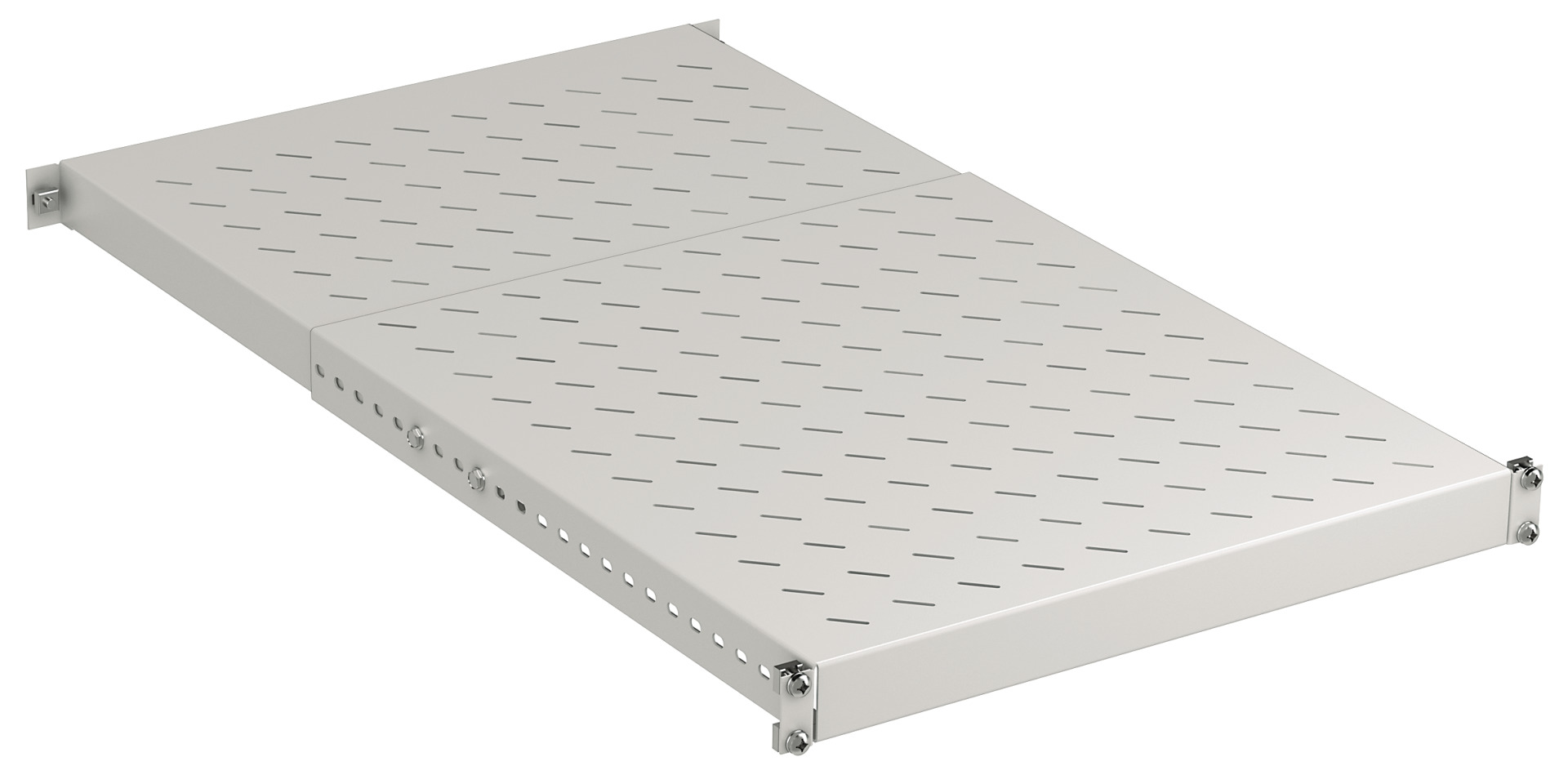

19" 1U Heavy-Duty Shelves, Depth-Adjust., Max. Load 150 kg
19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL9005
Varenummer:
691653TS.6
EAN Nr.:
4049759252694
Produktinformation til 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL9005
For use in all 19" network and server cabinets
Fixing at the front and rear-sided 19" profiles necessary

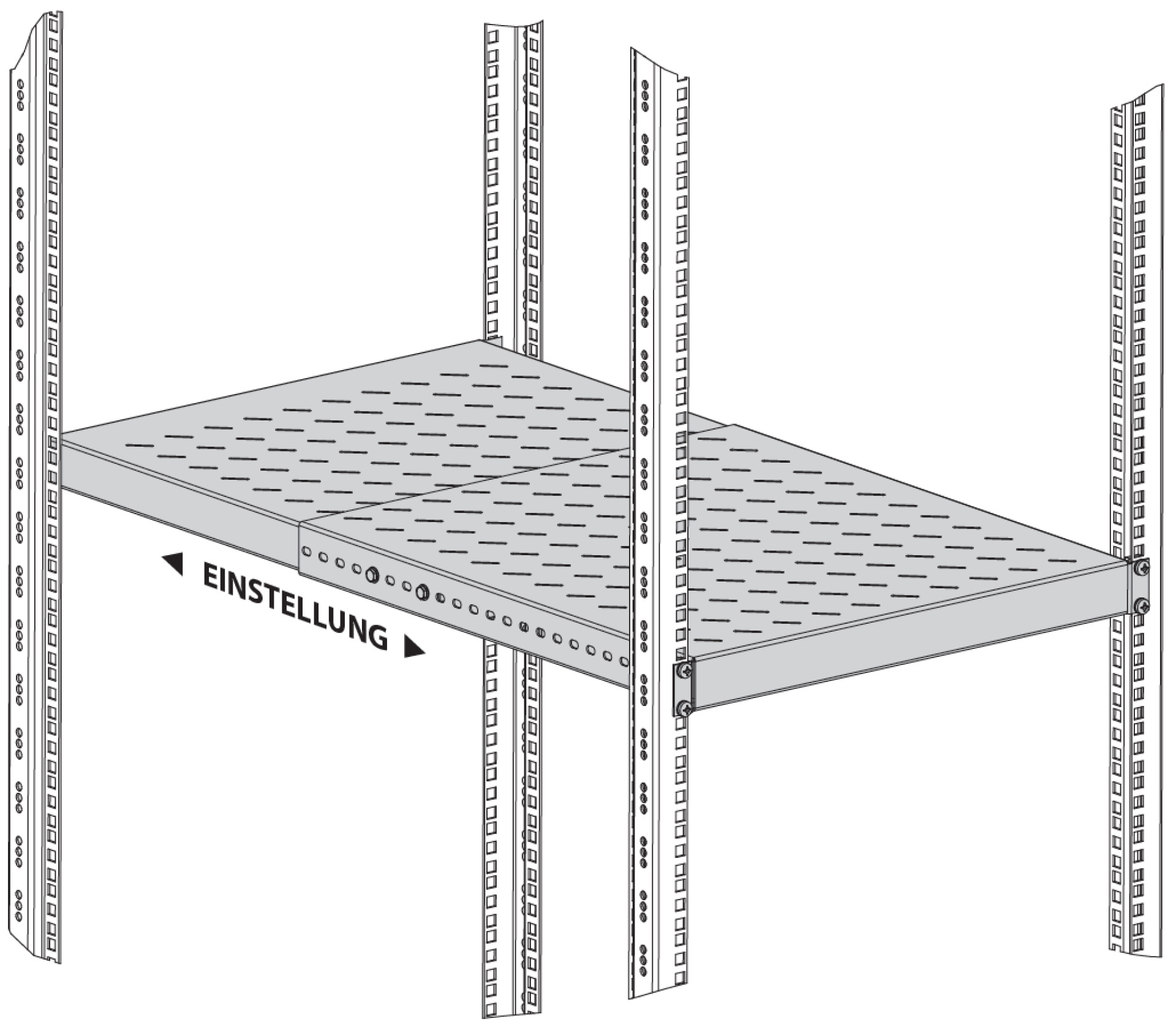

Mounting depth adjustable with self-tapping screws
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Fixing at the front and rear-sided 19" profiles necessary
Mounting depth adjustable with self-tapping screws
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Tekniske egenskaber
| Material: | Metal |
|---|---|
| Model: | Shelf |
Varianten
| Art. Nr. | Bezeichnung | Max. Load | Color | Depth | Adjustment | Width | Height | RAL-number | Usable Width | For Cabinet Depth | Usable Depth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 691653GR.6 | 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL7035 | 150 kg | grey | 350 – 600 mm | 350 – 600 mm | 482.6 mm | 44 mm | 7035 | 440 mm | 600 mm | 350 – 600 mm | |
| 691653GR.80 | 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 800..1000, RAL7035 | 150 kg | grey | 500 – 900 mm | 500 – 900 mm | 482.6 mm | 44 mm | 7035 | 440 mm | 800 - 1000 mm | 500 – 900 mm | |
| 691653TS.6 | 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 600, RAL9005 | 150 kg | black | 350 – 600 mm | 350 – 600 mm | 482.6 mm | 44 mm | 9005 | 440 mm | 600 mm | 350 – 600 mm | |
| 691653TS.80 | 19" 1U Heavy-Duty Shelf, Depth-Adjustable, 150 kg, CD 800..1000, RAL9005 | 150 kg | black | 500 – 900 mm | 500 – 900 mm | 482.6 mm | 44 mm | 9005 | 440 mm | 800 - 1000 mm | 500 – 900 mm |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
