19" 1U Shelves, Fixed, Max. Load 120 kg

19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035
19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035
19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035
19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035
19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035
19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035
19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035
Varenummer: 691651FGR.6
EAN Nr.: 4049759252533
Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:
Piece
Log ind som kunde
Giv mig besked, når produktet er på lager igen.
Beskrivelse

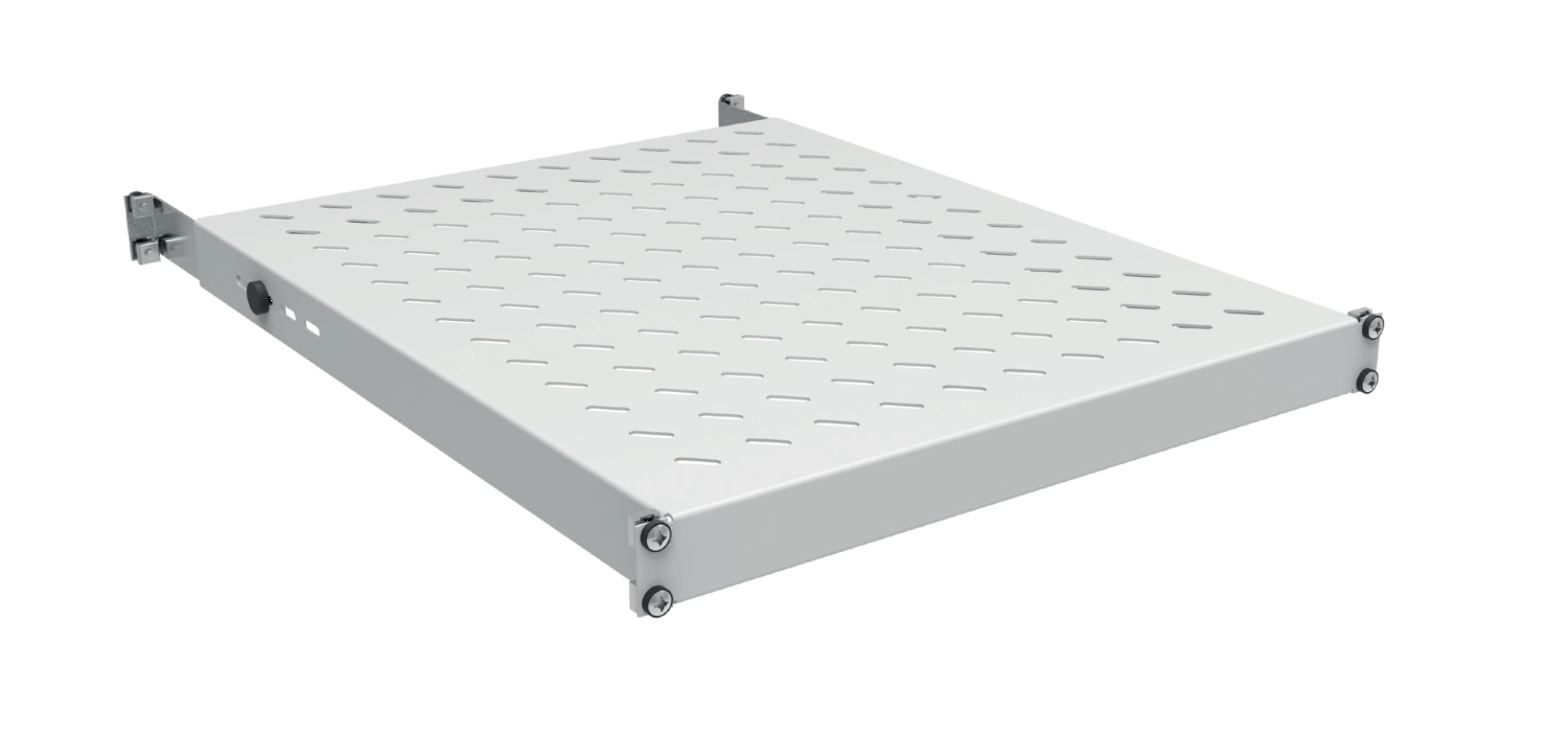

Produktinformation til 19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035

For use in all 19" network and server cabinets

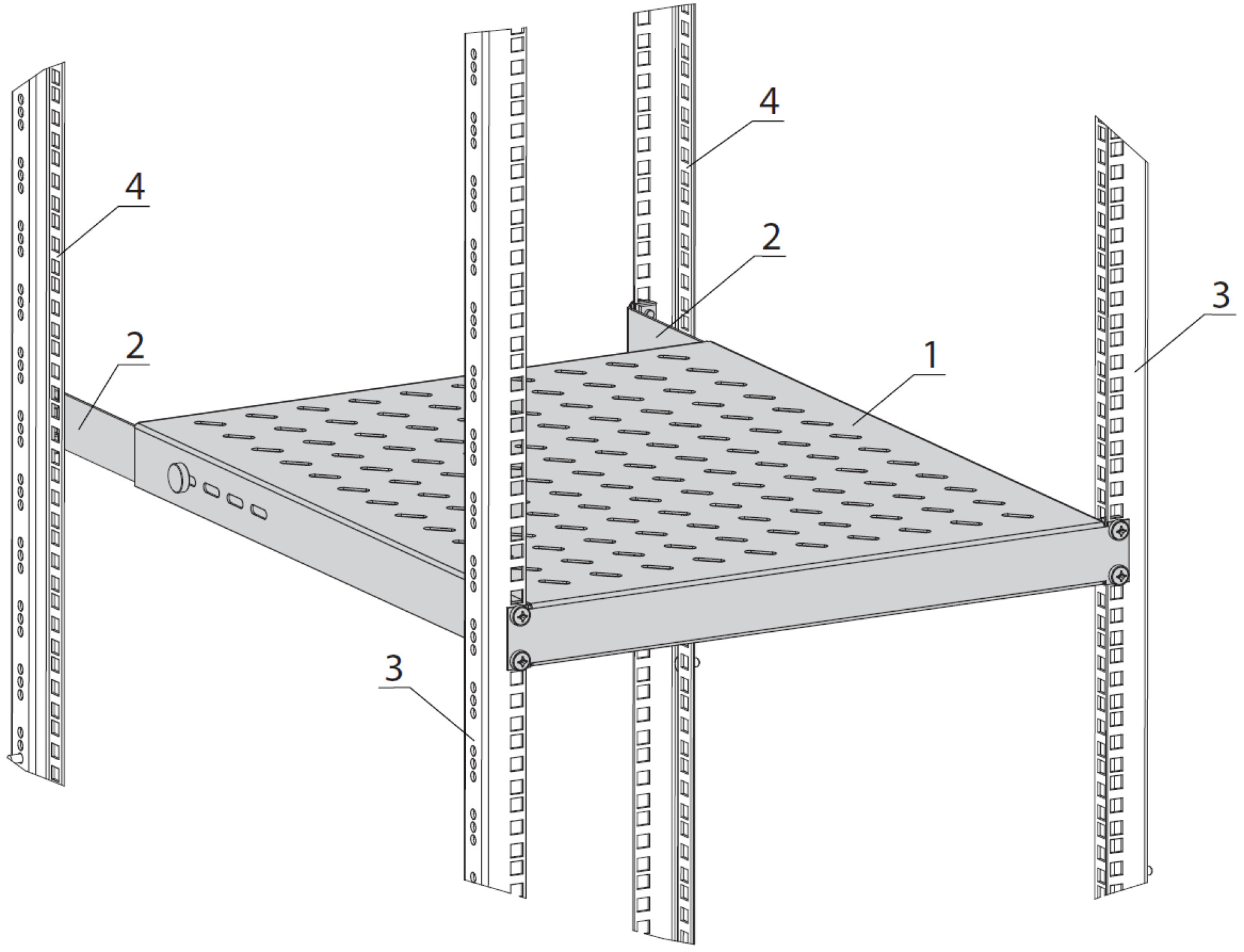

Fixing at the front and rear-sided 19" profiles necessary
Mounting depth rear-sided adjustable (+0 .. 100 mm)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Tekniske egenskaber

Tekniske egenskaber

Material: Metal
Model: Shelf
Varianten

Varianten

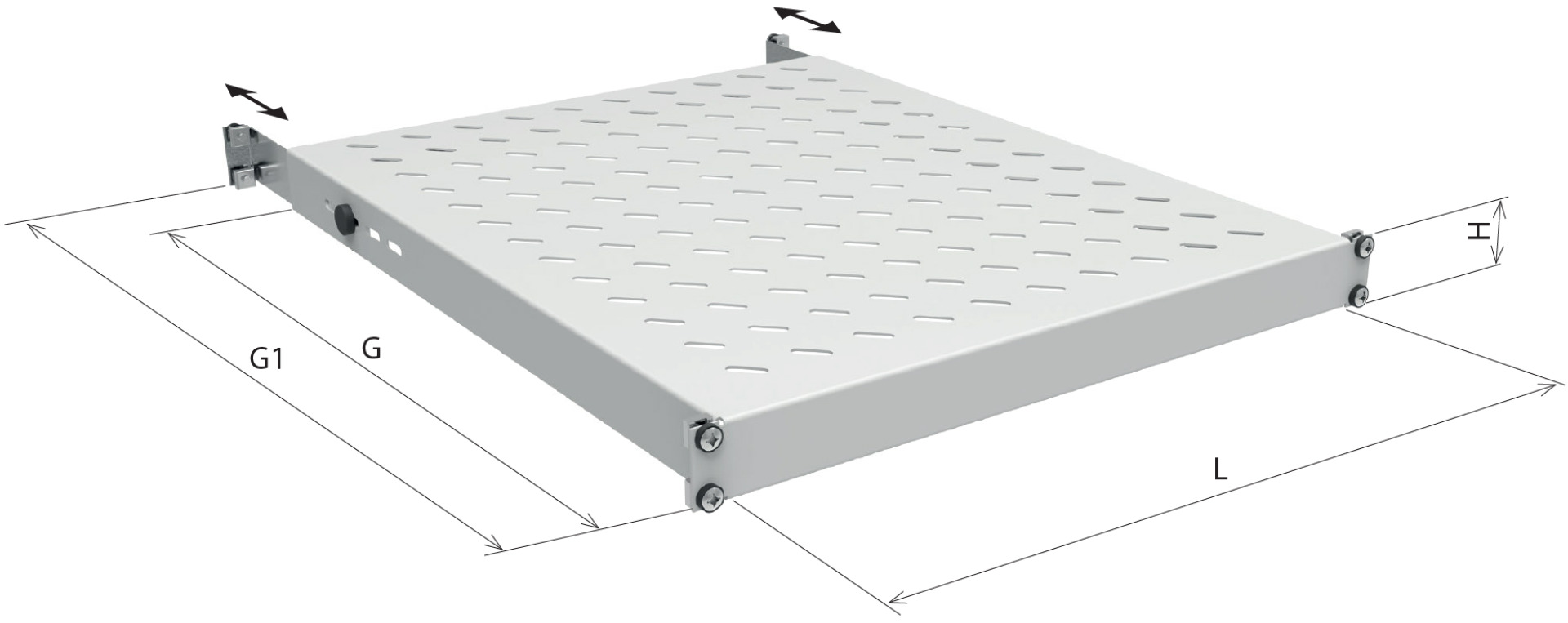

Art. Nr. Bezeichnung Max. Load Color Adjustment Depth Width Height RAL-number Usable Width For Cabinet Depth Usable Depth
691651FGR.6 19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035 120 kg grey 350 – 450 mm 350 mm 482.6 mm 44 mm 7035 450 mm 600 mm 350 mm
Vælg varianter
691651FGR.8 19" 1U Shelf, Fixed, MD 550..650 mm, Max. Load 120 kg, CD 800, RAL7035 120 kg grey 550 – 650 mm 550 mm 482.6 mm 44 mm 7035 450 mm 800 mm 550 mm
Vælg varianter
691651FGR.10 19" 1U Shelf, Fixed, MD 750..850 mm, Max. Load 120 kg, CD 1000, RAL7035 120 kg grey 750 – 850 mm 750 mm 482.6 mm 44 mm 7035 450 mm 1000 mm 750 mm
Vælg varianter
691651FGR.12 19" 1U Shelf, Fixed, MD 950..1050 mm, Max. Load 120 kg, CD 1200, RAL7035 120 kg grey 950 – 1050 mm 950 mm 482.6 mm 44 mm 7035 450 mm 1200 mm 950 mm
Vælg varianter
691651FTS.6 19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL9005 120 kg black 350 – 450 mm 350 mm 482.6 mm 44 mm 9005 450 mm 600 mm 350 mm
Vælg varianter
691651FTS.8 19" 1U Shelf, Fixed, MD 550..650 mm, Max. Load 120 kg, CD 800, RAL9005 120 kg black 550 – 650 mm 550 mm 482.6 mm 44 mm 9005 450 mm 800 mm 550 mm
Vælg varianter
691651FTS.10 19" 1U Shelf, Fixed, MD 750..850 mm, Max. Load 120 kg, CD 1000, RAL9005 120 kg black 750 – 850 mm 750 mm 482.6 mm 44 mm 9005 450 mm 1000 mm 750 mm
Vælg varianter
691651FTS.12 19" 1U Shelf, Fixed, MD 950..1050 mm, Max. Load 120 kg, CD 1200, RAL9005 120 kg black 950 – 1050 mm 950 mm 482.6 mm 44 mm 9005 450 mm 1200 mm 950 mm
Vælg varianter
Downloads

Downloads

Sikkerhedsanvisninger

Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
