19" 1U Shelves, Fixed, Max. Load 120 kg
Priser kun synlige for indloggede brugere

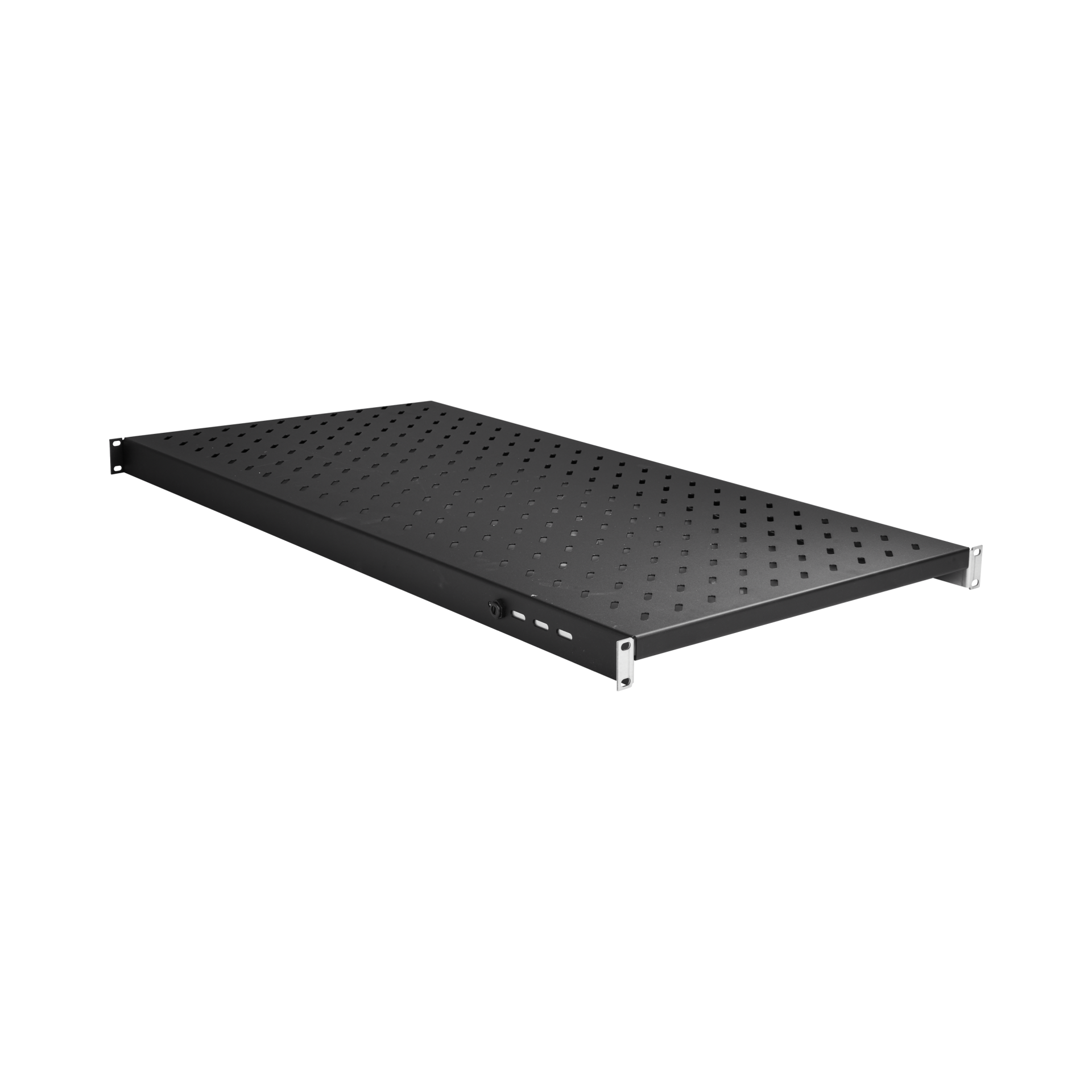

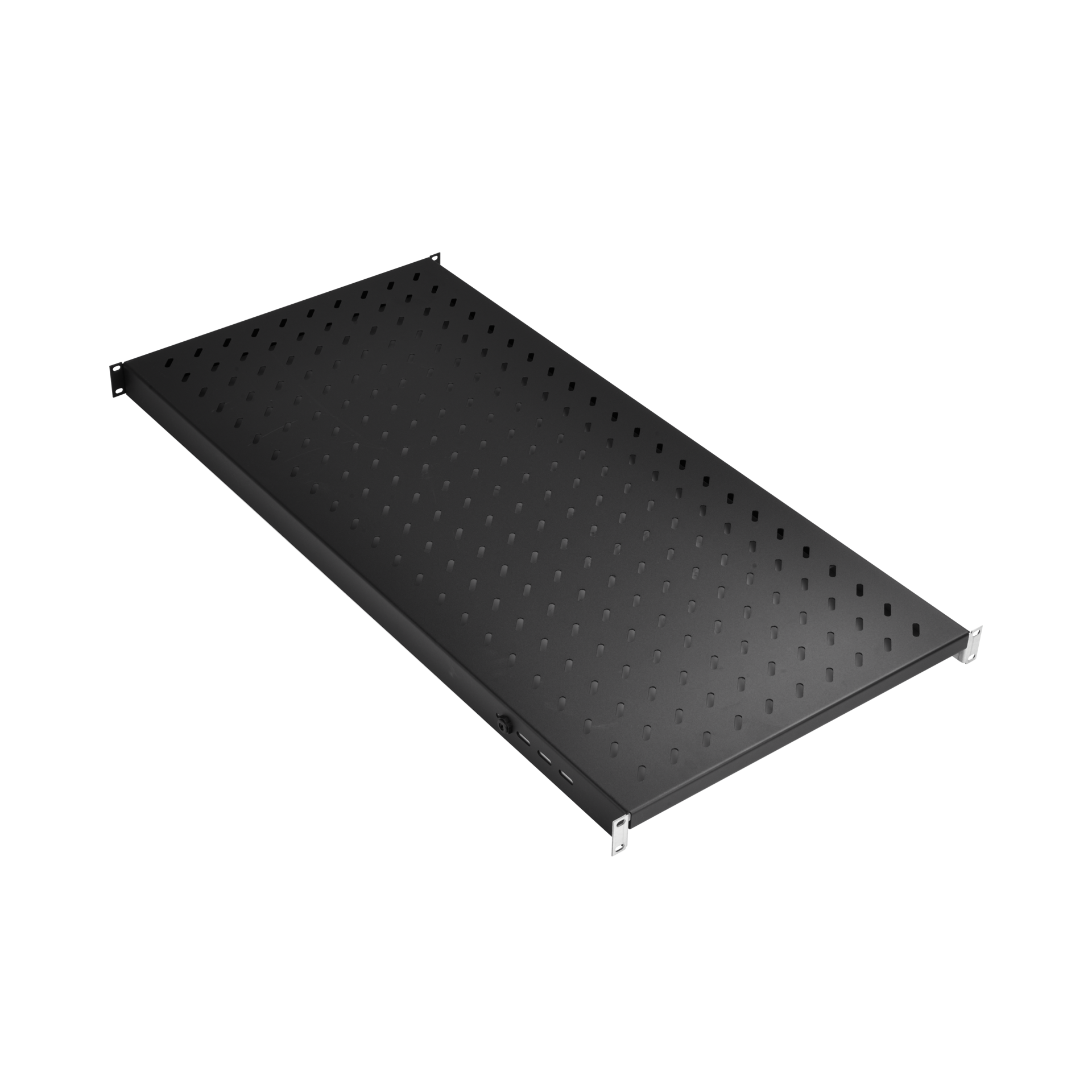

19" 1U Shelf, Fixed, MD 950..1050 mm, Max. Load 120 kg, CD 1200, RAL9005
Varenummer:
691651FTS.12
EAN nr.:
4049759252564
Produktinformation für 19" 1U Shelf, Fixed, MD 950..1050 mm, Max. Load 120 kg, CD 1200, RAL9005
For use in all 19" network and server cabinets
Fixing at the front and rear-sided 19" profiles necessary

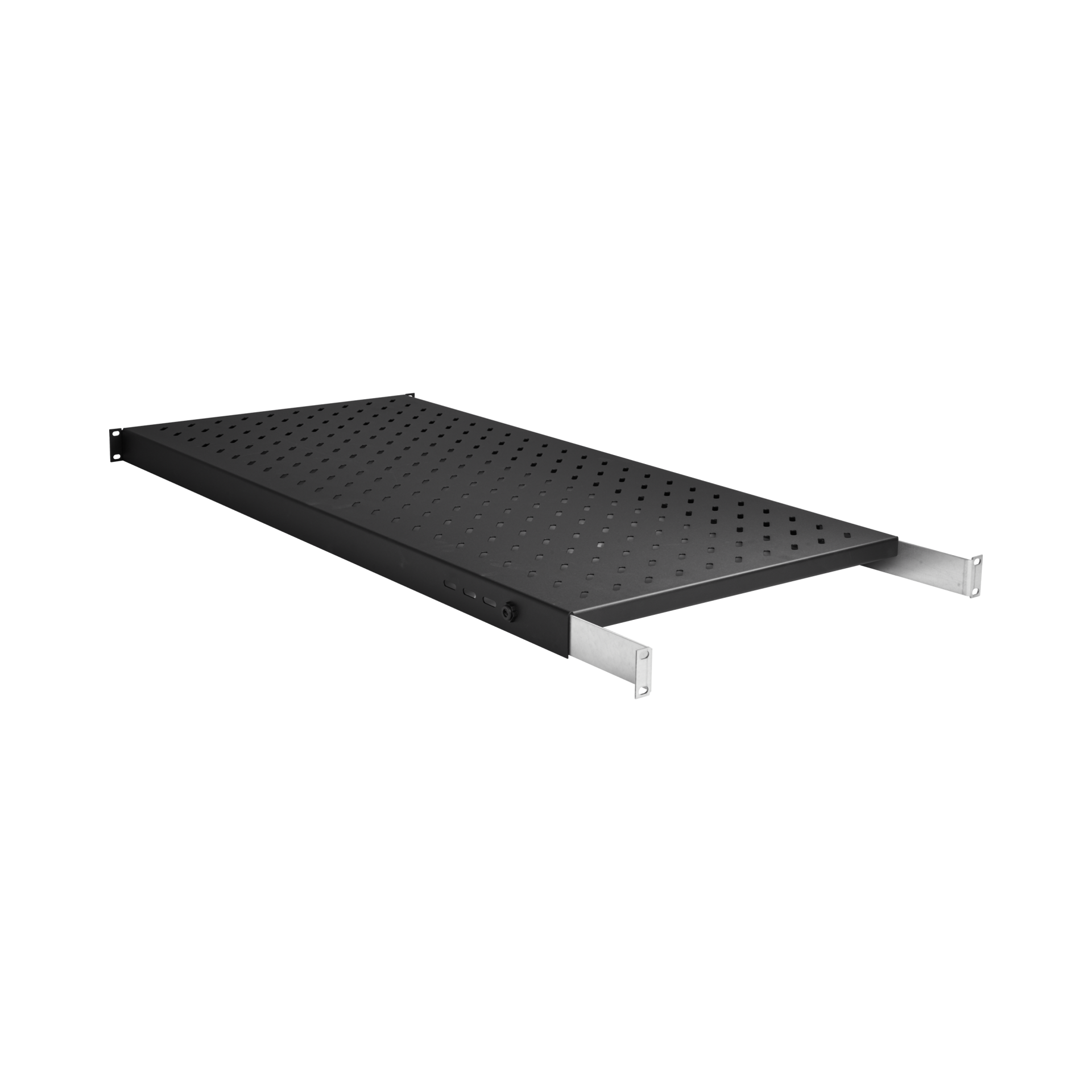

Mounting depth rear-sided adjustable (+0 .. 100 mm)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black

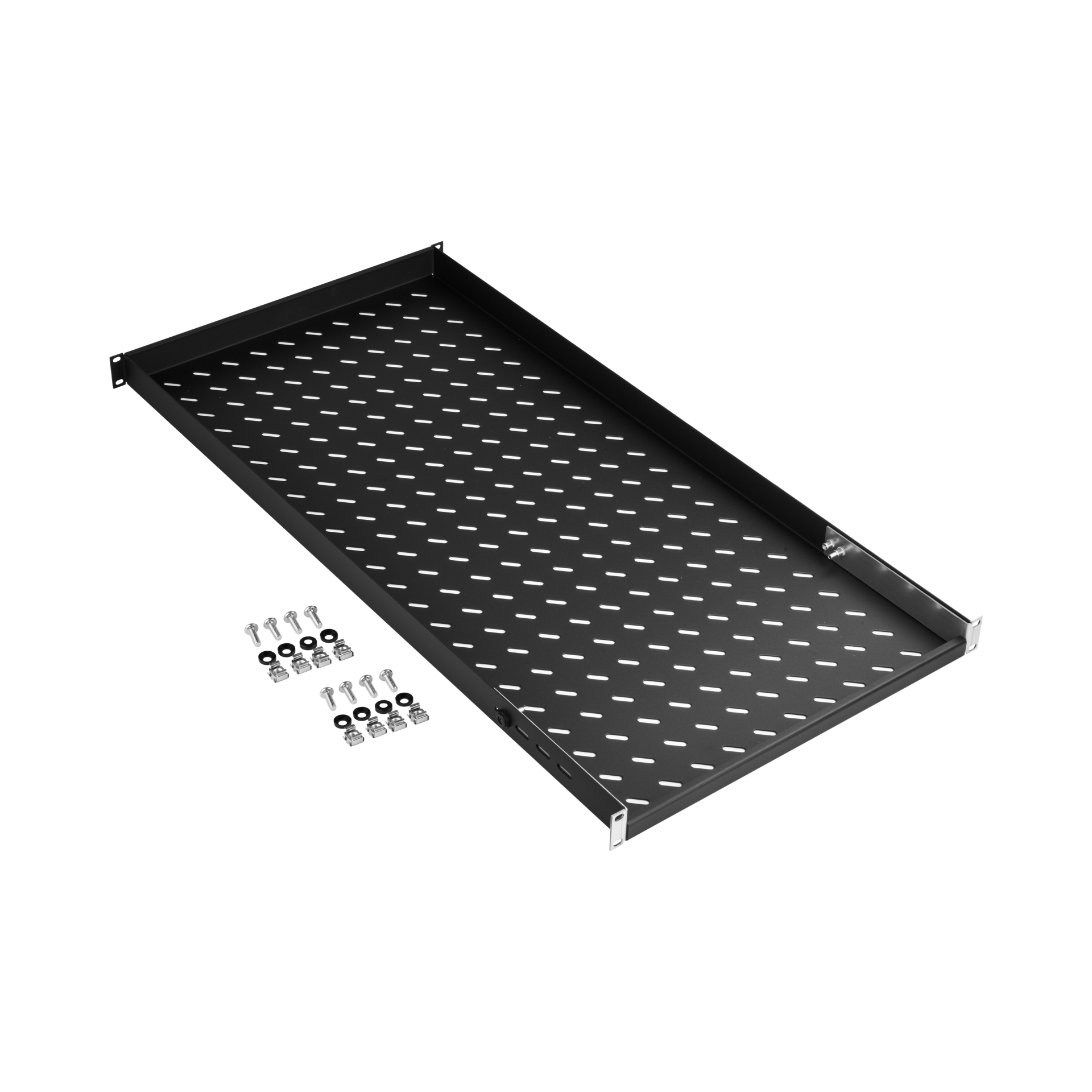

Scope of delivery: 1 x shelf incl. mounting accessories
Fixing at the front and rear-sided 19" profiles necessary
Mounting depth rear-sided adjustable (+0 .. 100 mm)
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x shelf incl. mounting accessories
Tekniske egenskaber
| Material: | Metal |
|---|---|
| Model: | Shelf |
Varianter
| Art. Nej. | Betegnelse | Max. Load | Colour | Adjustment | Depth | Width | Height | RAL-number | Usable Width | For Cabinet Depth | Usable Depth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 691651FGR.6 | 19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL7035 | 120 kg | grey | 350 – 450 mm | 350 mm | 482.6 mm | 44 mm | 7035 | 450 mm | 600 mm | 350 mm | |
| 691651FGR.8 | 19" 1U Shelf, Fixed, MD 550..650 mm, Max. Load 120 kg, CD 800, RAL7035 | 120 kg | grey | 550 – 650 mm | 550 mm | 482.6 mm | 44 mm | 7035 | 450 mm | 800 mm | 550 mm | |
| 691651FGR.10 | 19" 1U Shelf, Fixed, MD 750..850 mm, Max. Load 120 kg, CD 1000, RAL7035 | 120 kg | grey | 750 – 850 mm | 750 mm | 482.6 mm | 44 mm | 7035 | 450 mm | 1000 mm | 750 mm | |
| 691651FGR.12 | 19" 1U Shelf, Fixed, MD 950..1050 mm, Max. Load 120 kg, CD 1200, RAL7035 | 120 kg | grey | 950 – 1050 mm | 950 mm | 482.6 mm | 44 mm | 7035 | 450 mm | 1200 mm | 950 mm | |
| 691651FTS.6 | 19" 1U Shelf, Fixed, MD 350..450 mm, Max. Load 120 kg, CD 600, RAL9005 | 120 kg | black | 350 – 450 mm | 350 mm | 482.6 mm | 44 mm | 9005 | 450 mm | 600 mm | 350 mm | |
| 691651FTS.8 | 19" 1U Shelf, Fixed, MD 550..650 mm, Max. Load 120 kg, CD 800, RAL9005 | 120 kg | black | 550 – 650 mm | 550 mm | 482.6 mm | 44 mm | 9005 | 450 mm | 800 mm | 550 mm | |
| 691651FTS.10 | 19" 1U Shelf, Fixed, MD 750..850 mm, Max. Load 120 kg, CD 1000, RAL9005 | 120 kg | black | 750 – 850 mm | 750 mm | 482.6 mm | 44 mm | 9005 | 450 mm | 1000 mm | 750 mm | |
| 691651FTS.12 | 19" 1U Shelf, Fixed, MD 950..1050 mm, Max. Load 120 kg, CD 1200, RAL9005 | 120 kg | black | 950 – 1050 mm | 950 mm | 482.6 mm | 44 mm | 9005 | 450 mm | 1200 mm | 950 mm |
