19" Network Cabinet PRO-Advanced, 800x1000 mm, RAL7035
19" Network Cabinet PRO 42U, 800x1000 mm, RAL7035, Rear Door with Turning Handle
Varenummer:
PRO-4280GR.G1S1
EAN Nr.:
4049759218324
Produktinformation til 19" Network Cabinet PRO 42U, 800x1000 mm, RAL7035, Rear Door with Turning Handle
19" network cabinet according to DIN41494

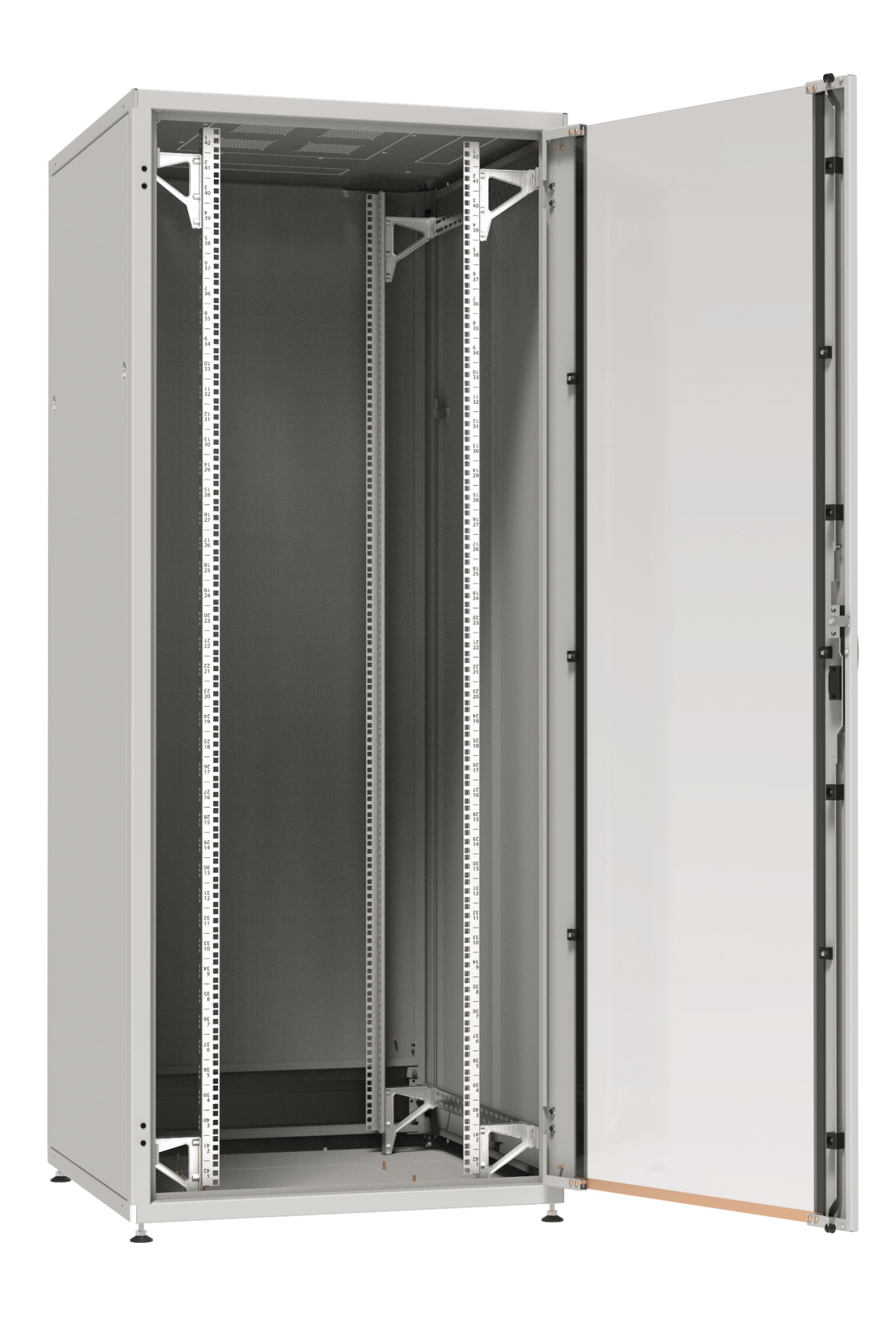

Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles

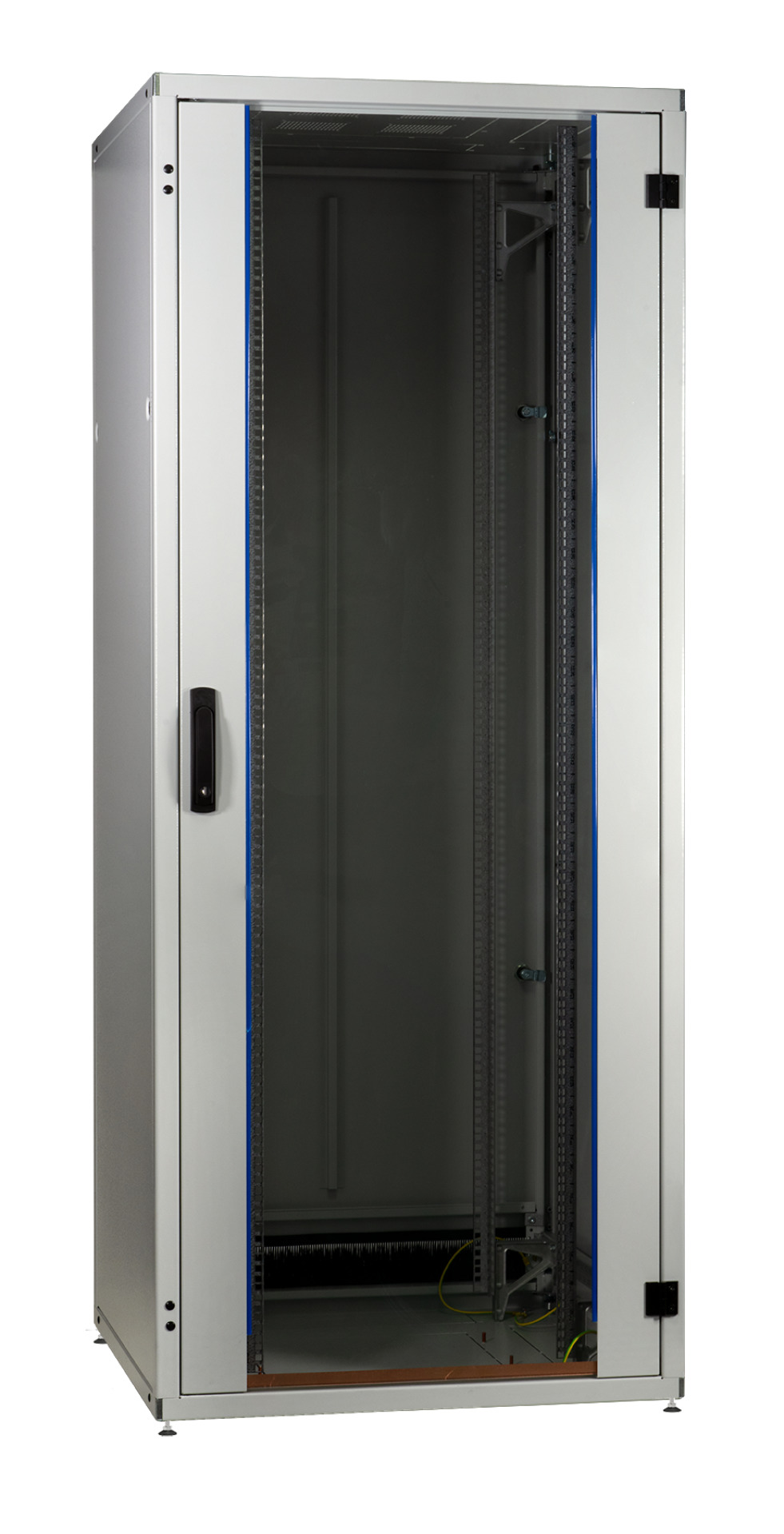

Front door with window of certified safety glass (thickness 5 mm)
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Rear door steel, 1-part, in full cabinet height
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

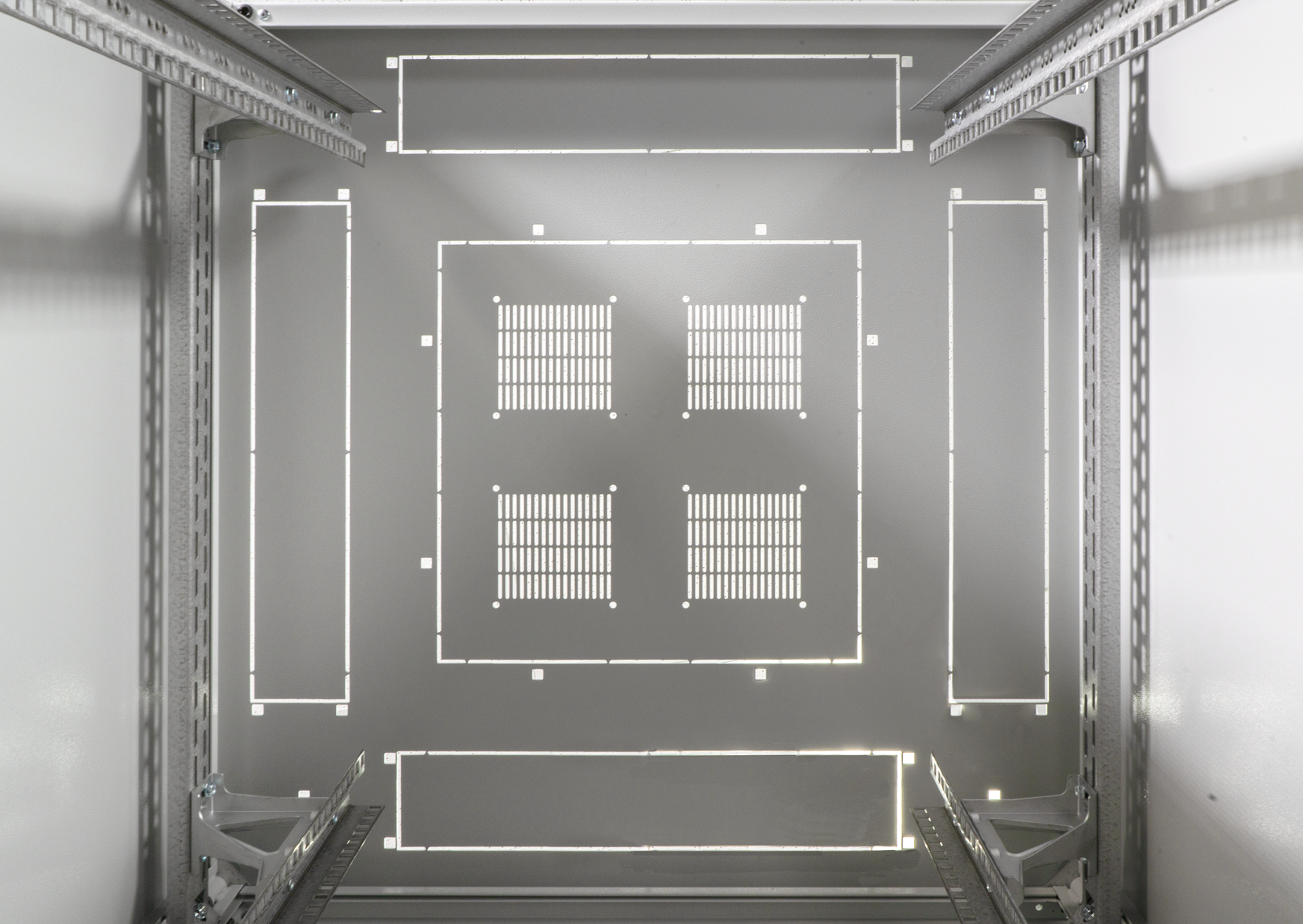

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections

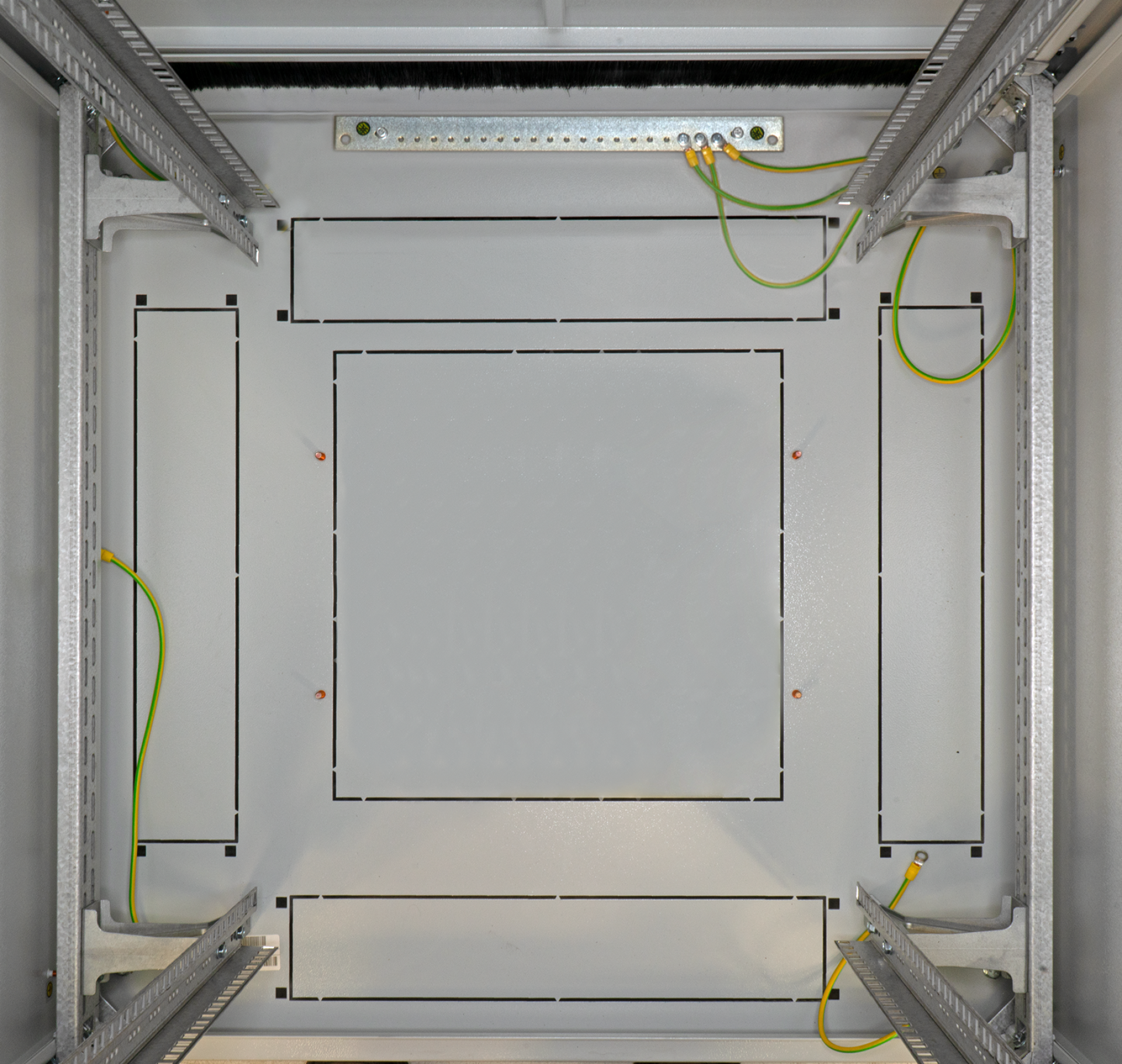

Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front door with window of certified safety glass (thickness 5 mm)
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Rear door steel, 1-part, in full cabinet height
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Art der Lüftung: | passiv |
|---|---|
| Ausführung: | mit Festrahmen |
| Ausführung Fronttür: | Glastür einteilig |
| Ausführung Rücktür: | Rücktür einteilig |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Ausführung der Profilschiene: | verkröpft |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Mit Sockel: | Nein |
| Mit rückseitiger Tür: | Ja |
| Montage-Ebene: | vorne und hinten |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schrankserie: | PRO |
| Schutzart: | IP20 |
| Werkstoff: | Stahl |
| Zerlegbar: | Ja |
Varianten
| Art. Nr. | Bezeichnung | Breite | Farbe | Mit Sichttür | Material Rücktür | Max. Belastbarkeit | Tiefe | Mit vertikaler Kabelführung | Material Fronttür | Anzahl der Höheneinheiten (HE) | Verriegelung der Fronttür | Verriegelung der Rücktür | Höhe | RAL-Nummer | Anzahl der Türen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-4280GR.G1S1 | 19" Network Cabinet PRO 42U, 800x1000 mm, RAL7035, Rear Door with Turning Handle | 800 mm | grau | Ja | Stahl | 1360 kg | 1000 mm | Nein | Glas | 42 HE | Dreipunkt | Dreipunkt | 1963 mm | 7035 | 2 | |
| PRO-1880TS.G1S1 | 19" Network Cabinet PRO-Advanced, 800x1000 mm, RAL7035 | 800 mm | schwarz | Ja | Stahl | 1360 kg | 1000 mm | Nein | Glas | 18 HE | Ein-Punkt | Ein-Punkt | 896 mm | 9005 | 2 | |
| PRO-2480GR.G1S1 | 19" Network Cabinet PRO-Advanced, 800x1000 mm, RAL7035 | 800 mm | grau | Ja | Stahl | 1360 kg | 1000 mm | Nein | Glas | 24 HE | Ein-Punkt | Ein-Punkt | 1163 mm | 7035 | 2 |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
