19" Network Cabinet PRO-Advanced, 800x800 mm, RAL7035
19" Network Cabinet PRO 42U, 800x800 mm, RAL7035, Rear Door with Turning Handle
Varenummer:
PRO-4288GR.G1S1
EAN Nr.:
4049759218478
Produktinformation til 19" Network Cabinet PRO 42U, 800x800 mm, RAL7035, Rear Door with Turning Handle
19" network cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable

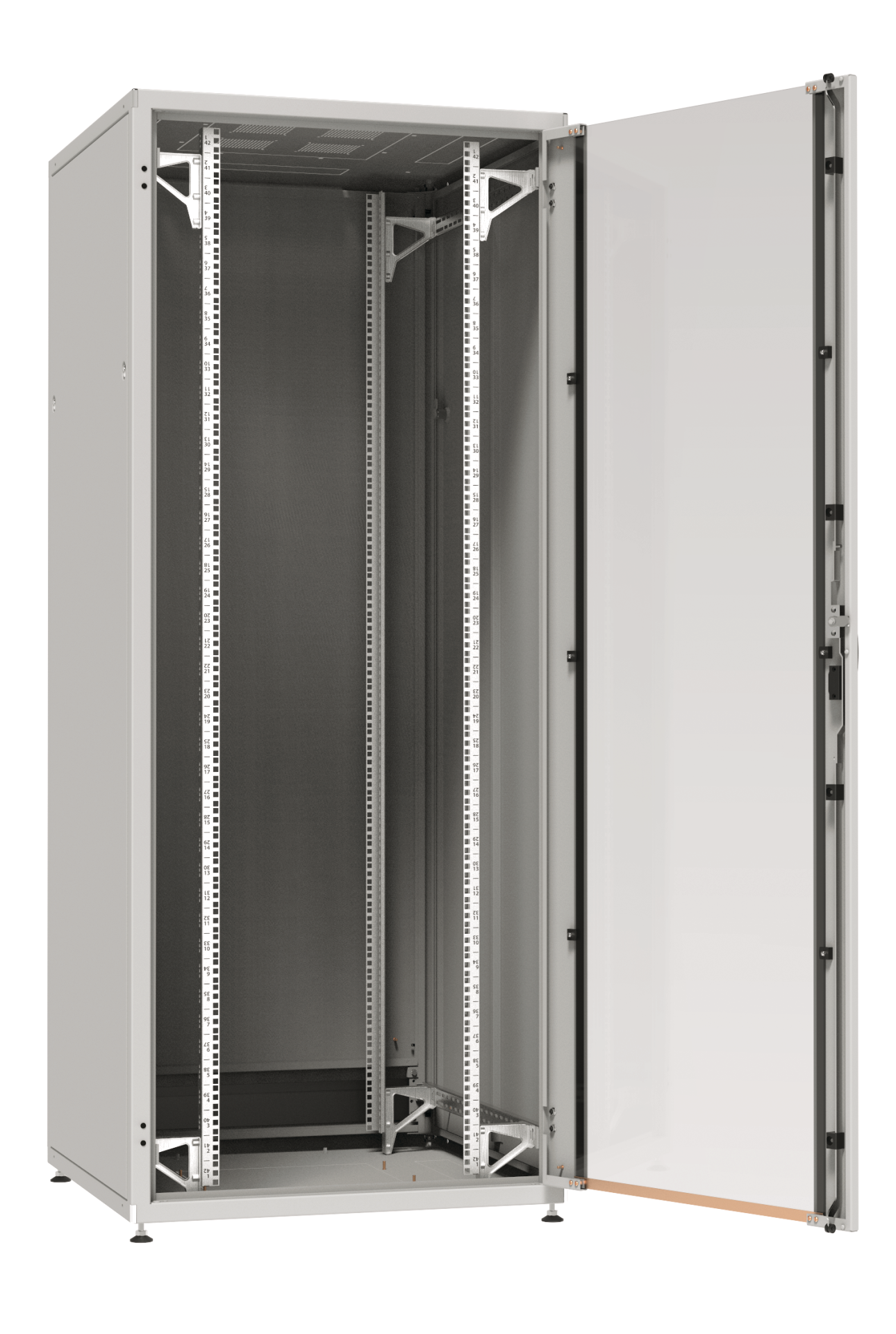

Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles

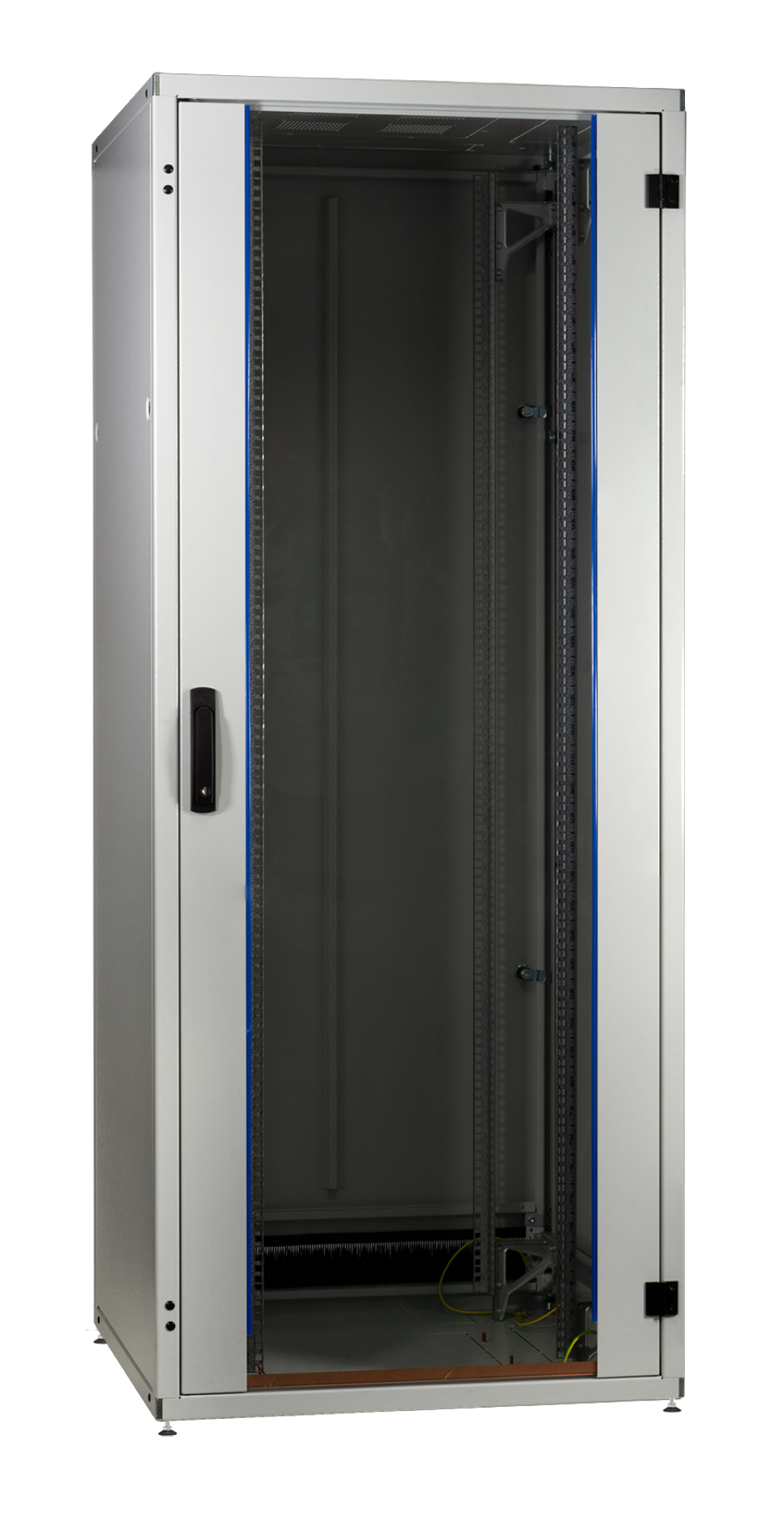

Front door with window of certified safety glass (thickness 5 mm)
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Rear door steel, 1-part, in full cabinet height
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

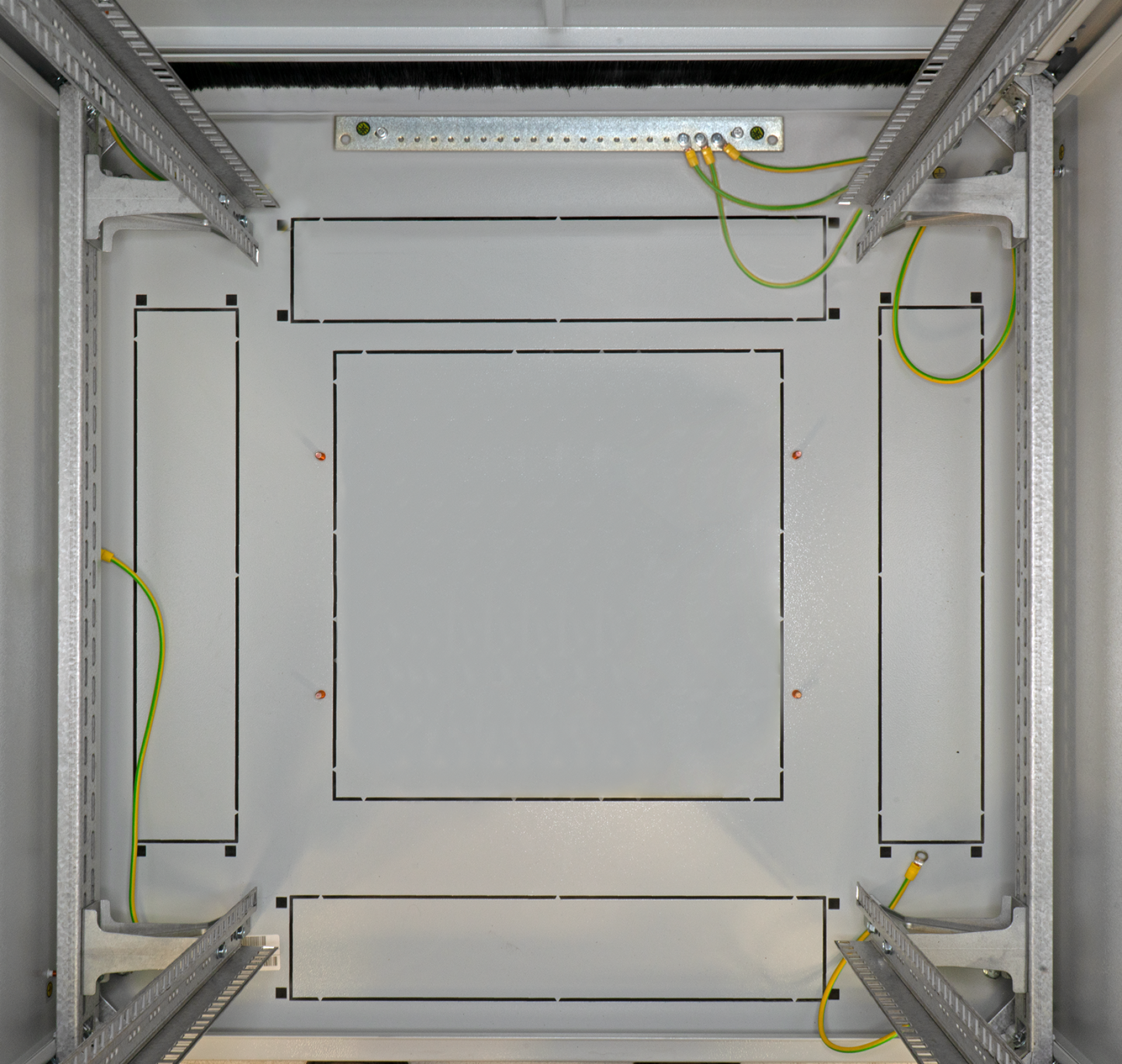

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm, for 600 mm cabinet width cable entry only rear

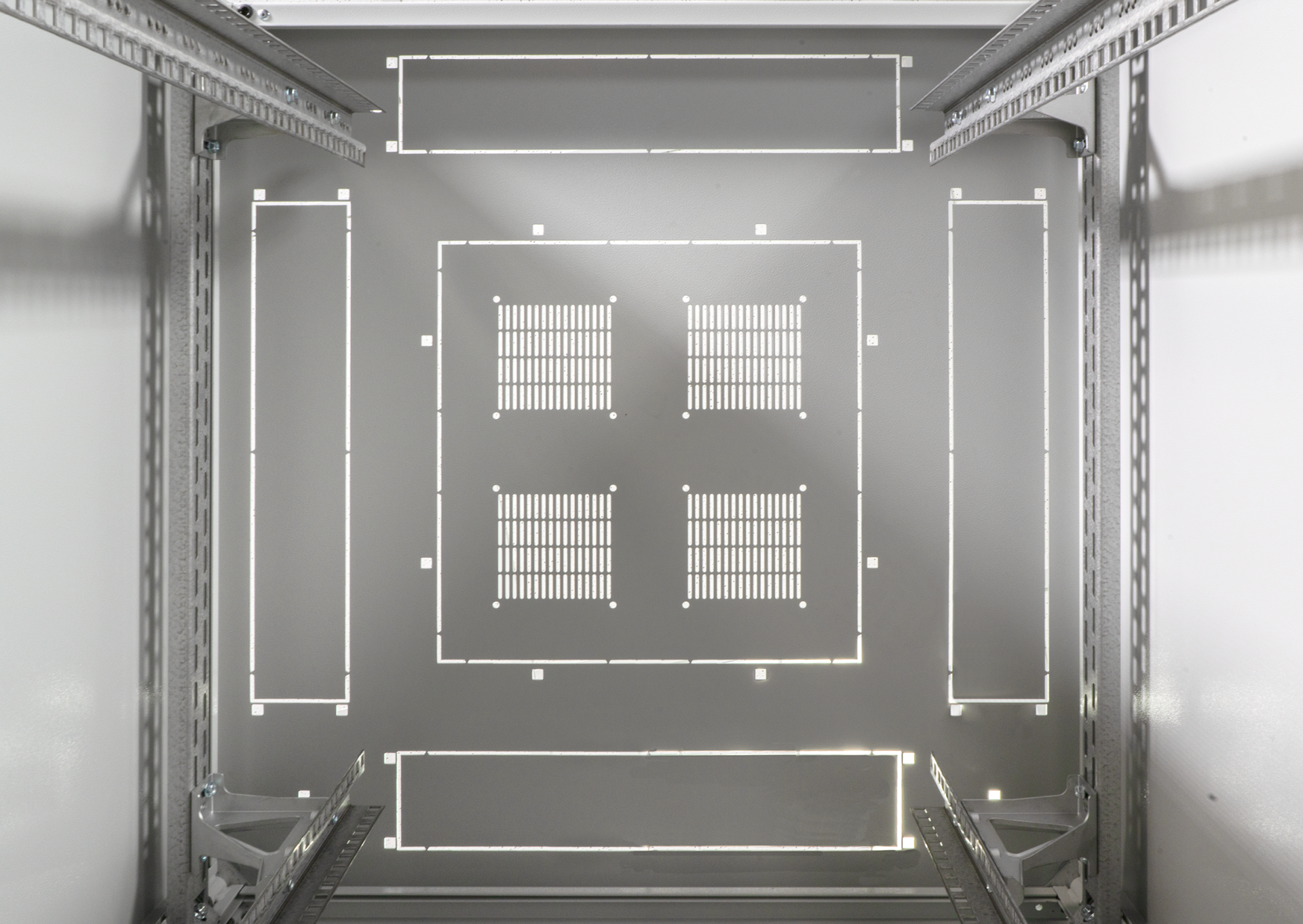

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front door with window of certified safety glass (thickness 5 mm)
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Rear door steel, 1-part, in full cabinet height
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm, for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Art der Lüftung: | passiv |
|---|---|
| Ausführung: | mit Festrahmen |
| Ausführung Fronttür: | Glastür einteilig |
| Ausführung Rücktür: | Stahltür einteilig |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Ausführung der Profilschiene: | verkröpft |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Mit Sockel: | Nein |
| Mit rückseitiger Tür: | Ja |
| Montage-Ebene: | vorne und hinten |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schrankserie: | PRO |
| Schutzart: | IP20 |
| Werkstoff: | Stahl |
| Zerlegbar: | Ja |
Varianten
| Art. Nr. | Bezeichnung | Breite | Tiefe | Farbe | Mit Sichttür | Material Rücktür | Mit vertikaler Kabelführung | Material Fronttür | Anzahl der Höheneinheiten (HE) | Verriegelung der Fronttür | Verriegelung der Rücktür | Höhe | RAL-Nummer | Anzahl der Türen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-4288GR.G1S1 | 19" Network Cabinet PRO 42U, 800x800 mm, RAL7035, Rear Door with Turning Handle | 800 mm | 800 mm | grau | Ja | Stahl | Nein | Glas | 42 HE | Dreipunkt | Dreipunkt | 1963 mm | 7035 | 2 | |
| PRO-1888GR.G1S1 | 19" Network Cabinet PRO-Advanced, 800x800 mm, RAL7035 | 800 mm | 800 mm | grau | Ja | Stahl | Nein | Glas | 18 HE | Ein-Punkt | Ein-Punkt | 896 mm | 7035 | 2 | |
| PRO-2488GR.G1S1 | 19" Network Cabinet PRO-Advanced, 800x800 mm, RAL7035 | 800 mm | 800 mm | grau | Ja | Stahl | Nein | Glas | 24 HE | Ein-Punkt | Ein-Punkt | 1163 mm | 7035 | 2 |
Sikkerhedsanvisninger
Benutzen Sie das Gerät nicht, wenn Kabel oder Stecker beschädigt sind. Dieses Gerät darf nur in trockenen Umgebungen verwendet werden. Vermeiden Sie fehlerhafte elektrische Anschlüsse. Verwenden Sie das Gerät nur innerhalb des angegebenen Spannungsbereiches.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
