19" Network Cabinet PRO, 800x800 mm, RAL7035/RAL9005
19" Network Cabinet PRO 47U, 800x800 mm, RAL7035
Varenummer:
PRO-4788GR.G1SV
EAN Nr.:
4049759218652
Produktinformation til 19" Network Cabinet PRO 47U, 800x800 mm, RAL7035
19" network cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable

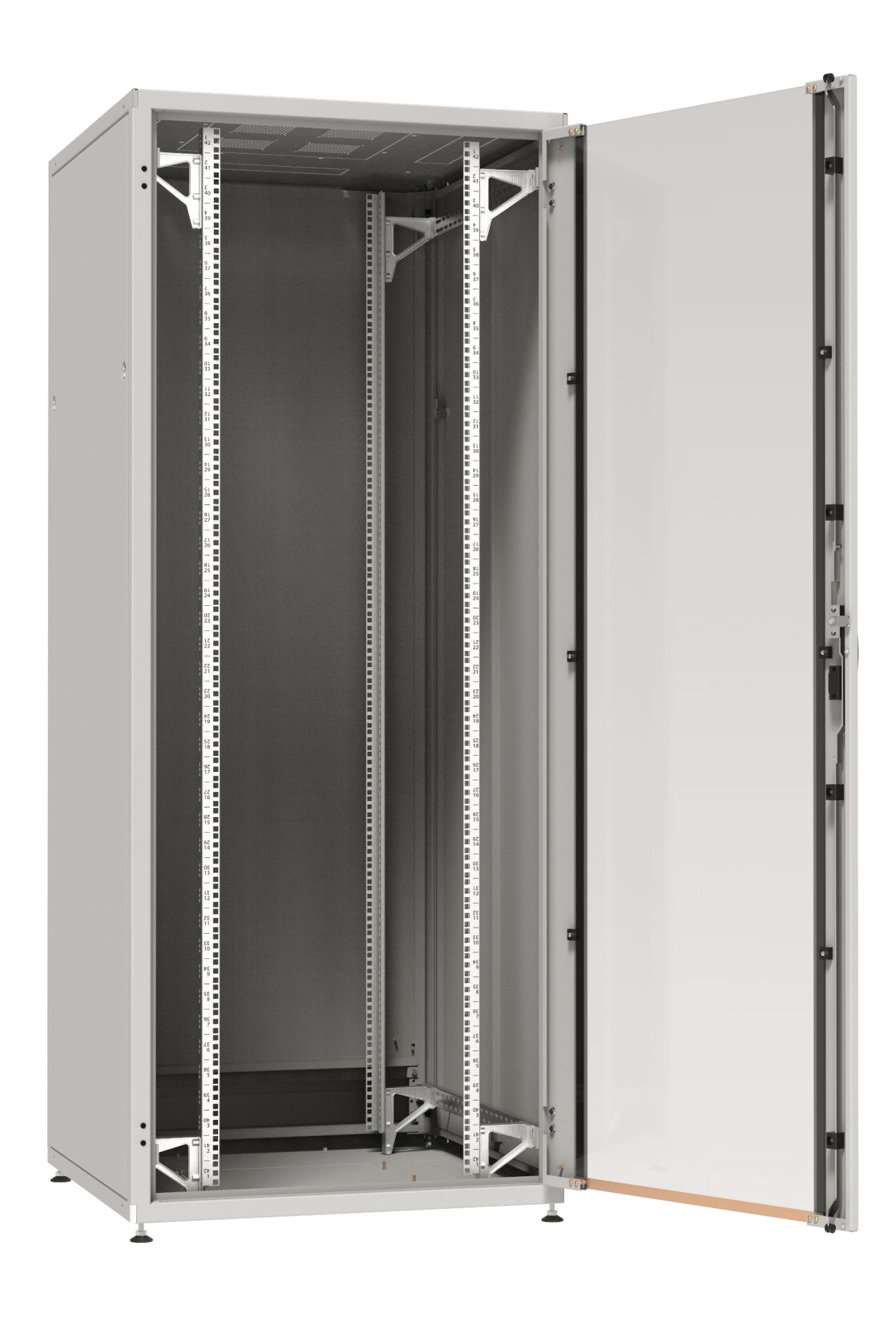

Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles

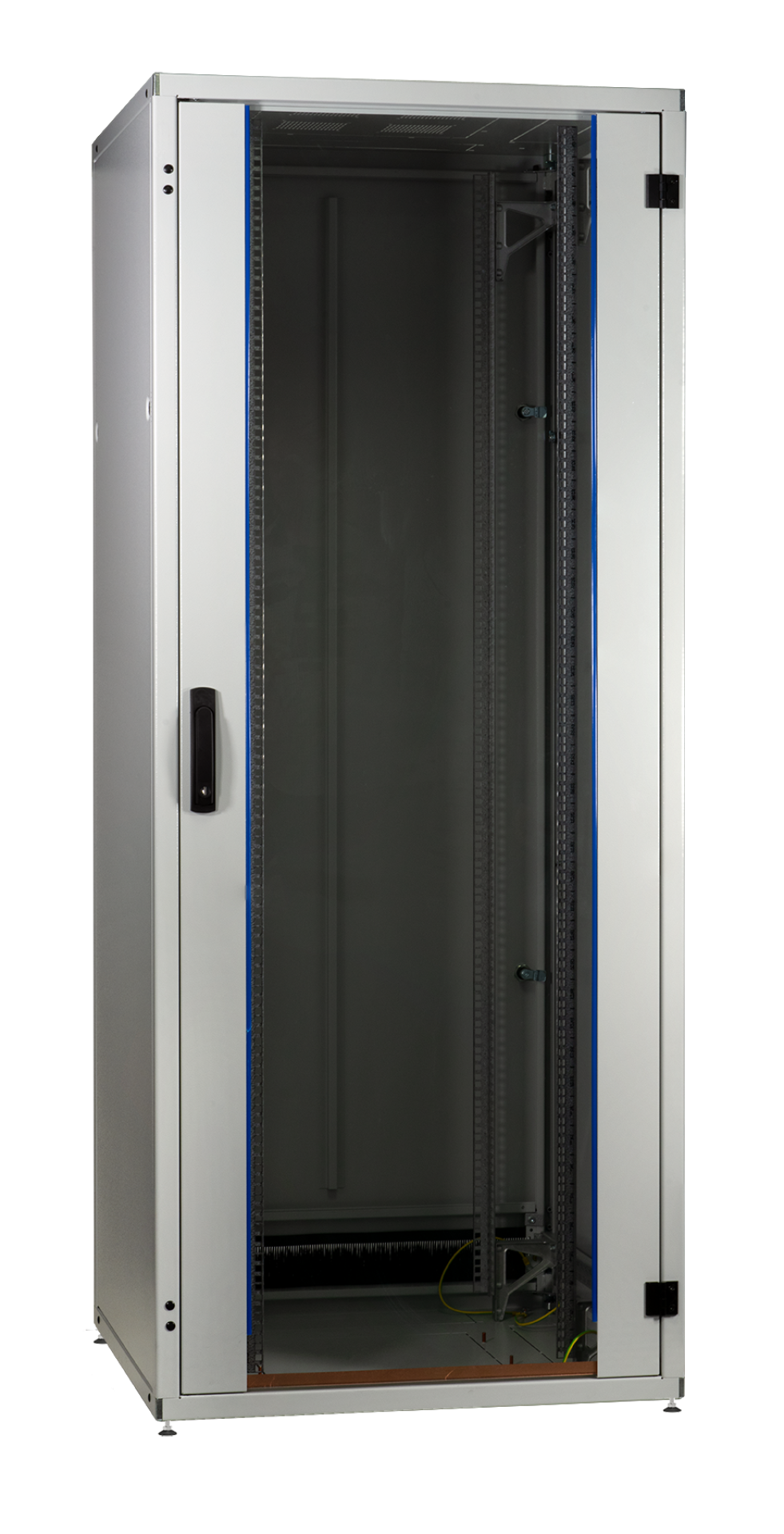

Front door with window of certified safety glass (thickness 5 mm)
Front door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Rear door steel, 1-part, shortened, with 2 x latch locking (lock equal to door lock), 3U panel for cable entry below (690 x 67 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X)

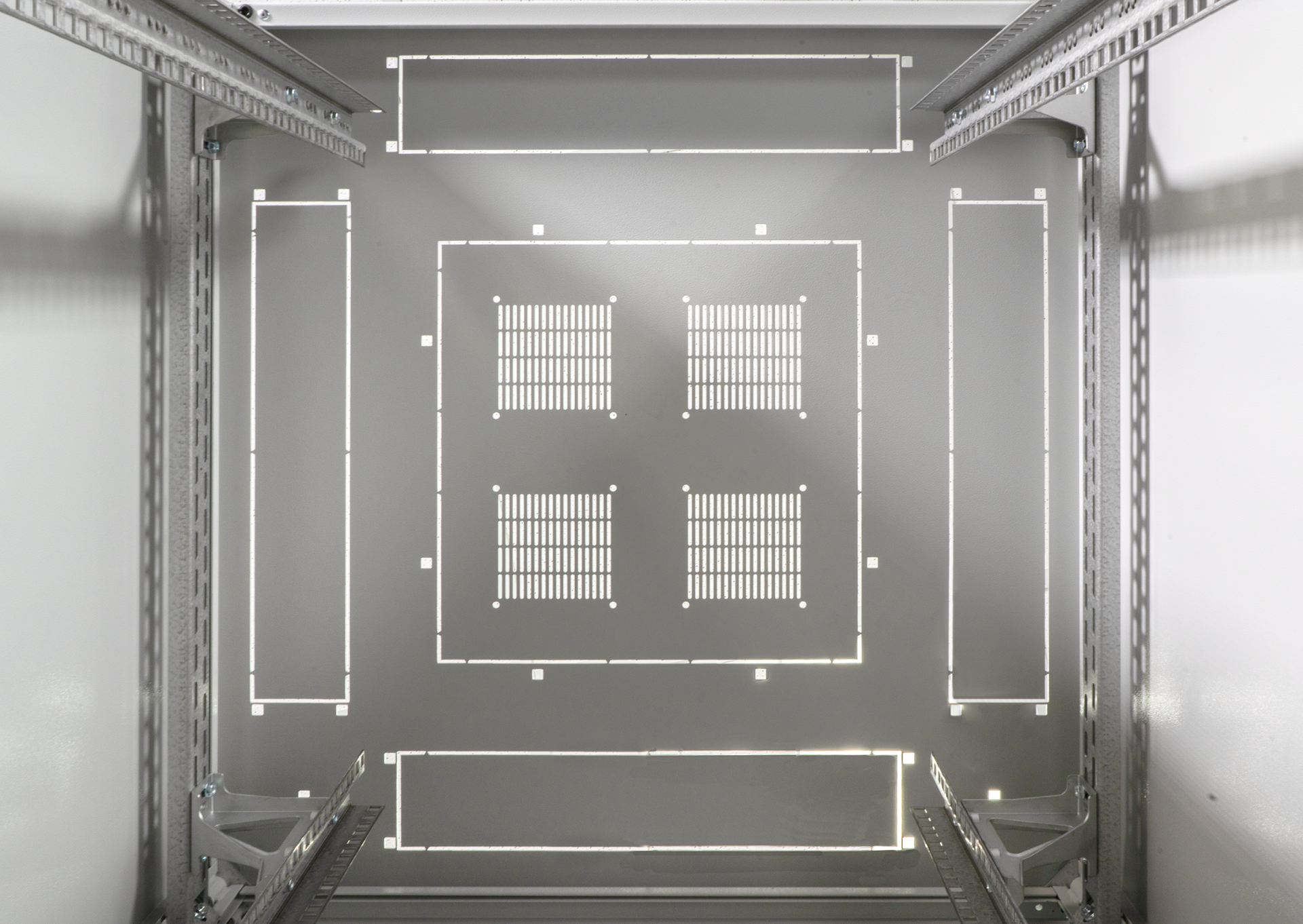

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

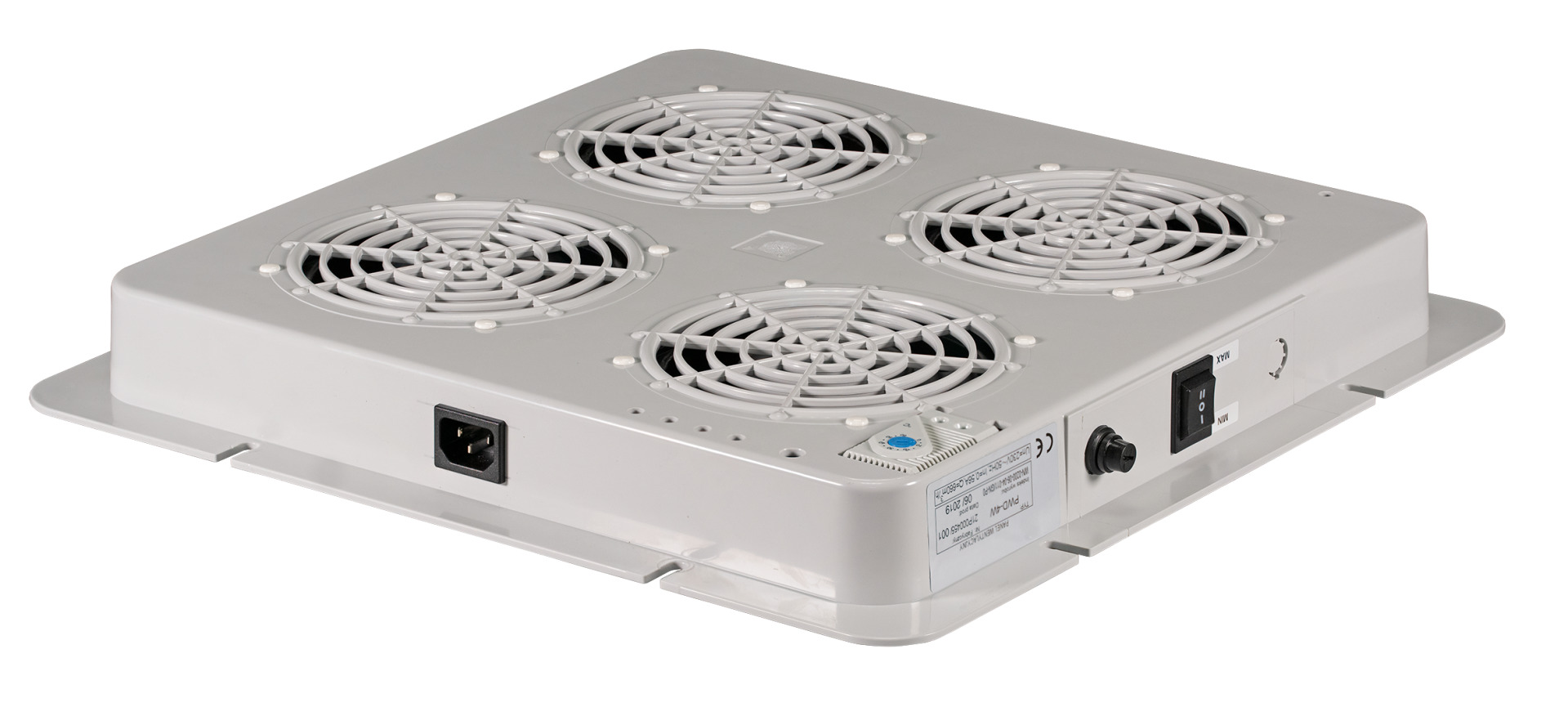

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections

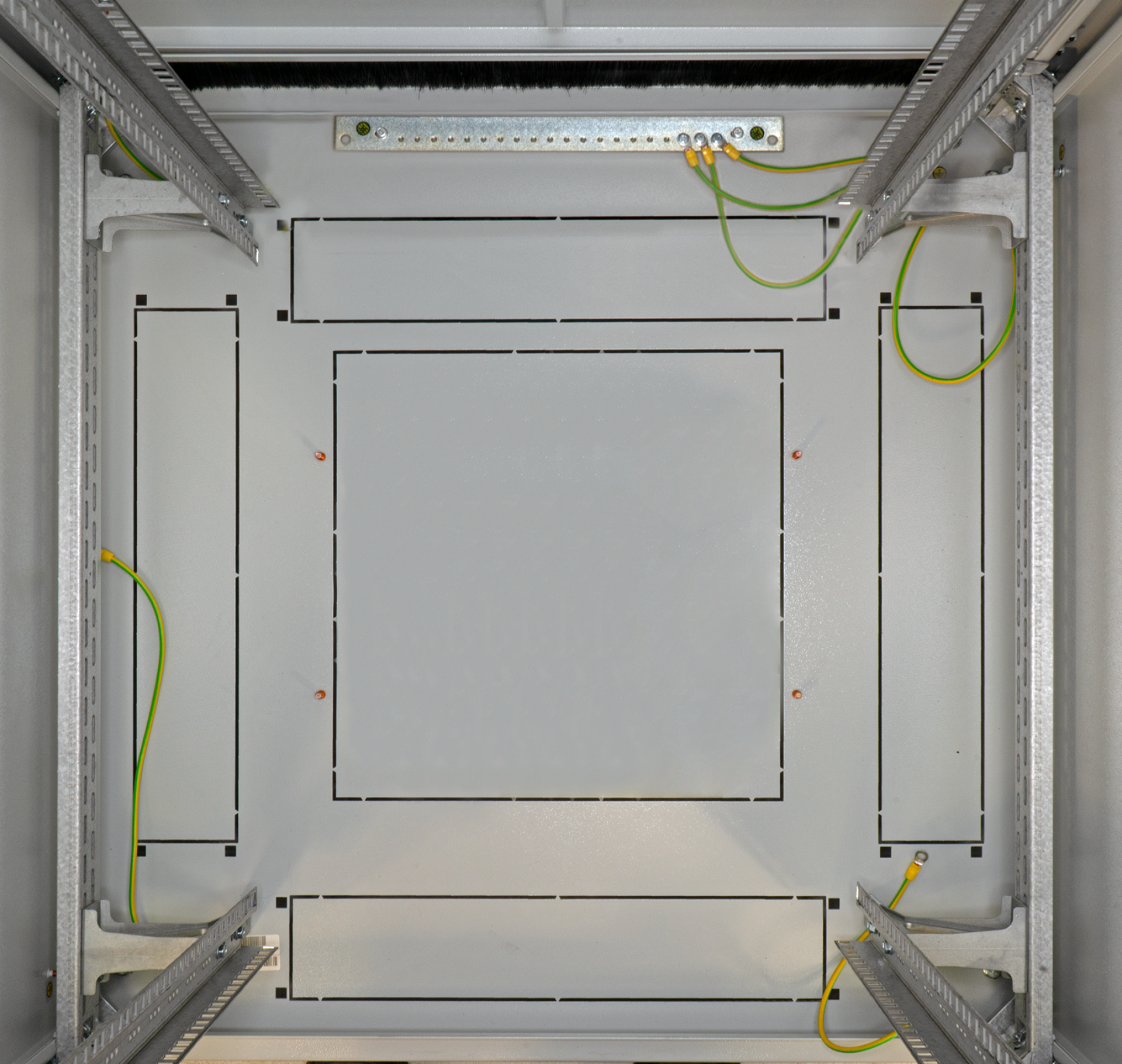

Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front door with window of certified safety glass (thickness 5 mm)
Front door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Rear door steel, 1-part, shortened, with 2 x latch locking (lock equal to door lock), 3U panel for cable entry below (690 x 67 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X)
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 2 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Cabinet Series: | PRO |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Number of cartons: | 1 |
| Surface finishing: | Powder coating |
| Type of back door: | Steel door 1-part |
| Type of front door: | Glass door 1-part |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | False |
Varianten
| Art. Nr. | Bezeichnung | Width | Depth | Color | With glazed door | Material rear door | Material front door | Number of height units | Height | RAL-number | Number of doors | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-4788GR.G1SV | 19" Network Cabinet PRO 47U, 800x800 mm, RAL7035 | 800 mm | 800 mm | grey | True | Steel | Glass | 47 U | 2186 mm | 7035 | 2 | |
| PRO-4288GR.G1SV | 19" Network Cabinet PRO 42U, 800x800 mm, RAL7035 | 800 mm | 800 mm | grey | True | Steel | Glass | 42 U | 1963 mm | 7035 | 2 | |
| PRO-3388GR.G1SV | 19" Network Cabinet PRO 33U, 800x800 mm, RAL7035 | 800 mm | 800 mm | grey | True | Steel | Glass | 33 U | 1563 mm | 7035 | 2 | |
| PRO-2488GR.G1SV | 19" Network Cabinet PRO 24U, 800x800 mm, RAL7035 | 800 mm | 800 mm | grey | True | Steel | Glass | 24 U | 1163 mm | 7035 | 2 | |
| PRO-1888GR.G1SV | 19" Network Cabinet PRO 18U, 800x800 mm, RAL7035 | 800 mm | 800 mm | grey | True | Steel | Glass | 18 U | 896 mm | 7035 | 2 | |
| PRO-2488TS.G1SV | 19" Network Cabinet PRO, 800x800 mm, RAL7035/RAL9005 | 800 mm | 800 mm | black | True | Steel | Glass | 24 U | 1163 mm | 9005 | 2 |
