19" Server Cabinets PRO, 600x1000 mm, 1-Part Doors

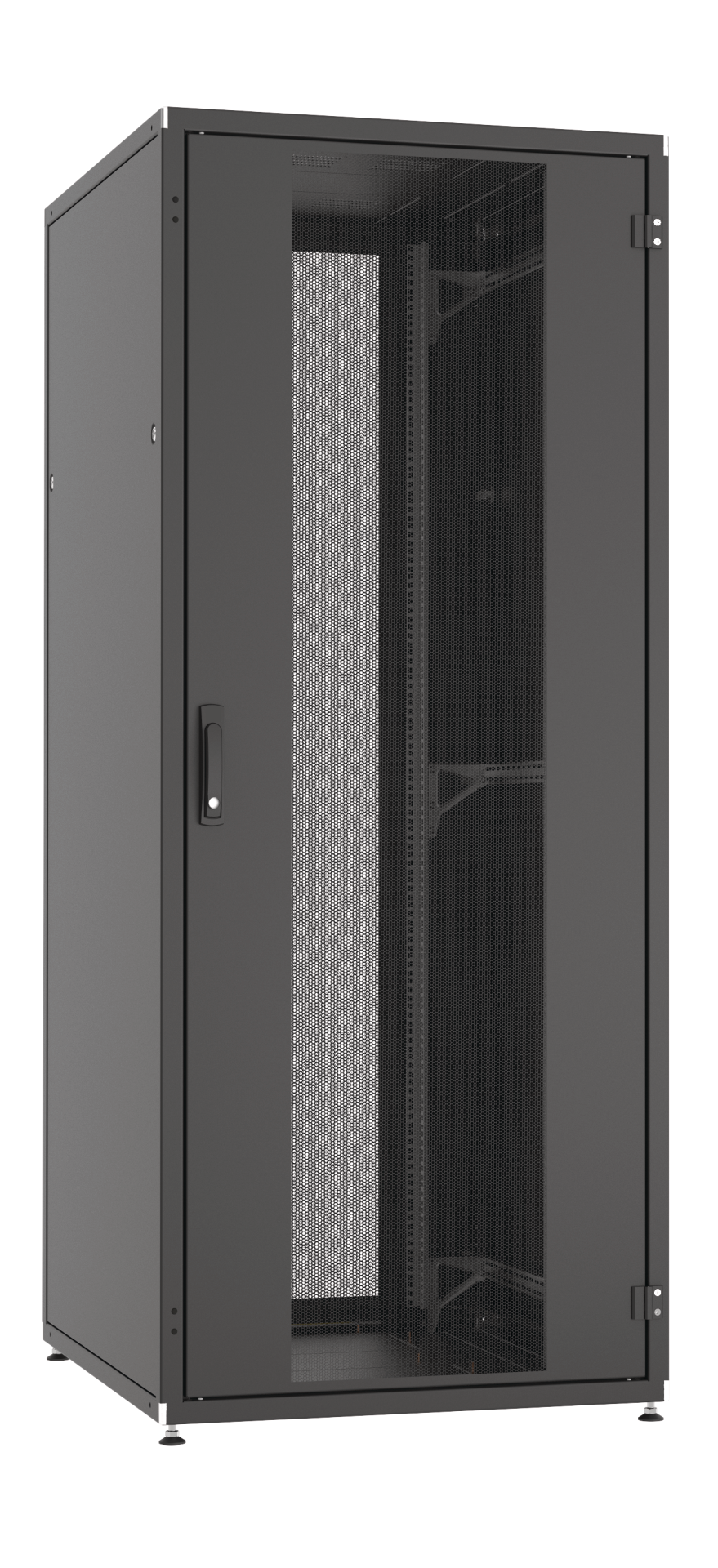

19" Server Cabinet PRO 24U, 600x1000 mm, F+R 1-Part, RAL9005
Varenummer:
PRO-2460TS.P1
EAN Nr.:
4049759218119
Produktinformation til 19" Server Cabinet PRO 24U, 600x1000 mm, F+R 1-Part, RAL9005
19" server cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable

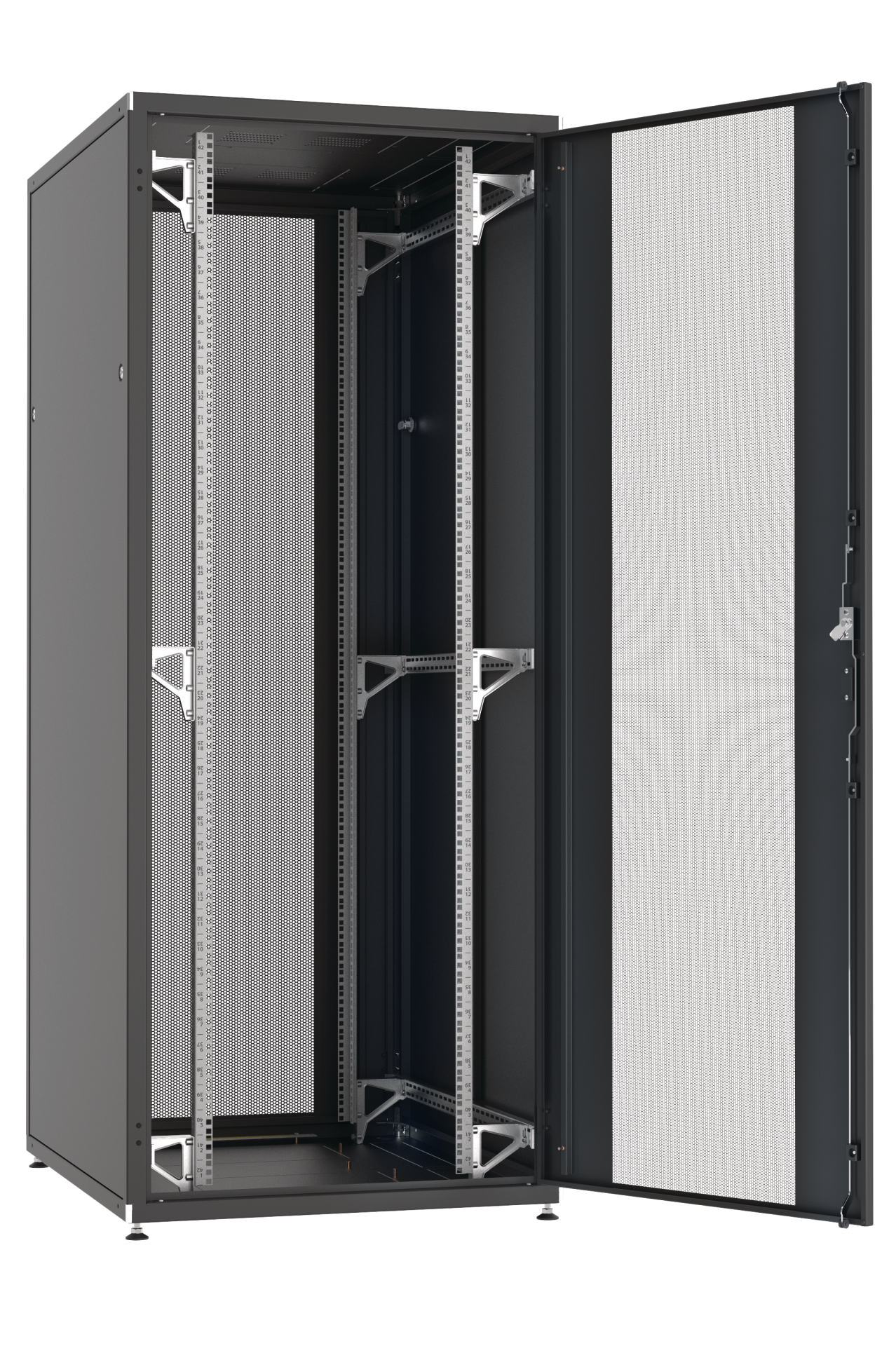

Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

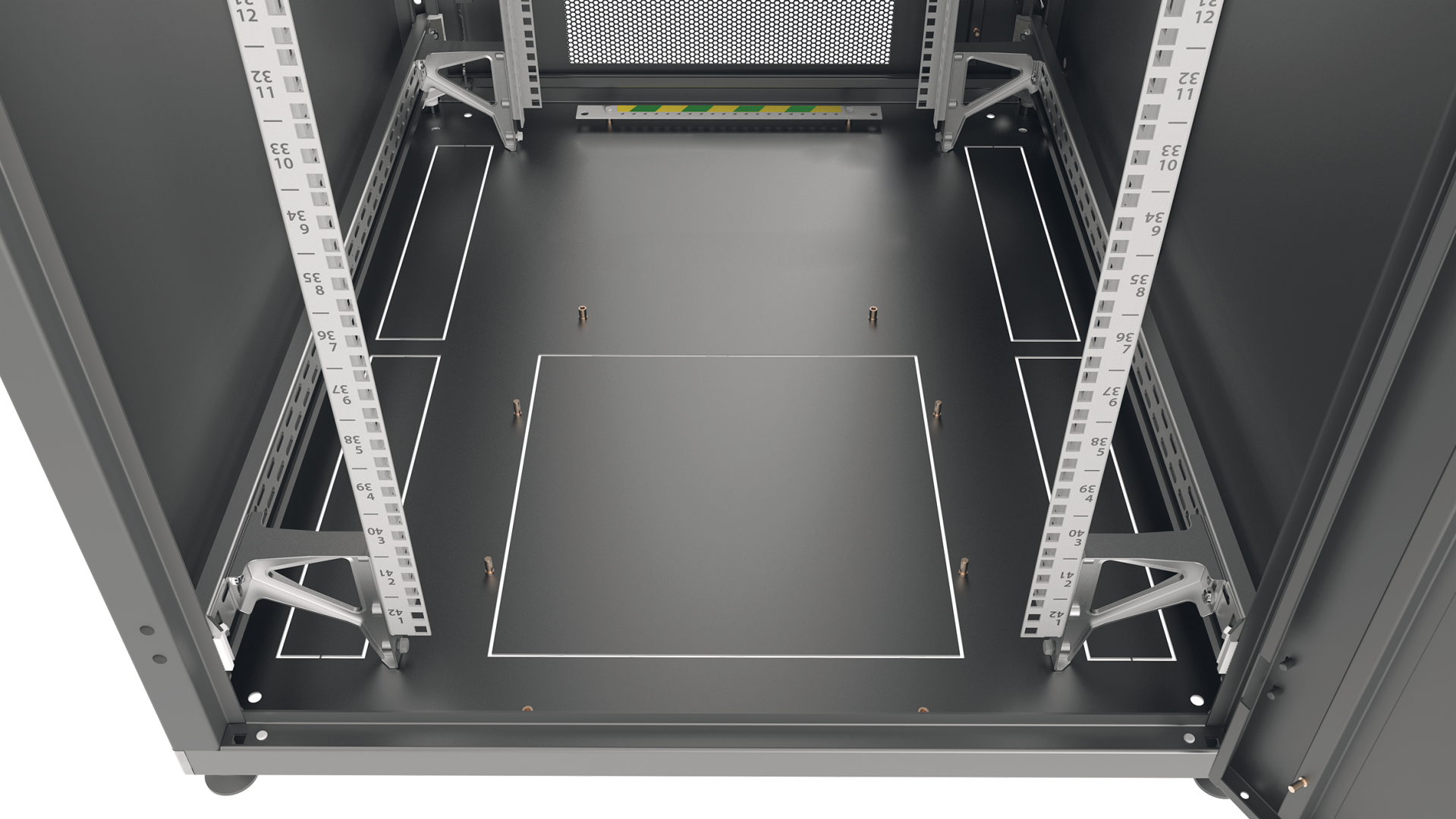

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

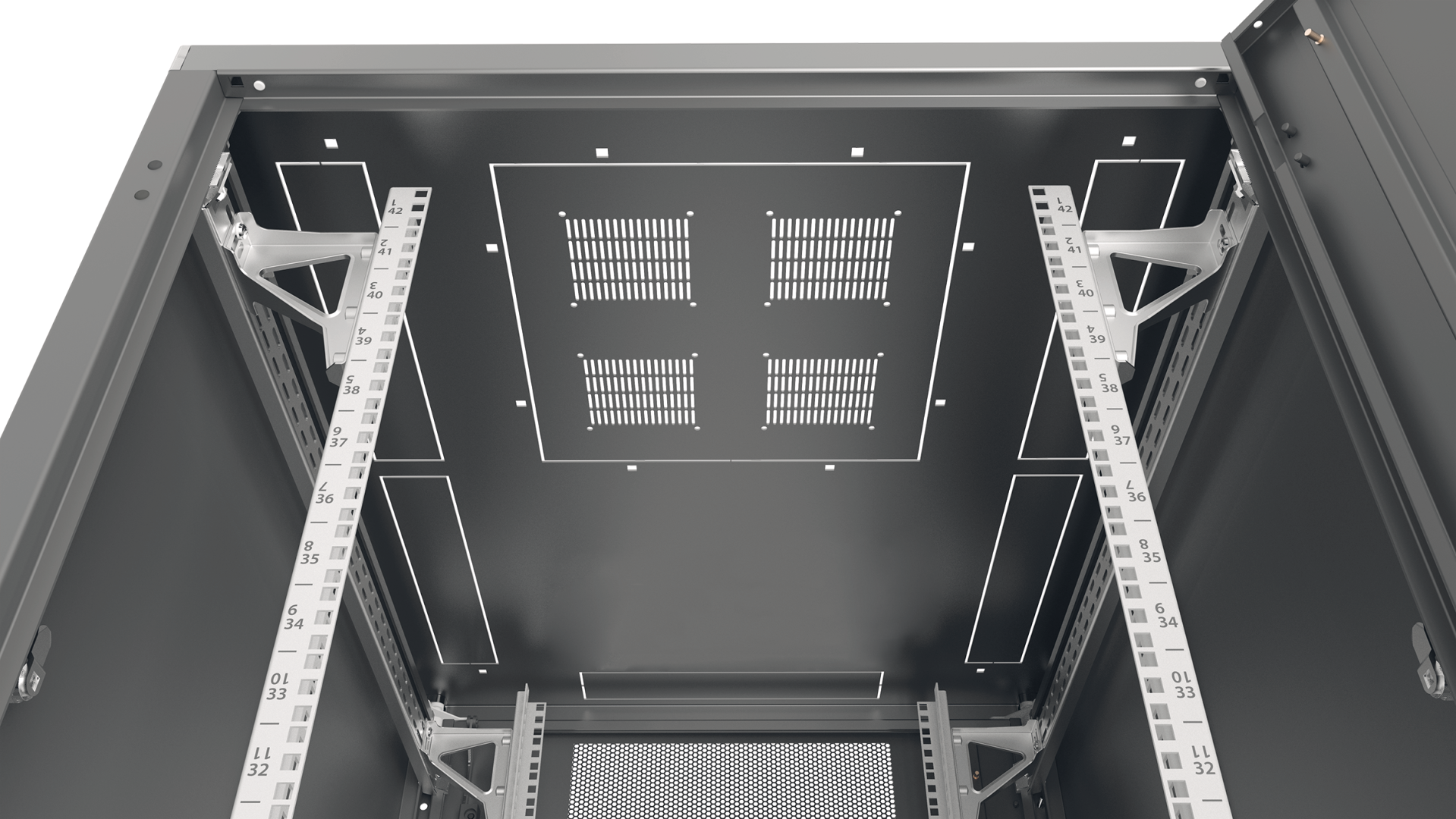

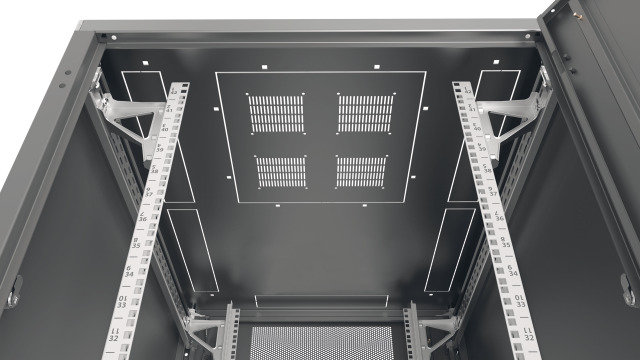

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Art der Lüftung: | passiv |
|---|---|
| Ausführung: | mit Festrahmen |
| Ausführung Fronttür: | Stahltür perforiert einteilig |
| Ausführung Rücktür: | Stahltür perforiert einteilig |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Ausführung der Profilschiene: | verkröpft |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Mit Sockel: | Nein |
| Mit rückseitiger Tür: | Ja |
| Montage-Ebene: | vorne und hinten |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schutzart: | IP20 |
| Werkstoff: | Stahl |
| Zerlegbar: | Ja |
Varianten
| Art. Nr. | Bezeichnung | Farbe | Verriegelung der Fronttür | Breite | Anzahl der Höheneinheiten (HE) | Material Fronttür | Verriegelung der Rücktür | Material Rücktür | Max. Belastbarkeit | Tiefe | Mit vertikaler Kabelführung | Mit Sichttür | Höhe | RAL-Nummer | Anzahl der Türen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-2460TS.P1 | 19" Server Cabinet PRO 24U, 600x1000 mm, F+R 1-Part, RAL9005 | schwarz | Ein-Punkt | 600 mm | 24 HE | Stahl | Ein-Punkt | Stahl | 1360 kg | 1000 mm | Nein | Nein | 1163 mm | 9005 | 2 | |
| PRO-4260TS.P1 | 19" Server Cabinet PRO 42U, 600x1000 mm, F+R 1-Part, RAL9005 | schwarz | Dreipunkt | 600 mm | 42 HE | Stahl | Dreipunkt | Stahl | 1360 kg | 1000 mm | Nein | Nein | 1963 mm | 9005 | 2 | |
| PRO-2460GR.P1 | 19" Server Cabinets PRO, 600x1000 mm, 1-Part Doors | grau | Ein-Punkt | 600 mm | 24 HE | Stahl | Ein-Punkt | Stahl | 1360 kg | 1000 mm | Nein | Nein | 1163 mm | 7035 | 2 |
Sikkerhedsanvisninger
Benutzen Sie das Gerät nicht, wenn Kabel oder Stecker beschädigt sind. Dieses Gerät darf nur in trockenen Umgebungen verwendet werden. Vermeiden Sie fehlerhafte elektrische Anschlüsse. Verwenden Sie das Gerät nur innerhalb des angegebenen Spannungsbereiches.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
