19" Server Cabinets PRO, 600x1000 mm, 1-Part Doors
Priser kun synlige for indloggede brugere

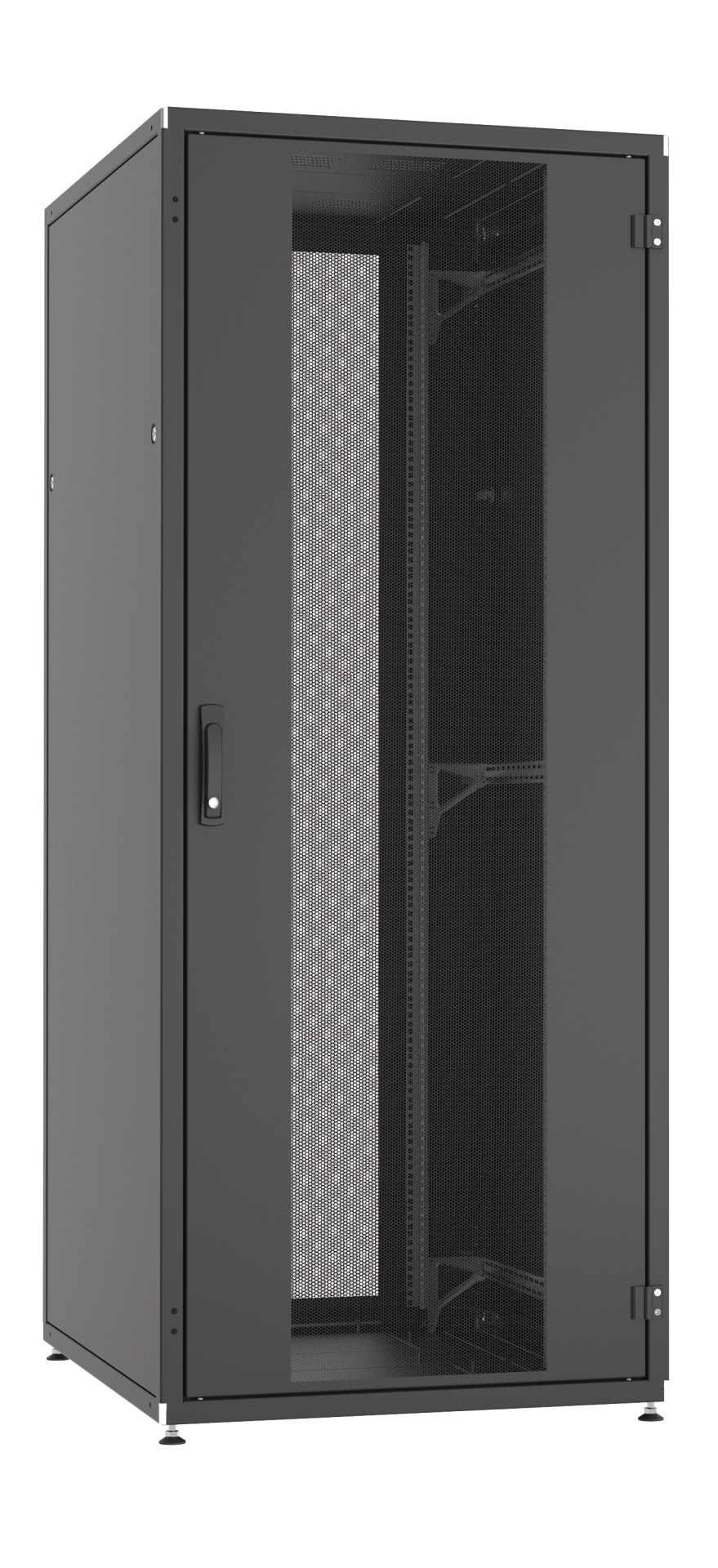

19" Server Cabinet PRO 42U, 600x1000 mm, F+R 1-Part, RAL9005
Varenummer:
PRO-4260TS.P1
EAN nr.:
4049759218218
Produktinformation für 19" Server Cabinet PRO 42U, 600x1000 mm, F+R 1-Part, RAL9005
19" server cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable

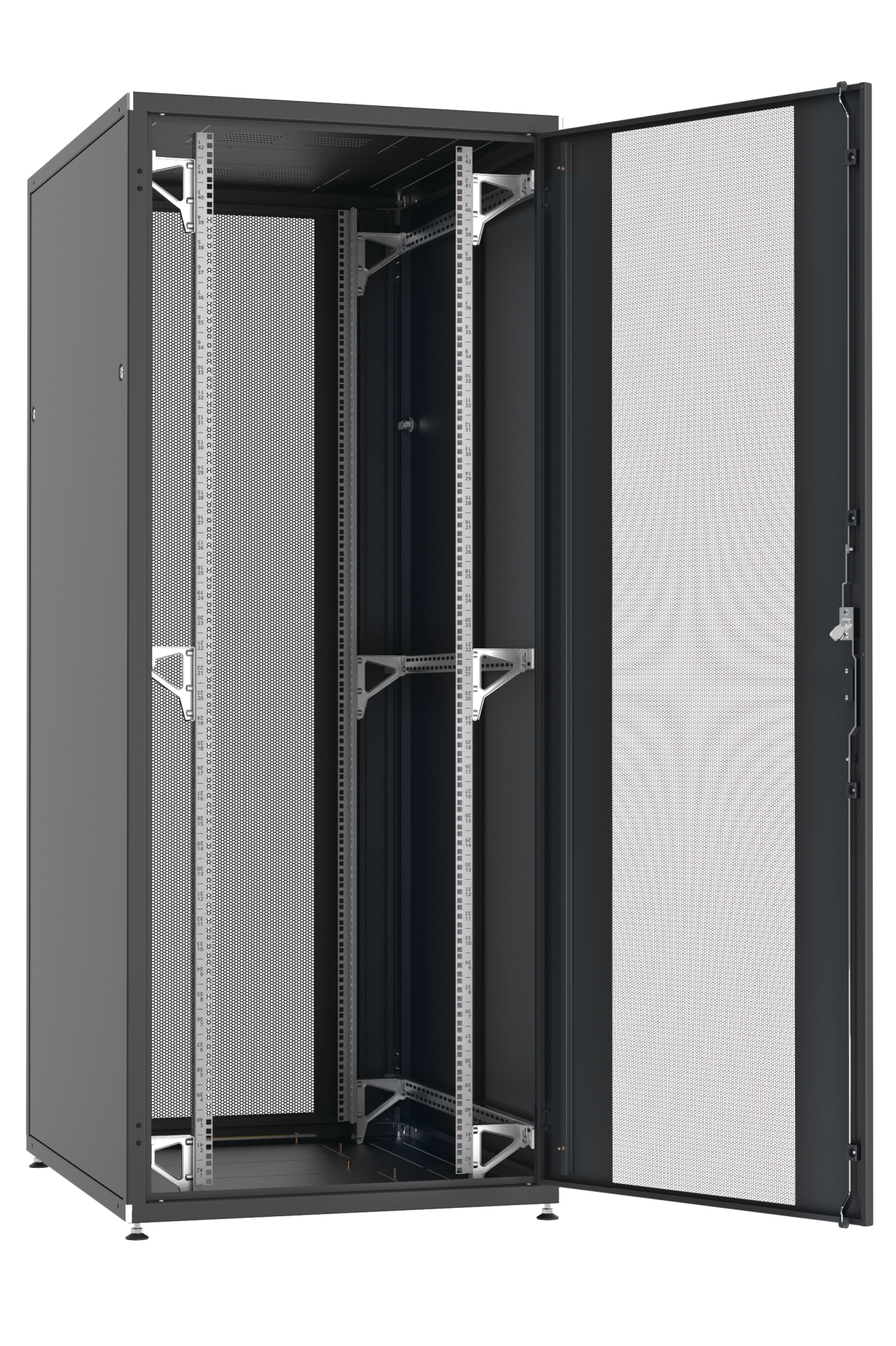

Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

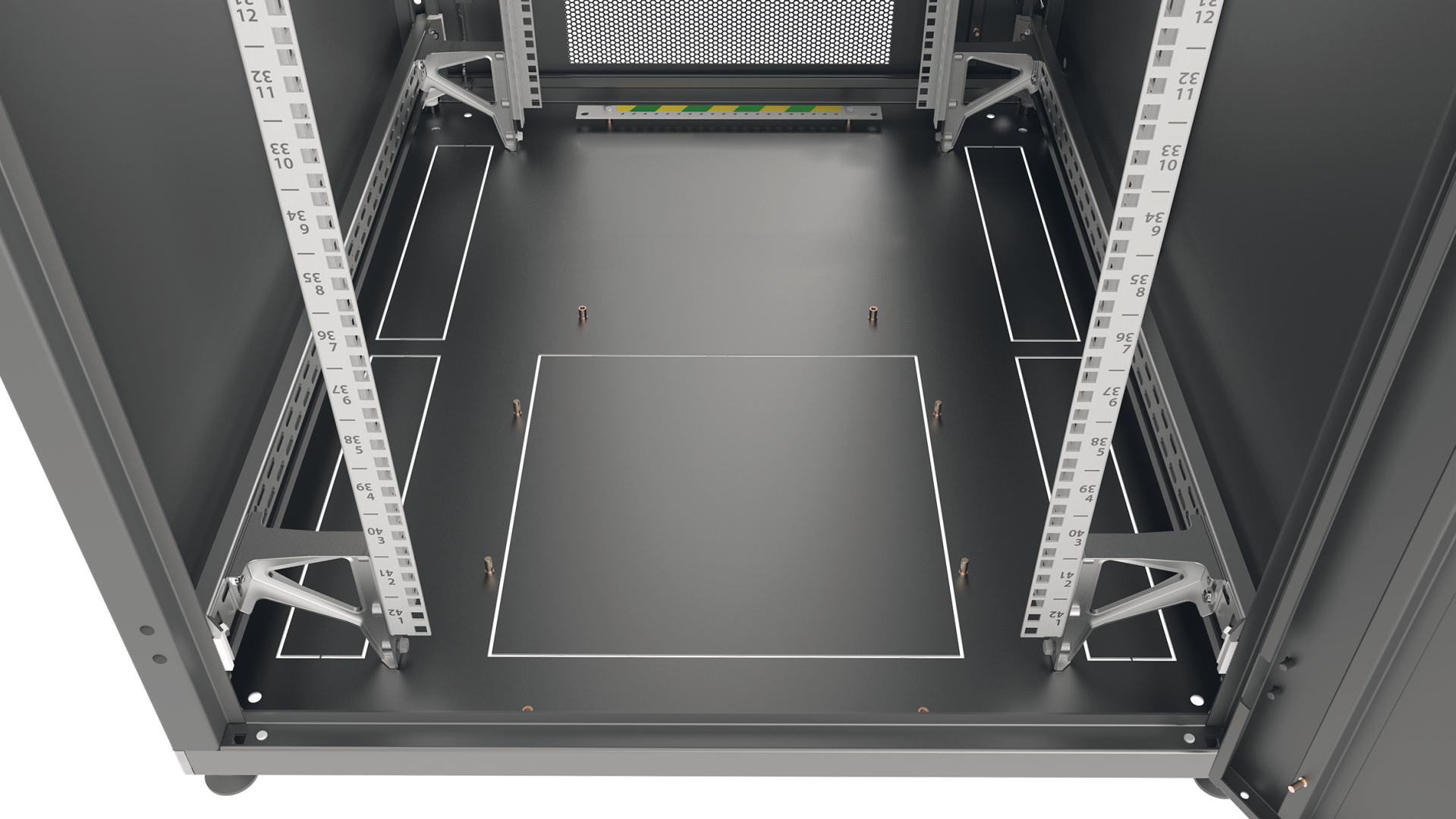

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

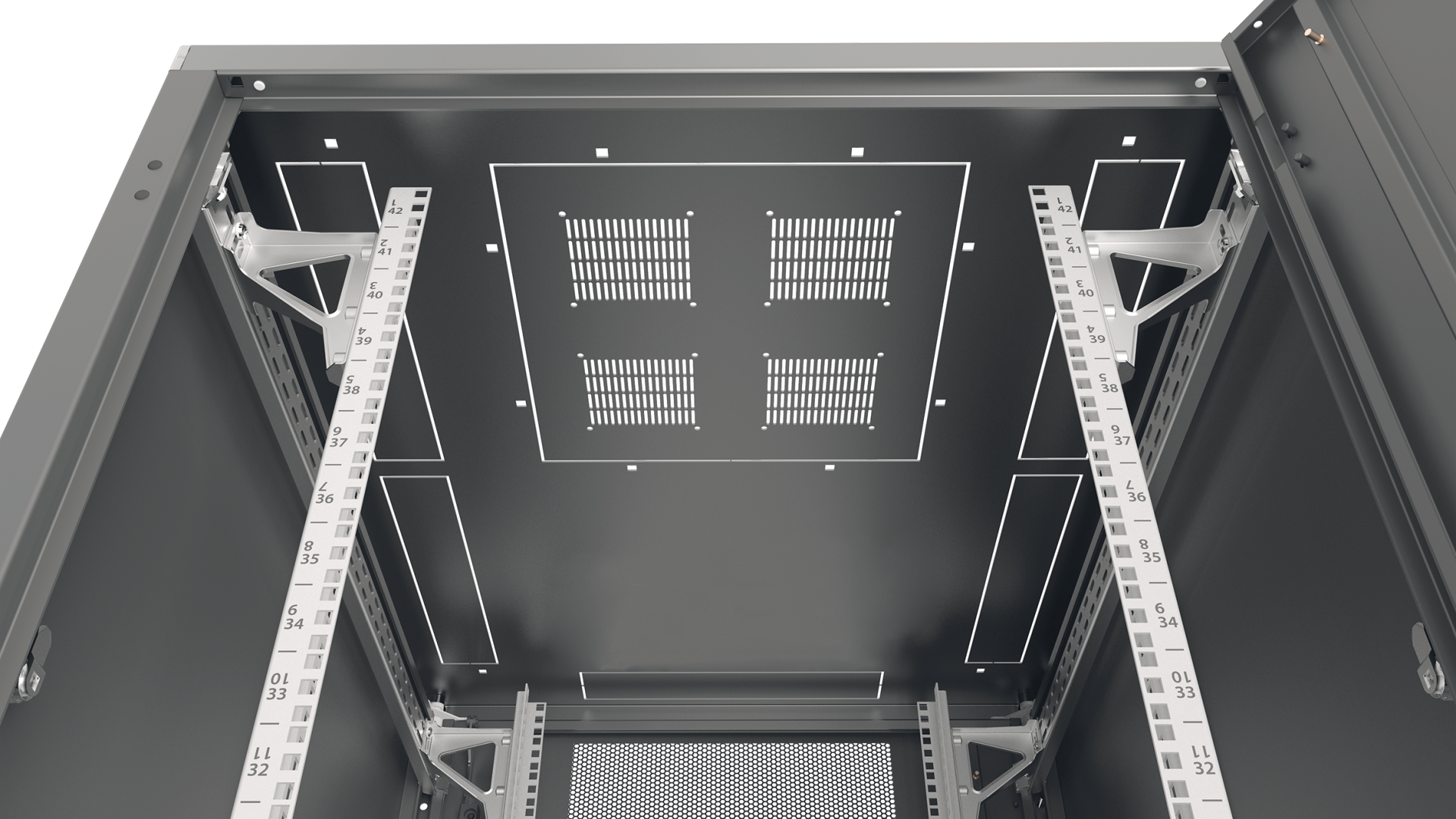

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Degree of protection: | IP20 |
|---|---|
| Demountable: | True |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482,6 mm (19 inch) |
| Mounting level: | Front and rear |
| Surface finishing: | With powder coating |
| Type of back door: | Steel perforated 1-part |
| Type of front door: | Steel perforated 1-part |
| Type of profile rail: | Crank |
| Type of ventilation: | Passive |
| With backside door: | True |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | False |
Varianter
| Art. Nej. | Betegnelse | Depth | With vertical cable management | Width | Material rear door | With glazed door | Number of height units | Colour | Front door locking system | Material front door | Rear door locking system | Max. load capacity | Height | RAL-number | Number of doors | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-2460TS.P1 | 19" Server Cabinet PRO 24U, 600x1000 mm, F+R 1-Part, RAL9005 | 1000 mm | False | 600 mm | Steel | False | 24 U | black | One point | Steel | One point | 1360 kg | 1163 mm | 9005 | 2 | |
| PRO-4260TS.P1 | 19" Server Cabinet PRO 42U, 600x1000 mm, F+R 1-Part, RAL9005 | 1000 mm | False | 600 mm | Steel | False | 42 U | black | Three-point | Steel | Three-point | 1360 kg | 1963 mm | 9005 | 2 |
