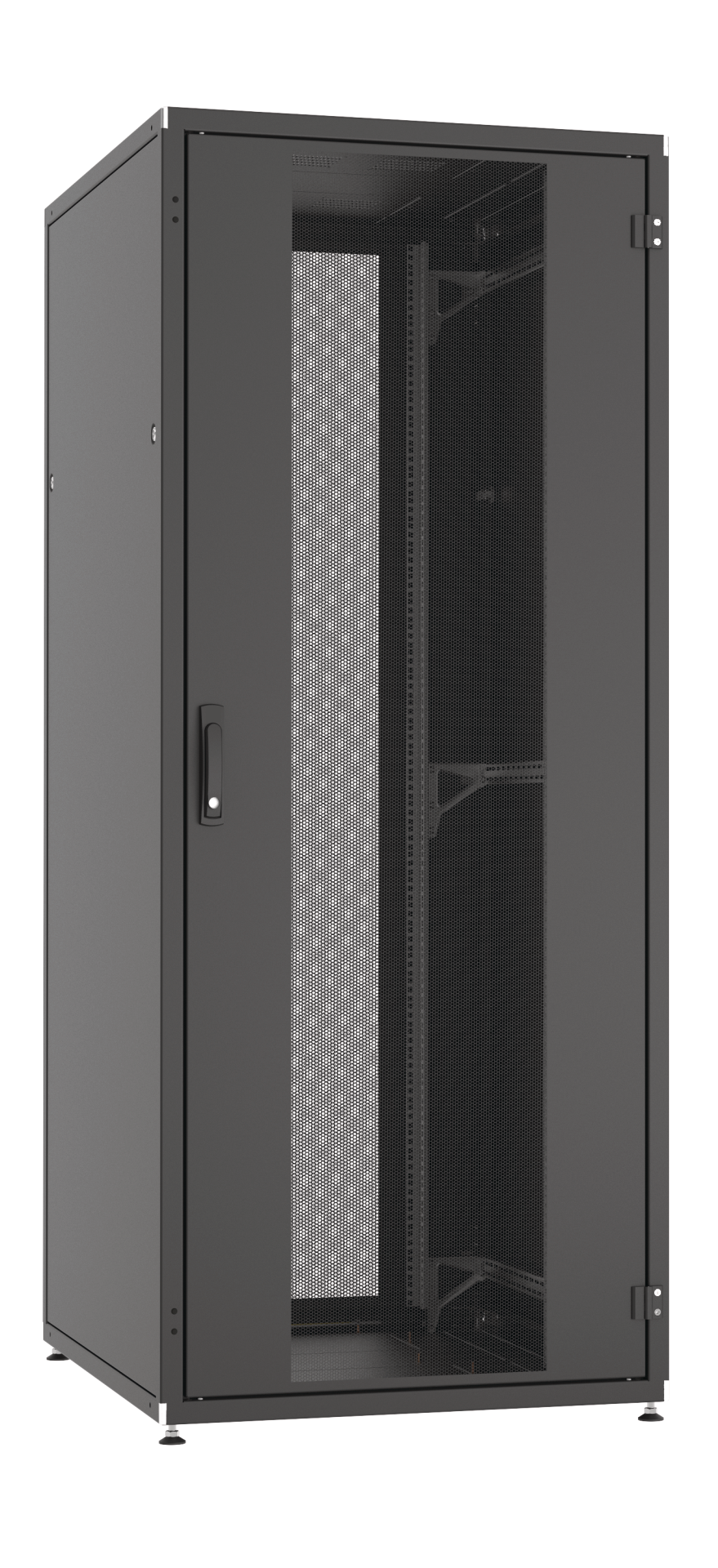

19" Server Cabinets PRO, 600x1200 mm, 1-Part Doors
19" Server Cabinets PRO, 600x1200 mm, 1-Part Doors
Varenummer:
PRO-4262GR.P1
EAN Nr.:
4049759234270
Produktinformation til 19" Server Cabinets PRO, 600x1200 mm, 1-Part Doors
19" server cabinet according to DIN41494
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable

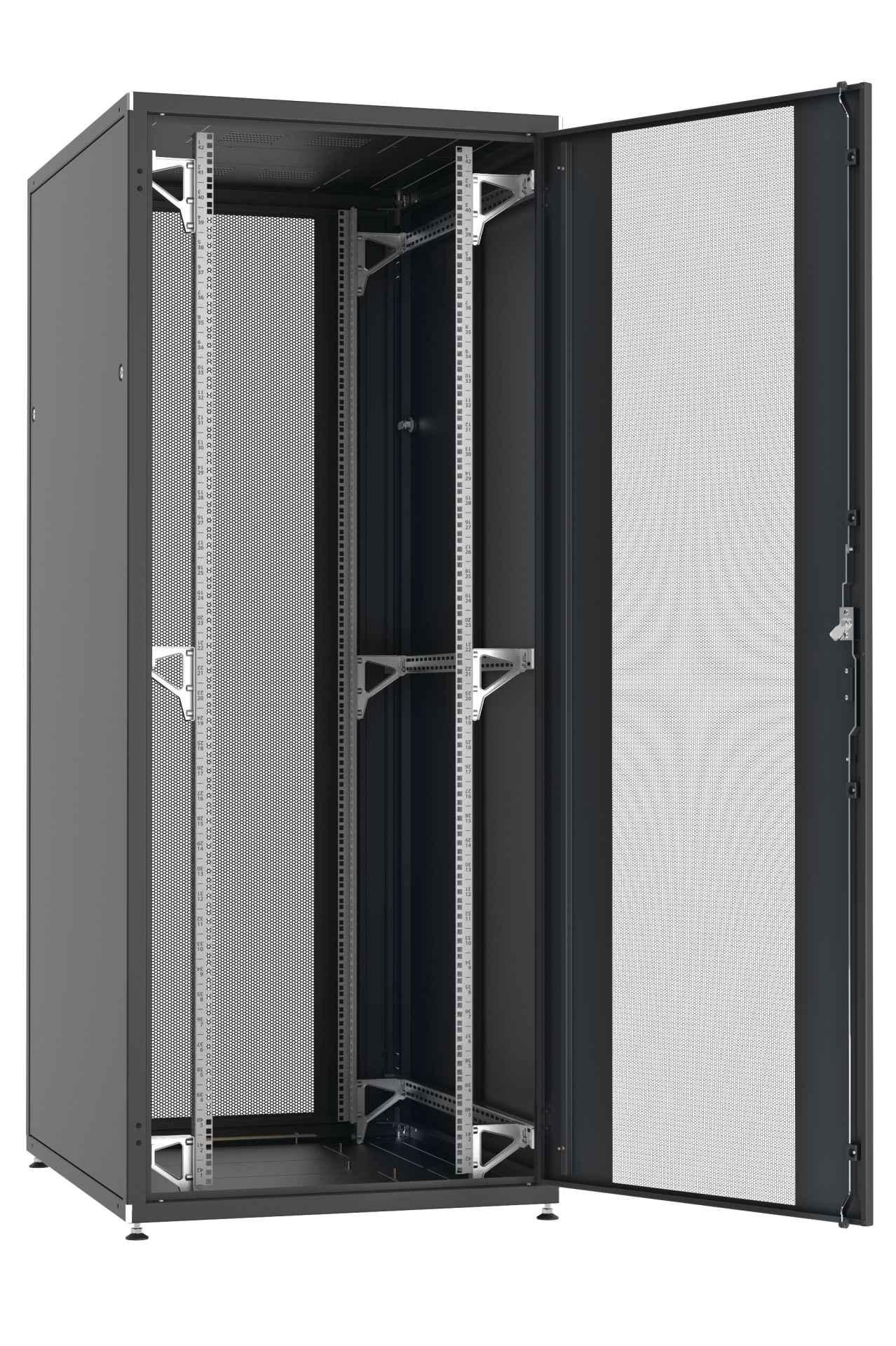

Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

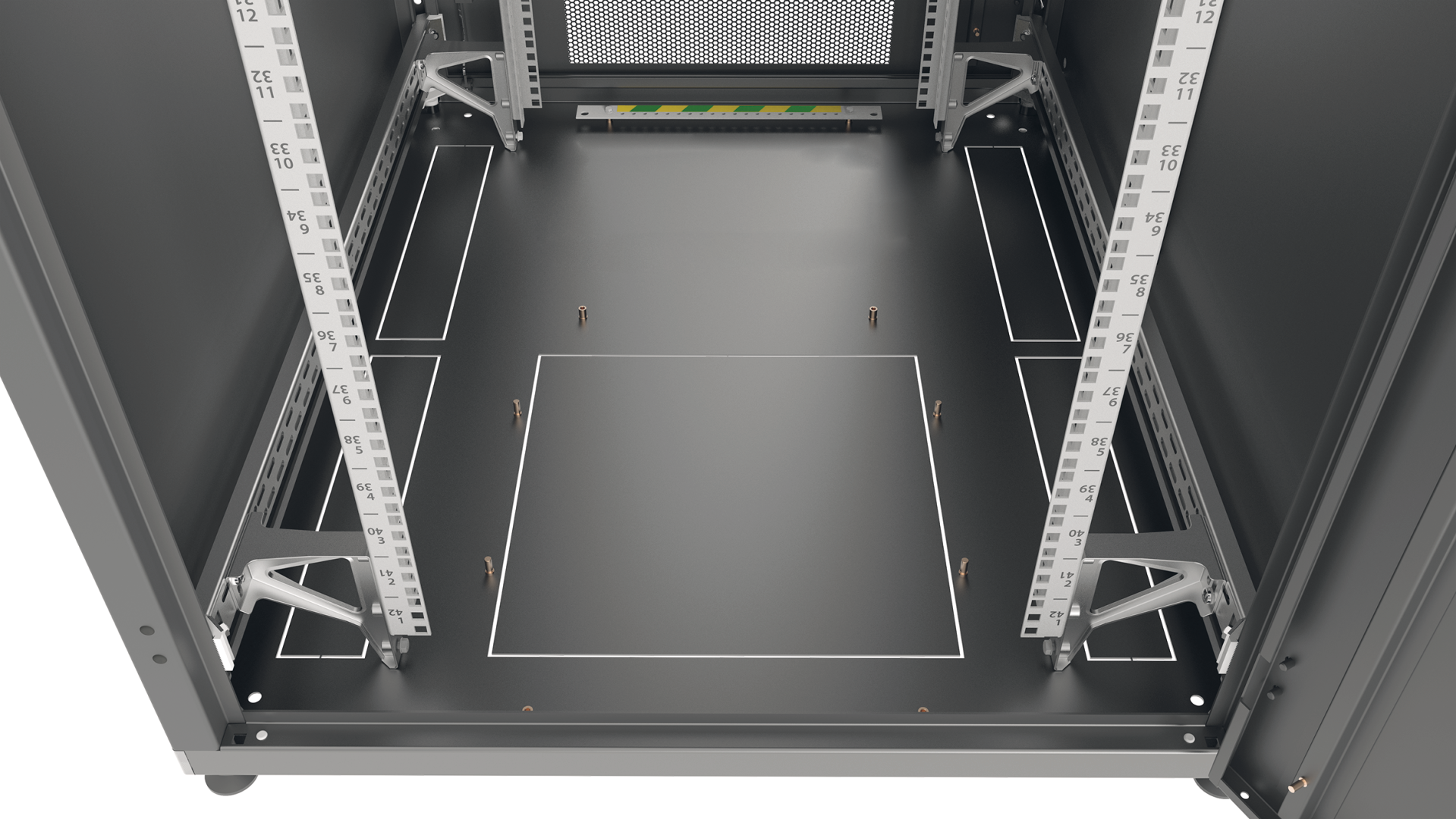

Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear

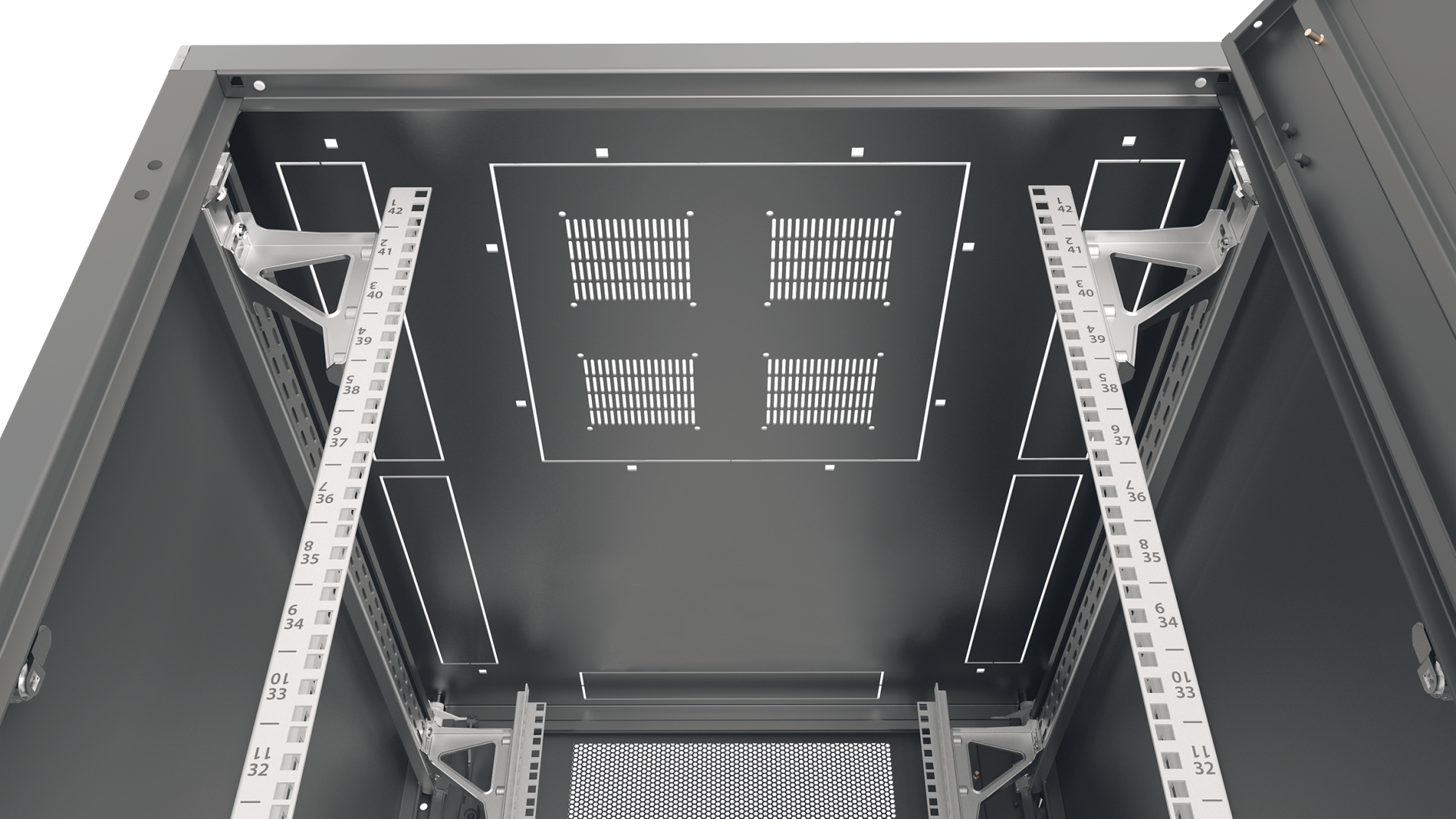

Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, dismountable
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Contrariwise numbering of rack units at the 19" profiles
Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
Profile half-cylinder exchangeable by customer (30/10 mm)
Door stop for front and rear door possible left- or right-sided
Detachable side walls with 2 x latch locking (lock equal to the door lock)
Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6
Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm), for 600 mm cabinet width cable entry only rear
Roof prepared for accommodation of 2-fan or 4-fan units, bottom with pre-punched opening for filter or cable entry modules
Internal earthing of all cabinet sections
Pre-assembled earthing bar rear-sided in the middle of the cabinet (ports: 20 x M5 + 2 x 8 mm)
Max. load 1000 kg (depths 600 / 800 mm) resp. 1360 kg (depths 1000 / 1200 mm for >24U)
Paint finish RAL7035, light grey
Protection degree IP20
Included accessories: 1 x brush, 1 x set of captive nuts (PU 20 pcs.), earthing bar and earthing cables, 4 x levelling feet M12, 2 x key
Delivery in transport packaging on disposable pallet
Tekniske egenskaber
| Art der Lüftung: | passiv |
|---|---|
| Ausführung: | mit Festrahmen |
| Ausführung Fronttür: | Stahltür perforiert einteilig |
| Ausführung Rücktür: | Stahltür perforiert einteilig |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Ausführung der Profilschiene: | verkröpft |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Mit Sockel: | Nein |
| Mit rückseitiger Tür: | Ja |
| Montage-Ebene: | vorne und hinten |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schutzart: | IP20 |
| Werkstoff: | Stahl |
| Zerlegbar: | Ja |
Varianten
| Art. Nr. | Bezeichnung | With vertical cable management | Width | Material rear door | With glazed door | Colour | Front door locking system | Number of height units | Material front door | Max. load capacity | Depth | Rear door locking system | Höhe | RAL-Nummer | Anzahl der Türen | Anzahl der Höheneinheiten (HE) | Verriegelung der Fronttür | Farbe | Verriegelung der Rücktür | Breite | Material Fronttür | Material Rücktür | Max. Belastbarkeit | Tiefe | Mit vertikaler Kabelführung | Mit Sichttür | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO-4262TS.P1 | 19" Server Cabinet PRO 42U, 600x1200 mm, F+R 1-Part, RAL9005 | False | 600 mm | Steel | False | black | Three-point | 42 U | Steel | 1360 kg | 1200 mm | Three-point | 1963 mm | 9005 | 2 | - | - | - | - | - | - | - | - | - | - | - | |
| PRO-4262GR.P1 | 19" Server Cabinets PRO, 600x1200 mm, 1-Part Doors | - | - | - | - | - | - | - | - | - | - | - | 1963 mm | 7035 | 2 | 42 HE | Dreipunkt | grau | Dreipunkt | 600 mm | Stahl | Stahl | 1360 kg | 1200 mm | Nein | Nein |
