19" Wall Housing Swiveling, 2-Part, Depth 500 mm, RAL7035
Priser kun synlige for indloggede brugere

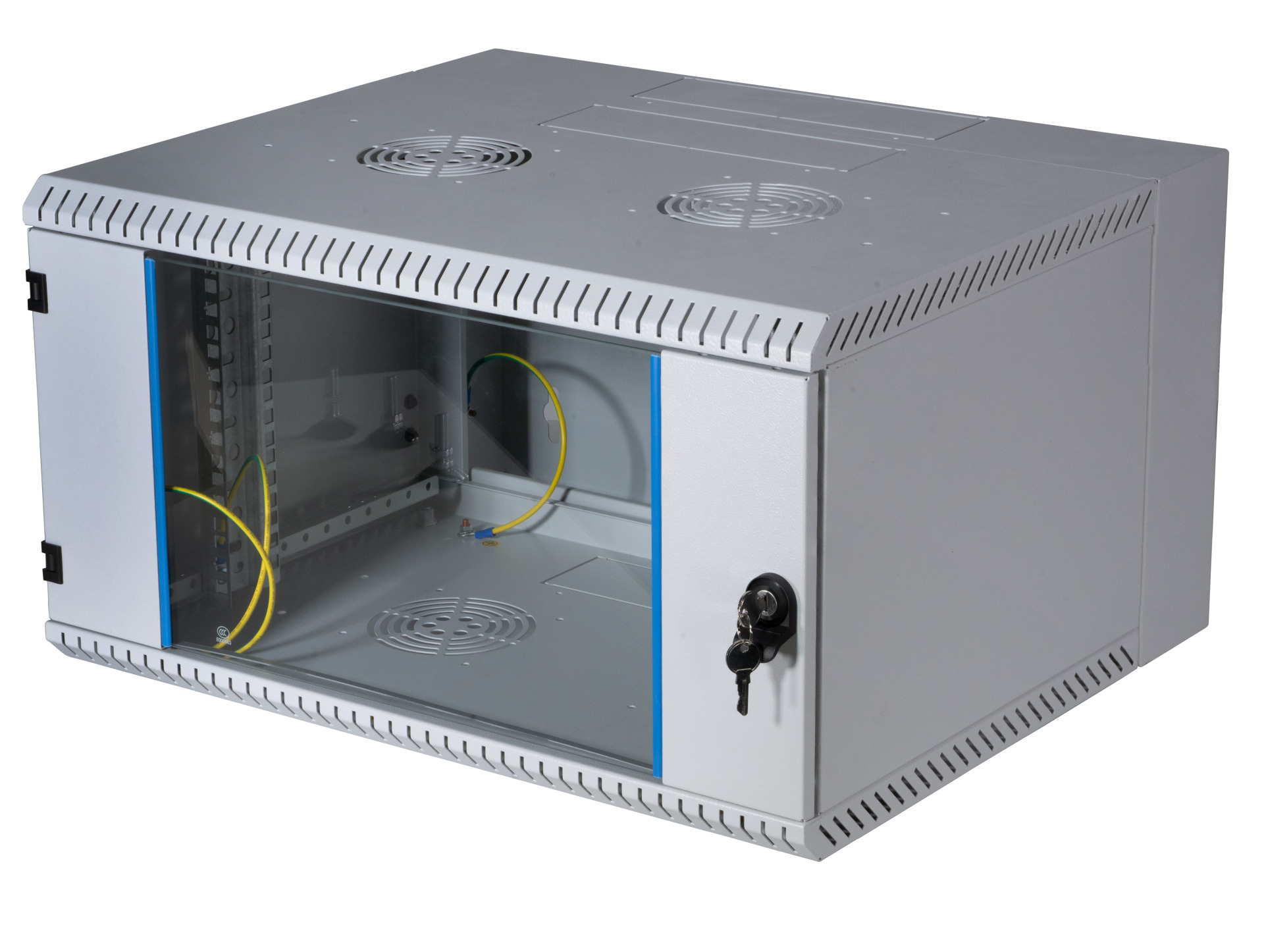

19" Wall Housing 12U, Swiveling, 2-Part, RAL7035, Depth 500 mm
Varenummer:
691612VGR.50
EAN nr.:
4049759212704
Produktinformation für 19" Wall Housing 12U, Swiveling, 2-Part, RAL7035, Depth 500 mm
Steel sheet housing with welded frame, pre-assembled, self-ventilated

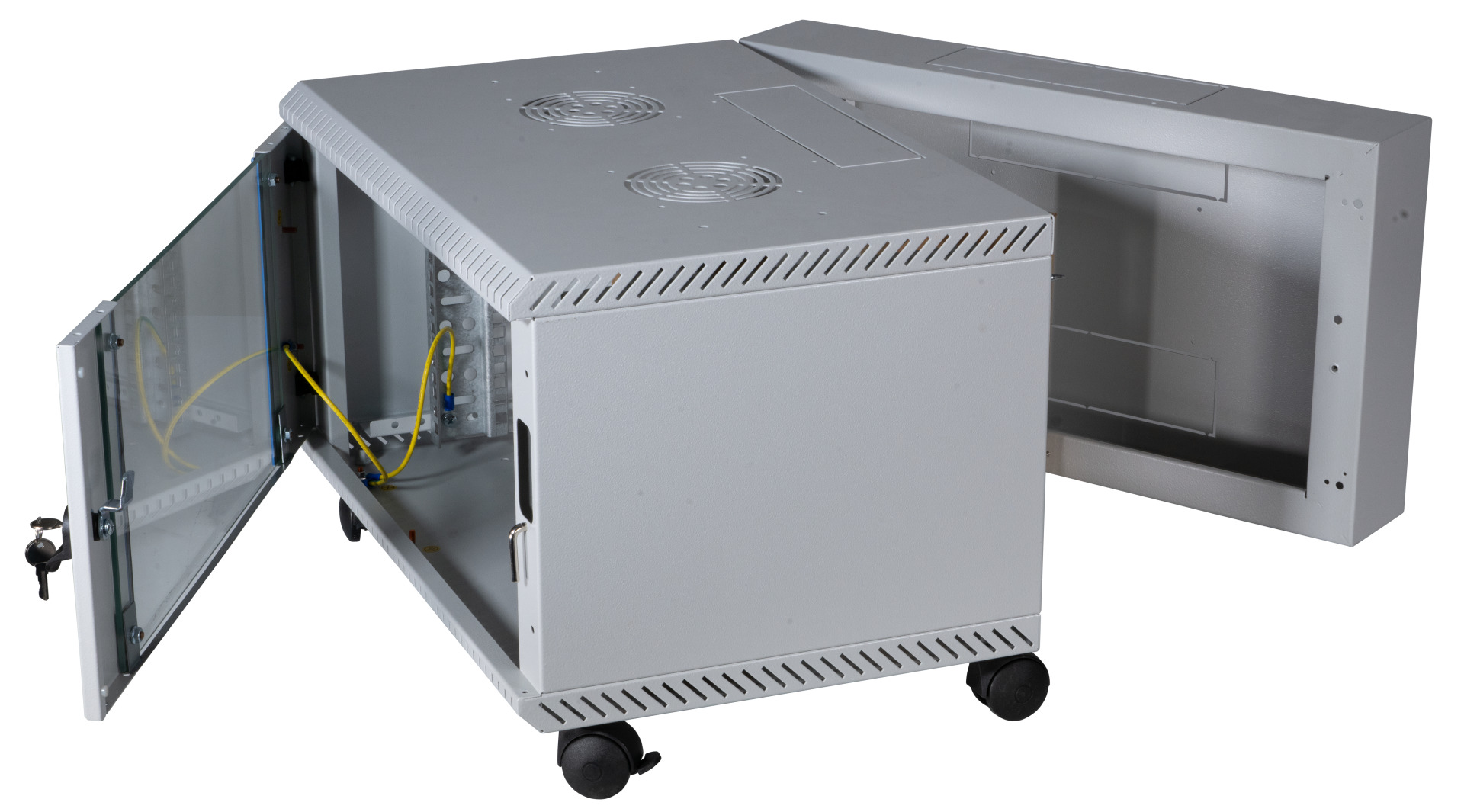

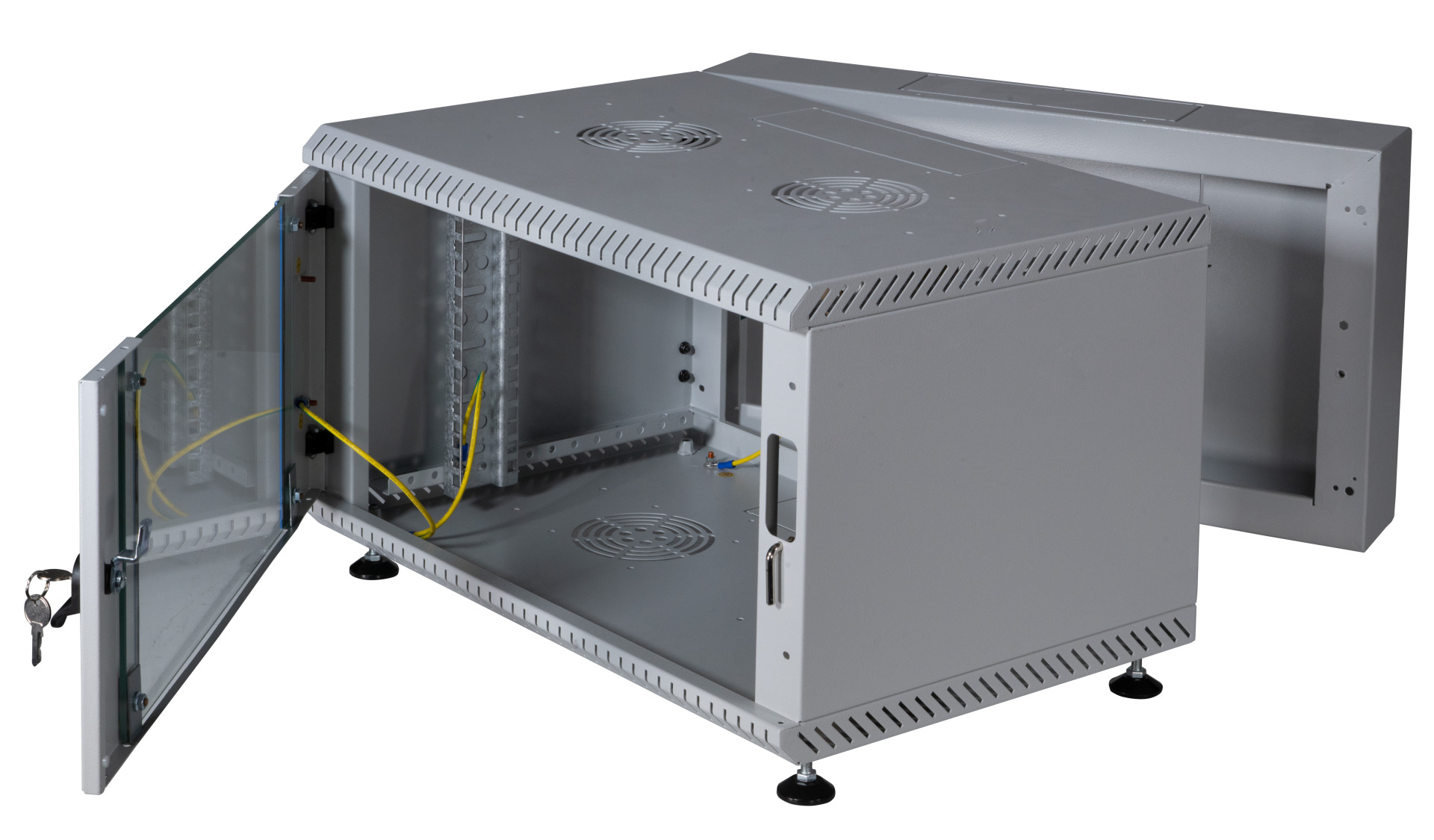

Rear sided swing-frame for swiveling the front part of the housing
Prepared for Plug & Play 2-fan unit (Art.-No. 691656GR)
Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
Front door with metal hinges for increased stability

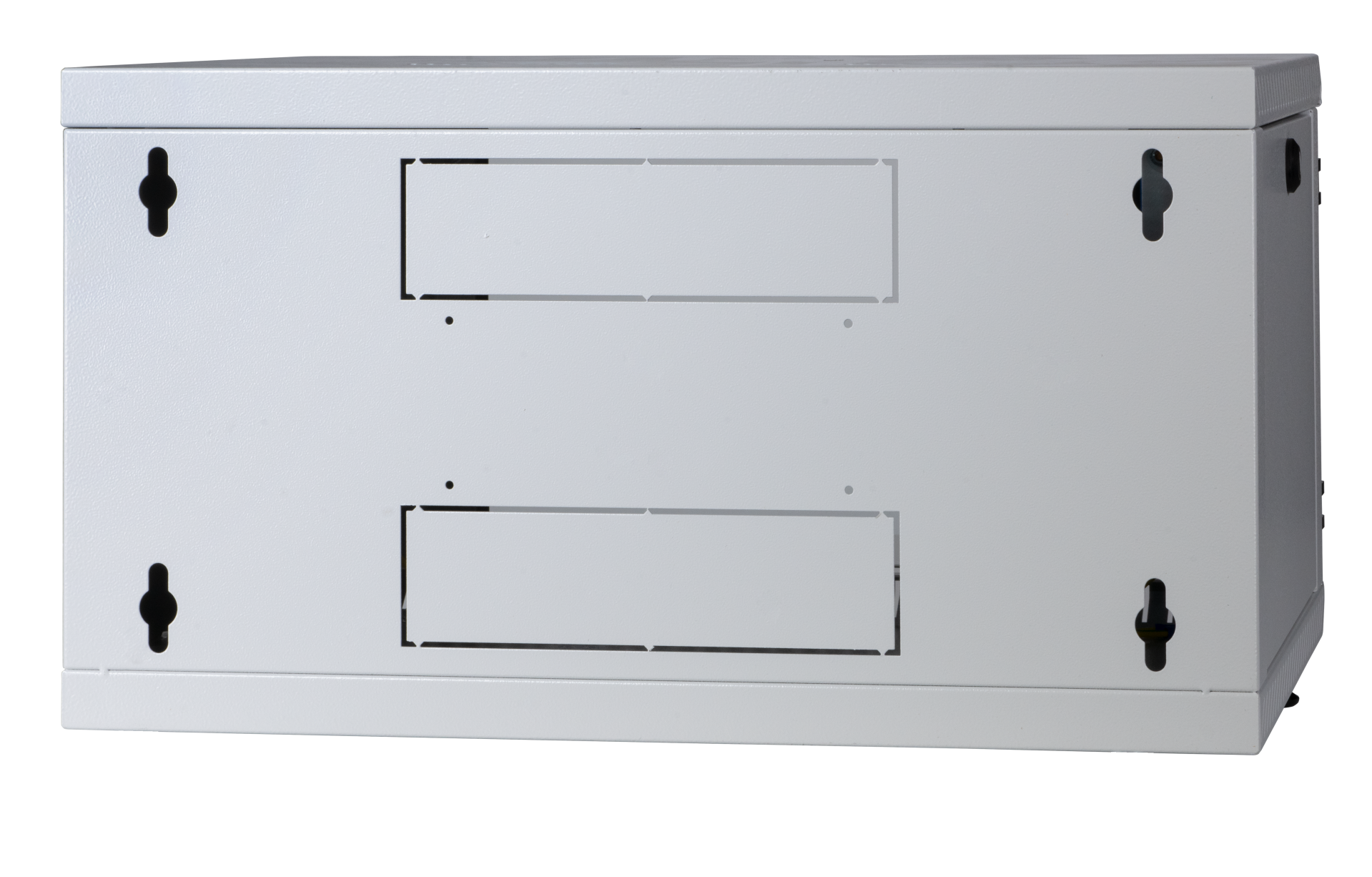

Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)

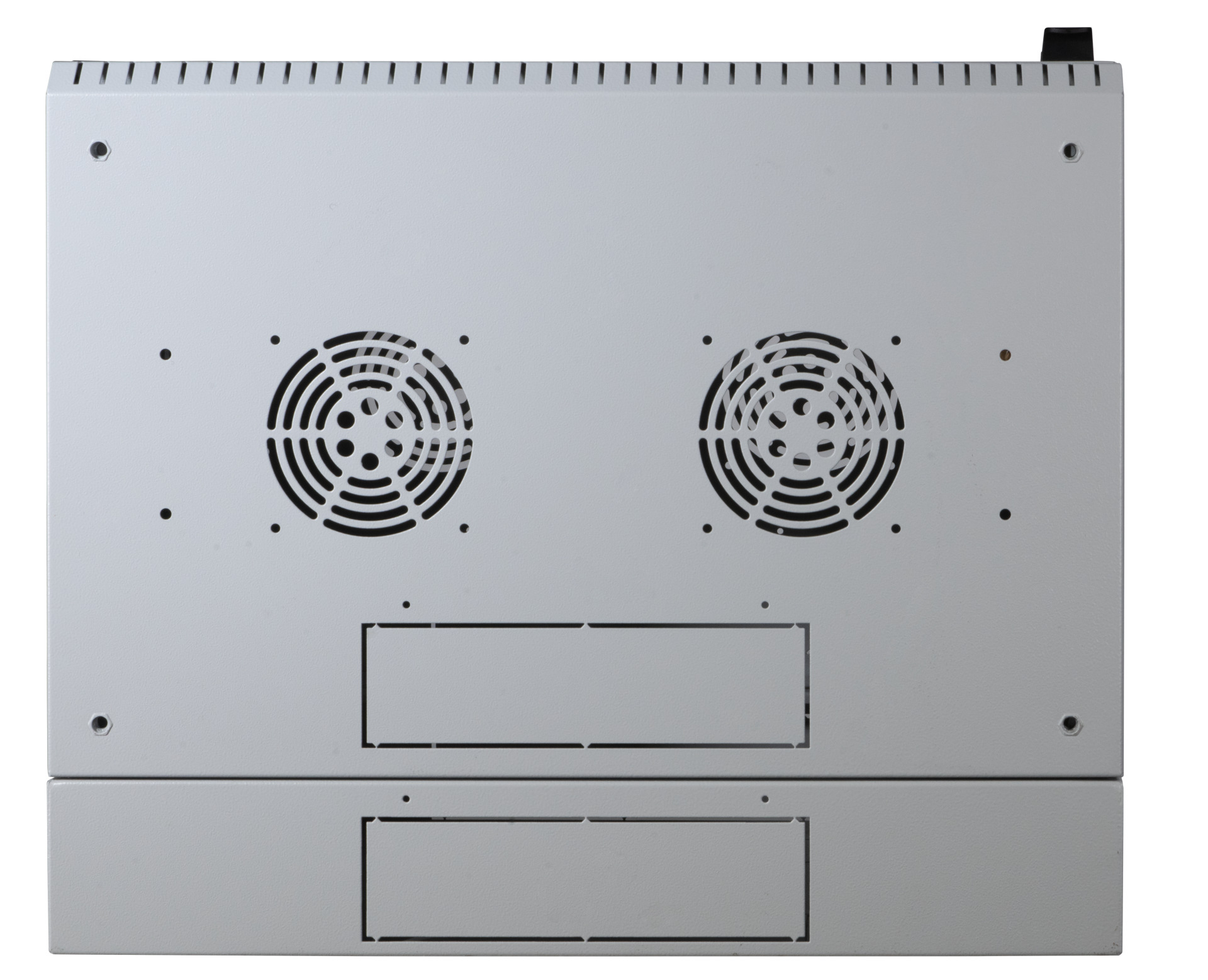

Prepared for mounting of single fan units in roof and bottom
Inside front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with window made of certified safety glass
Front door lockable with latch
Internal earthing of all cabinet sections
Paint finish: RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Rear sided swing-frame for swiveling the front part of the housing
Prepared for Plug & Play 2-fan unit (Art.-No. 691656GR)
Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
Front door with metal hinges for increased stability
Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Prepared for mounting of single fan units in roof and bottom
Inside front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with window made of certified safety glass
Front door lockable with latch
Internal earthing of all cabinet sections
Paint finish: RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Varianter
| Art. Nej. | Betegnelse | RAL-number | |
|---|---|---|---|
| 691606VGR.50 | 19" Wall Housing 6U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 7035 | |
| 691609VGR.50 | 19" Wall Housing 9U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 7035 | |
| 691612VGR.50 | 19" Wall Housing 12U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 7035 | |
| 691615VGR.50 | 19" Wall Housing 15U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 7035 | |
| 691621VGR.50 | 19" Wall Housing 21U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 7035 |
