19" Wall Housing Swiveling, 2-Part, Depth 500 mm, RAL7035

Priser kun synlige for indloggede brugere

19" Wall Housing 15U, Swiveling, 2-Part, RAL7035, Depth 500 mm
Varenummer: 691615VGR.50
EAN nr.: 4049759212728
Stück

Produktinformation für 19" Wall Housing 15U, Swiveling, 2-Part, RAL7035, Depth 500 mm

Steel sheet housing with welded frame, pre-assembled, self-ventilated

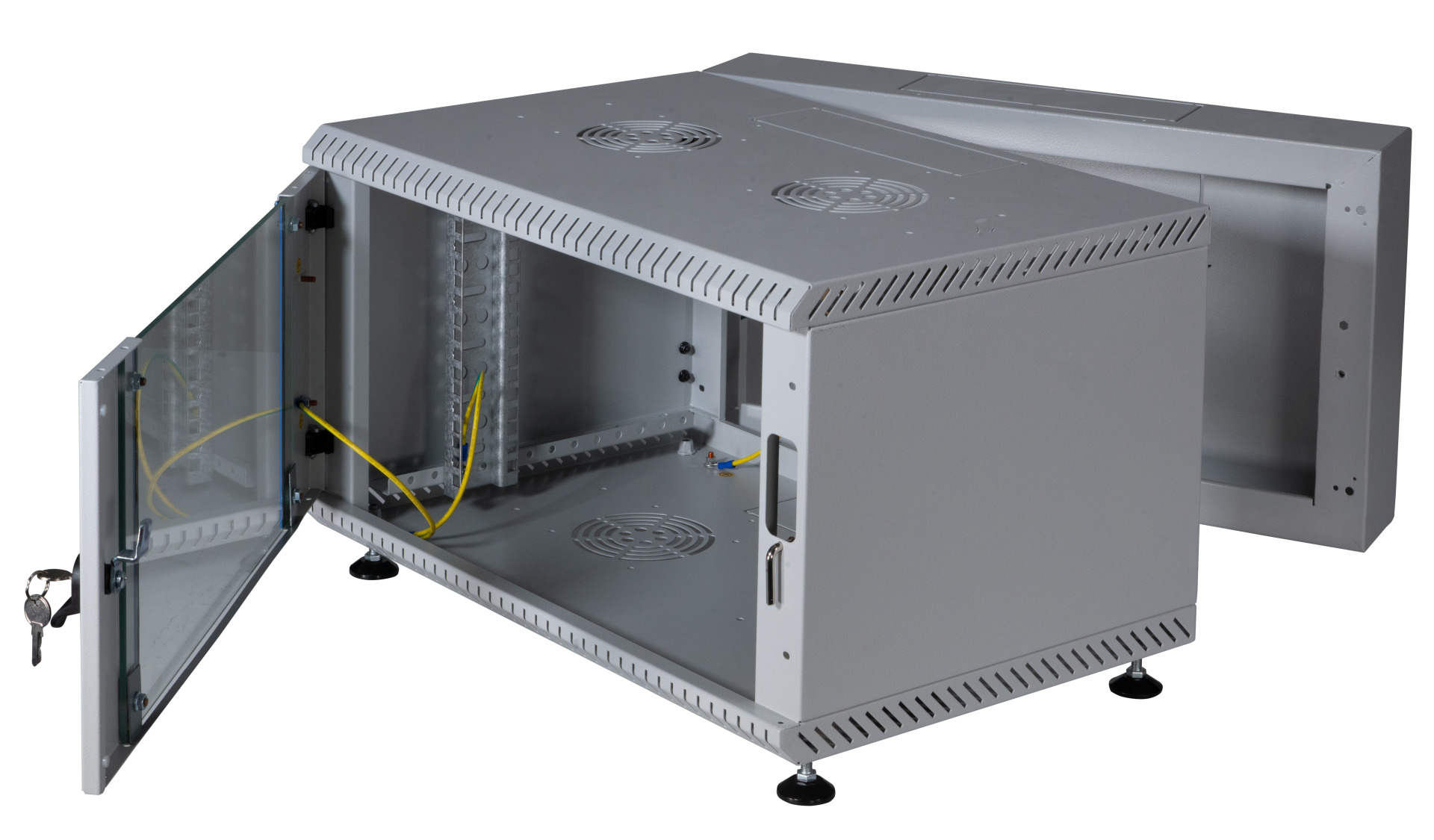

Rear sided swing-frame for swiveling the front part of the housing
Prepared for Plug & Play 2-fan unit (Art.-No. 691656GR)

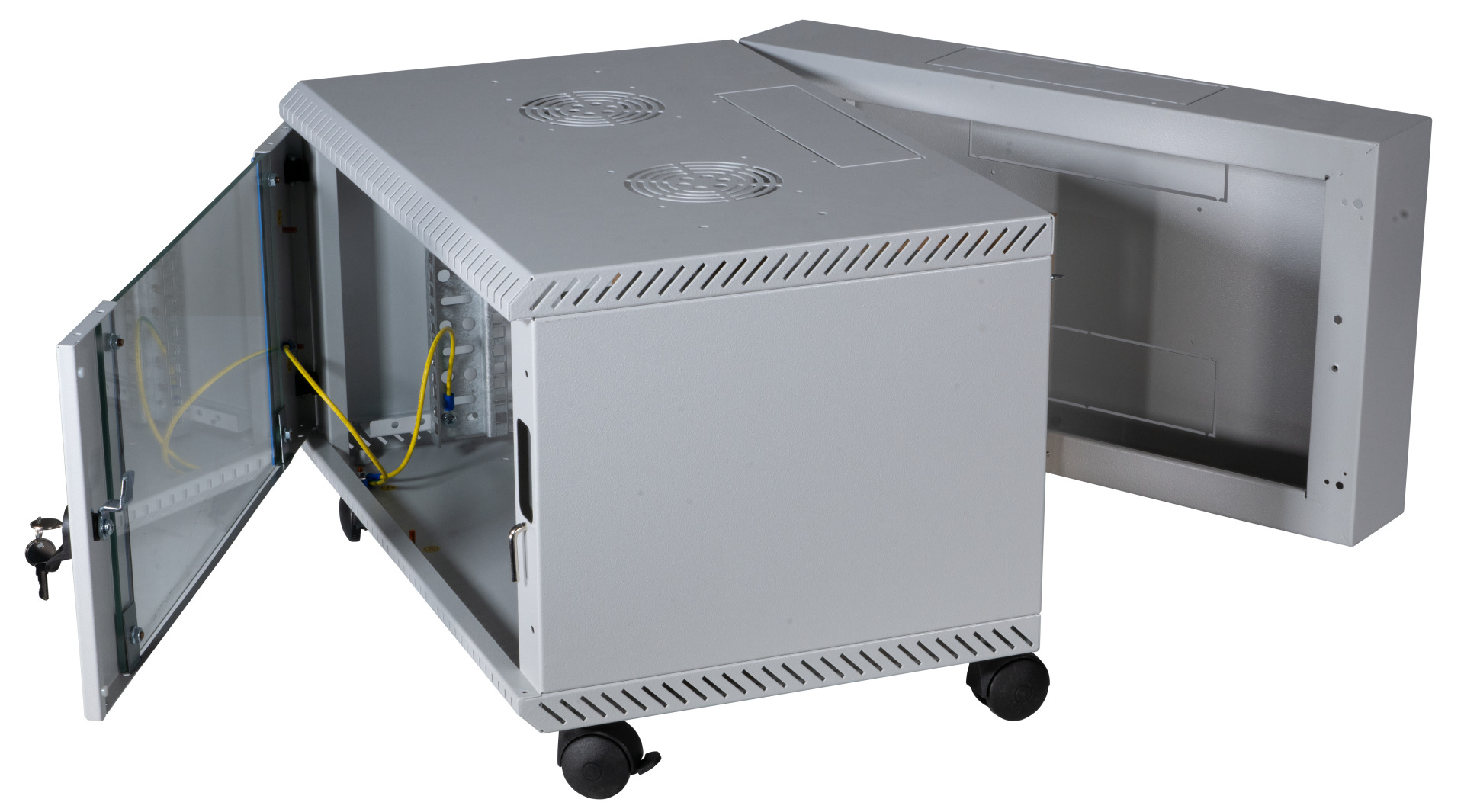

Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
Front door with metal hinges for increased stability

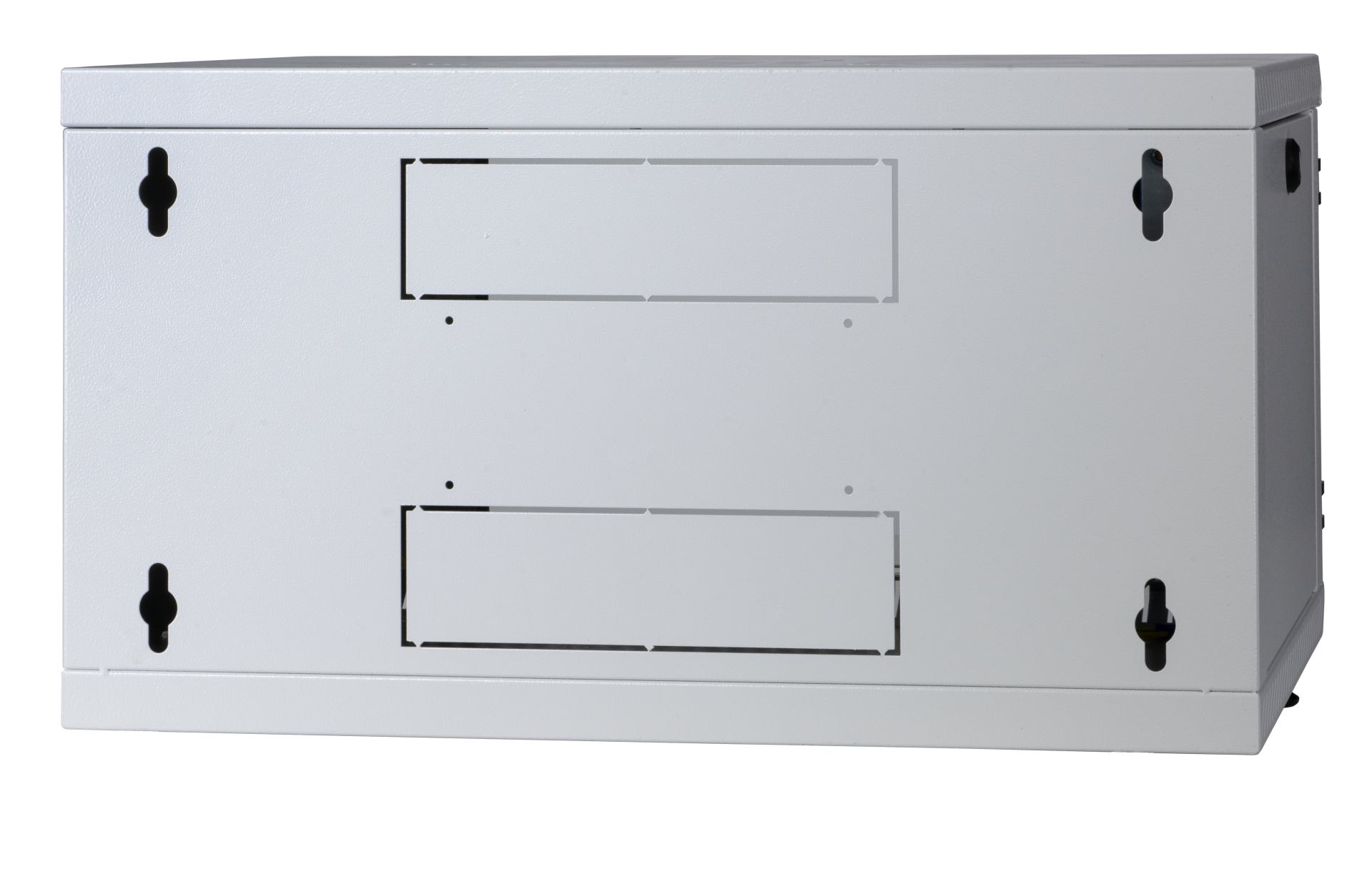

Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)

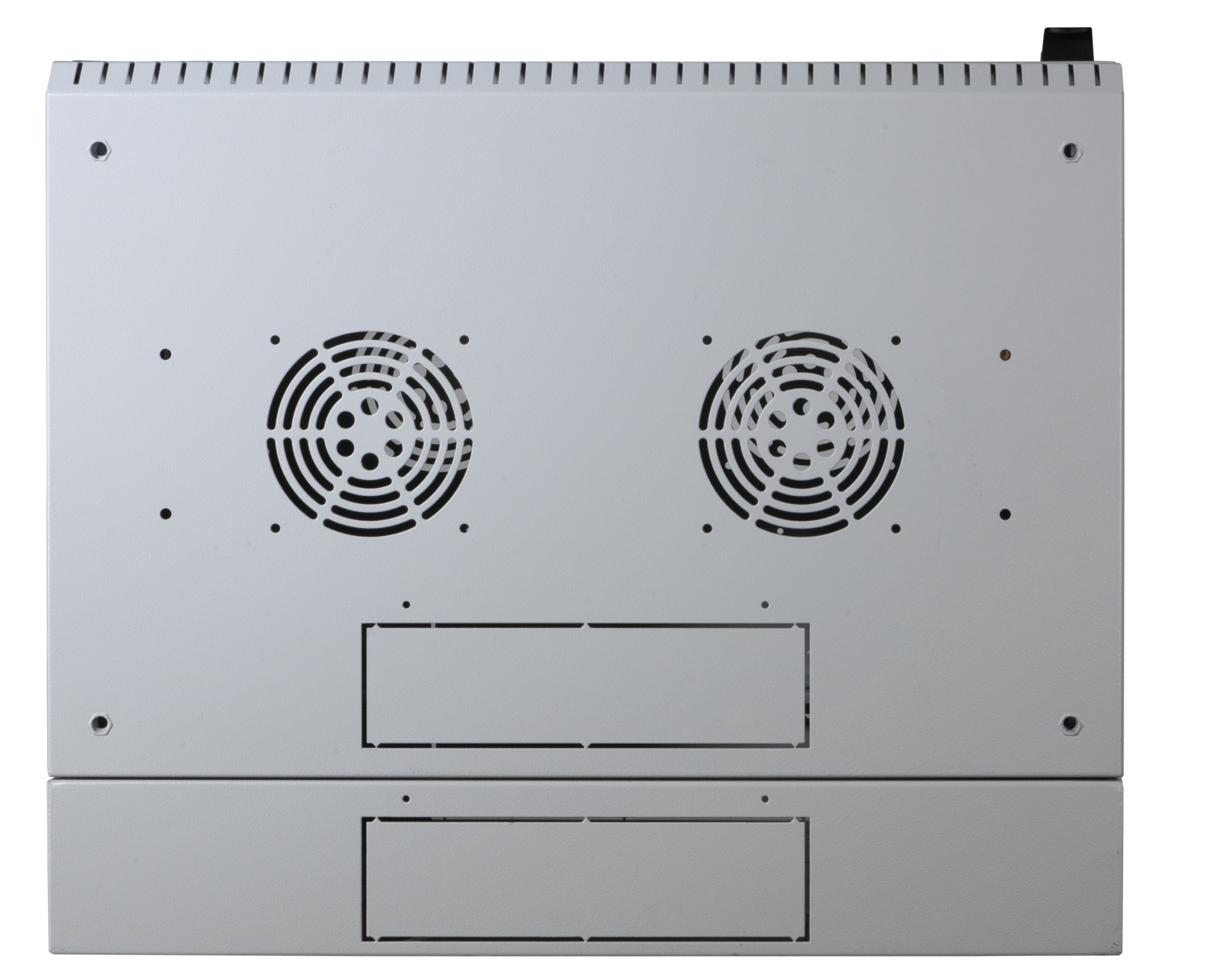

Prepared for mounting of single fan units in roof and bottom
Inside front-sided 2 x 19“ profile rails, galvanised, depth-adjustable

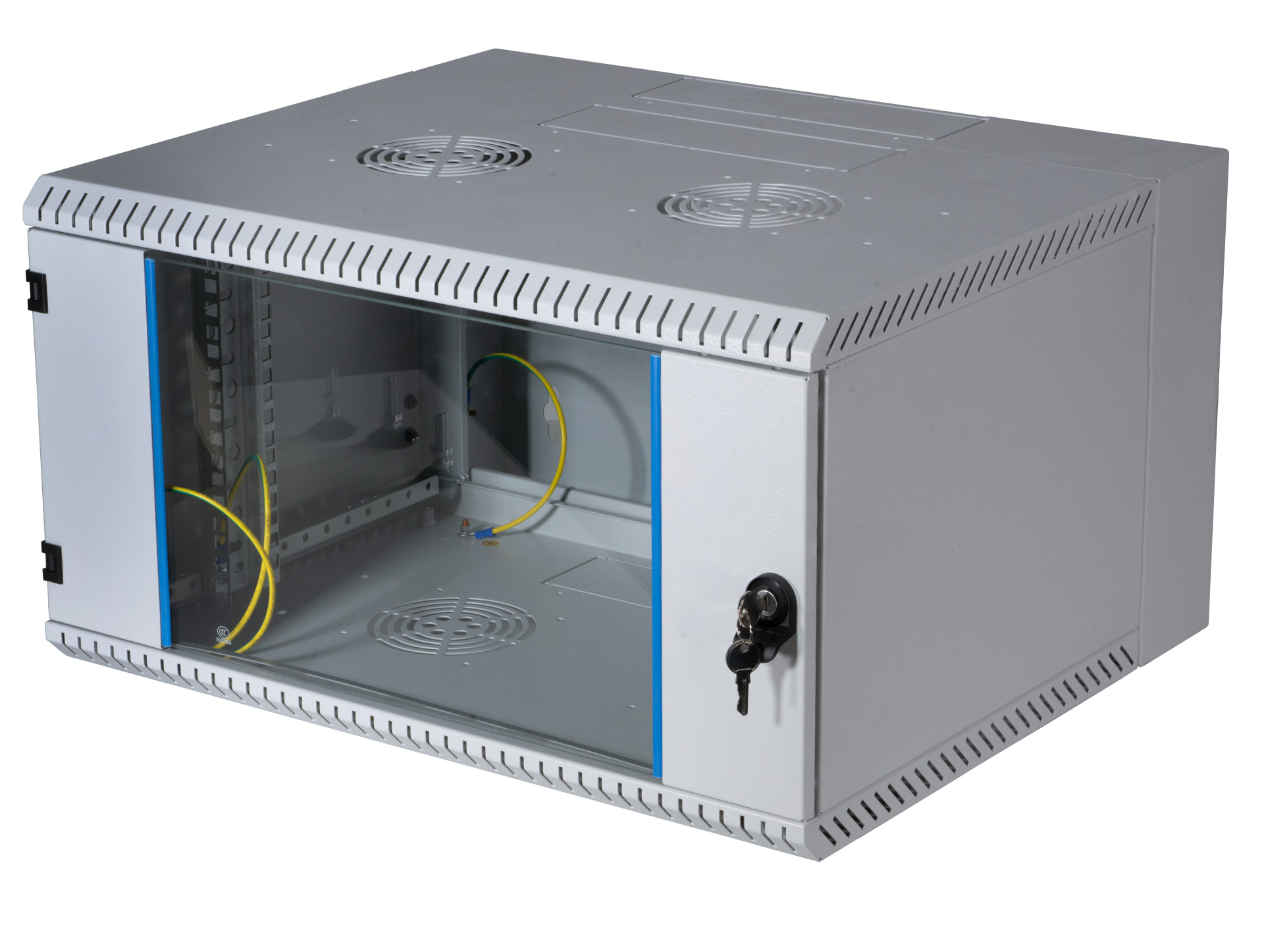

Front door with window made of certified safety glass
Front door lockable with latch
Internal earthing of all cabinet sections
Paint finish: RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet

Tekniske egenskaber

Degree of protection: IP20
Demountable: False
Material: steel
Model: With permanent frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front side
Number of cartons: 1
Number of doors: 1
Surface finishing: powder coating
Type of profile rail: L-shaped
Type of ventilation: Passive
With earthing: True
With front door: True
With roof plate: True
With sidewall: True

Varianter

Art. Nej. Betegnelse Depth Width Colour Max. Load Max. load capacity Height Number of height units RAL-number
691606VGR.50 19" Wall Housing 6U, Swiveling, 2-Part, RAL7035, Depth 500 mm 500 mm 600 mm grey 40 kg 40 kg 330 mm 6 U 7035
691609VGR.50 19" Wall Housing 9U, Swiveling, 2-Part, RAL7035, Depth 500 mm 500 mm 600 mm grey 40 kg 40 kg 465 mm 9 U 7035
691612VGR.50 19" Wall Housing 12U, Swiveling, 2-Part, RAL7035, Depth 500 mm 500 mm 600 mm grey 40 kg 40 kg 600 mm 12 U 7035
691615VGR.50 19" Wall Housing 15U, Swiveling, 2-Part, RAL7035, Depth 500 mm 500 mm 600 mm grey 50 kg 50 kg 730 mm 15 U 7035
691621VGR.50 19" Wall Housing 21U, Swiveling, 2-Part, RAL7035, Depth 500 mm 500 mm 600 mm grey 50 kg 50 kg 997 mm 21 U 7035
