19" Wall Housing Fixed, 1-Part, Depth 600 mm, RAL7035

Priser kun synlige for indloggede brugere

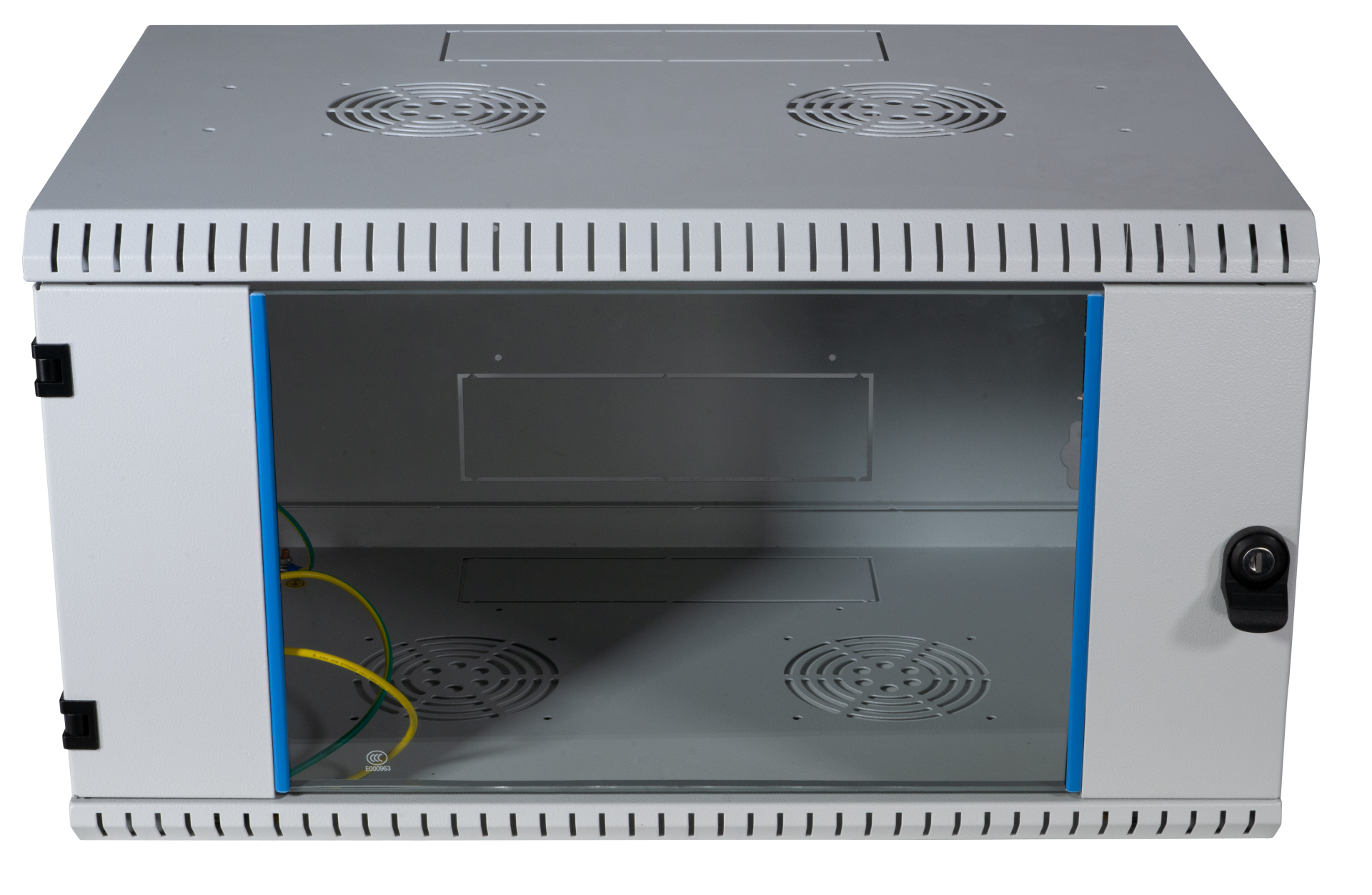

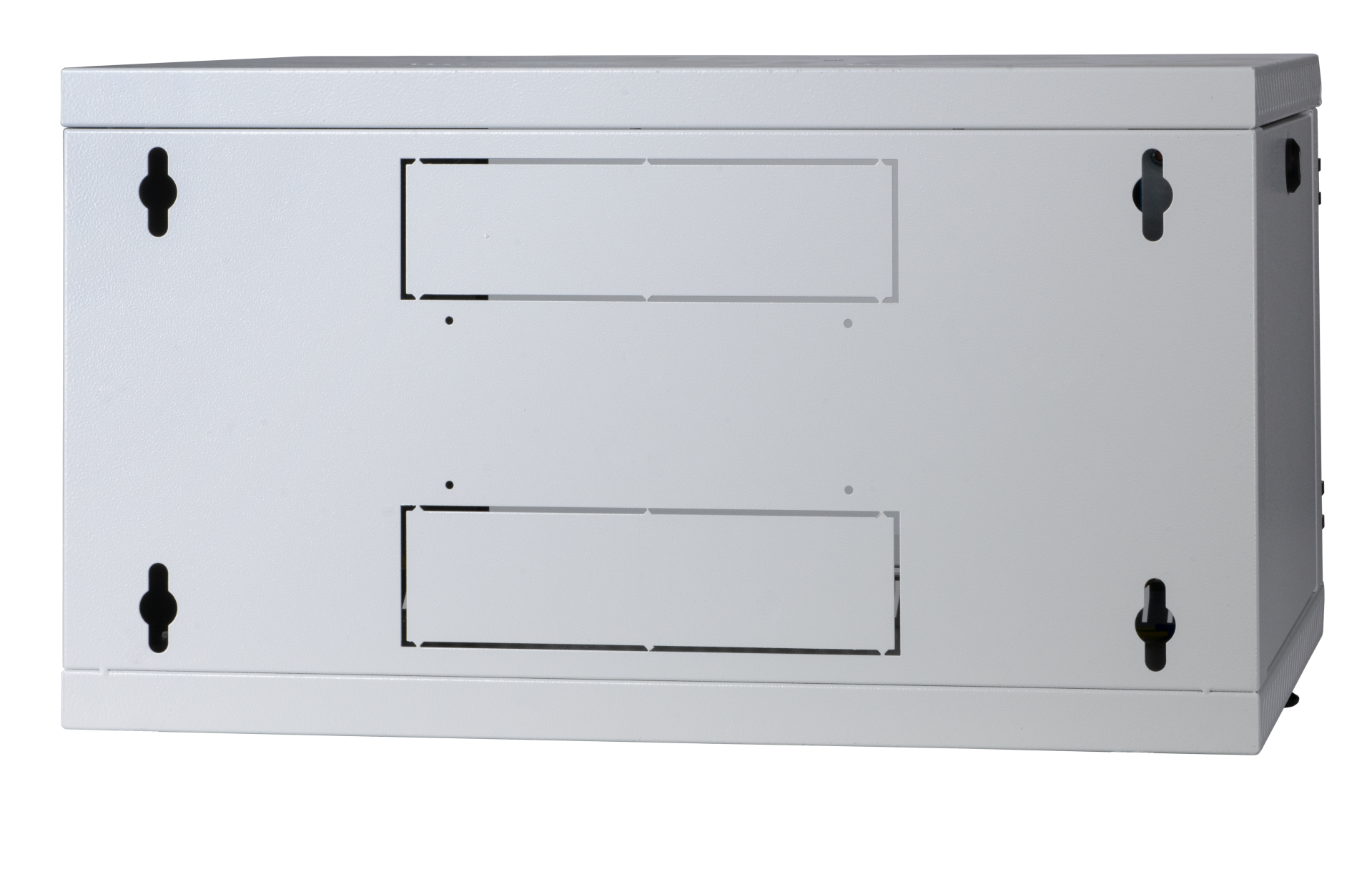

19" Wall Housing 18U, Fixed, 1-Part, RAL7035, Depth 600 mm
Varenummer: 691718VGR.60
EAN nr.: 4049759213084
Stück

Produktinformation für 19" Wall Housing 18U, Fixed, 1-Part, RAL7035, Depth 600 mm

Steel sheet housing with welded frame, completely pre-assembled, self-ventilated
NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx

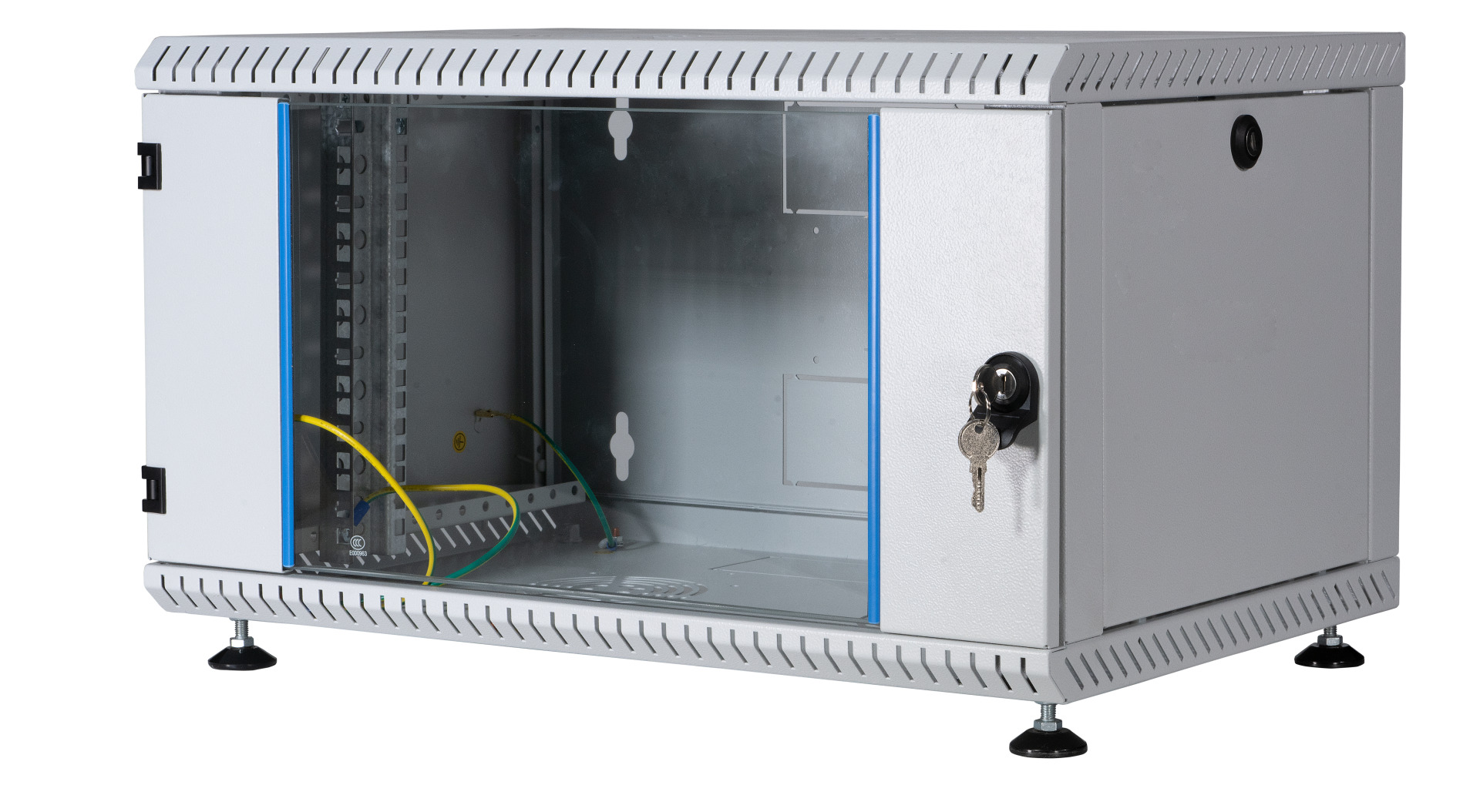

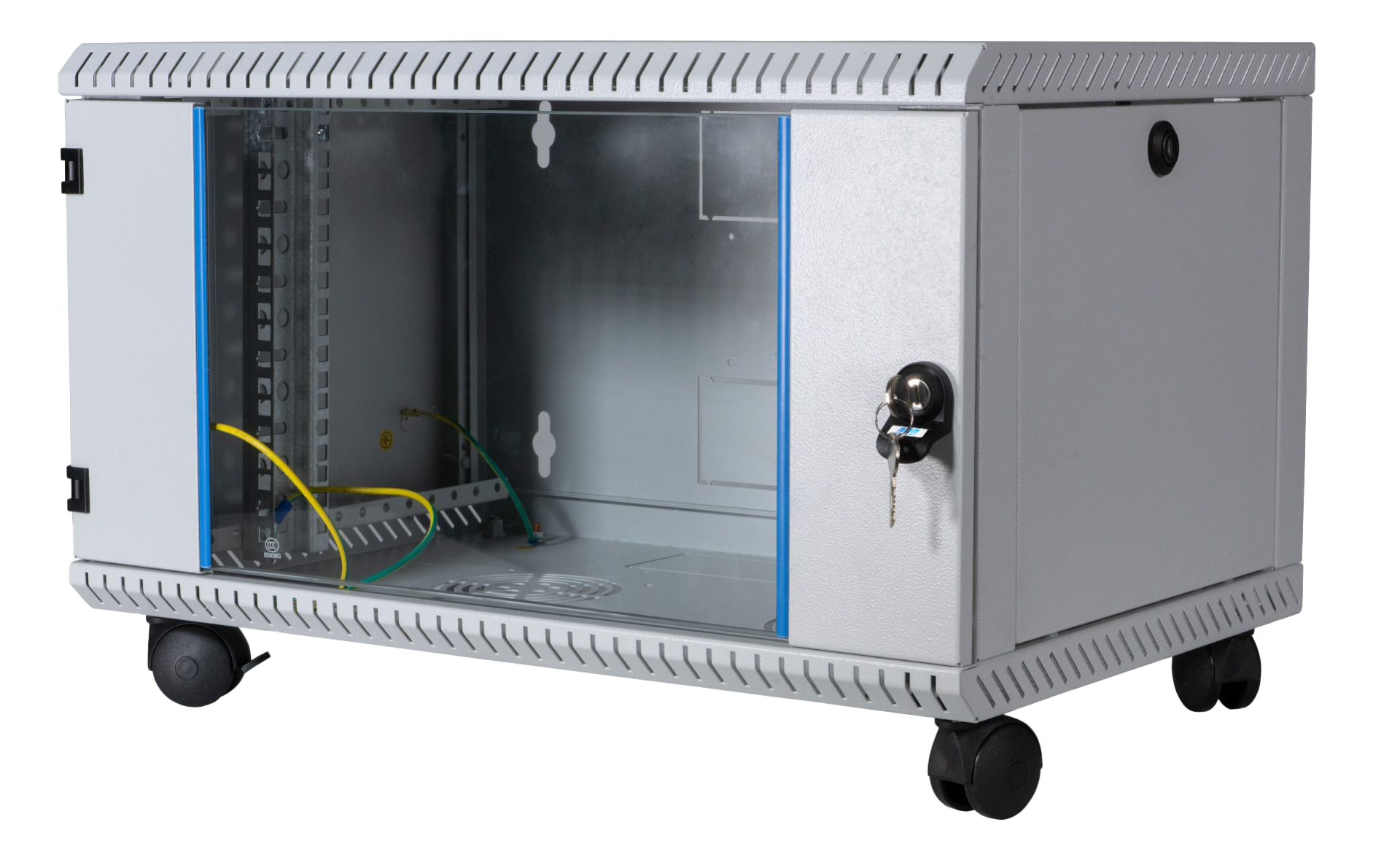

NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock

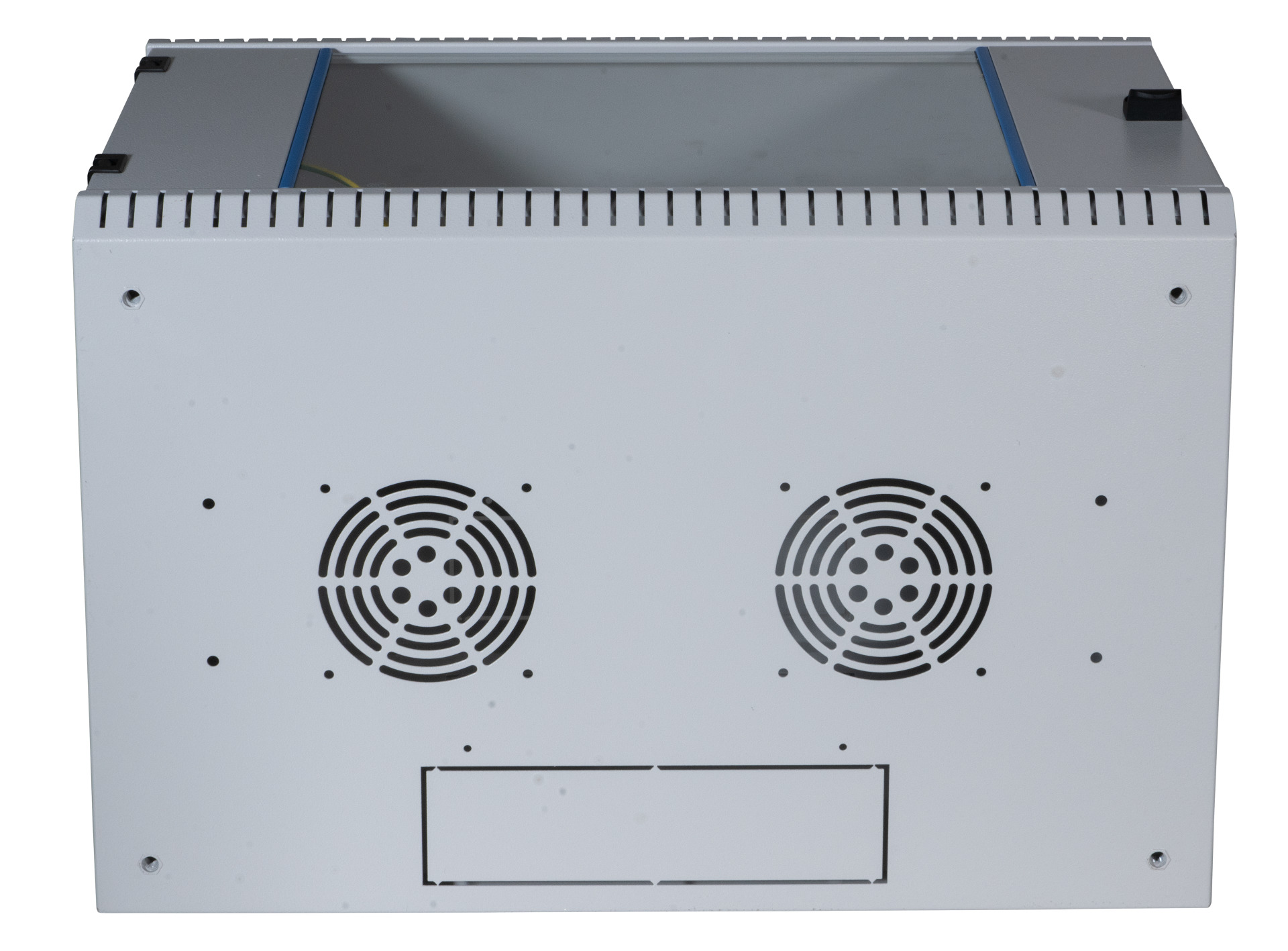

Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet

Tekniske egenskaber

Degree of protection: IP20
Demountable: False
Material: steel
Model: With permanent frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front side
Number of cartons: 1
Number of doors: 1
Surface finishing: powder coating
Type of profile rail: L-shaped
Type of ventilation: Passive
With earthing: True
With front door: True
With roof plate: True
With sidewall: True

Varianter

Art. Nej. Betegnelse Width Max. Load Depth Colour Number of height units Height RAL-number
691709VGR.60 19" Wall Housing 9U, Fixed,1-Part, RAL7035, Depth 600 mm 600 mm 50 kg 600 mm grey 9 U 465 mm 7035
691712VGR.60 19" Wall Housing 12U, Fixed, 1-Part, RAL7035, Depth 600 mm 600 mm 50 kg 600 mm grey 12 U 600 mm 7035
691715VGR.60 19" Wall Housing 15U, Fixed, 1-Part, RAL7035, Depth 600 mm 600 mm 50 kg 600 mm grey 15 U 730 mm 7035
691718VGR.60 19" Wall Housing 18U, Fixed, 1-Part, RAL7035, Depth 600 mm 600 mm 50 kg 600 mm grey 18 U 860 mm 7035
691721VGR.60 19" Wall Housing 21U, Fixed, 1-Part, RAL7035, Depth 600 mm 600 mm 50 kg 600 mm grey 21 U 997 mm 7035
