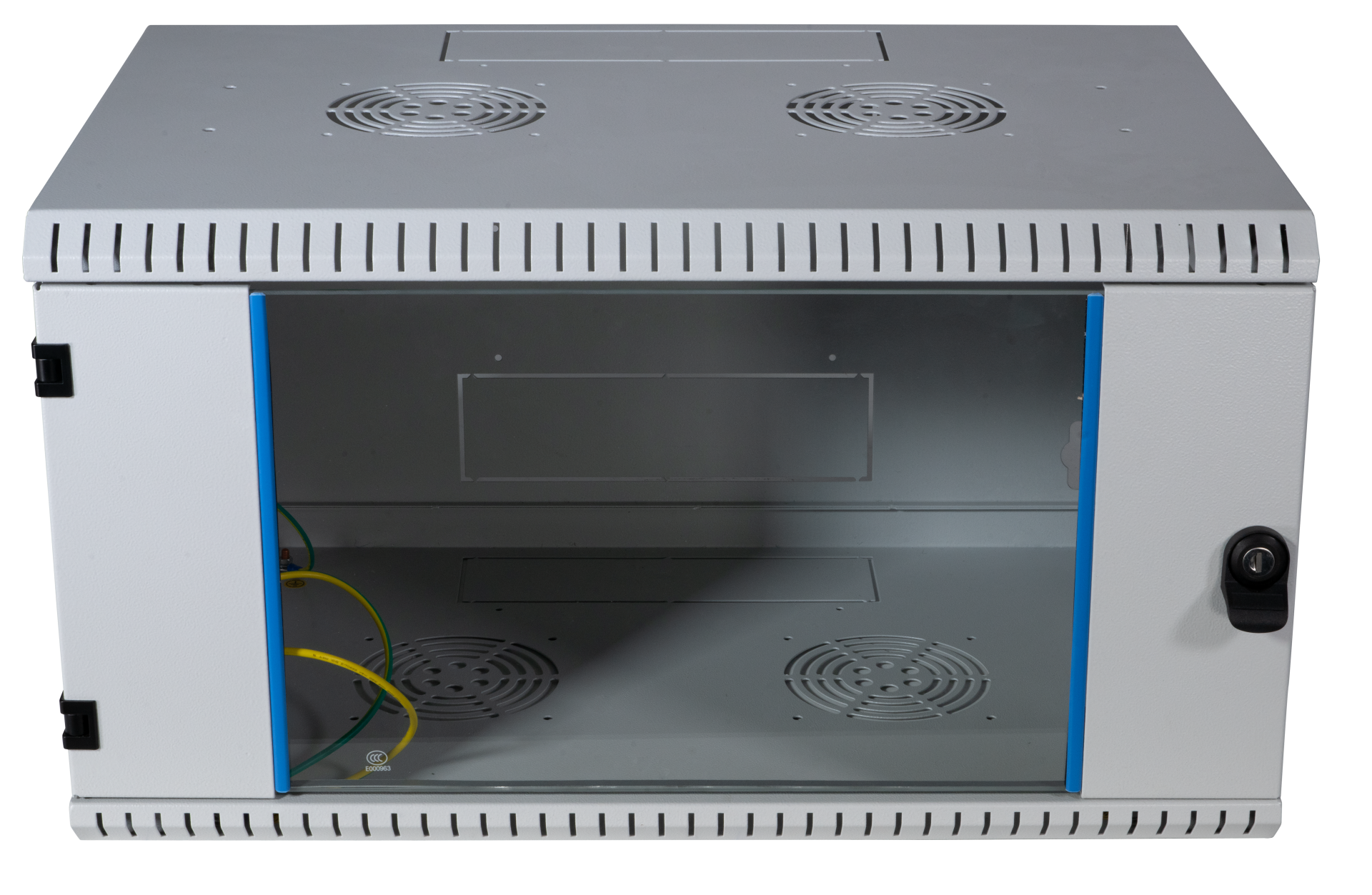

19" Wall Housing Fixed, 1-Part, Depth 600 mm, RAL7035
19" Wall Housing 9U, Fixed,1-Part, RAL7035, Depth 600 mm
Varenummer:
691709VGR.60
EAN Nr.:
4049759222031
Produktinformation til 19" Wall Housing 9U, Fixed,1-Part, RAL7035, Depth 600 mm
Steel sheet housing with welded frame, completely pre-assembled, self-ventilated

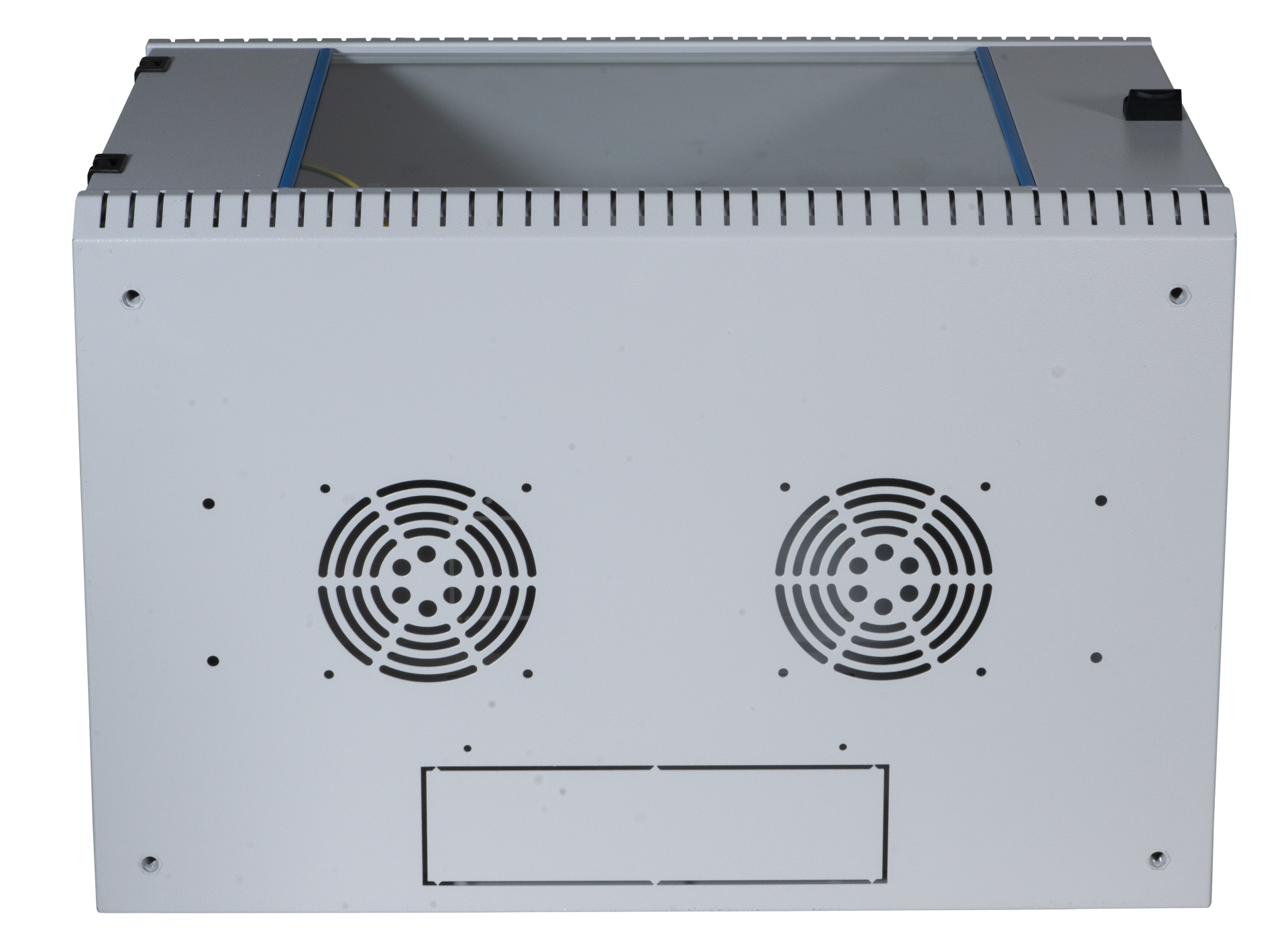

NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx

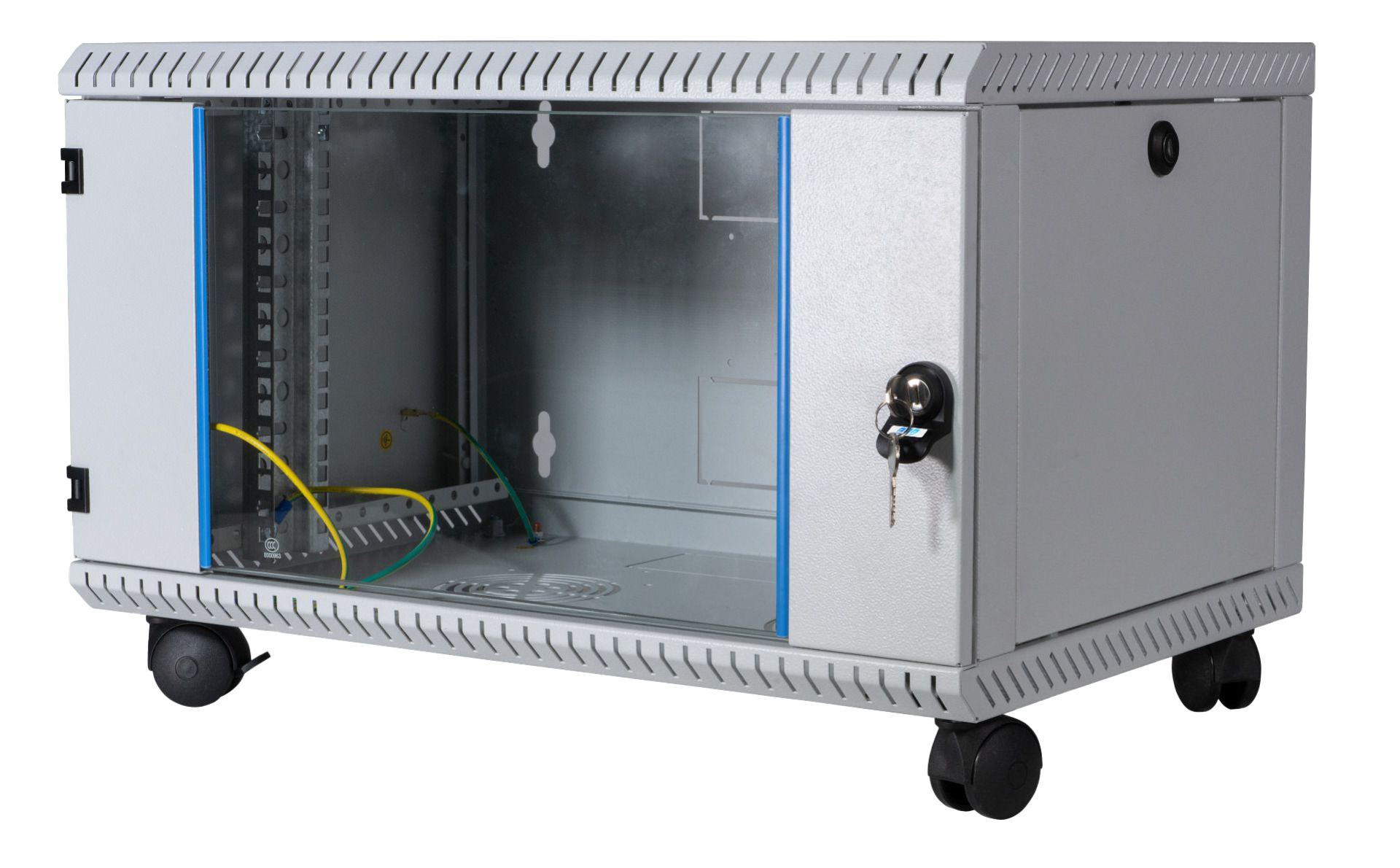

NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock
Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
NEW: Prepared for Plug & Play 2-fan unit Art.-No. 691656xx

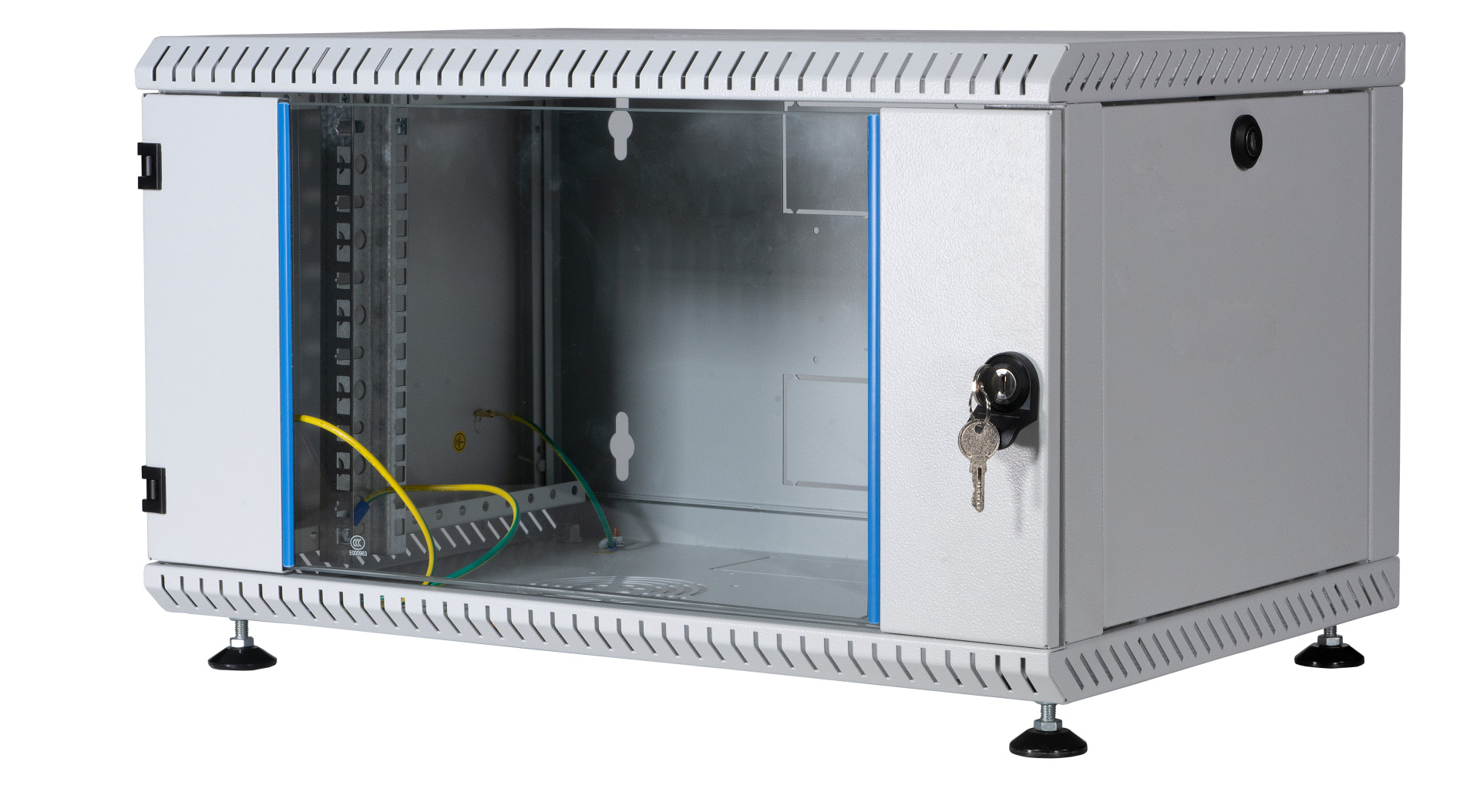

NEW: Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
NEW: Front door with metal hinges for increased stability
Side walls removable, lockable, locks equal to door lock

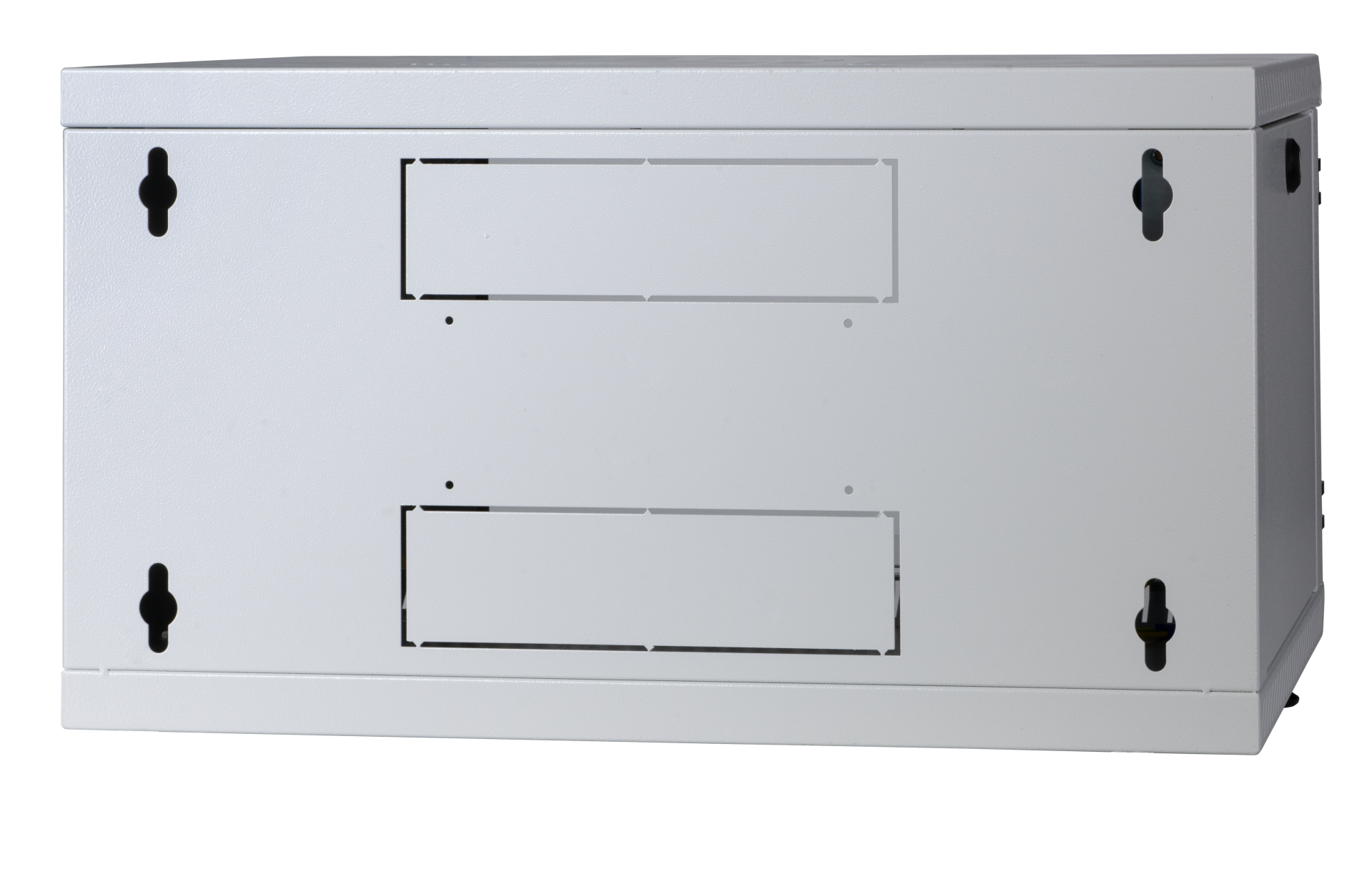

Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with latch locking and window made of certified safety glass (thickness 4 mm)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Tekniske egenskaber
| Cabinet Series: | 19" Wall Housing 1-Part, pre-assembled |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | False |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | Powder coating |
| Type of front door: | Glass door 1-part |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianten
| Art. Nr. | Bezeichnung | Depth | Color | Width | Max. Load | Height | Number of height units | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691709VGR.60 | 19" Wall Housing 9U, Fixed,1-Part, RAL7035, Depth 600 mm | 600 mm | grey | 600 mm | 50 kg | 465 mm | 9 U | 7035 | |
| 691712VGR.60 | 19" Wall Housing 12U, Fixed, 1-Part, RAL7035, Depth 600 mm | 600 mm | grey | 600 mm | 50 kg | 600 mm | 12 U | 7035 | |
| 691715VGR.60 | 19" Wall Housing 15U, Fixed, 1-Part, RAL7035, Depth 600 mm | 600 mm | grey | 600 mm | 50 kg | 730 mm | 15 U | 7035 | |
| 691718VGR.60 | 19" Wall Housing 18U, Fixed, 1-Part, RAL7035, Depth 600 mm | 600 mm | grey | 600 mm | 50 kg | 860 mm | 18 U | 7035 | |
| 691721VGR.60 | 19" Wall Housing 21U, Fixed, 1-Part, RAL7035, Depth 600 mm | 600 mm | grey | 600 mm | 50 kg | 997 mm | 21 U | 7035 |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
