19" Wall Housing 3U Vertical + 5U Horizontal
19“ Wall Housing 3U Vertical + 5U Horizontal, RAL7035
Varenummer:
691703V
EAN Nr.:
4049759160722
Produktinformation til 19“ Wall Housing 3U Vertical + 5U Horizontal, RAL7035

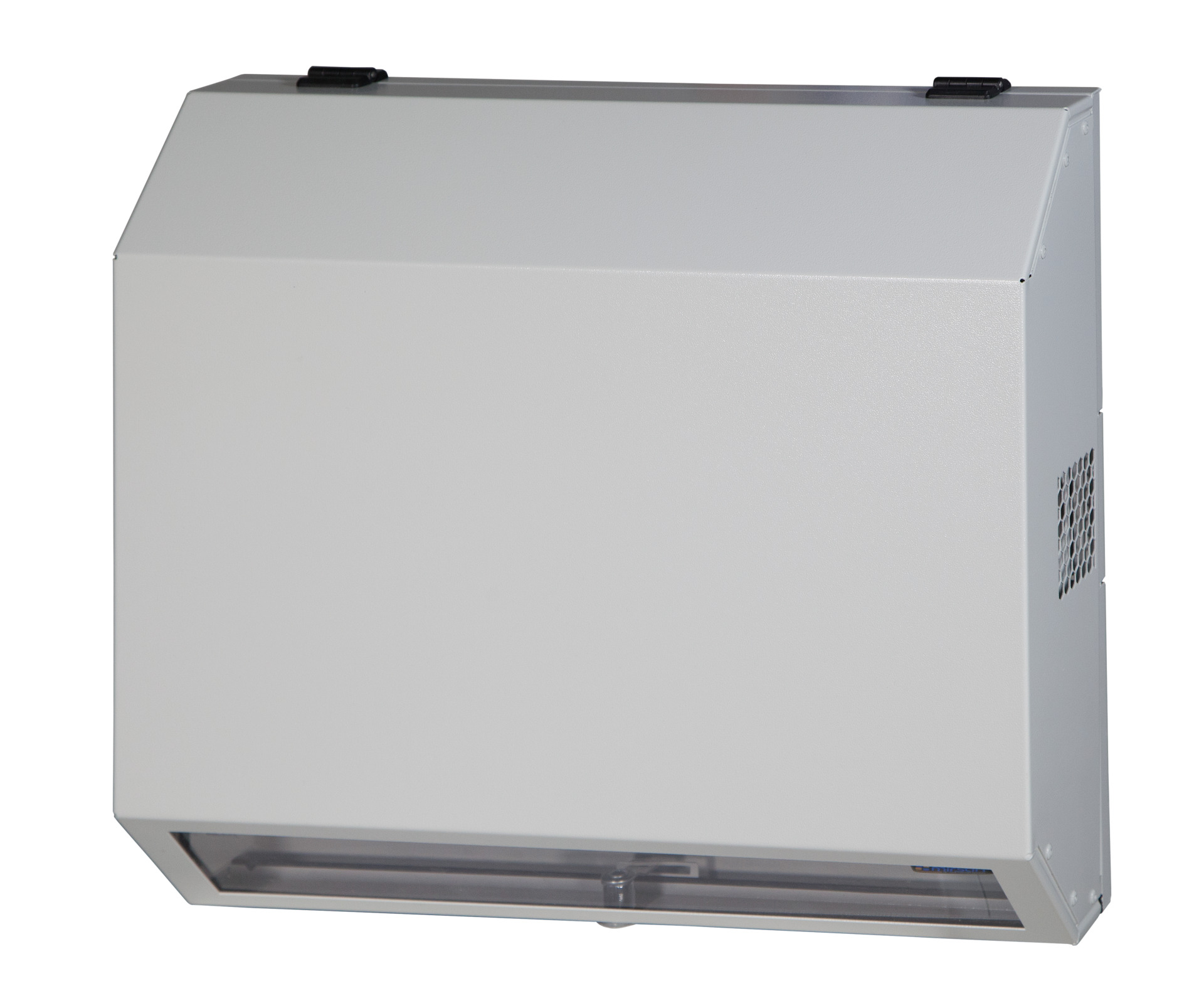

Steel sheet housing for wall mounting, completely pre-assembled, self-ventilated
Wall raising (overall depth) only 150 mm

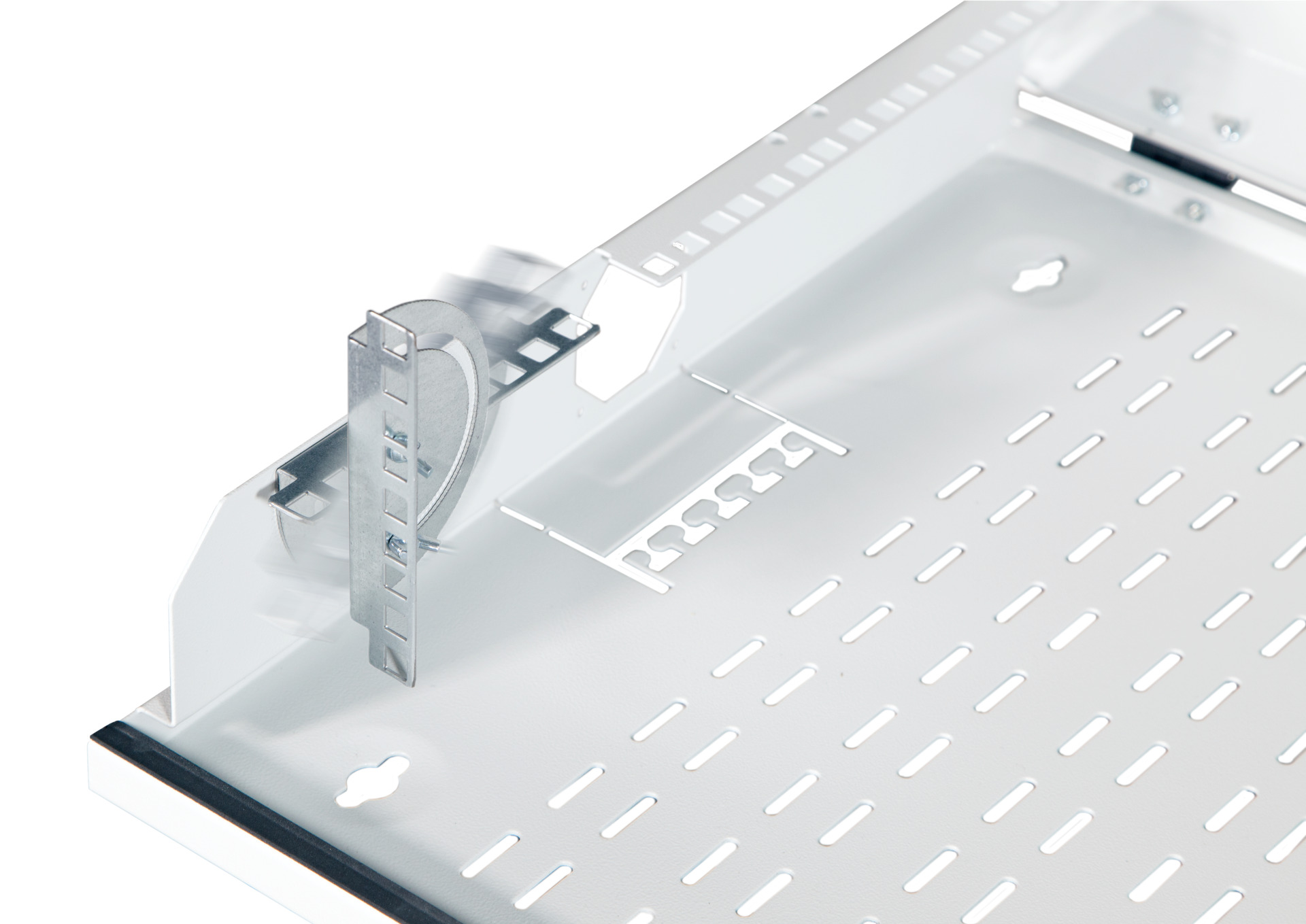

3U for vertical mounting of 19" components, max. depths each 1 x 360 / 340 / 300 mm
5U additionally for horizontally mounting of 19" components, max. depth 80 mm

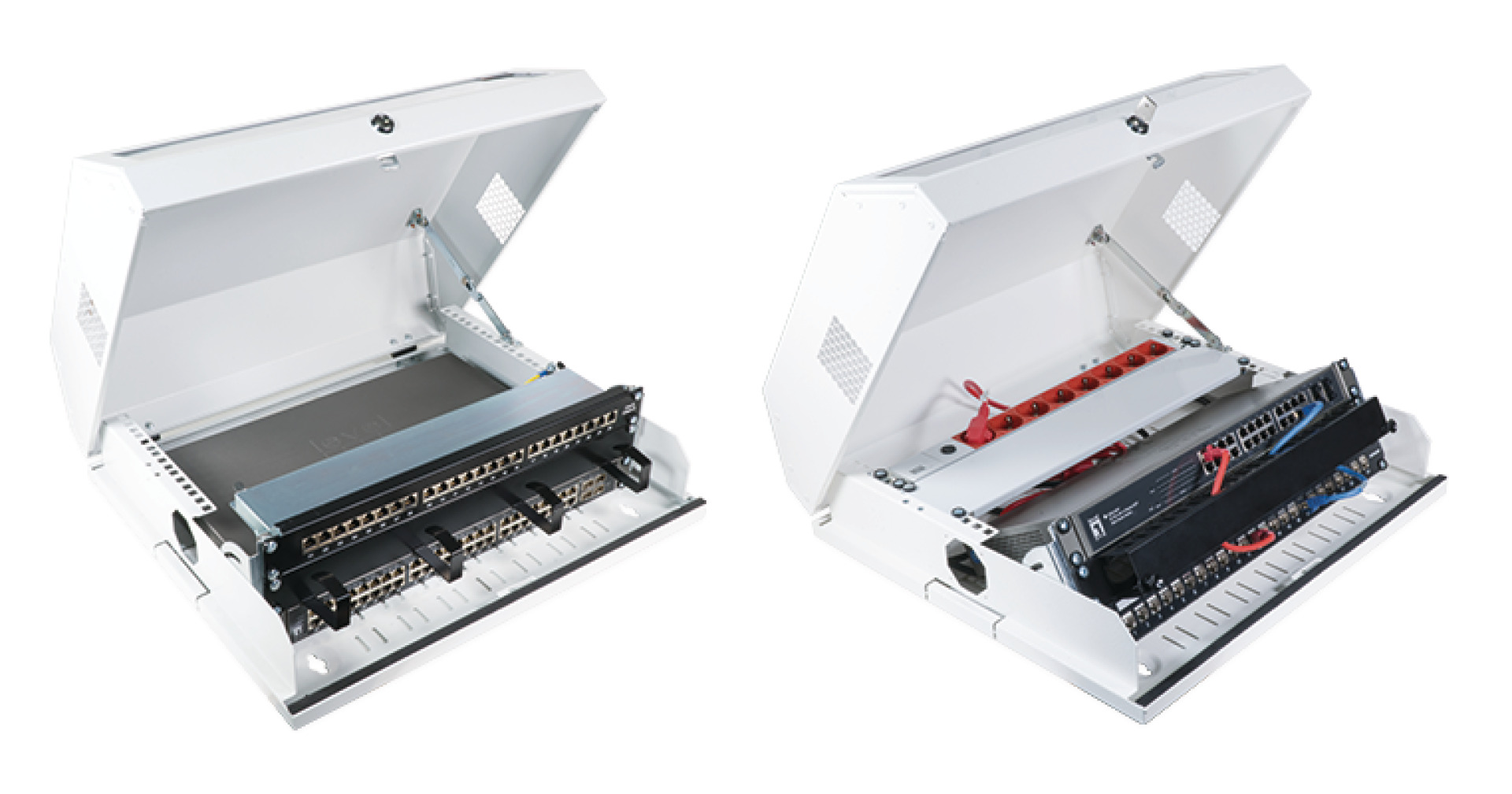

3U level 180° swiveling

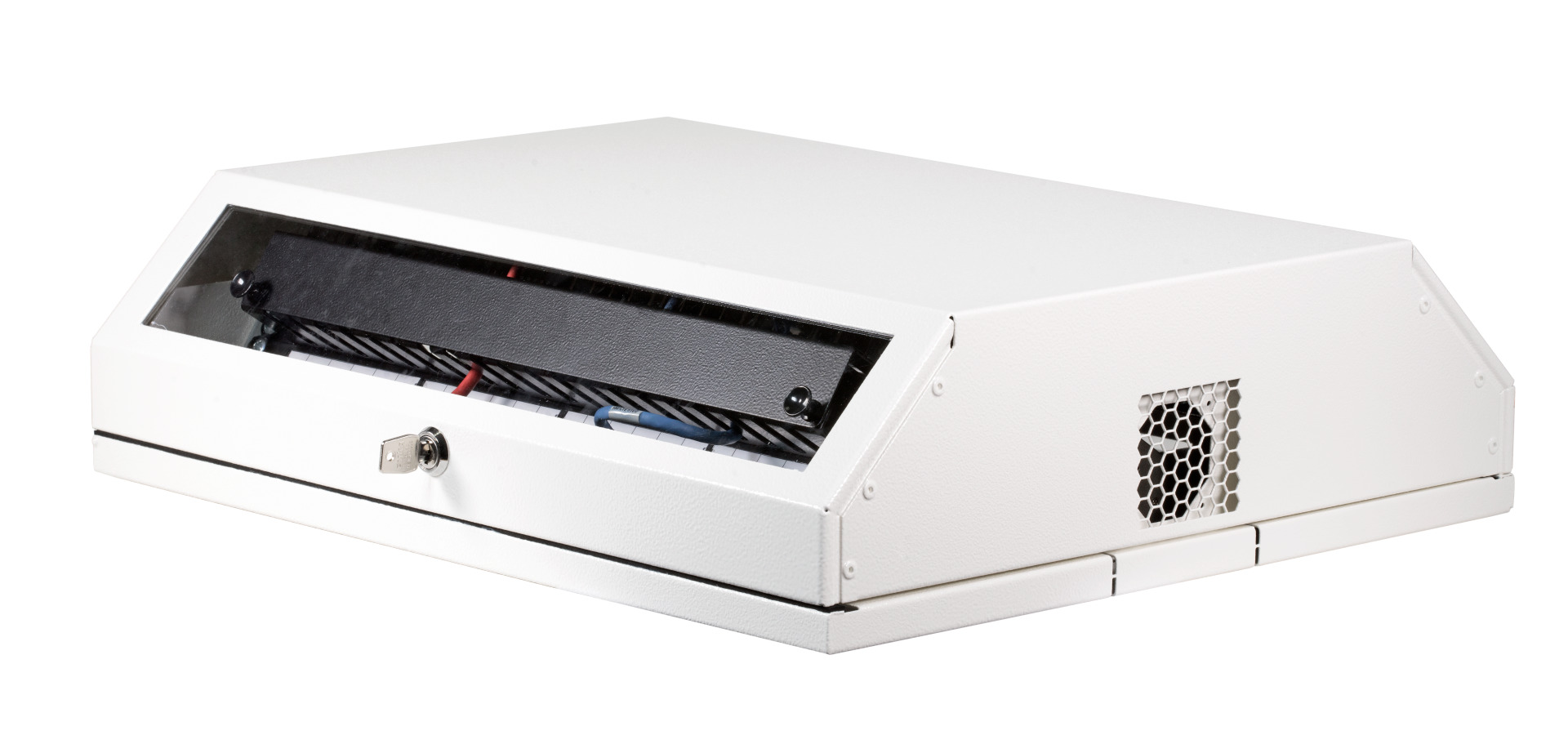

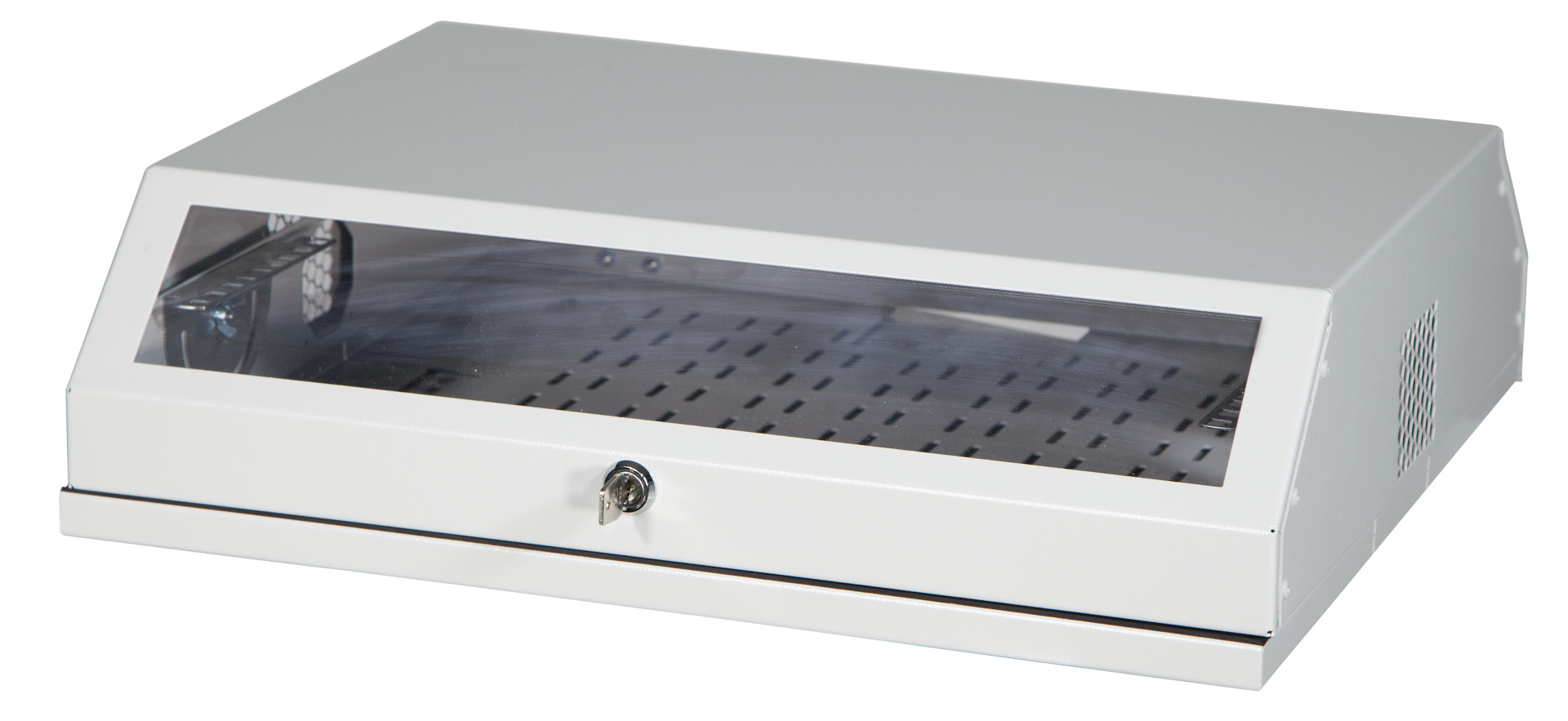

Cover with window, hinged and lockable
Pre-punched ventilation openings in housing

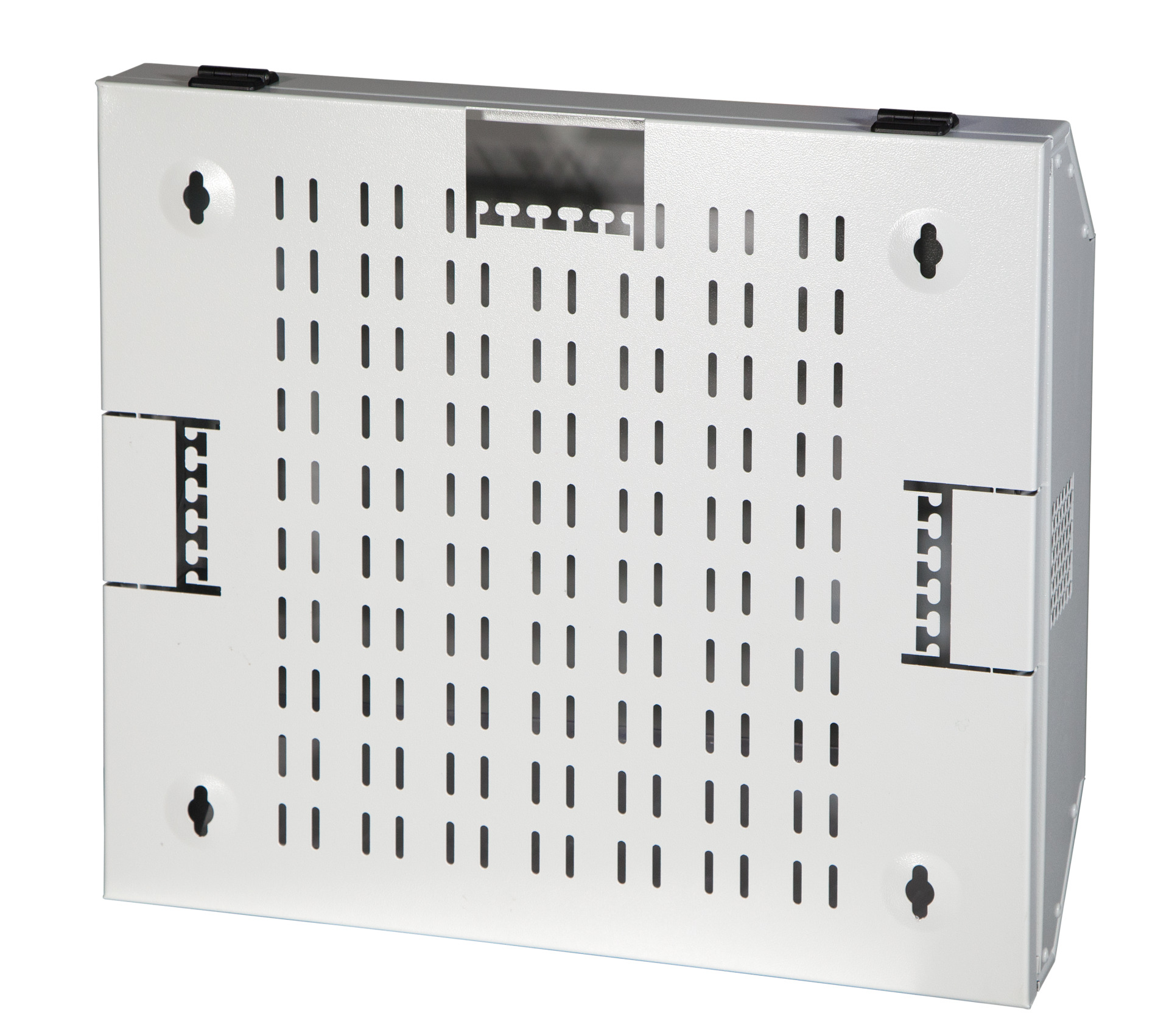

Pre-punched cable clamps in rear wall
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, white
Protection degree IP20

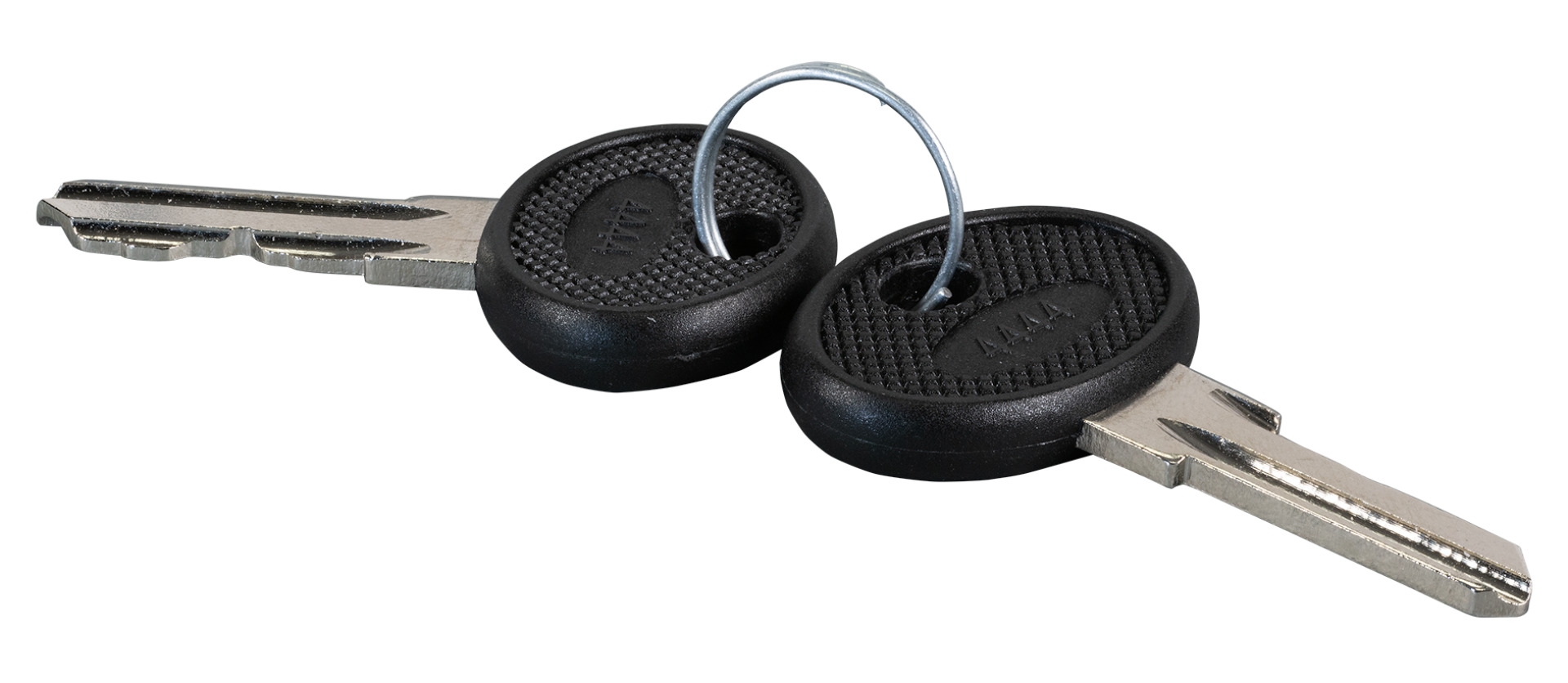

Included in delivery: 1 x key
Wall raising (overall depth) only 150 mm
3U for vertical mounting of 19" components, max. depths each 1 x 360 / 340 / 300 mm
5U additionally for horizontally mounting of 19" components, max. depth 80 mm
3U level 180° swiveling
Cover with window, hinged and lockable
Pre-punched ventilation openings in housing
Pre-punched cable clamps in rear wall
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, white
Protection degree IP20
Included in delivery: 1 x key
Tekniske egenskaber
| Cabinet Series: | 19" Wall Housimg vertical 3+5U, pre-assembled |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | Steel |
| Model: | With swing frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | Powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianten
| Art. Nr. | Bezeichnung | Max. Load | Height | Width | Depth | Number of height units | Color | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691703V | 19“ Wall Housing 3U Vertical + 5U Horizontal, RAL7035 | 30 kg | 475 mm | 537 mm | 146 mm | 8 U | grey | 7035 | |
| 691703VTS | 19“ Wall Housing 3U Vertical + 5U Horizontal, RAL9005 | 30 kg | 475 mm | 537 mm | 146 mm | 8 U | black | 9005 | |
| 691703VWS | 19" Wall Housing 3U Vertical + 5U Horizontal, RAL9010 | 30 kg | 475 mm | 537 mm | 146 mm | 8 U | white | 9010 |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
