19" Wall Housing 3U Vertical + 5U Horizontal
19" Wall Housing 3U Vertical + 5U Horizontal, RAL9010
Varenummer:
691703VWS
EAN Nr.:
4049759165178
Produktinformation til 19" Wall Housing 3U Vertical + 5U Horizontal, RAL9010

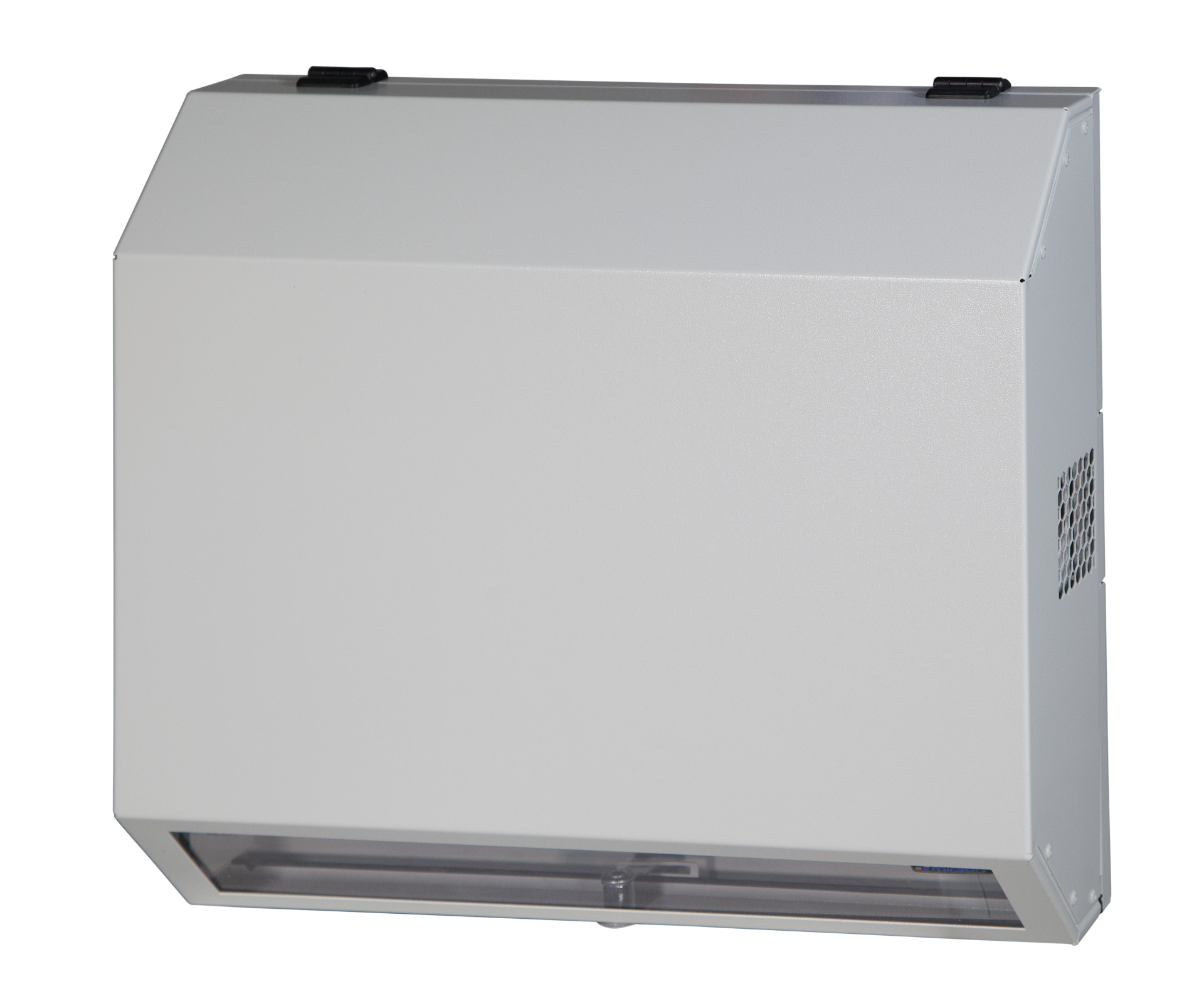

Steel sheet housing for wall mounting, completely pre-assembled, self-ventilated
Wall raising (overall depth) only 150 mm

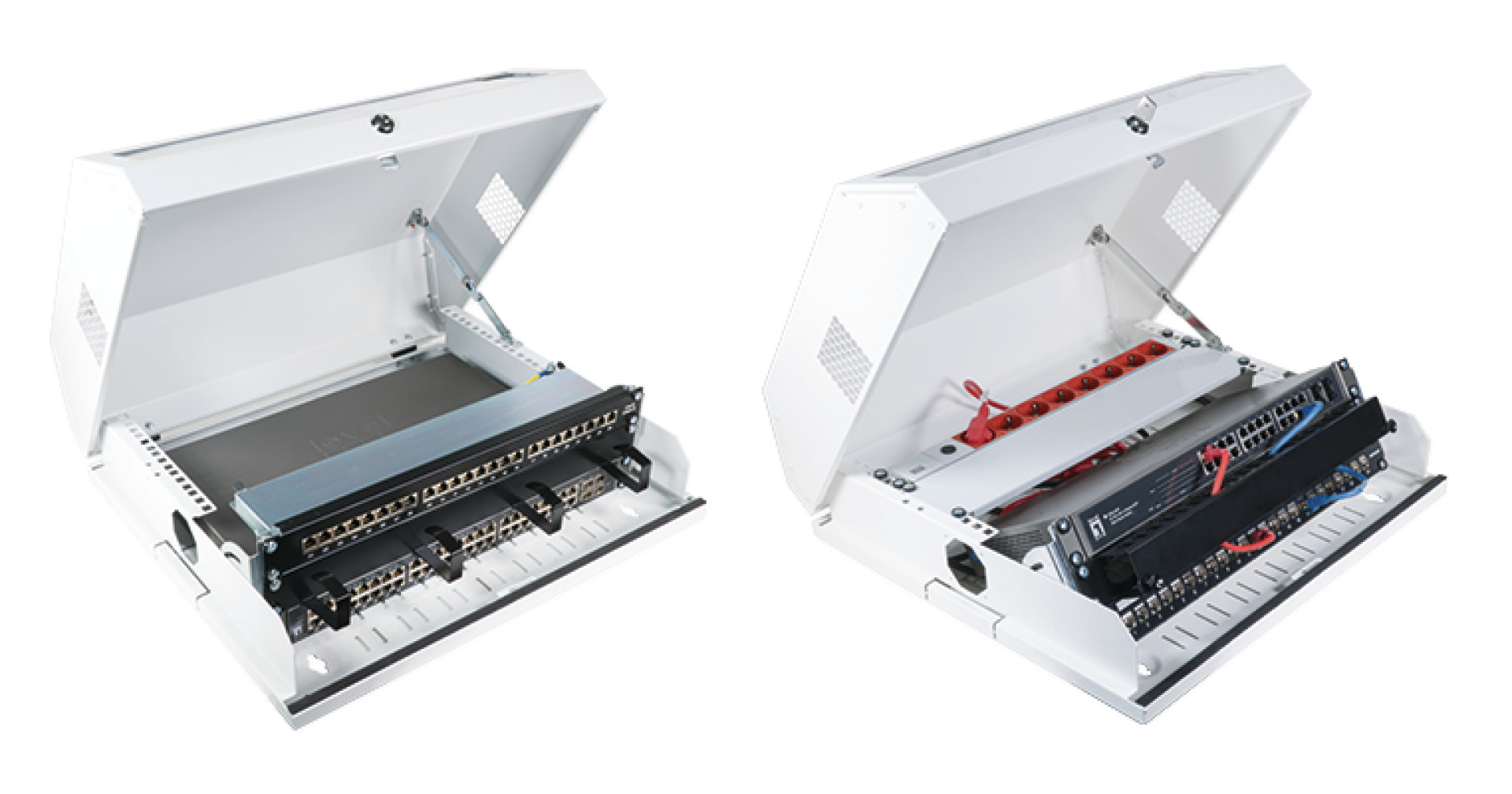

3U for vertical mounting of 19" components, max. depths each 1 x 360 / 340 / 300 mm
5U additionally for horizontally mounting of 19" components, max. depth 80 mm

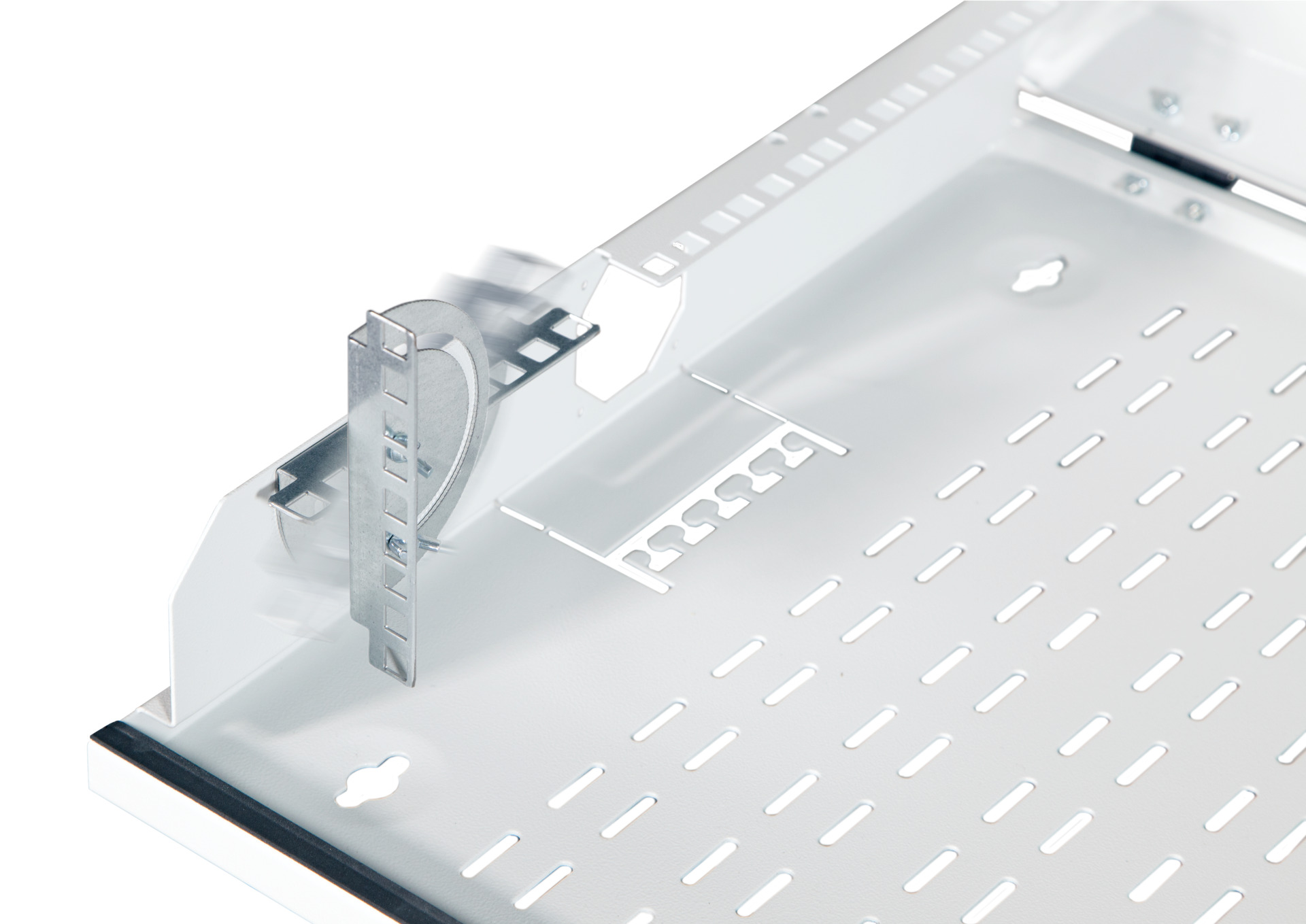

3U level 180° swiveling

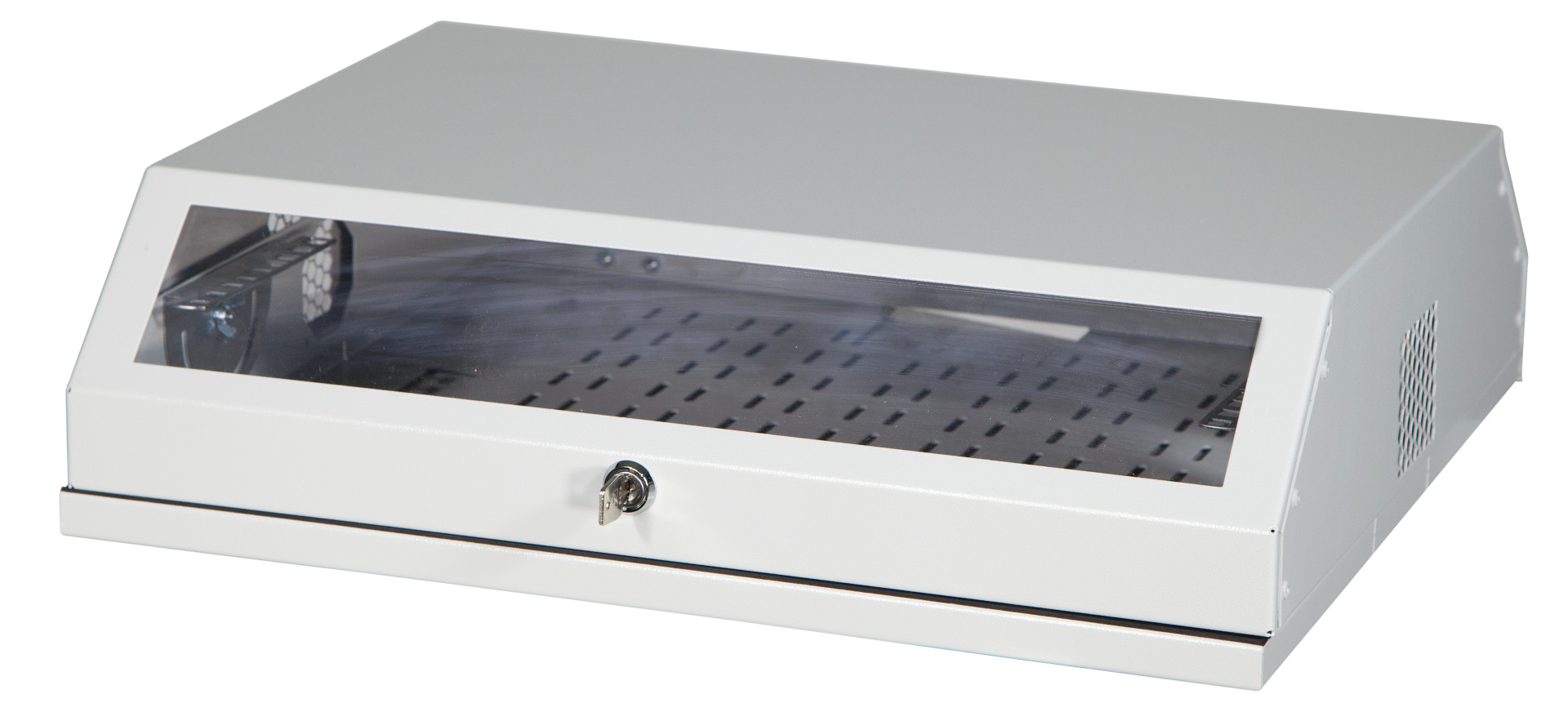

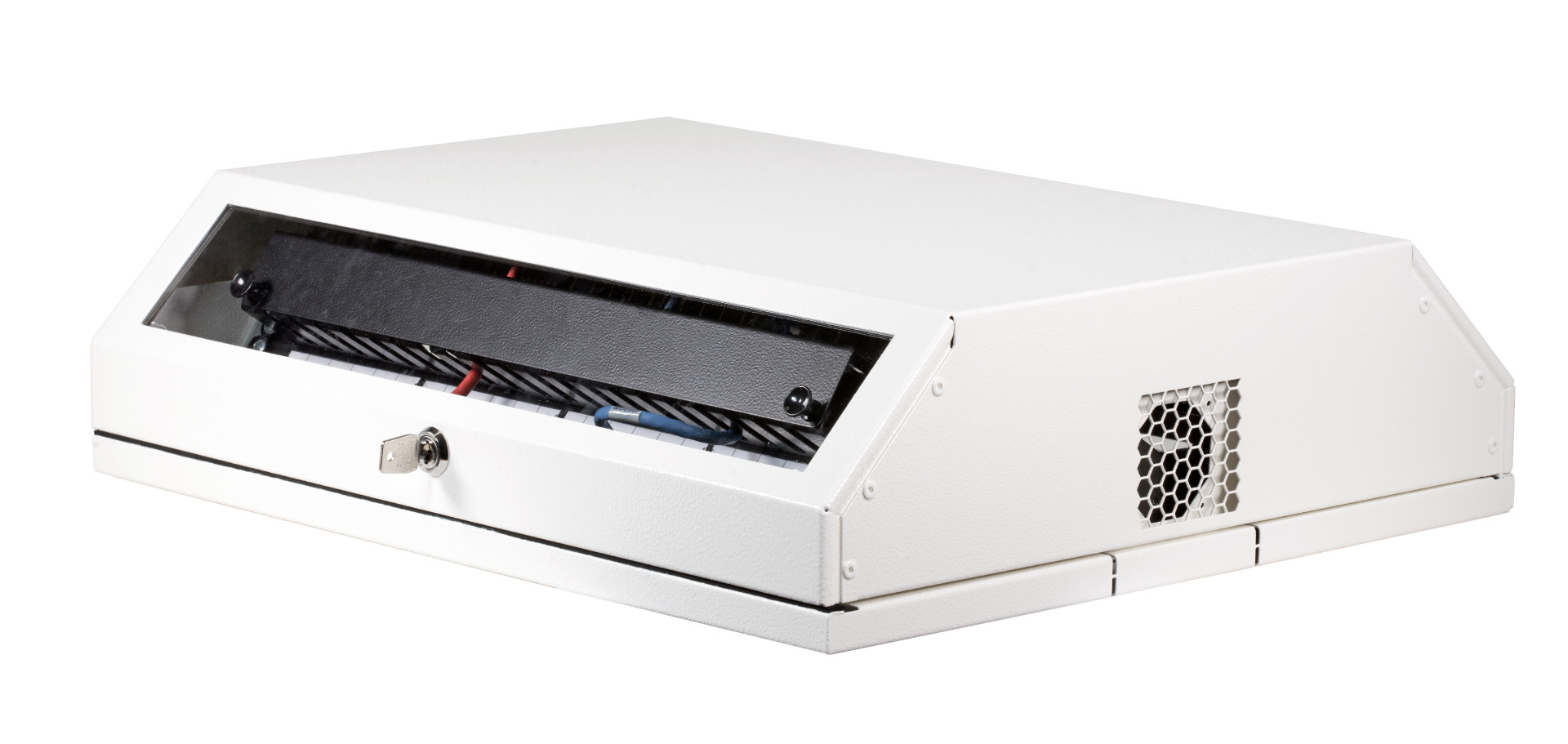

Cover with window, hinged and lockable

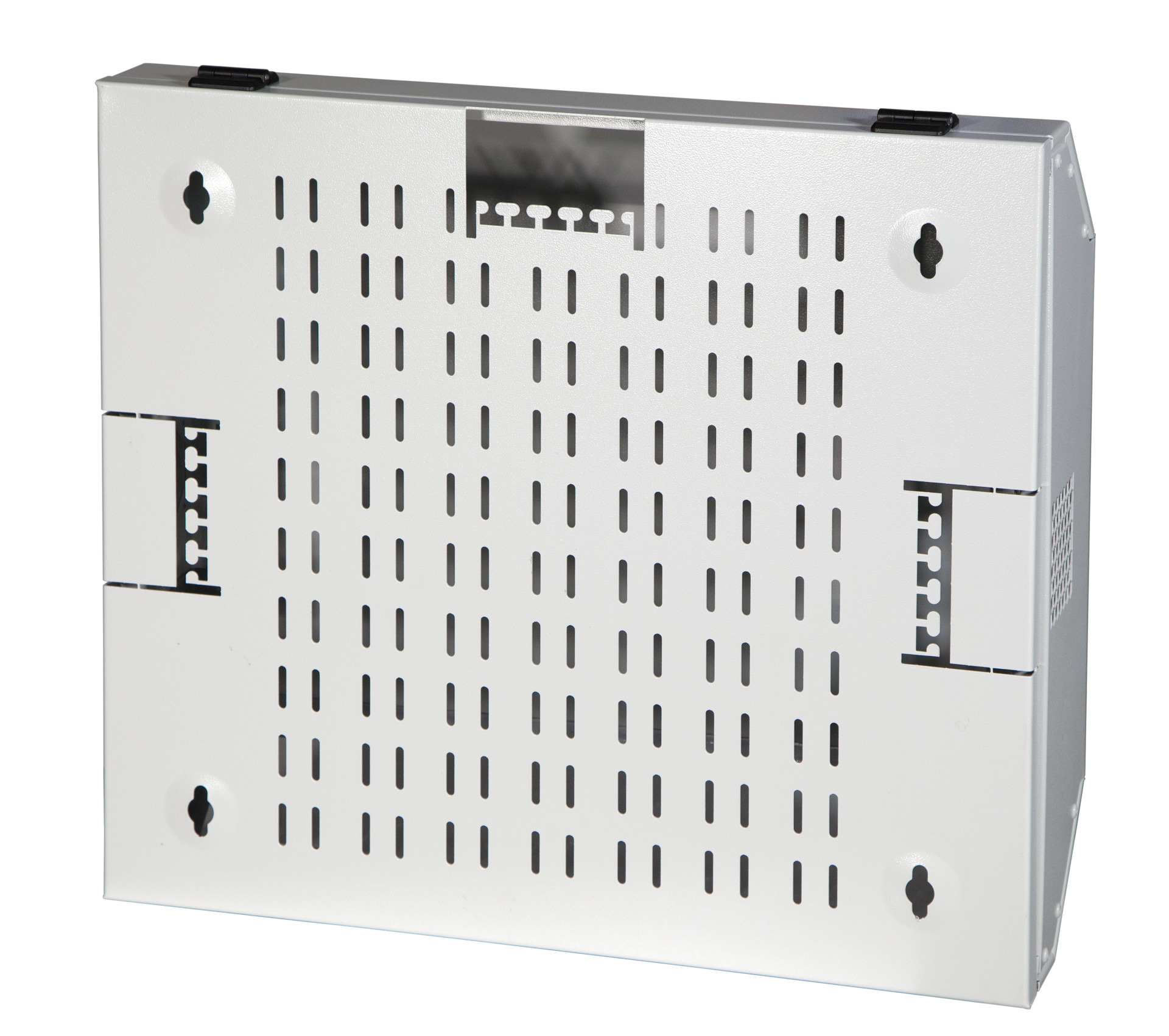

Pre-punched ventilation openings in housing
Pre-punched cable clamps in rear wall
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, white
Protection degree IP20
Included in delivery: 1 x key
Wall raising (overall depth) only 150 mm
3U for vertical mounting of 19" components, max. depths each 1 x 360 / 340 / 300 mm
5U additionally for horizontally mounting of 19" components, max. depth 80 mm
3U level 180° swiveling
Cover with window, hinged and lockable
Pre-punched ventilation openings in housing
Pre-punched cable clamps in rear wall
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, white
Protection degree IP20
Included in delivery: 1 x key
Tekniske egenskaber
| Anzahl Packstücke: | 1 |
|---|---|
| Anzahl der Türen: | 1 |
| Art der Lüftung: | passiv |
| Ausführung: | mit Schwenkrahmen |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Ausführung der Profilschiene: | L-förmig |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Montage-Ebene: | vorne |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schrankserie: | 19" Wandgehäuse vertikal 3+5HE, vormontiert |
| Schutzart: | IP20 |
| Werkstoff: | Stahl |
| Zerlegbar: | Ja |
Varianten
| Art. Nr. | Bezeichnung | Traglast | Höhe | Breite | Tiefe | Anzahl der Höheneinheiten (HE) | Farbe | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691703V | 19“ Wall Housing 3U Vertical + 5U Horizontal, RAL7035 | 30 kg | 475 mm | 537 mm | 146 mm | 8 HE | grau | 7035 | |
| 691703VTS | 19“ Wall Housing 3U Vertical + 5U Horizontal, RAL9005 | 30 kg | 475 mm | 537 mm | 146 mm | 8 HE | schwarz | 9005 | |
| 691703VWS | 19" Wall Housing 3U Vertical + 5U Horizontal, RAL9010 | 30 kg | 475 mm | 537 mm | 146 mm | 8 HE | weiß | 9010 |
