19" Wall Housing Flat Pack, Depth 450 mm, RAL7035

Priser kun synlige for indloggede brugere

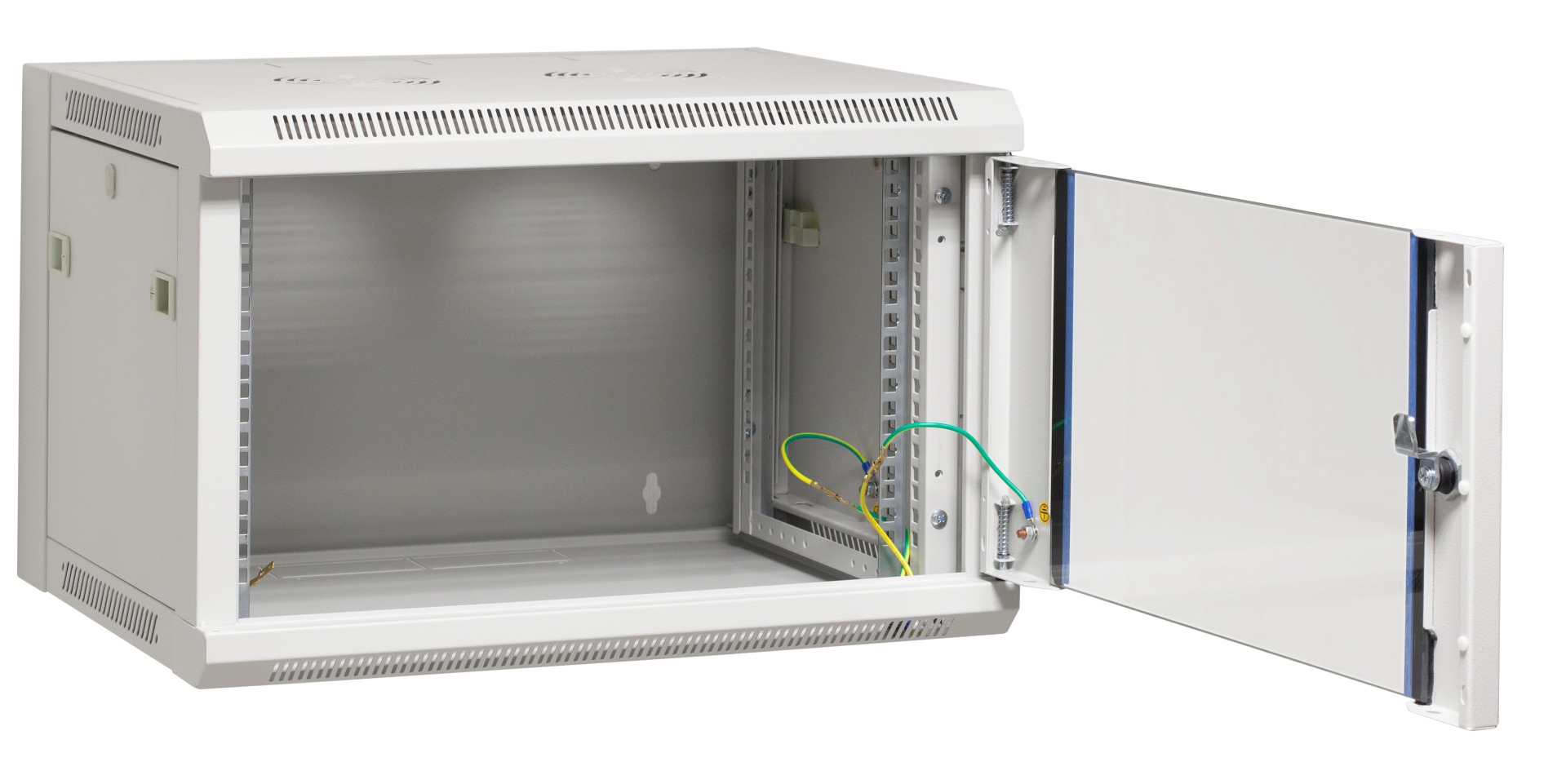

19" Wall Housing Flat Pack 12U, Depth 450 mm, RAL7035
Varenummer: 691712FGR.1
EAN nr.: 4049759160791
Stück

Produktinformation für 19" Wall Housing Flat Pack 12U, Depth 450 mm, RAL7035

Steel sheet housing with screwed frame
Not pre-assembled, self-ventilated
Side wall removable with quick fastener
Roof, bottom and rear wall with pre-punched openings for cable entry (230 x 41 mm)
Roof prepared for mounting of 2 x single fan (Art.-No. 691664)
Inside 2 x 19" rails front-sided, depth-adjustable
Front door with window of certified safety glass with lock (thickness 4 mm)
Cabinet parts completely earthed
Max. load 60 kg
Protection degree IP20
Paint finish RAL7035, light grey
Included accessories: 2 x key

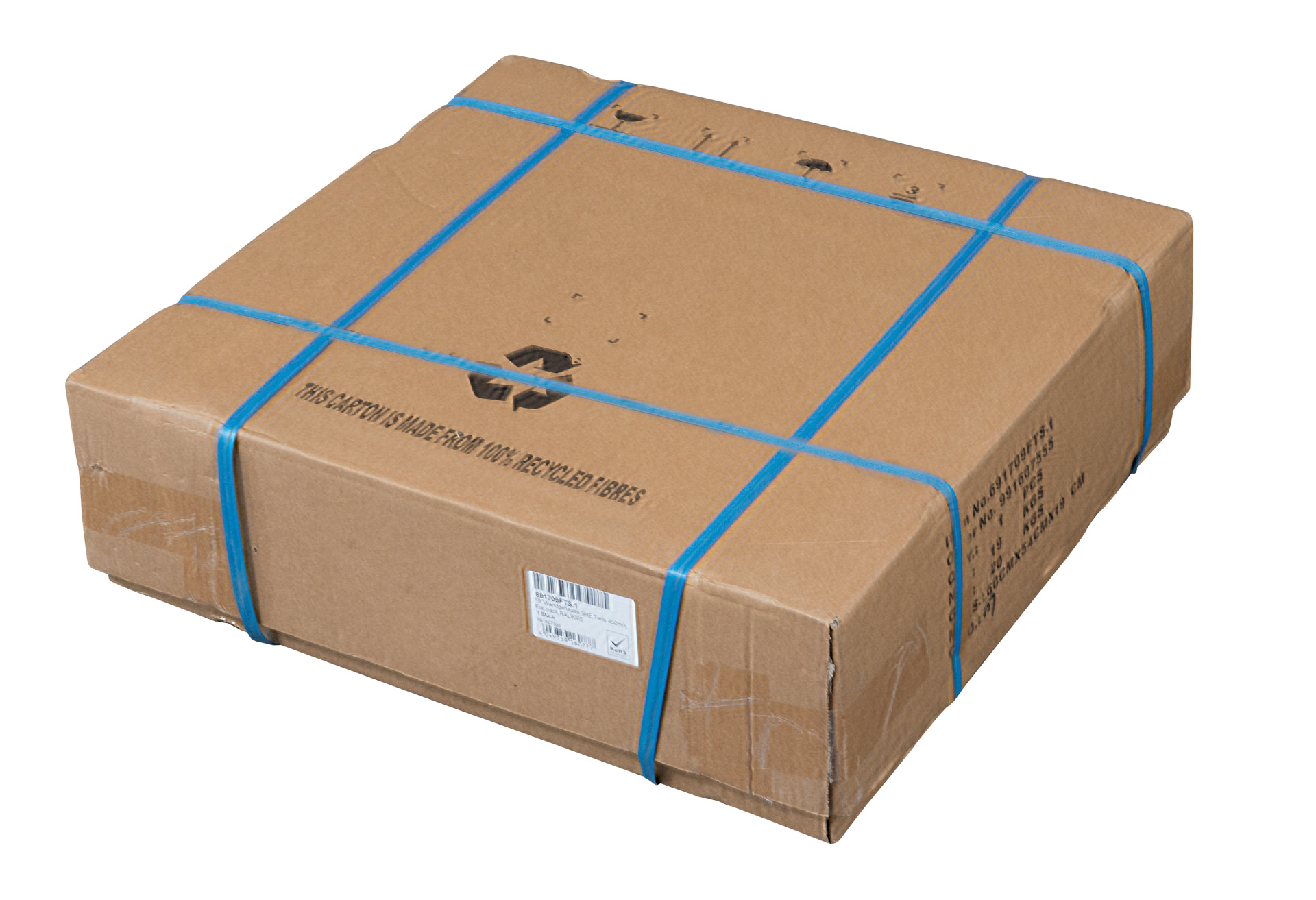

Delivery unassembled in transport packaging (1 carton)

Tekniske egenskaber

Degree of protection: IP20
Demountable: True
Material: steel
Model: With permanent frame
Modular spacing: 482.6 mm (19 inch)
Mounting level: Front side
Number of cartons: 1
Number of doors: 1
Surface finishing: powder coating
Type of profile rail: L-shaped
Type of ventilation: Passive
With earthing: True
With front door: True
With roof plate: True
With sidewall: True

Varianter

Art. Nej. Betegnelse Width Max. Load Colour Depth Height Number of height units RAL-number
691709FGR.1 19" Wall Housing Flat Pack 9U, Depth 450 mm, RAL7035 570 mm 60 kg grey 450 mm 500 mm 9 U 7035
691712FGR.1 19" Wall Housing Flat Pack 12U, Depth 450 mm, RAL7035 570 mm 60 kg grey 450 mm 635 mm 12 U 7035

accessory

Fan for 19" Wall Mounting Cabinets, 120 mm, 230 V / 50 Hz
Thermostat incl. Bracket, for Fan Units 69165xV3 or Single Fan 691664
