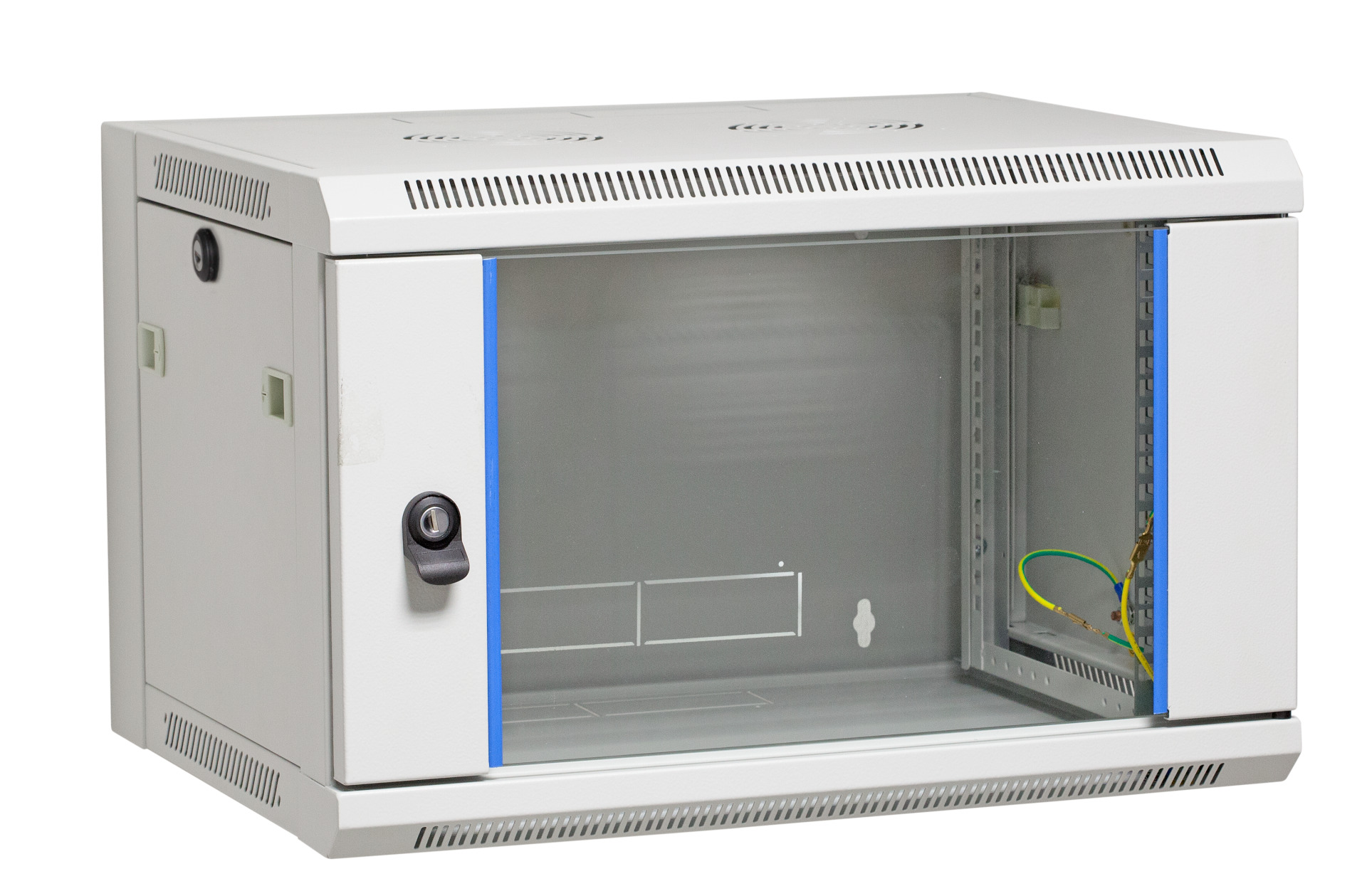

19" Wall Housing Flat Pack, Depth 600 mm, RAL7035

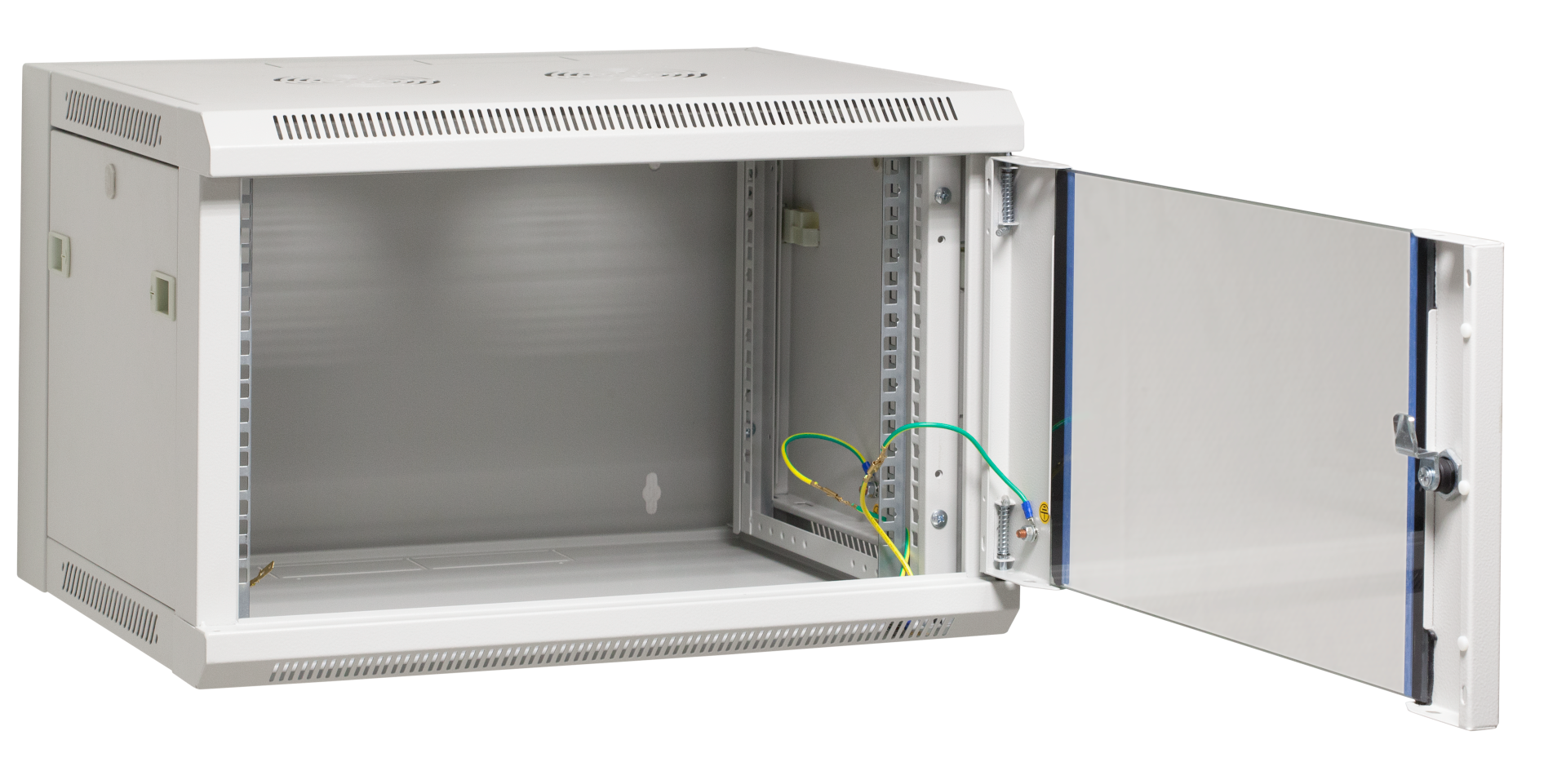

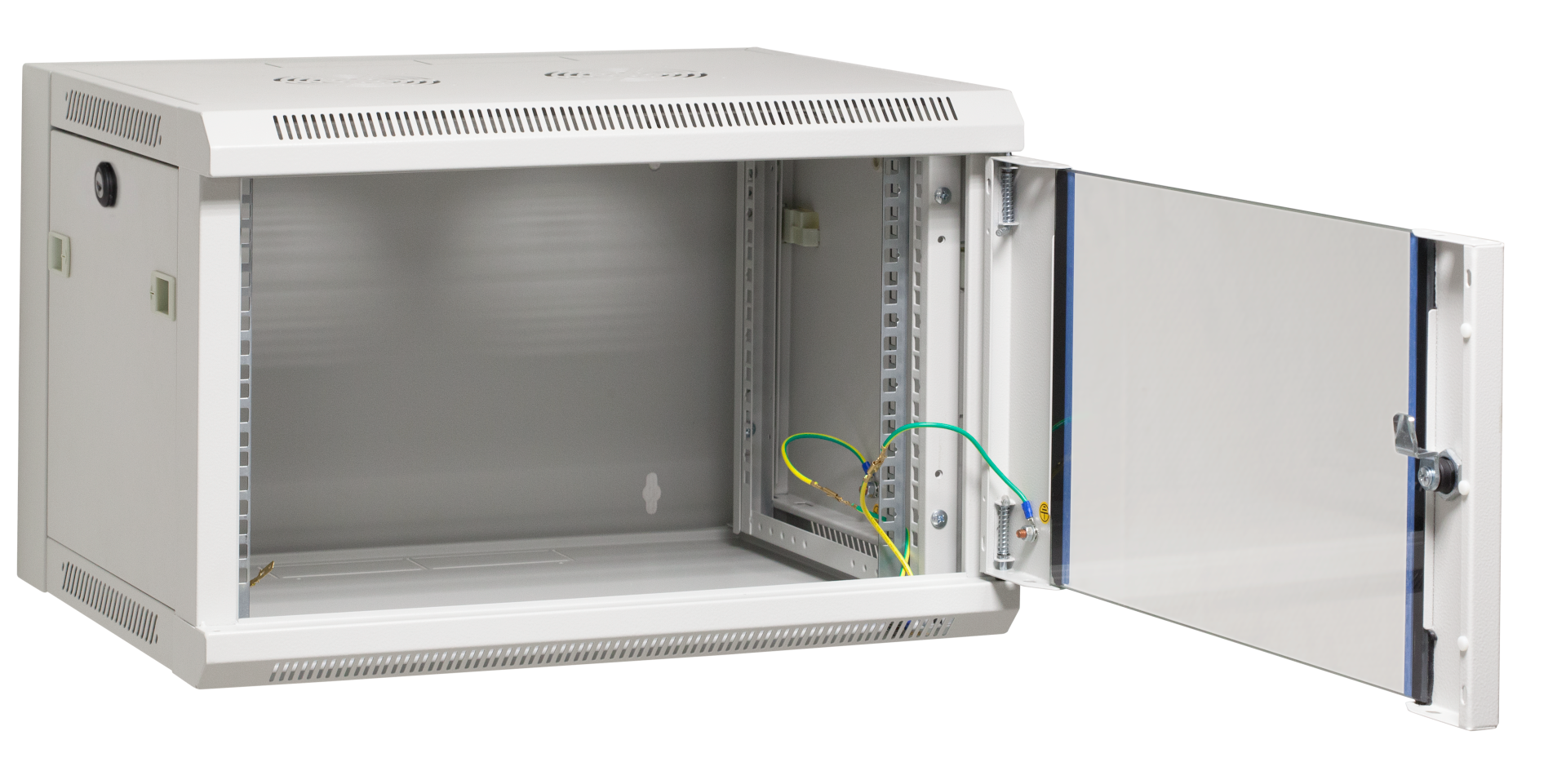

19" Wall Housing Flat Pack 9U, Depth 600 mm, RAL7035
Varenummer:
691709FGR.2
EAN Nr.:
4049759160760
Produktinformation til 19" Wall Housing Flat Pack 9U, Depth 600 mm, RAL7035
Steel sheet housing with screwed frame
Not pre-assembled, self-ventilated
Side wall removable with quick fastener
Roof, bottom and rear wall with pre-punched openings for cable entry (230 x 41 mm)
Roof prepared for mounting of 2 x single fan (Art.-No. 691664)
Inside 2 x 19" rails front-sided, depth-adjustable

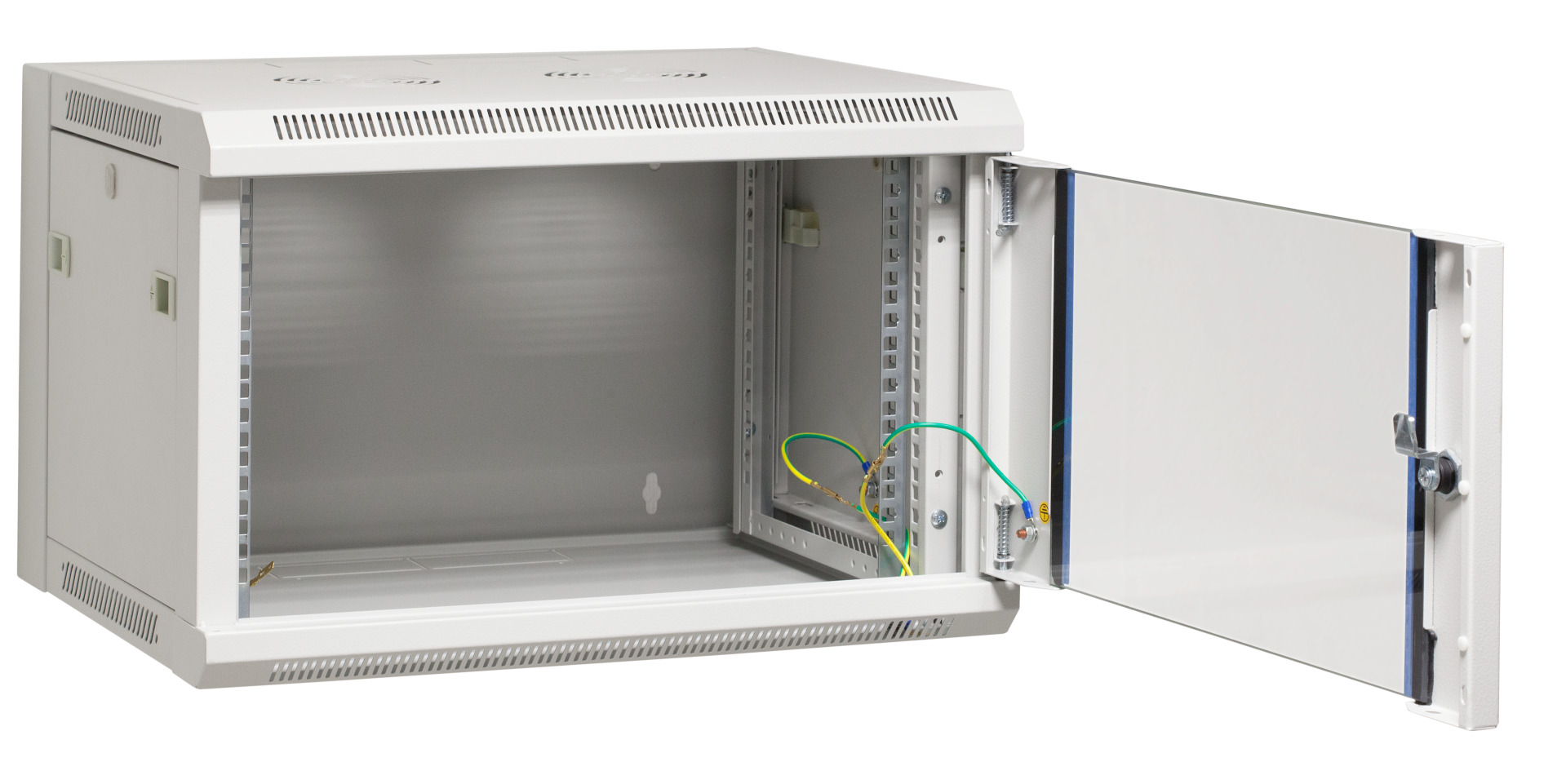

Front door with window of certified safety glass with lock (thickness 4 mm)
Cabinet parts completely earthed
Max. load 60 kg
Protection degree IP20
Paint finish RAL7035, light grey
Included accessories: 2 x key

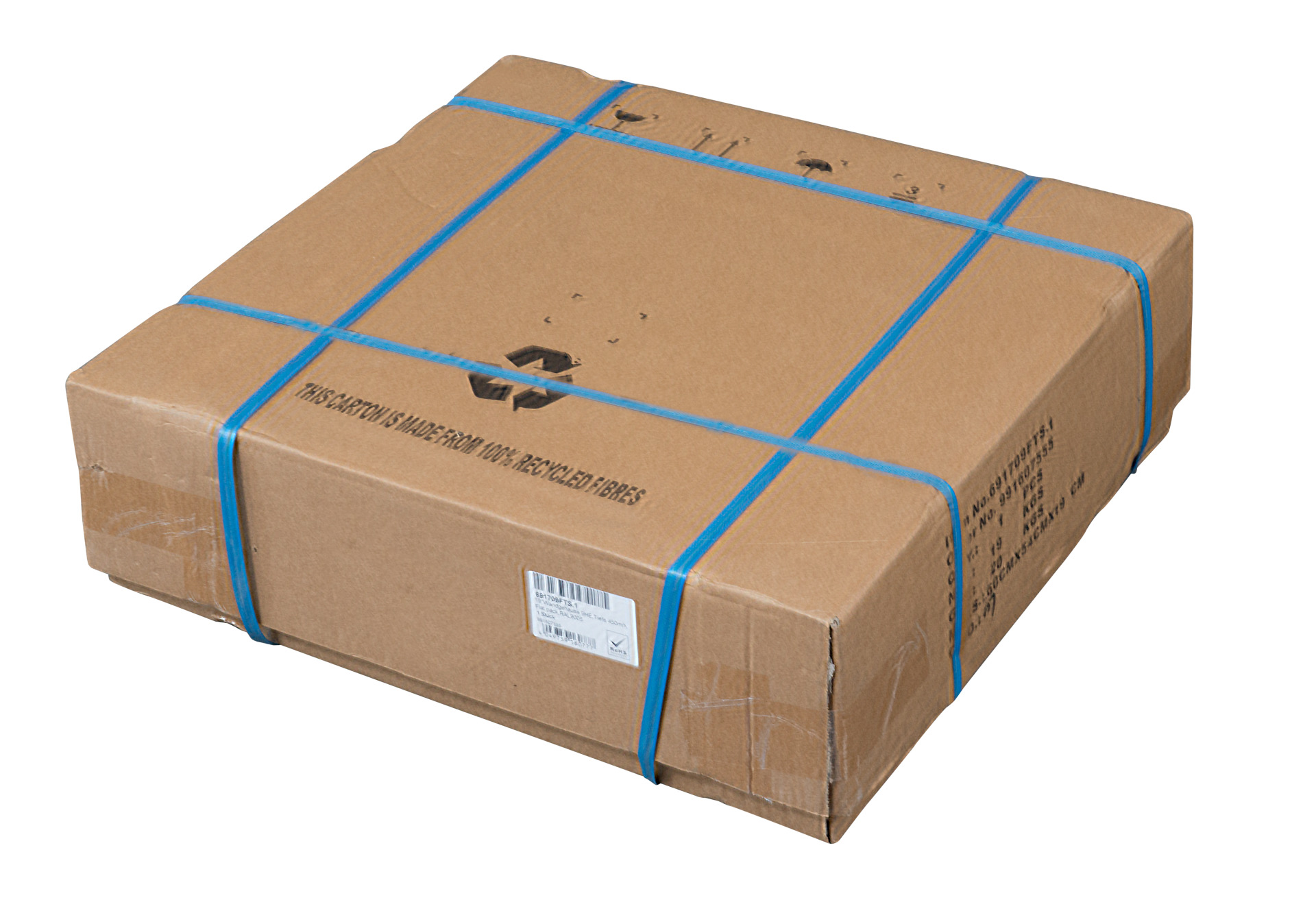

Delivery unassembled in transport packaging (1 carton)
Not pre-assembled, self-ventilated
Side wall removable with quick fastener
Roof, bottom and rear wall with pre-punched openings for cable entry (230 x 41 mm)
Roof prepared for mounting of 2 x single fan (Art.-No. 691664)
Inside 2 x 19" rails front-sided, depth-adjustable
Front door with window of certified safety glass with lock (thickness 4 mm)
Cabinet parts completely earthed
Max. load 60 kg
Protection degree IP20
Paint finish RAL7035, light grey
Included accessories: 2 x key
Delivery unassembled in transport packaging (1 carton)
Tekniske egenskaber
| Cabinet Series: | 19" Wall Housing FLAT PACK, un-assembled |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | True |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | Powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Varianten
| Art. Nr. | Bezeichnung | Depth | Max. Load | Width | Color | Height | Number of height units | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691709FGR.2 | 19" Wall Housing Flat Pack 9U, Depth 600 mm, RAL7035 | 600 mm | 60 kg | 570 mm | grey | 500 mm | 9 U | 7035 | |
| 691712FGR.2 | 19" Wall Housing Flat Pack 12U, Depth 600 mm, RAL7035 | 600 mm | 60 kg | 570 mm | grey | 635 mm | 12 U | 7035 | |
| 691715FGR.2 | 19" Wall Housing Flat Pack 15U, Depth 600 mm, RAL7035 | 600 mm | 60 kg | 570 mm | grey | 770 mm | 15 U | 7035 | |
| 691721FGR.2 | 19" Wall Housing Flat Pack 21U, Depth 600 mm, RAL7035 | 600 mm | 60 kg | 570 mm | grey | 1040 mm | 21 U | 7035 |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
