19" Wall Housing Flat Pack, Depth 600 mm, RAL9005

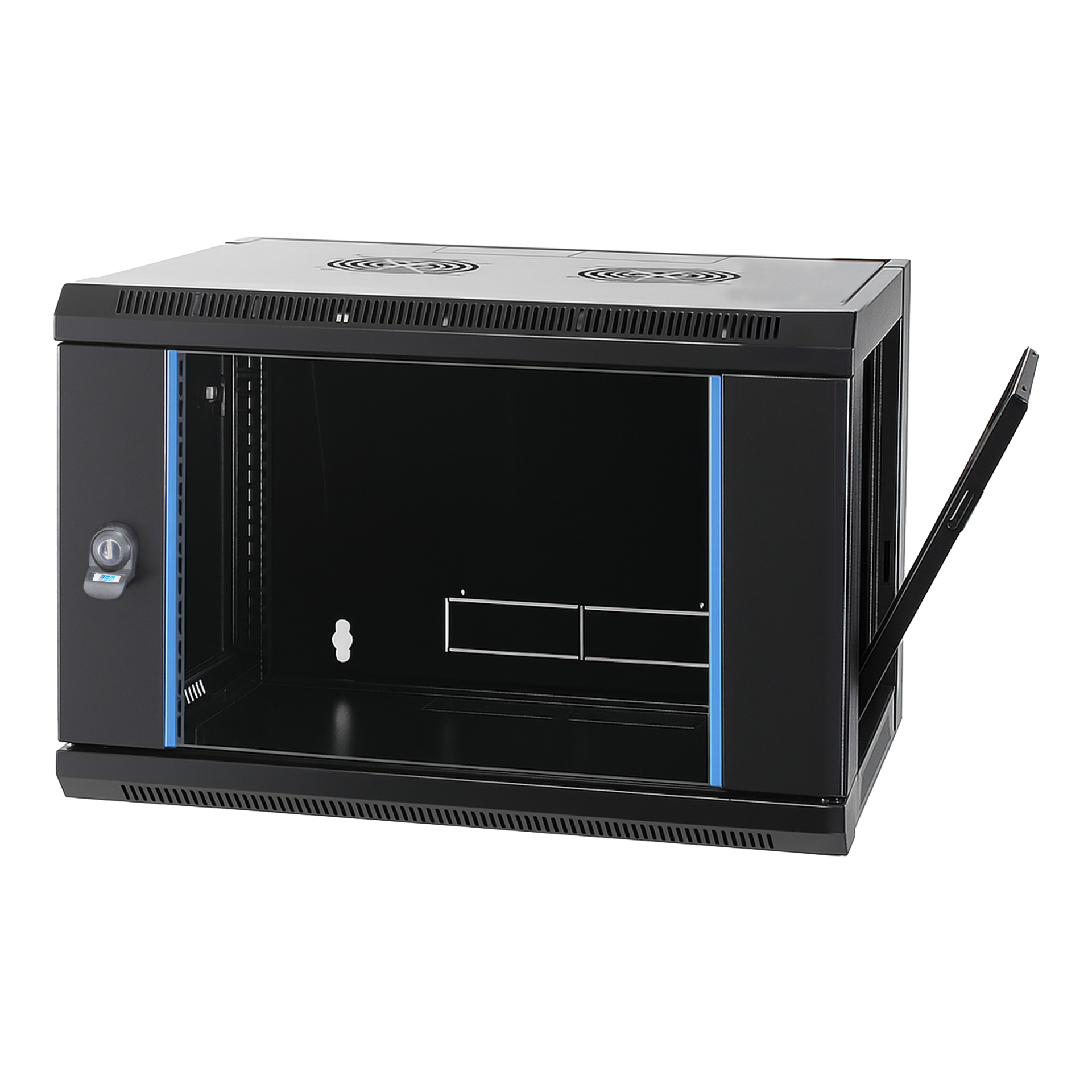

19" Wall Housing Flat Pack 9U, Depth 600 mm, RAL9005
Varenummer:
691709FTS.2
EAN Nr.:
4049759160784
Produktinformation til 19" Wall Housing Flat Pack 9U, Depth 600 mm, RAL9005
Steel sheet housing with screwed frame
Not pre-assembled, self-ventilated

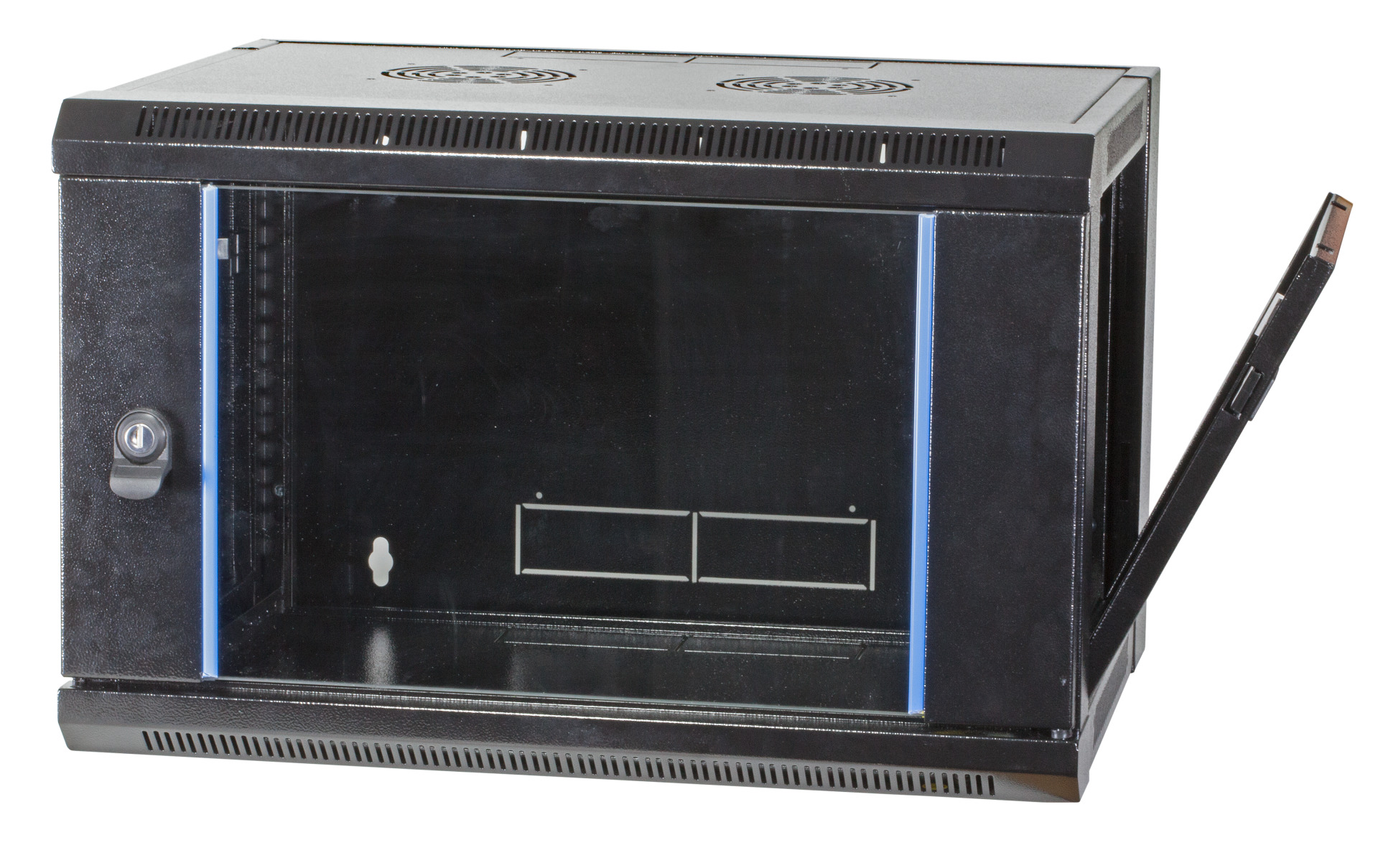

Side wall removable with quick fastener

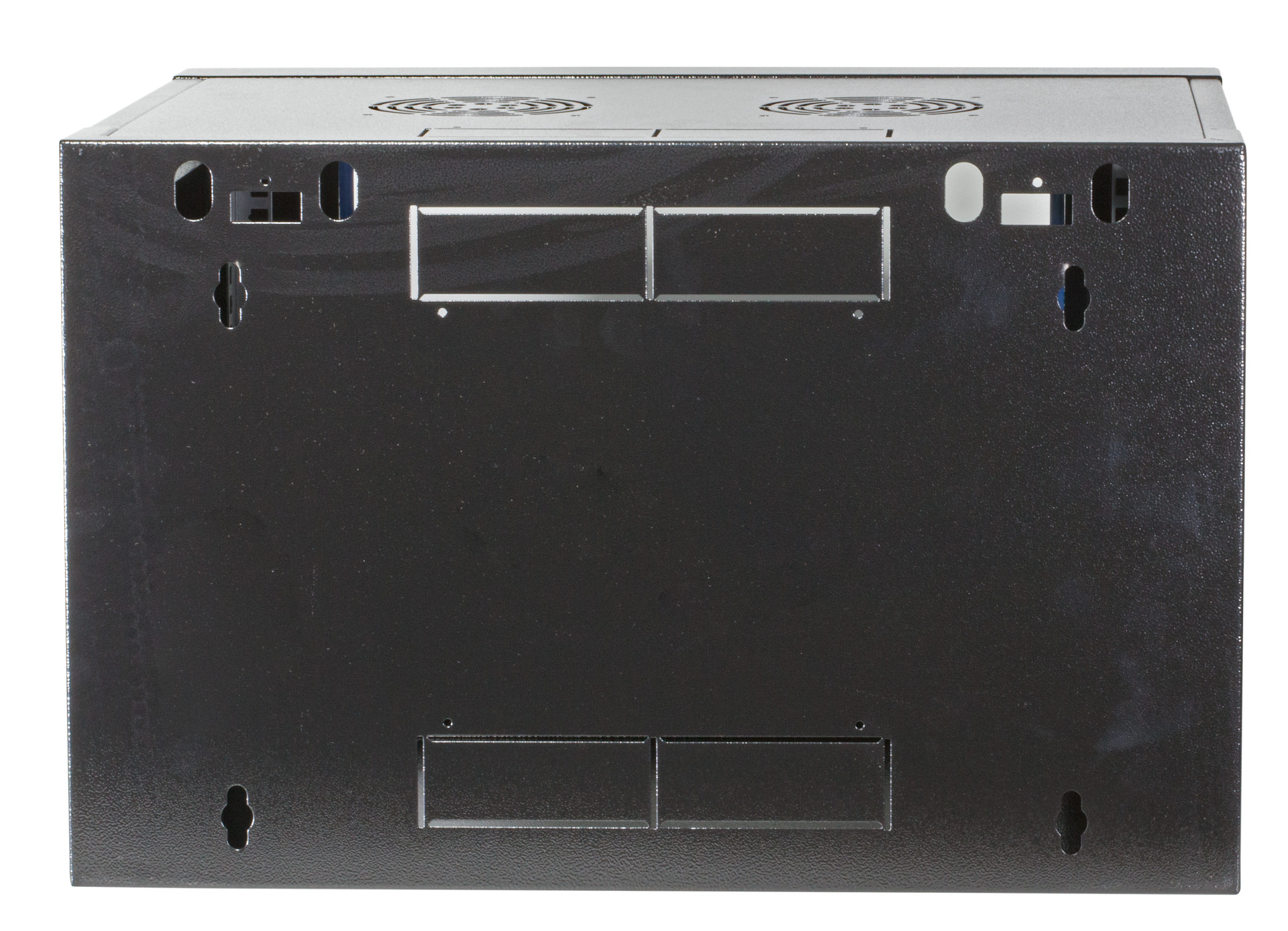

Roof, bottom and rear wall with pre-punched openings for cable entry (230 x 41 mm)

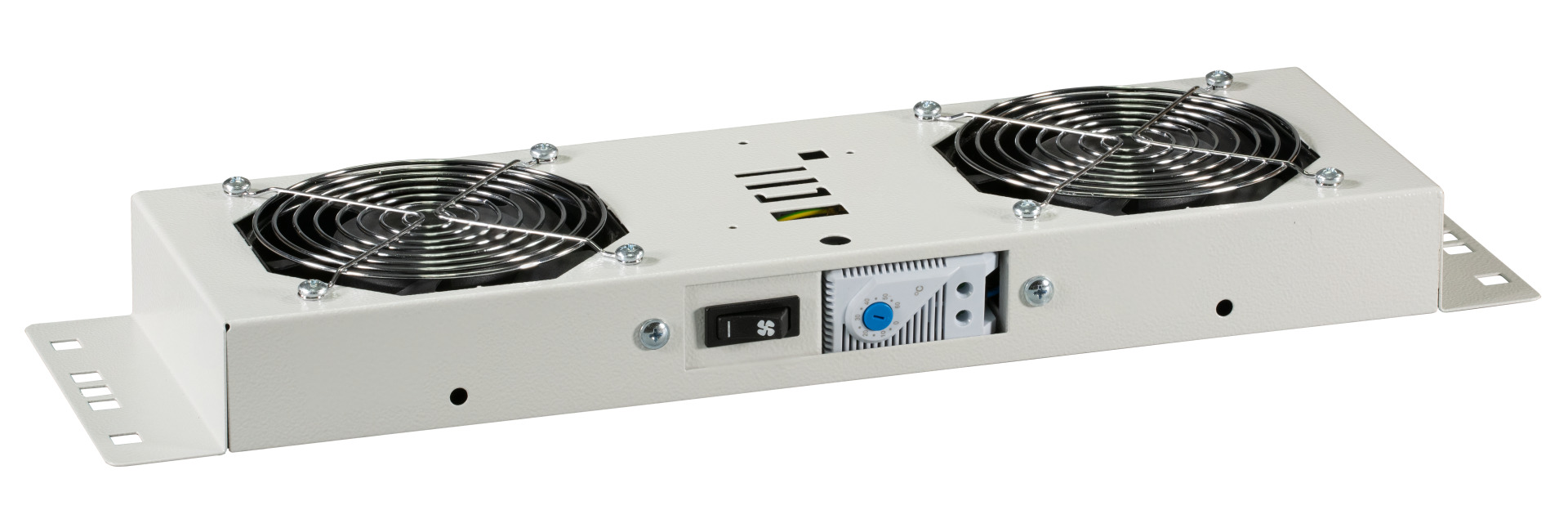

Roof prepared for mounting of 2 x single fan (Art.-No. 691664)

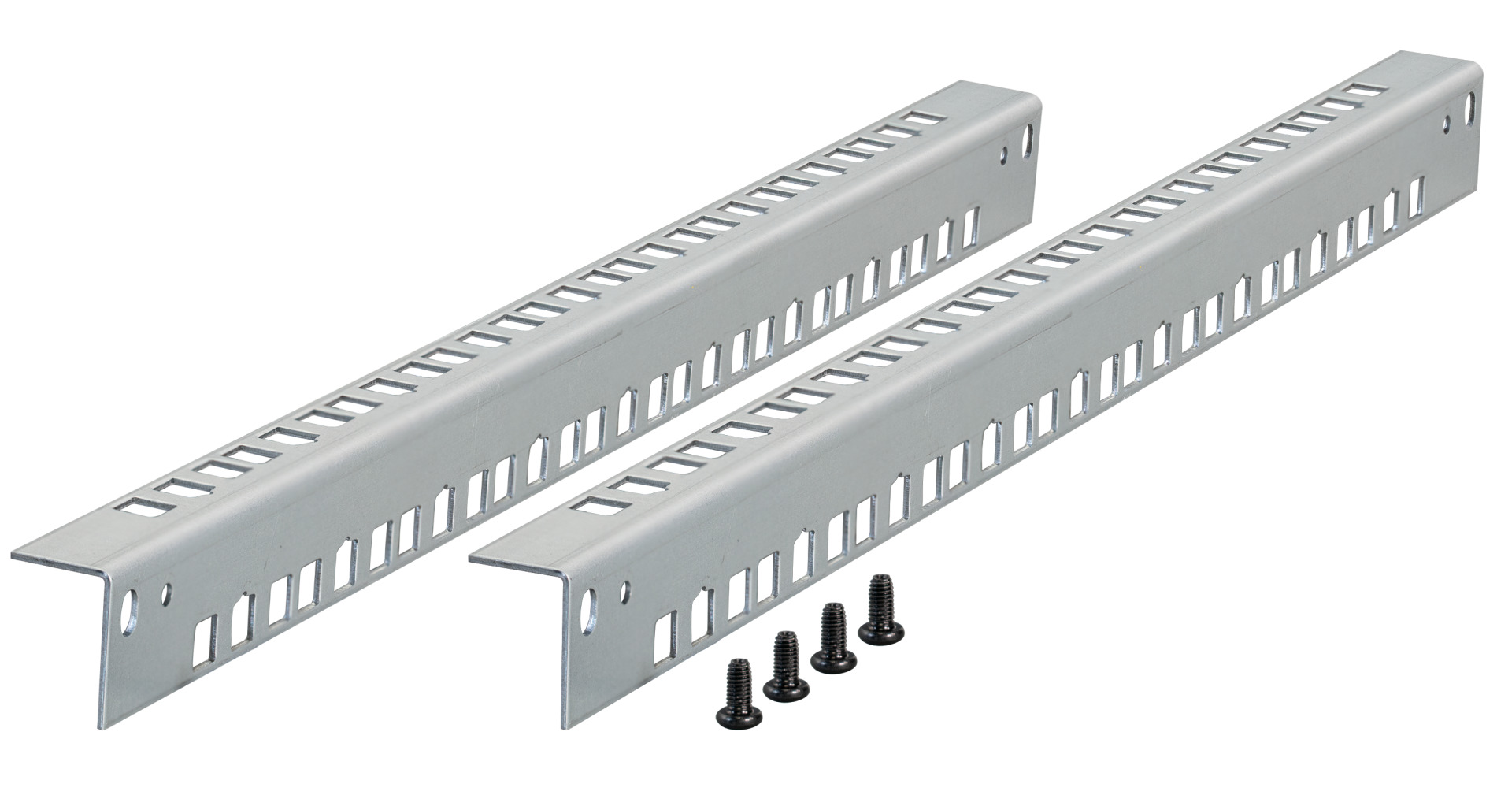

Inside 2 x 19" rails front-sided, depth-adjustable

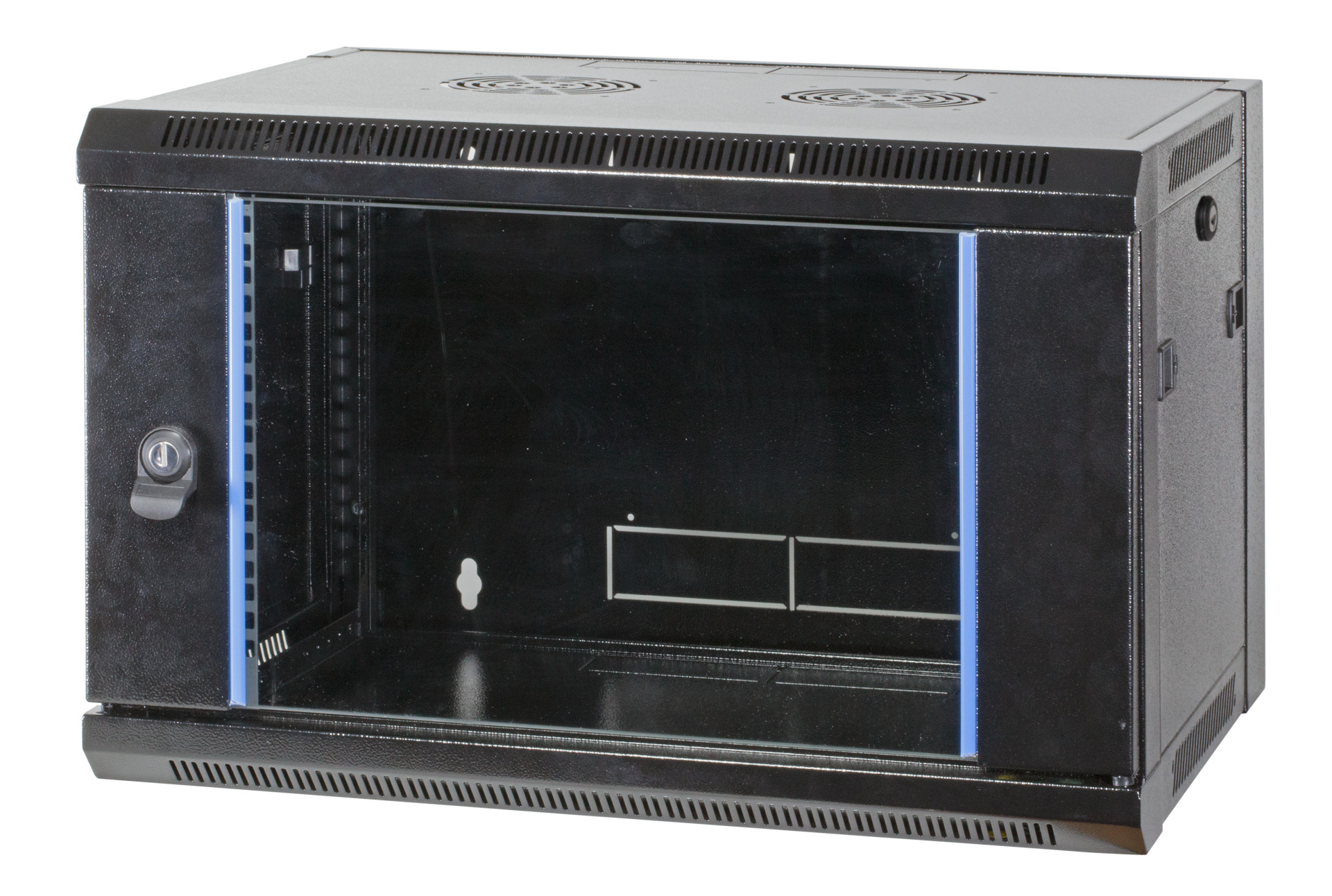

Front door with window of certified safety glass with lock (thickness 4 mm)

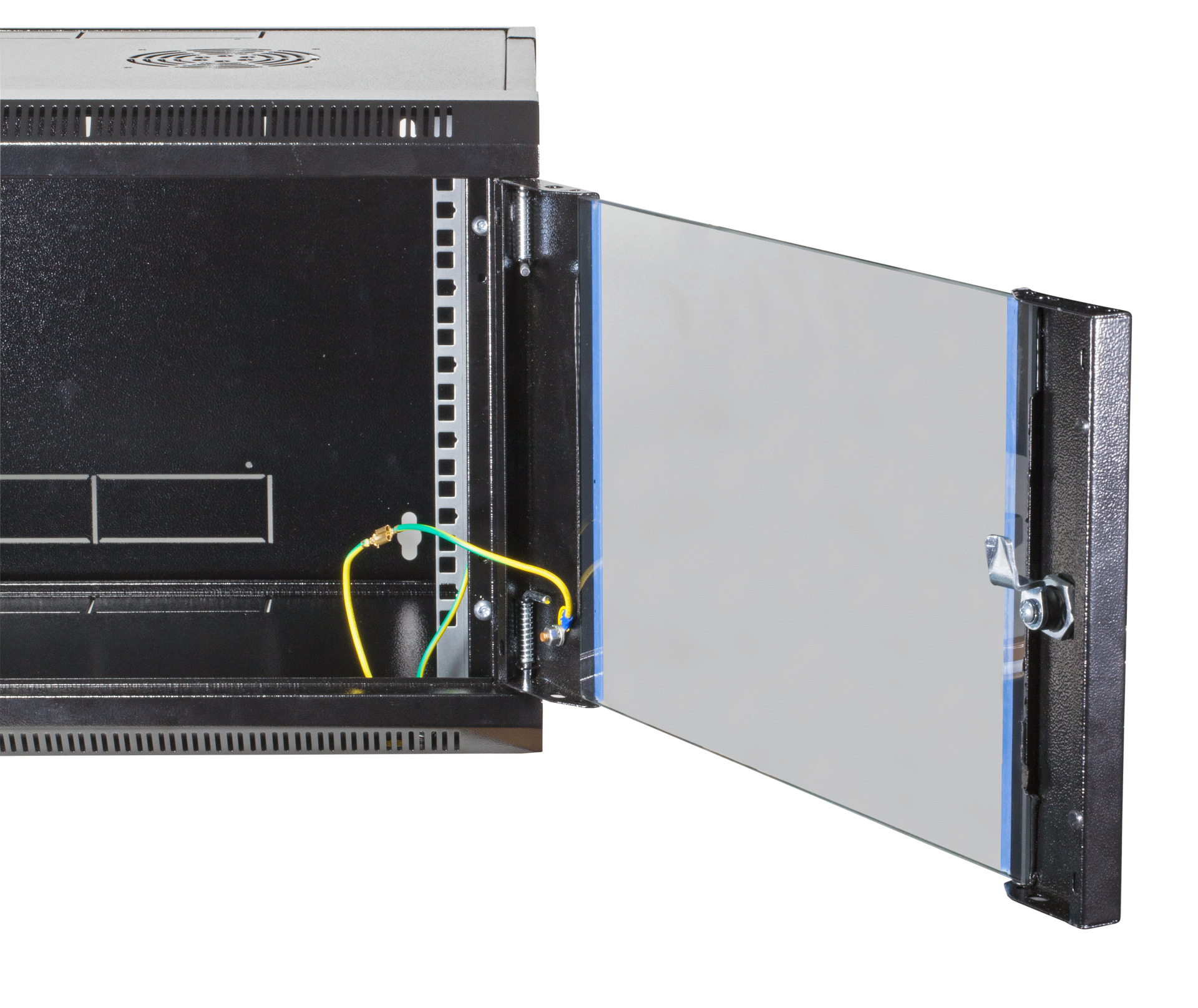

Cabinet parts completely earthed
Max. load 60 kg
Protection degree IP20
Paint finish RAL9005, jet black

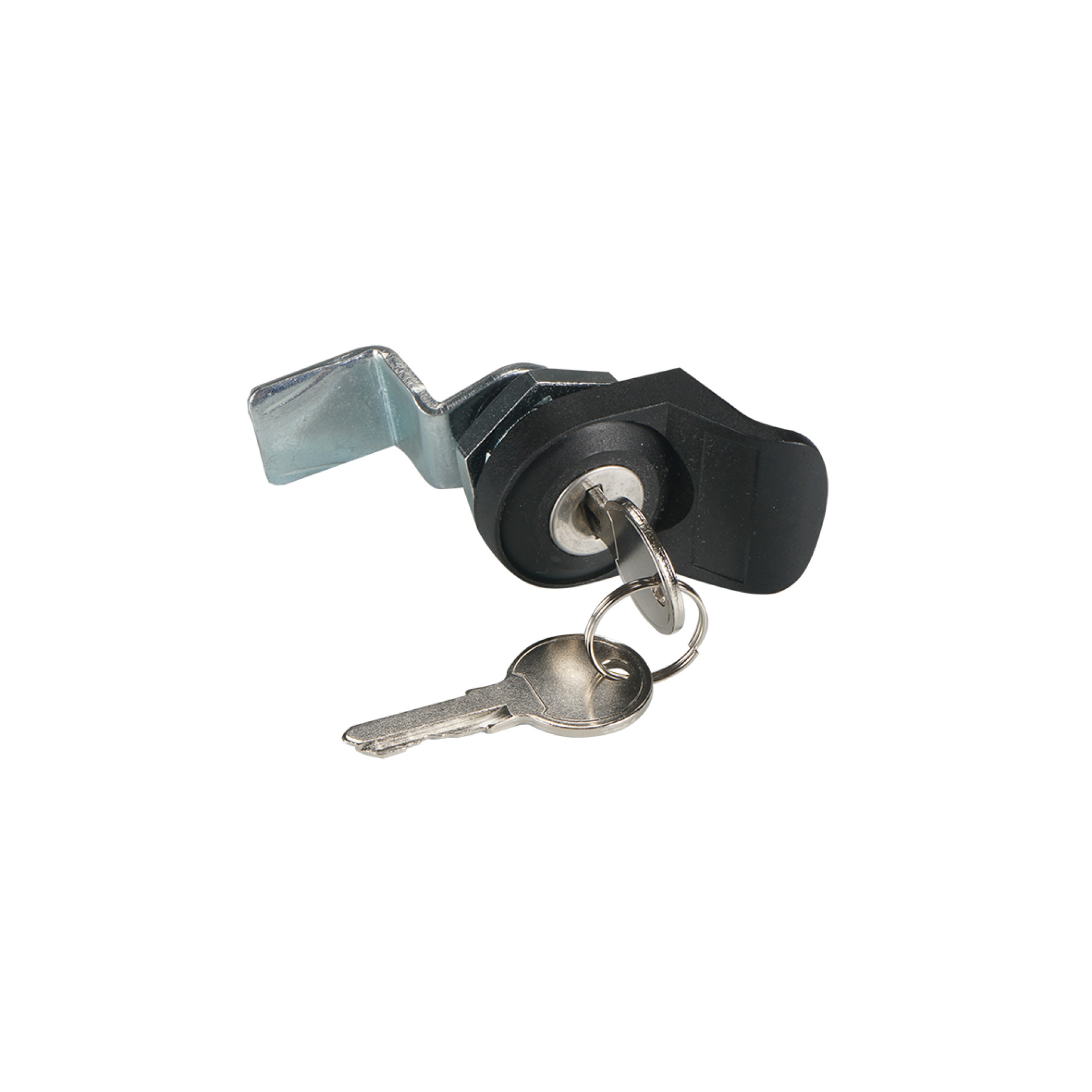

Included accessories: 2 x key

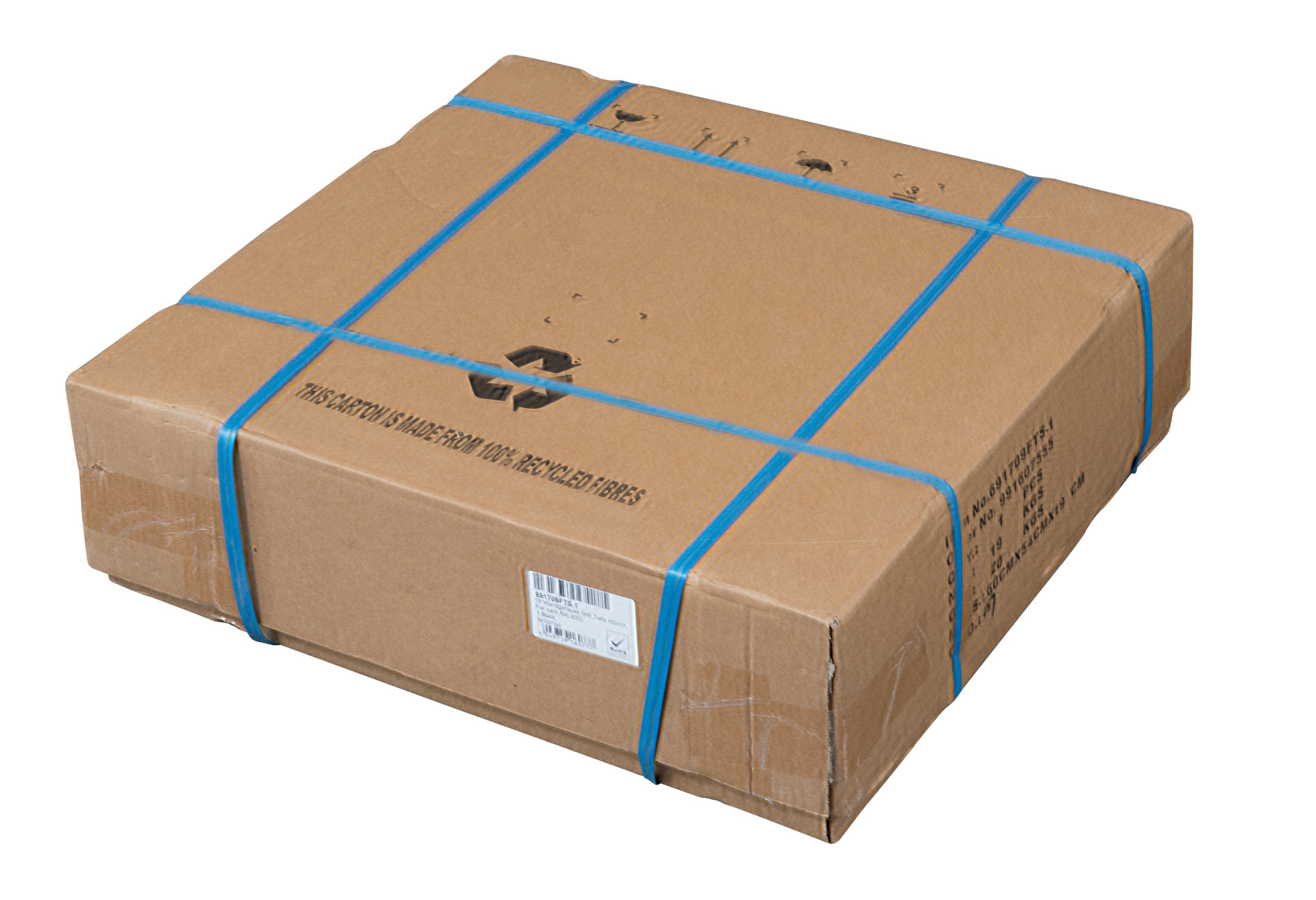

Delivery unassembled in transport packaging (1 carton)
Not pre-assembled, self-ventilated
Side wall removable with quick fastener
Roof, bottom and rear wall with pre-punched openings for cable entry (230 x 41 mm)
Roof prepared for mounting of 2 x single fan (Art.-No. 691664)
Inside 2 x 19" rails front-sided, depth-adjustable
Front door with window of certified safety glass with lock (thickness 4 mm)
Cabinet parts completely earthed
Max. load 60 kg
Protection degree IP20
Paint finish RAL9005, jet black
Included accessories: 2 x key
Delivery unassembled in transport packaging (1 carton)
Tekniske egenskaber
| Anzahl Packstücke: | 1 |
|---|---|
| Anzahl der Türen: | 1 |
| Art der Lüftung: | passiv |
| Ausführung: | mit Festrahmen |
| Ausführung der Oberfläche: | pulverbeschichtet |
| Ausführung der Profilschiene: | L-förmig |
| Mit Dachblech: | Ja |
| Mit Erdung: | Ja |
| Mit Fronttür: | Ja |
| Mit Seitenwänden: | Ja |
| Montage-Ebene: | vorne |
| Rastermaß: | 482,6 mm (19 Zoll) |
| Schrankserie: | Wandgehäuse Flat Pack |
| Schutzart: | IP20 |
| Werkstoff: | Stahl |
| Zerlegbar: | Ja |
Varianten
| Art. Nr. | Bezeichnung | Farbe | Tiefe | Traglast | Höhe | Breite | Anzahl der Höheneinheiten (HE) | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691709FTS.2 | 19" Wall Housing Flat Pack 9U, Depth 600 mm, RAL9005 | schwarz | 600 mm | 60 kg | 500 mm | 570 mm | 9 HE | 9005 | |
| 691712FTS.2 | 19" Wall Housing Flat Pack 12U, Depth 600 mm, RAL9005 | schwarz | 600 mm | 60 kg | 635 mm | 570 mm | 12 HE | 9005 | |
| 691715FTS.2 | 19" Wall Housing Flat Pack 15U, Depth 600 mm, RAL9005 | schwarz | 600 mm | 60 kg | 770 mm | 570 mm | 15 HE | 9005 | |
| 691721FTS.2 | 19" Wall Housing Flat Pack 21U, Depth 600 mm, RAL9005 | schwarz | 600 mm | 60 kg | 1040 mm | 570 mm | 21 HE | 9005 |
