Outdoor Cable A-DQ(ZN)B2Y MM OM3
A-DQ(ZN)B2Y 4G 50/125µ OM3,PE black
Varenummer:
55204.1OM3A
EAN Nr.:
3700223691029
Produktinformation til A-DQ(ZN)B2Y 4G 50/125µ OM3,PE black
Areas of application:
Outdoor cable (suitable for outdoor installation)
For connecting buildings
To the campus cabling
For direct burial (according to installation instructions)
For insertion in plastic pipe systems (not for blow in)
For installation in cable ducts and on platforms
Characteristics:
Easy to process construction
Tearing thread for opening/removing the cable sheath
Gel-free cable construction for clean and quick installation
Small dimensions
High installation stability
The cable diameter can vary
Outdoor cable (suitable for outdoor installation)
For connecting buildings
To the campus cabling
For direct burial (according to installation instructions)
For insertion in plastic pipe systems (not for blow in)
For installation in cable ducts and on platforms
Characteristics:
Easy to process construction
Tearing thread for opening/removing the cable sheath
Gel-free cable construction for clean and quick installation
Small dimensions
High installation stability
The cable diameter can vary
Tekniske egenskaber
| Application: | Outside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable & Fiber: |
IEC/EN 60793 IEC/EN 60794-1 |
| Cable metal free: | True |
| Cable silicone free: | True |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Colour outer sheath: | black |
| Crush resistance: | 150 N/cm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Jacket Material: | PE |
| Longitudinal water blocking: | True |
| Radial water blocking: | True |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -25 – 60 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Tube Ø: | 2.8 mm |

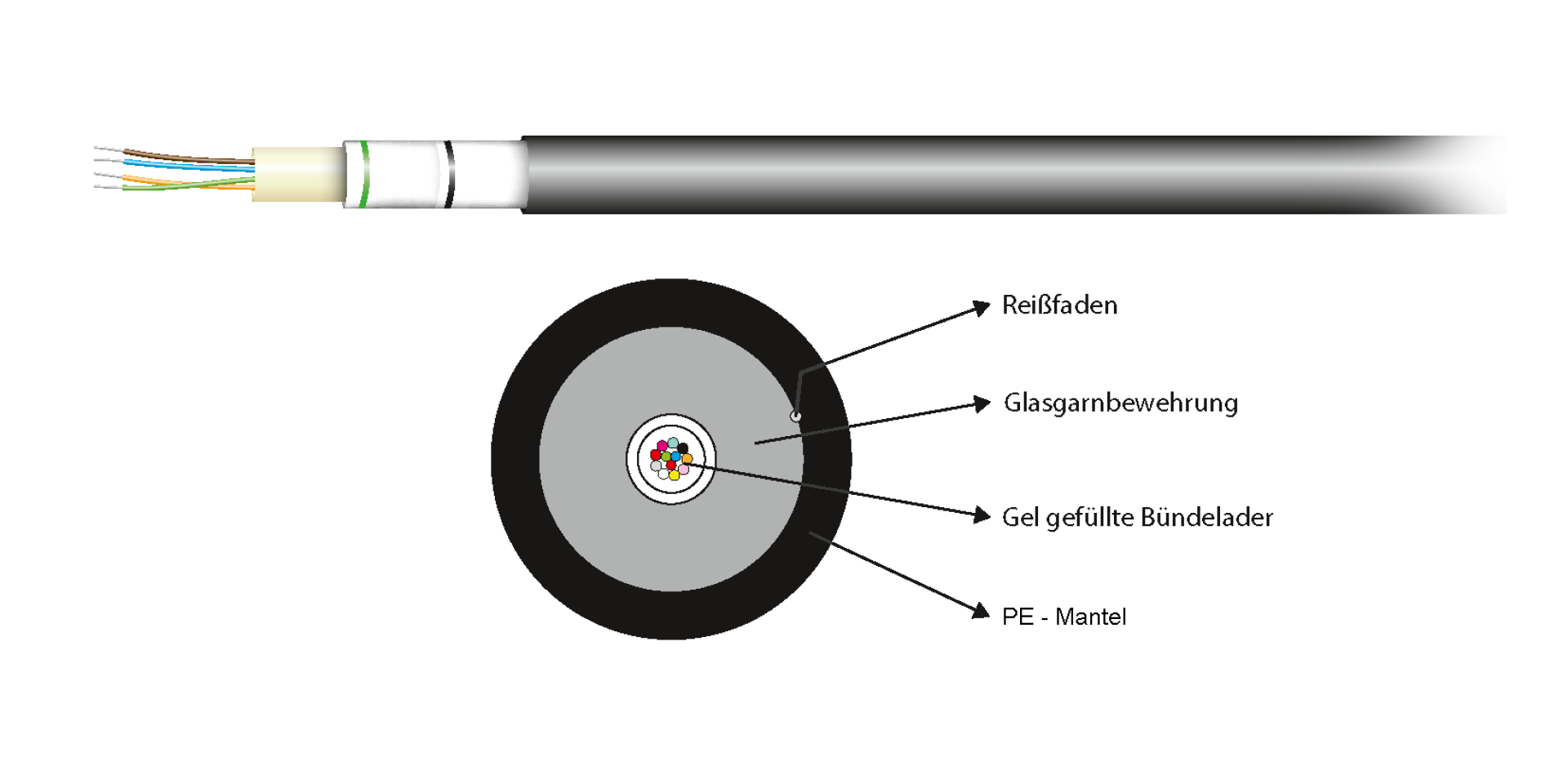

| Type of tube: | Central tube |
| UV resistance: | True |
| With rodent protection: | True |
| With strain relief: | True |
Varianten
| Art. Nr. | Bezeichnung | Construct | Bending radius | Cable Ø | Tensile Force | Weight | |
|---|---|---|---|---|---|---|---|
| 55204.1OM3A | A-DQ(ZN)B2Y 4G 50/125µ OM3,PE black | 4G ( 1 x 4 ) Multimode OM3 | 60 mm | 6.0 mm | 2000 N | 31 kg/km | |
| 55208.1OM3A | A-DQ(ZN)B2Y OM3 8G (1x8) Fca 1750N PE black 7.1mm | 8G ( 1 x 8 ) Multimode OM3 | 60 mm | 6.0 mm | 1750 N | 31 kg/km |
