Additional Roof with Cable Entries for PRO
Priser kun synlige for indloggede brugere

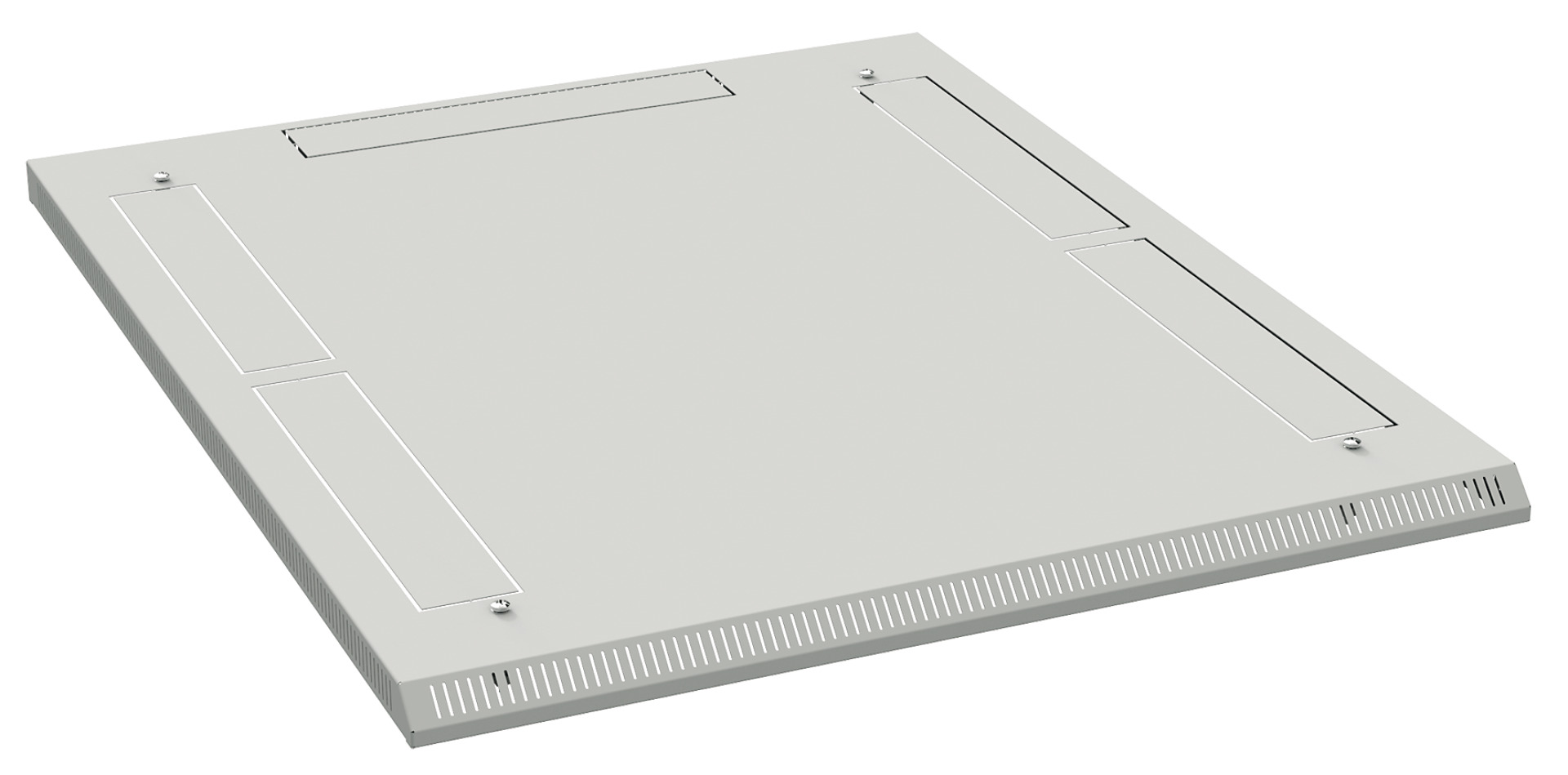

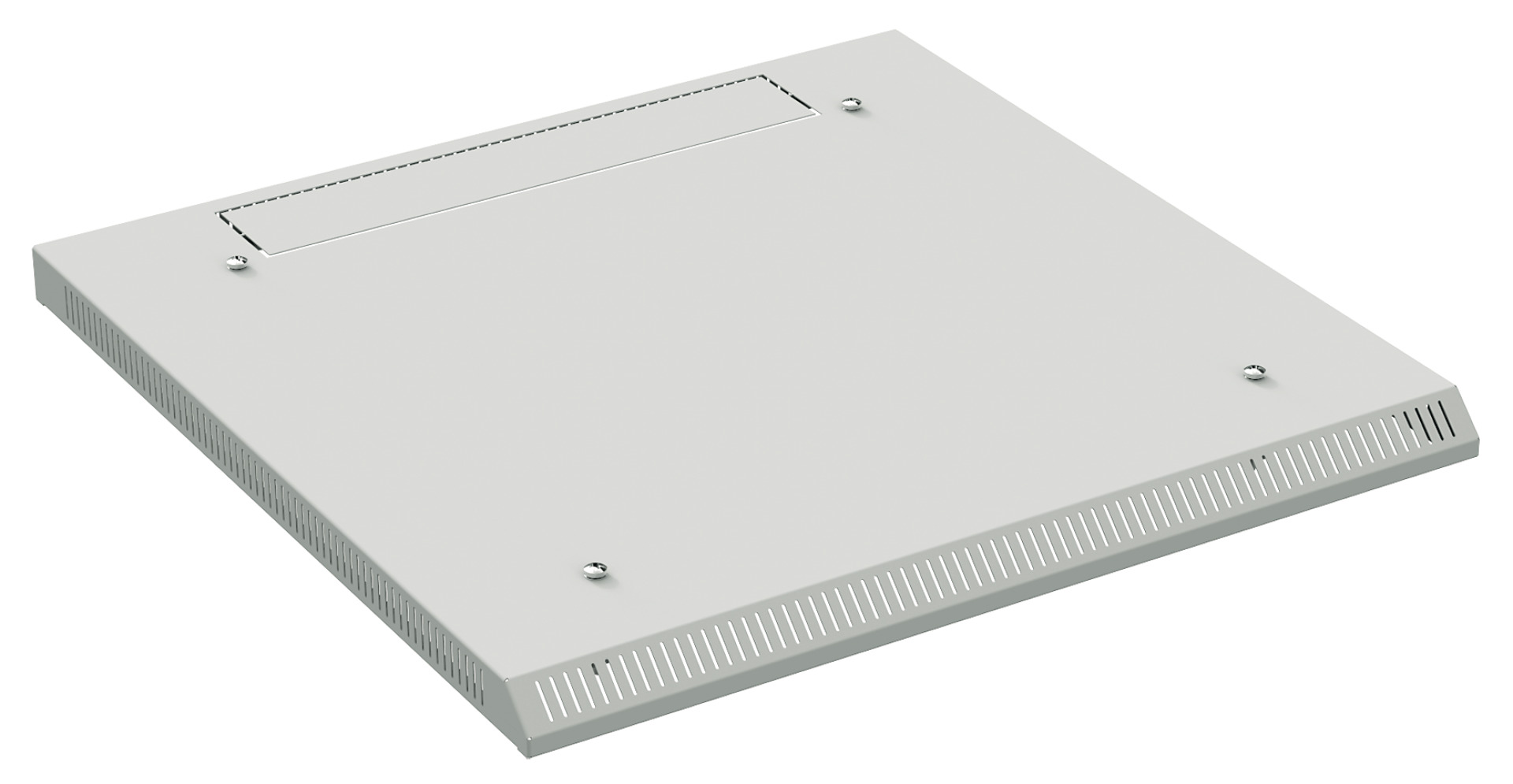

Additional Roof H=40 mm, 600x1000 mm, RAL7035, for Cabinet Series PRO
Varenummer:
PRO-DCH60B.GR
EAN nr.:
4049759218720
Produktinformation für Additional Roof H=40 mm, 600x1000 mm, RAL7035, for Cabinet Series PRO
For aesthetic supplement and covering of roof ventilation openings of the cabinet
Cable entries rear-sided resp. lateral (see sketch)
Material steel sheet, height 40 mm
Paint finish RAL7035, light grey / RAL9005, jet black
Cable entries rear-sided resp. lateral (see sketch)
Material steel sheet, height 40 mm
Paint finish RAL7035, light grey / RAL9005, jet black
Tekniske egenskaber
| Cabinet Series: | PRO |
|---|---|
| Material: | Steel |
| Suitable for outdoor set-up: | False |
| Surface finishing: | Powder coating |
| With cable feed-through: | True |
| With de-aeration: | True |
Varianter
| Art. Nej. | Betegnelse | Height | RAL-number | Colour | Width | Depth | |
|---|---|---|---|---|---|---|---|
| PRO-DCH66B.GR | Additional Roof H=40 mm, 600x600 mm, RAL7035, for PRO | 40 mm | 7035 | grey | 600 mm | 600 mm | |
| PRO-DCH68B.GR | Additional Roof H=40 mm, 600x800 mm, RAL7035, for Cabinet Series PRO | 40 mm | 7035 | grey | 600 mm | 800 mm | |
| PRO-DCH60B.GR | Additional Roof H=40 mm, 600x1000 mm, RAL7035, for Cabinet Series PRO | 40 mm | 7035 | grey | 600 mm | 1000 mm | |
| PRO-DCH62B.GR | Additional Roof H=40 mm, 600x1200 mm, RAL7035, for Cabinet Series PRO | 40 mm | 7035 | grey | 600 mm | 1200 mm | |
| PRO-DCH86B.GR | Additional Roof H=40 mm, 800x600 mm, RAL7035, for Cabinet Series PRO | 40 mm | 7035 | grey | 800 mm | 600 mm | |
| PRO-DCH88B.GR | Additional Roof H=40 mm, 800x800 mm, RAL7035, for Cabinet Series PRO | 40 mm | 7035 | grey | 800 mm | 800 mm | |
| PRO-DCH80B.GR | Additional Roof H=40 mm, 800x1000 mm, RAL7035, for Cabinet Series PRO | 40 mm | 7035 | grey | 800 mm | 1000 mm | |
| PRO-DCH82B.GR | Additional Roof H=40 mm, 800x1200 mm, RAL7035, for Cabinet Series PRO | 40 mm | 7035 | grey | 800 mm | 1200 mm | |
| PRO-DCH66B.TS | Additional Roof H=40 mm, 600x600 mm, RAL9005, for Cabinet Series PRO | 40 mm | 9005 | black | 600 mm | 600 mm | |
| PRO-DCH68B.TS | Additional Roof H=40 mm, 600x800 mm, RAL9005, for Cabinet Series PRO | 40 mm | 9005 | black | 600 mm | 800 mm | |
| PRO-DCH60B.TS | Additional Roof H=40 mm, 600x1000 mm, RAL9005, for Cabinet Series PRO | 40 mm | 9005 | black | 600 mm | 1000 mm | |
| PRO-DCH62B.TS | Additional Roof H=40 mm, 600x1200 mm, RAL9005, for Cabinet Series PRO | 40 mm | 9005 | black | 600 mm | 1200 mm | |
| PRO-DCH86B.TS | Additional Roof H=40 mm, 800x600 mm, RAL9005, for Cabinet Series PRO | 40 mm | 9005 | black | 800 mm | 600 mm | |
| PRO-DCH88B.TS | Additional Roof H=40 mm, 800x800 mm, RAL9005, for Cabinet Series PRO | 40 mm | 9005 | black | 800 mm | 800 mm | |
| PRO-DCH80B.TS | Additional Roof H=40 mm, 800x1000 mm, RAL9005, for Cabinet Series PRO | 40 mm | 9005 | black | 800 mm | 1000 mm | |
| PRO-DCH82B.TS | Additional Roof H=40 mm, 800x1200 mm, RAL9005, for Cabinet Series PRO | 40 mm | 9005 | black | 800 mm | 1200 mm |
