Additional Roof with Cable Entries for PRO

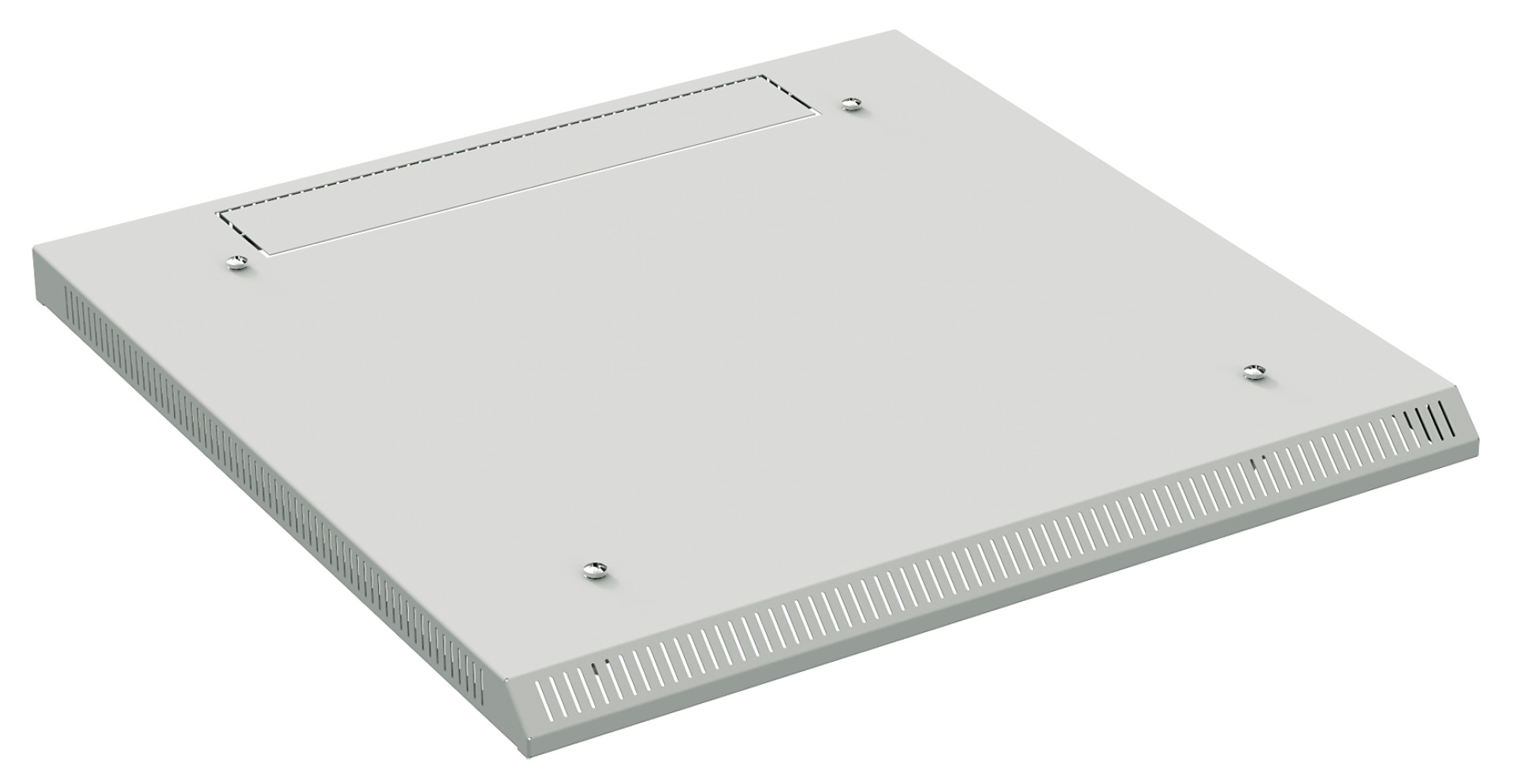

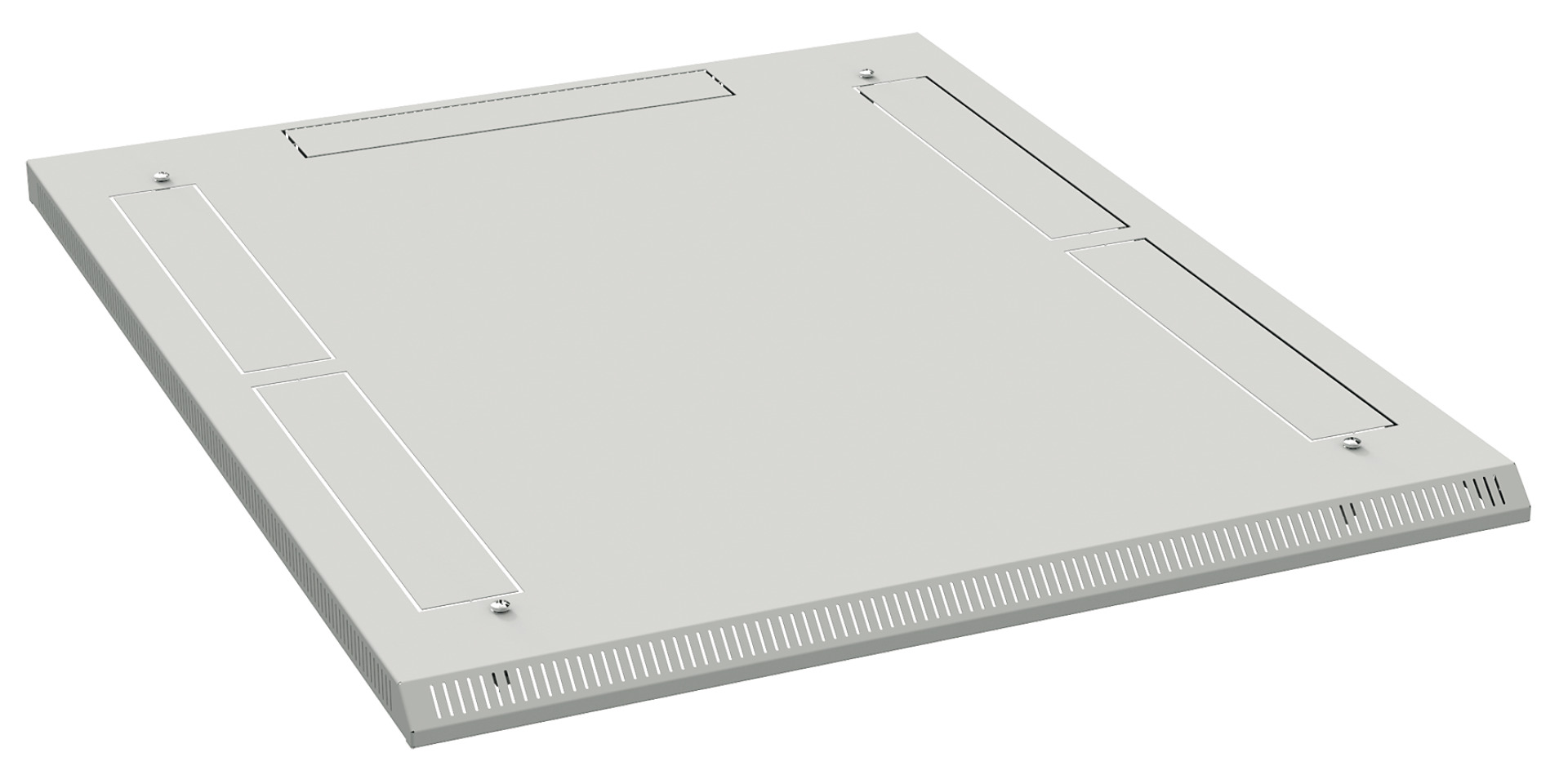

Additional Roof H=40 mm, 600x600 mm, RAL7035, for PRO
Varenummer:
PRO-DCH66B.GR
EAN Nr.:
4049759218768
Produktinformation til Additional Roof H=40 mm, 600x600 mm, RAL7035, for PRO
For aesthetic supplement and covering of roof ventilation openings of the cabinet
Cable entries rear-sided resp. lateral (see sketch)
Material steel sheet, height 40 mm
Paint finish RAL7035, light grey / RAL9005, jet black
Cable entries rear-sided resp. lateral (see sketch)
Material steel sheet, height 40 mm
Paint finish RAL7035, light grey / RAL9005, jet black
Tekniske egenskaber
| Cabinet Series: | PRO |
|---|---|
| Material: | Steel |
| Suitable for outdoor set-up: | False |
| Surface finishing: | Powder coating |
| With cable feed-through: | True |
| With de-aeration: | True |
Varianten
| Art. Nr. | Bezeichnung | RAL number | Color | Height | Width | Depth | |
|---|---|---|---|---|---|---|---|
| PRO-DCH66B.GR | Additional Roof H=40 mm, 600x600 mm, RAL7035, for PRO | 7035 | grey | 40 mm | 600 mm | 600 mm | |
| PRO-DCH68B.GR | Additional Roof H=40 mm, 600x800 mm, RAL7035, for Cabinet Series PRO | 7035 | grey | 40 mm | 600 mm | 800 mm | |
| PRO-DCH60B.GR | Additional Roof H=40 mm, 600x1000 mm, RAL7035, for Cabinet Series PRO | 7035 | grey | 40 mm | 600 mm | 1000 mm | |
| PRO-DCH62B.GR | Additional Roof H=40 mm, 600x1200 mm, RAL7035, for Cabinet Series PRO | 7035 | grey | 40 mm | 600 mm | 1200 mm | |
| PRO-DCH86B.GR | Additional Roof H=40 mm, 800x600 mm, RAL7035, for Cabinet Series PRO | 7035 | grey | 40 mm | 800 mm | 600 mm | |
| PRO-DCH88B.GR | Additional Roof H=40 mm, 800x800 mm, RAL7035, for Cabinet Series PRO | 7035 | grey | 40 mm | 800 mm | 800 mm | |
| PRO-DCH80B.GR | Additional Roof H=40 mm, 800x1000 mm, RAL7035, for Cabinet Series PRO | 7035 | grey | 40 mm | 800 mm | 1000 mm | |
| PRO-DCH82B.GR | Additional Roof H=40 mm, 800x1200 mm, RAL7035, for Cabinet Series PRO | 7035 | grey | 40 mm | 800 mm | 1200 mm | |
| PRO-DCH66B.TS | Additional Roof H=40 mm, 600x600 mm, RAL9005, for Cabinet Series PRO | 9005 | black | 40 mm | 600 mm | 600 mm | |
| PRO-DCH68B.TS | Additional Roof H=40 mm, 600x800 mm, RAL9005, for Cabinet Series PRO | 9005 | black | 40 mm | 600 mm | 800 mm | |
| PRO-DCH60B.TS | Additional Roof H=40 mm, 600x1000 mm, RAL9005, for Cabinet Series PRO | 9005 | black | 40 mm | 600 mm | 1000 mm | |
| PRO-DCH62B.TS | Additional Roof H=40 mm, 600x1200 mm, RAL9005, for Cabinet Series PRO | 9005 | black | 40 mm | 600 mm | 1200 mm | |
| PRO-DCH86B.TS | Additional Roof H=40 mm, 800x600 mm, RAL9005, for Cabinet Series PRO | 9005 | black | 40 mm | 800 mm | 600 mm | |
| PRO-DCH88B.TS | Additional Roof H=40 mm, 800x800 mm, RAL9005, for Cabinet Series PRO | 9005 | black | 40 mm | 800 mm | 800 mm | |
| PRO-DCH80B.TS | Additional Roof H=40 mm, 800x1000 mm, RAL9005, for Cabinet Series PRO | 9005 | black | 40 mm | 800 mm | 1000 mm | |
| PRO-DCH82B.TS | Additional Roof H=40 mm, 800x1200 mm, RAL9005, for Cabinet Series PRO | 9005 | black | 40 mm | 800 mm | 1200 mm |
Sikkerhedsanvisninger
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
