BNC Crimp Jacks, straight

Priser kun synlige for indloggede brugere

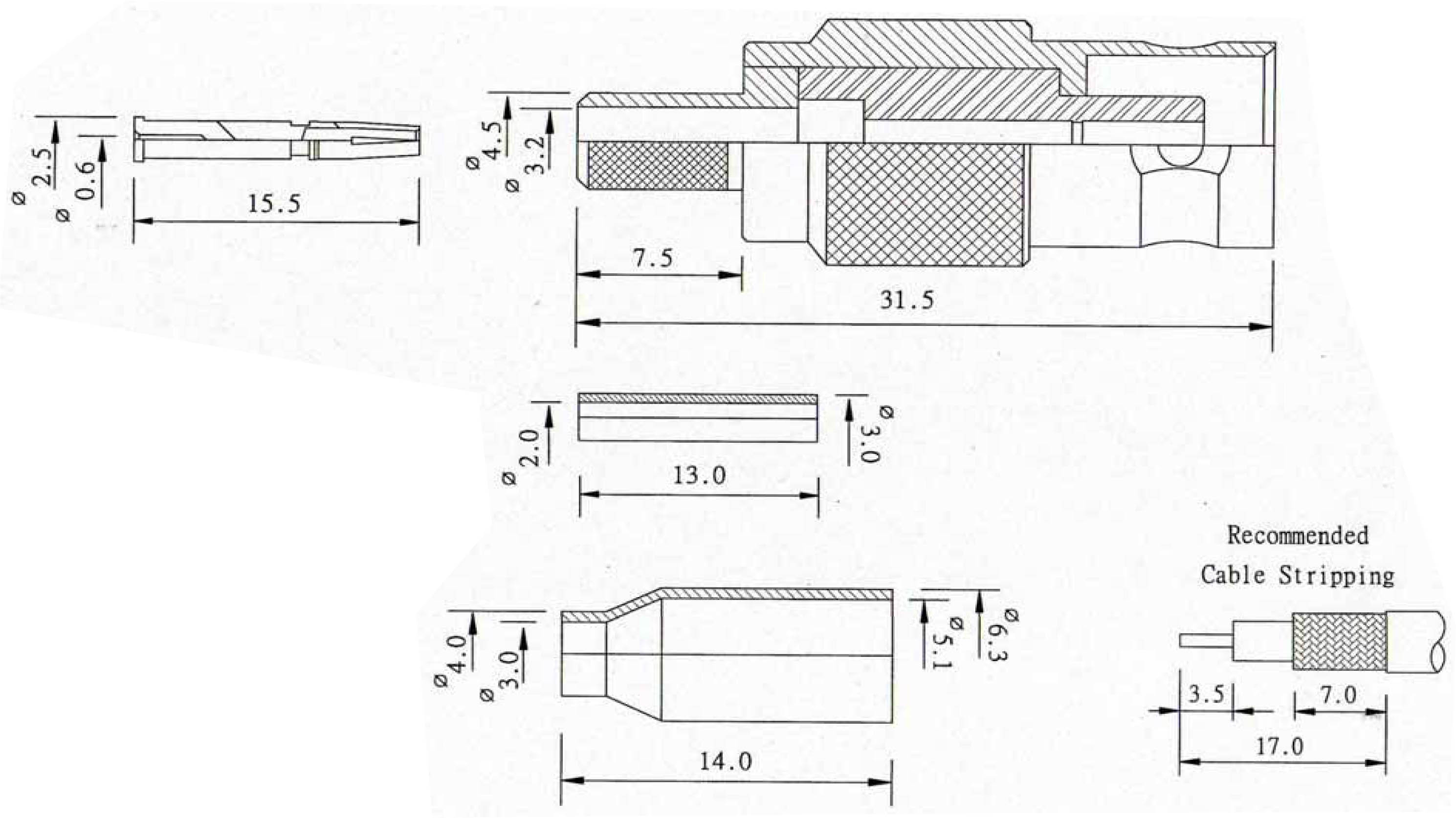

BNC jack straight crimp RG174, 50Ohm
Varenummer: 52501.1
EAN nr.: 4049759039028
Piece

Produktinformation für BNC jack straight crimp RG174, 50Ohm

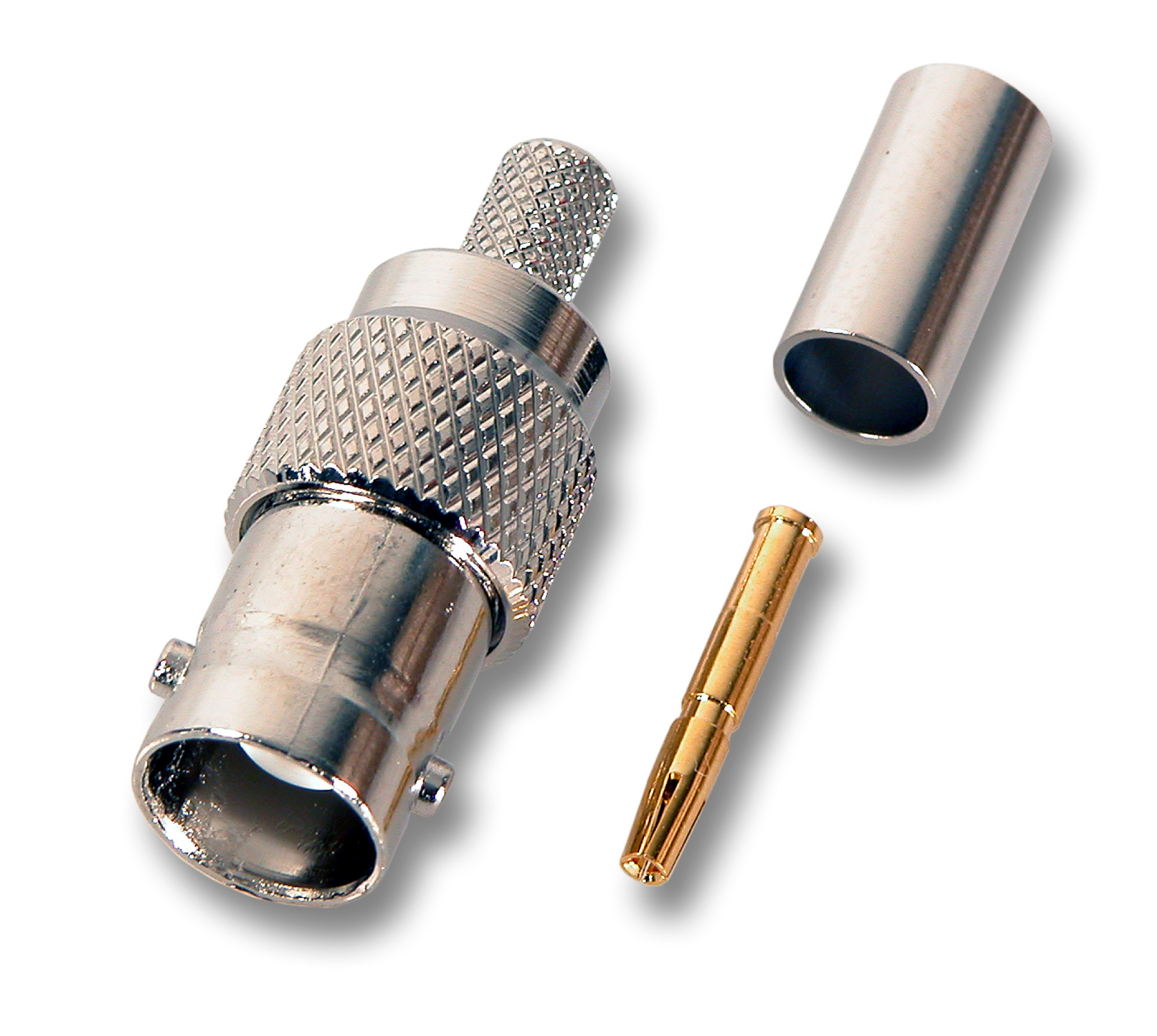

BNC Crimp Jack, straight

Tekniske egenskaber

Connection type: Crimp/crimp
Contact material: Brass gold-plated
Contact type: female
Elbow plug: False
Ferrule: Brass nickel-plated
Housing material: Brass nickel-plated
Model: jack
Type of connector: BNC

Varianter

Art. Nej. Betegnelse Cable type Impedance
52501.1 BNC jack straight crimp RG174, 50Ohm RG 174 50 Ohm

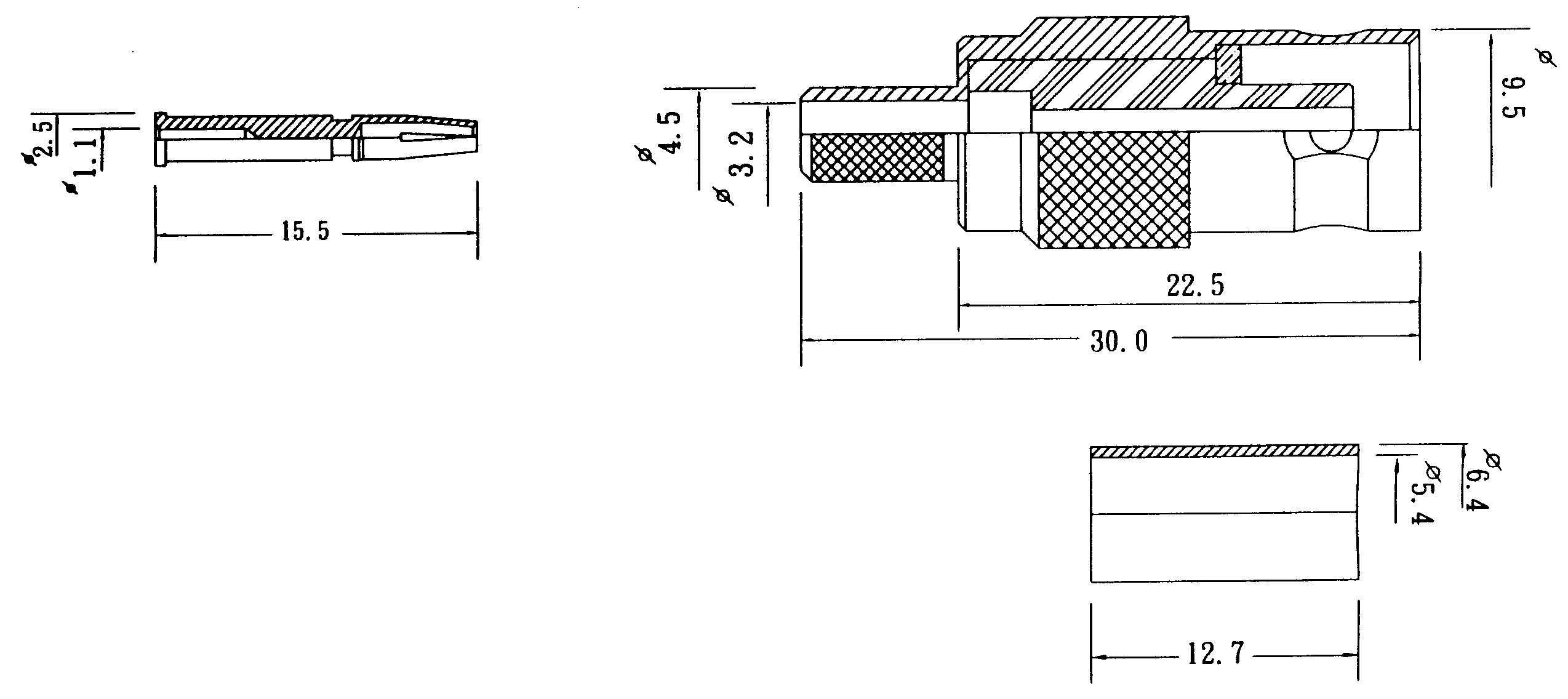

52509.1 BNC jack straight crimp RG58 50 Ohm RG 58 50 Ohm

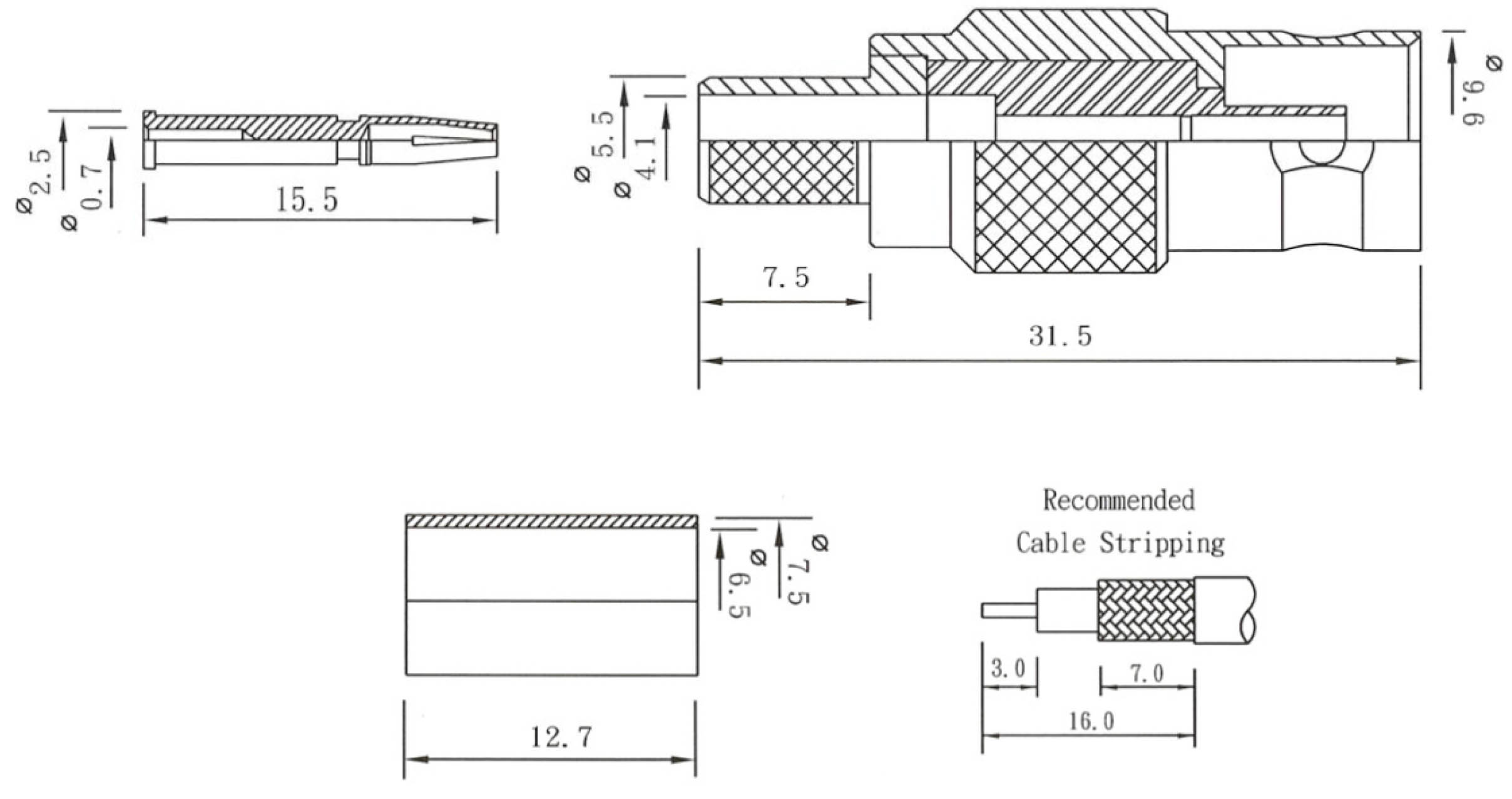

52511.1 BNC jack straight crimp RG59/62, 75/93 Ohm RG 59/62 75 Ohm
52533.1 BNC Crimp Jack, straight RG1279, 75 Ohm RG 179 75 Ohm

used with

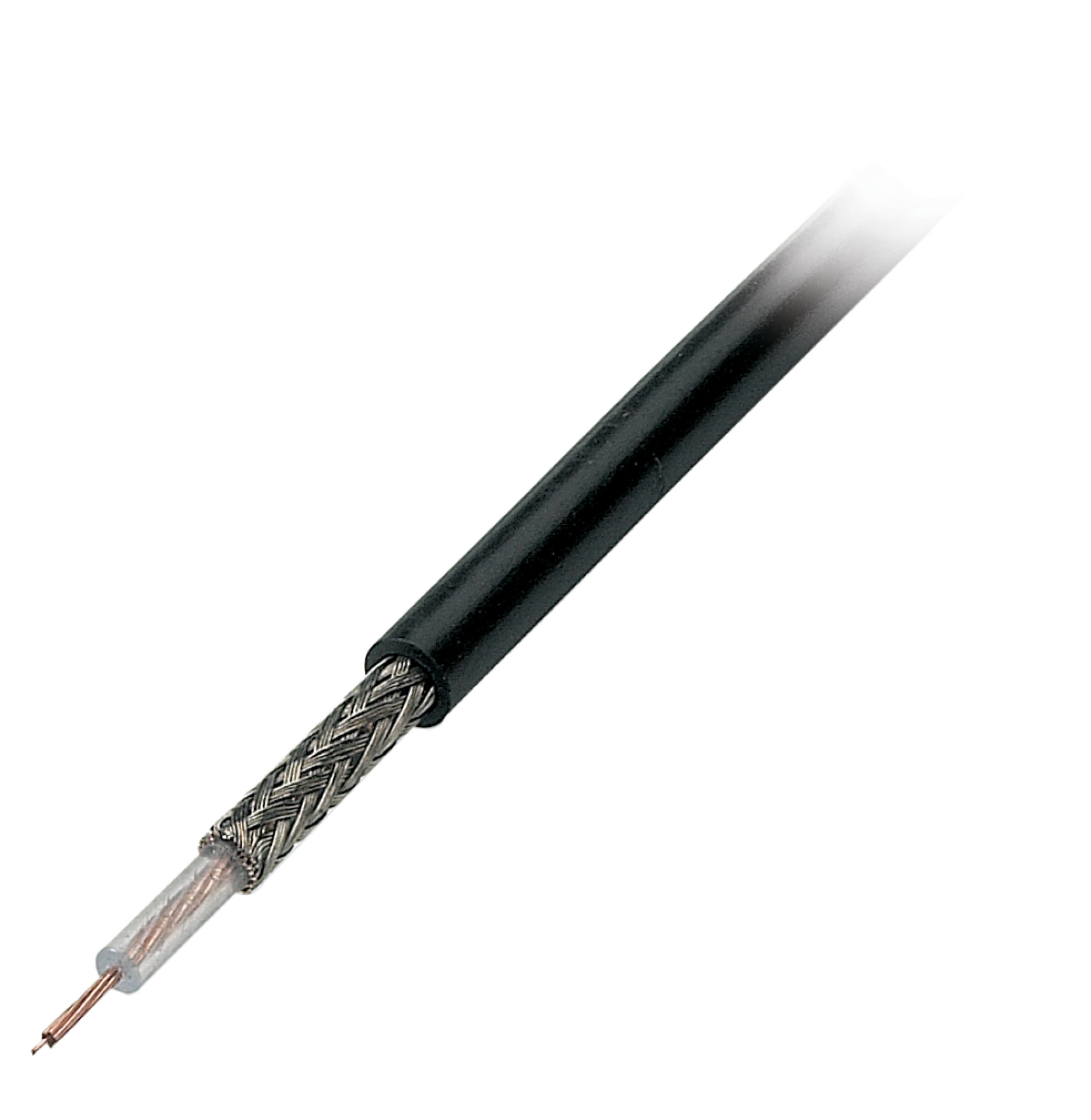

Coax Cable RG174 U, 50 Ohm black, 100m

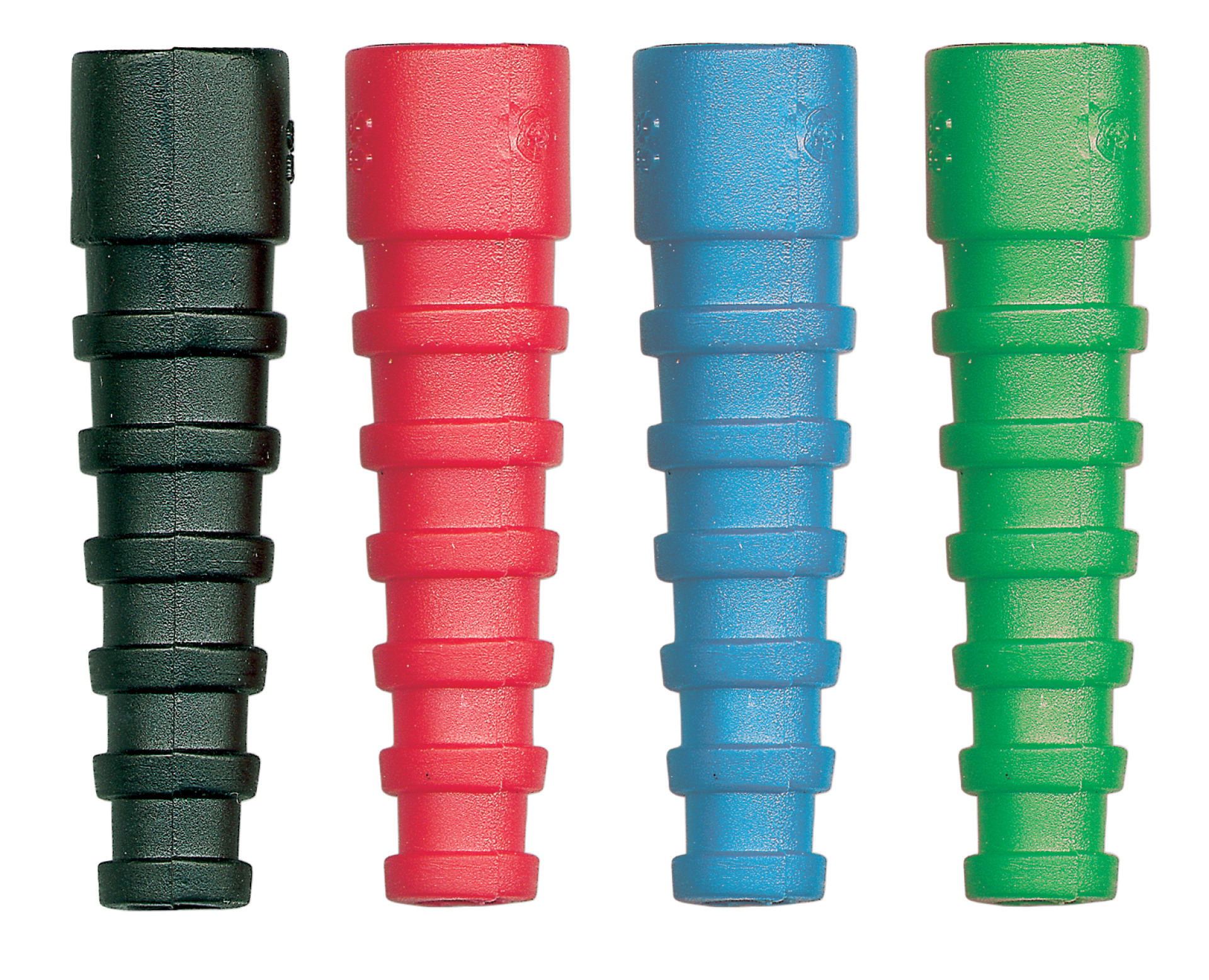

BNC Strain Relief Boots RG174, green
