Cat.7 Outdoor cable UC900 SS23/1 PETM

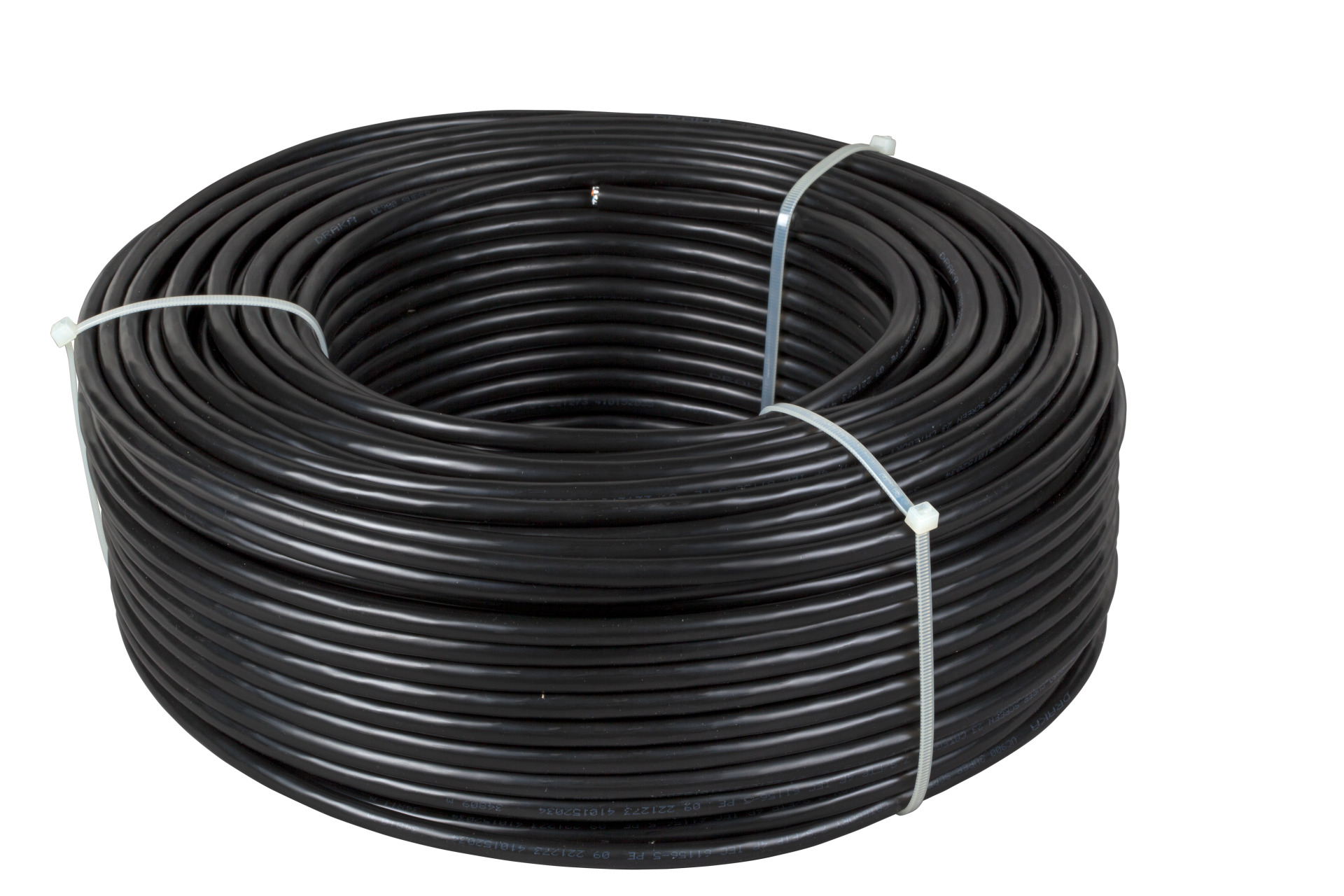

Cat.7 Outdoor cable UC900 SS23/1,4P PE, 100metres
Varenummer:
99731.100
EAN Nr.:
4049759146696
Produktinformation til Cat.7 Outdoor cable UC900 SS23/1,4P PE, 100metres

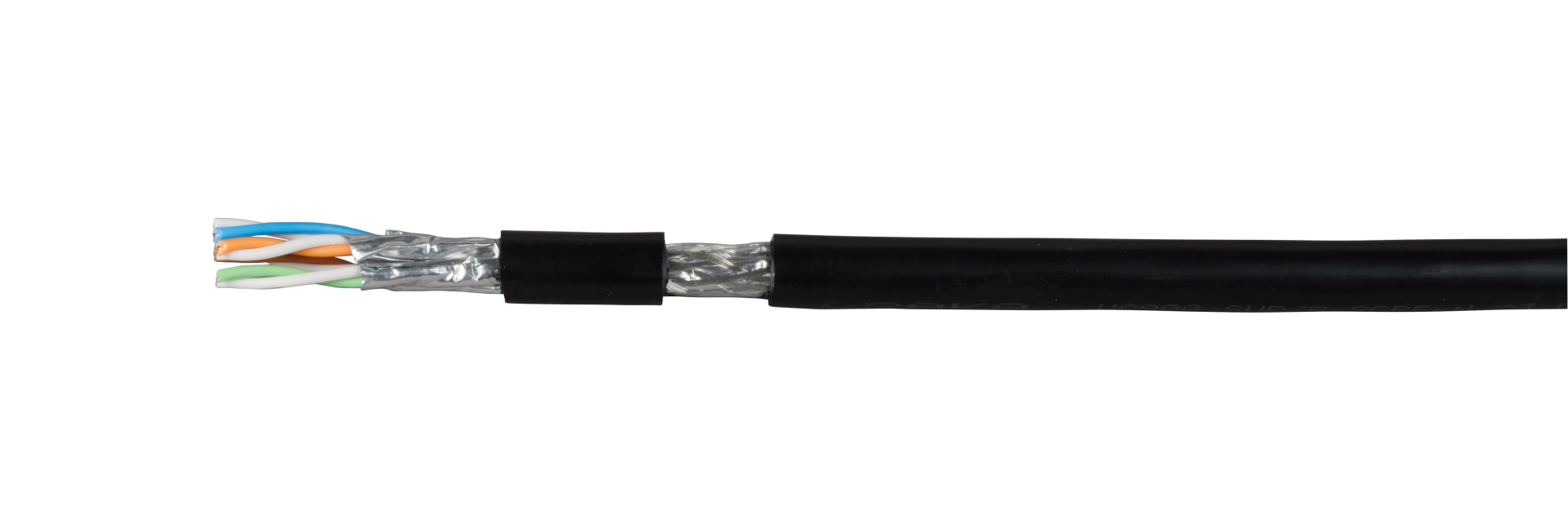

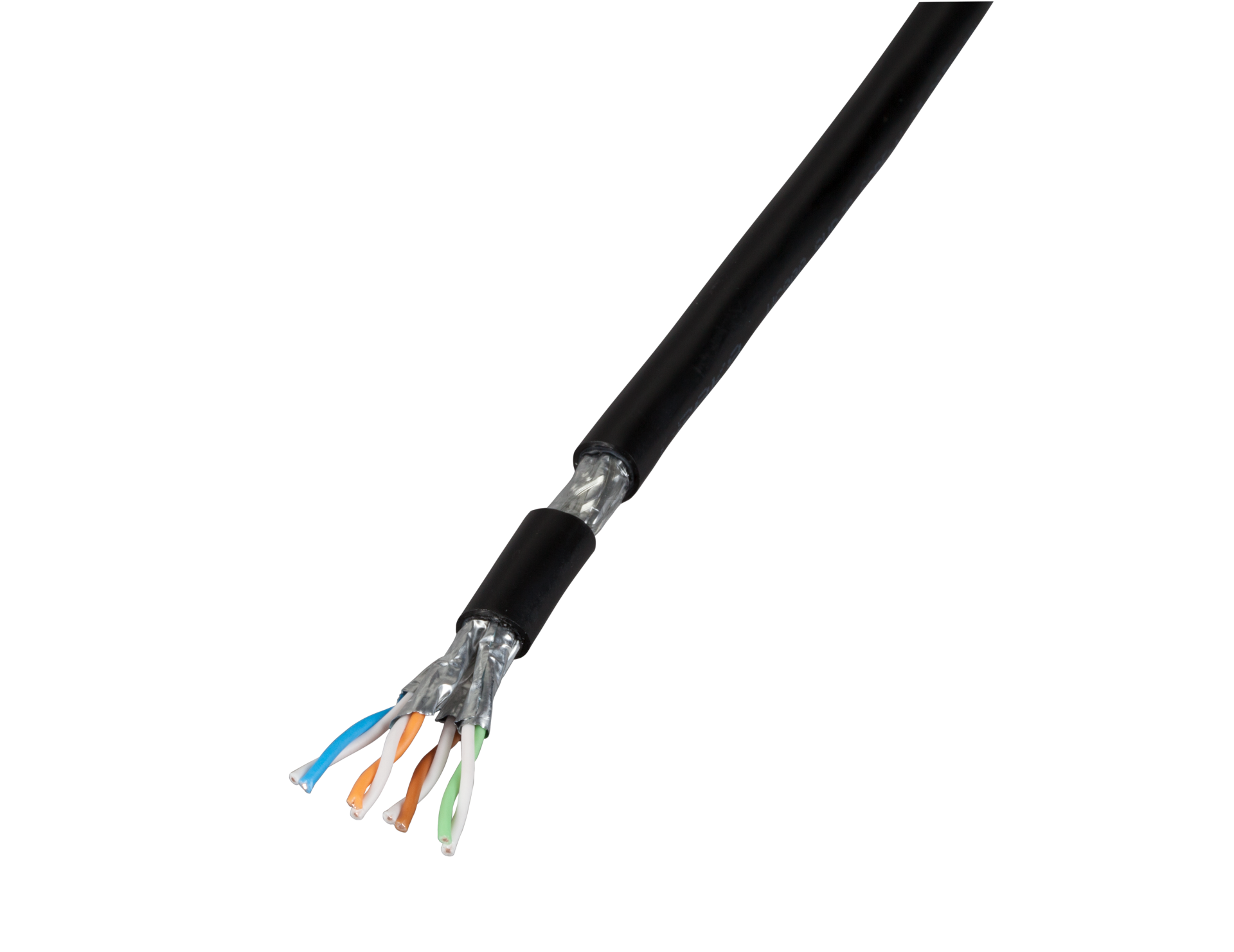

The data cable is an installation cable with a thick-walled polyethylene outer sheath, suitable for direct burial, UV-resistant and for transmission rates up to 1000 MHz. Exeeds the electrical transmission properties and requirements of the category 7 and lower. Suitable for structured cabling of Class E, EA, F and according to ISO/IEC11801 (AMD 2:2009) resp. EN50173-1 (2009). With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.
Tekniske egenskaber
| AWG-size: | 23/1 |
|---|---|
| Bending radius (dynamic): | ≥ 80 mm |
| Bending radius (static): | ≥ 40 mm |
| Cable: |
EN 50288-4-1 IEC 61156-5 |
| Cable Construction: | S/FTP |
| Cabling standards: |
EN 50173-1 EN 50288-4-1 IEC 61156-5 ISO/IEC 11801 |
| Capacity to earth: | nom. 43 nF/km |
| Category: | 7 |
| Conductor category: | Kl.1 = single wire |
| Conductor material: | CU, tinned |
| Core identification: | colour |
| Core insulation: | foam-skin PE |
| Coupling attenuation: | ≥ 85 dB |
| Delay skew: | ≤ 12 ns/100m |
| Diameter conductor: | 0.56 mm |
| Flame-retardant: | No |
| Halogen free (acc. EN 50267-2-2): | False |
| Halogen free (according to EN 60754-1/2): | False |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ± 25 Ohm |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket Material: | Polyethylene (PE) |
| Loop resistance: | ≤ 165 Ohm/km |
| Low smoke (acc. EN 61034-2): | False |
| Max. Freuqency: | 900 MHz |
| NVP value: | 79 % |
| Nominal cross section conductor: | 0.26 mm² |
| Operating temperature, fix: | -55 – 60 °C |
| Operating temperature, flexible: | -20 – 50 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | ≤ 2 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | foil + braid |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 10MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 30MHz: | ≤ 30 mOhm/m |
| Transfer impedance at 100MHz: | ≤ 60 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
| UV resistance: | True |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | Number of cores | RAL colour | Type | Length | Copper weight | Weight | Max. tractive force | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 99731.100 | Cat.7 Outdoor cable UC900 SS23/1,4P PE, 100metres | black | 8 | 9005 | simplex | 100.0 m | 38 kg/km | 95 kg/km | 340 N | 8.4 mm | |
| 99731.500 | Cat.7 Outdoor cable UC900 SS23/1,4P PE, 500metres | black | 8 | 9005 | simplex | 500.0 m | 38 kg/km | 95 kg/km | 340 N | 8.4 mm |
