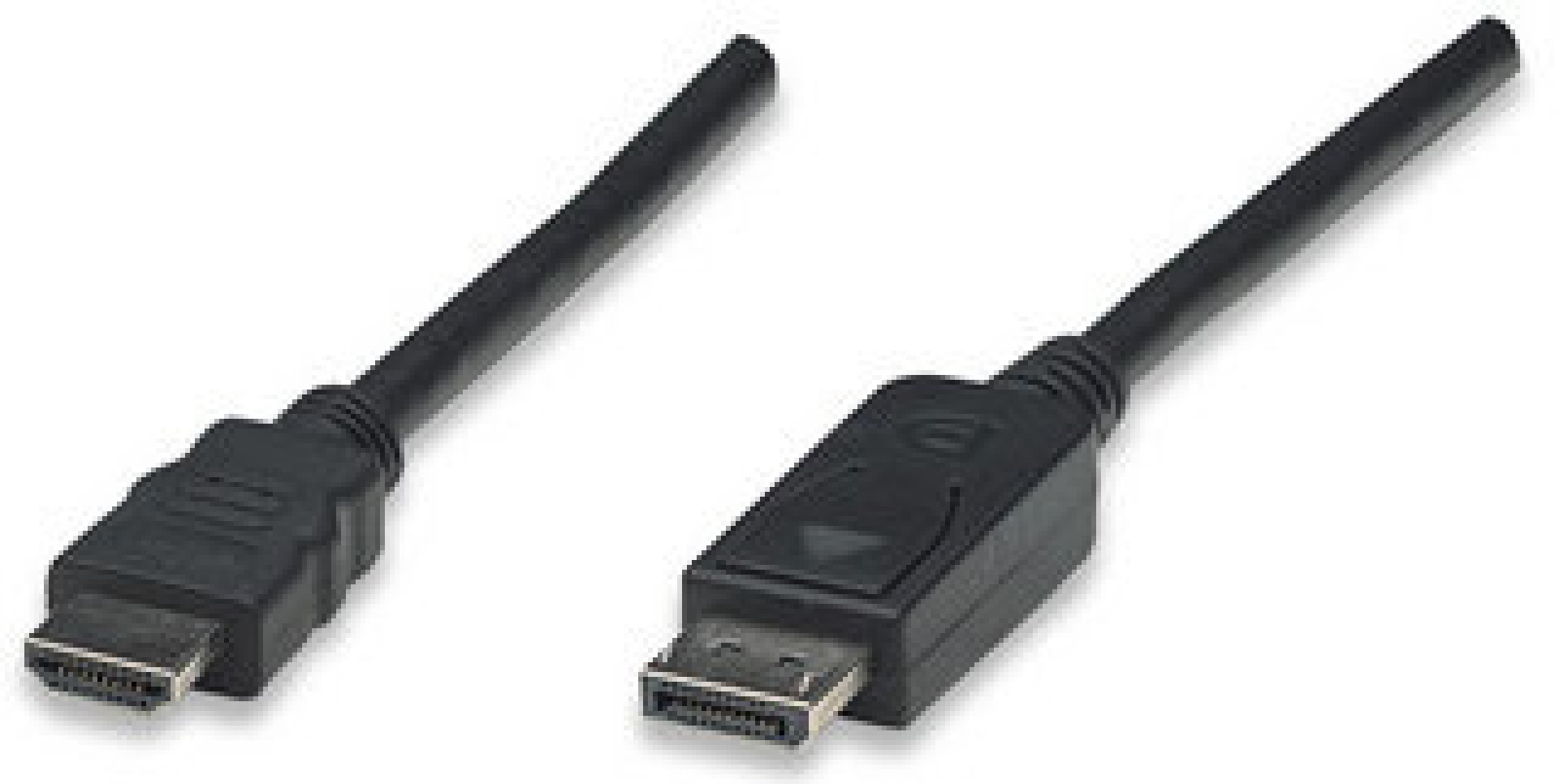

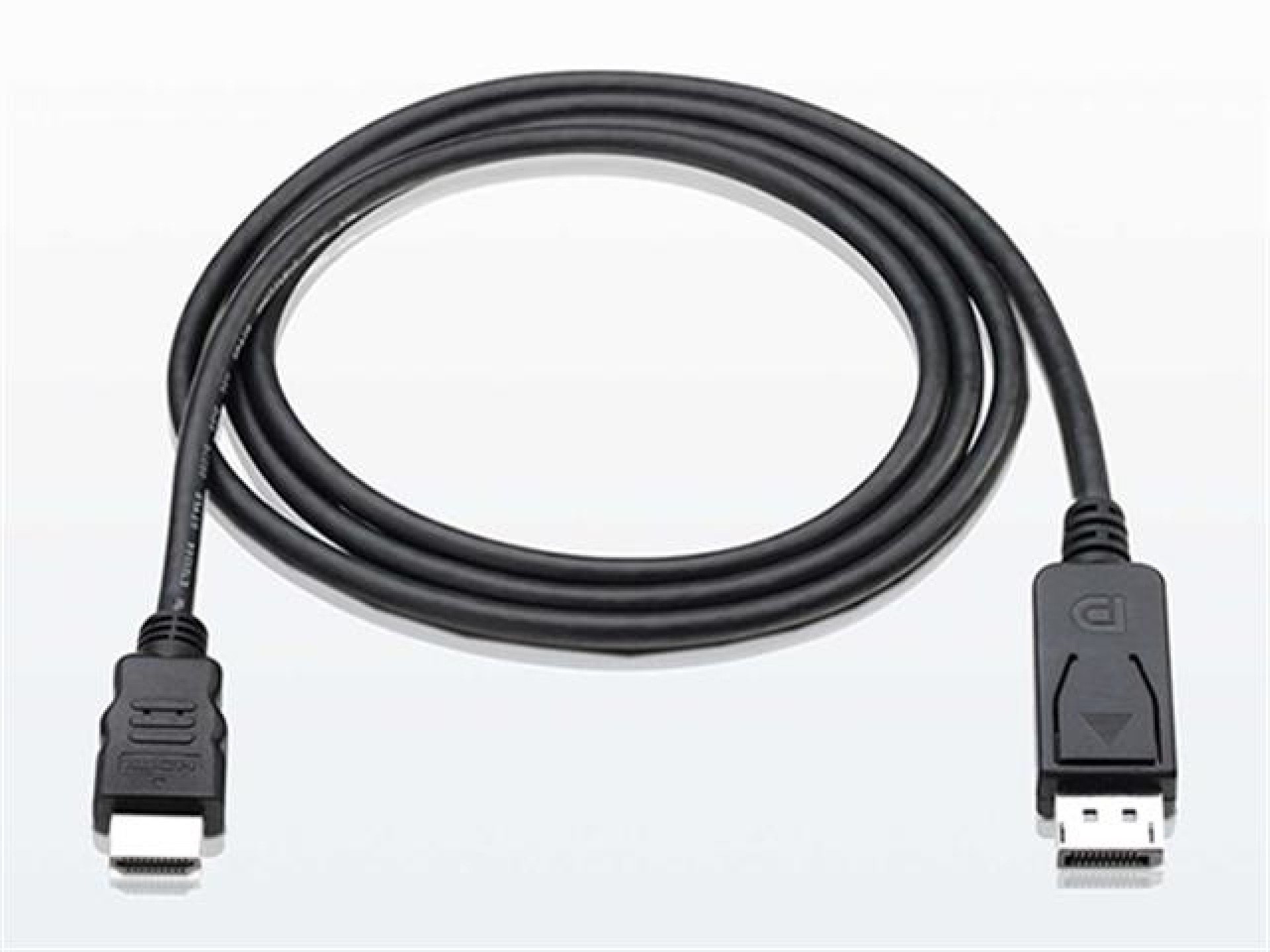

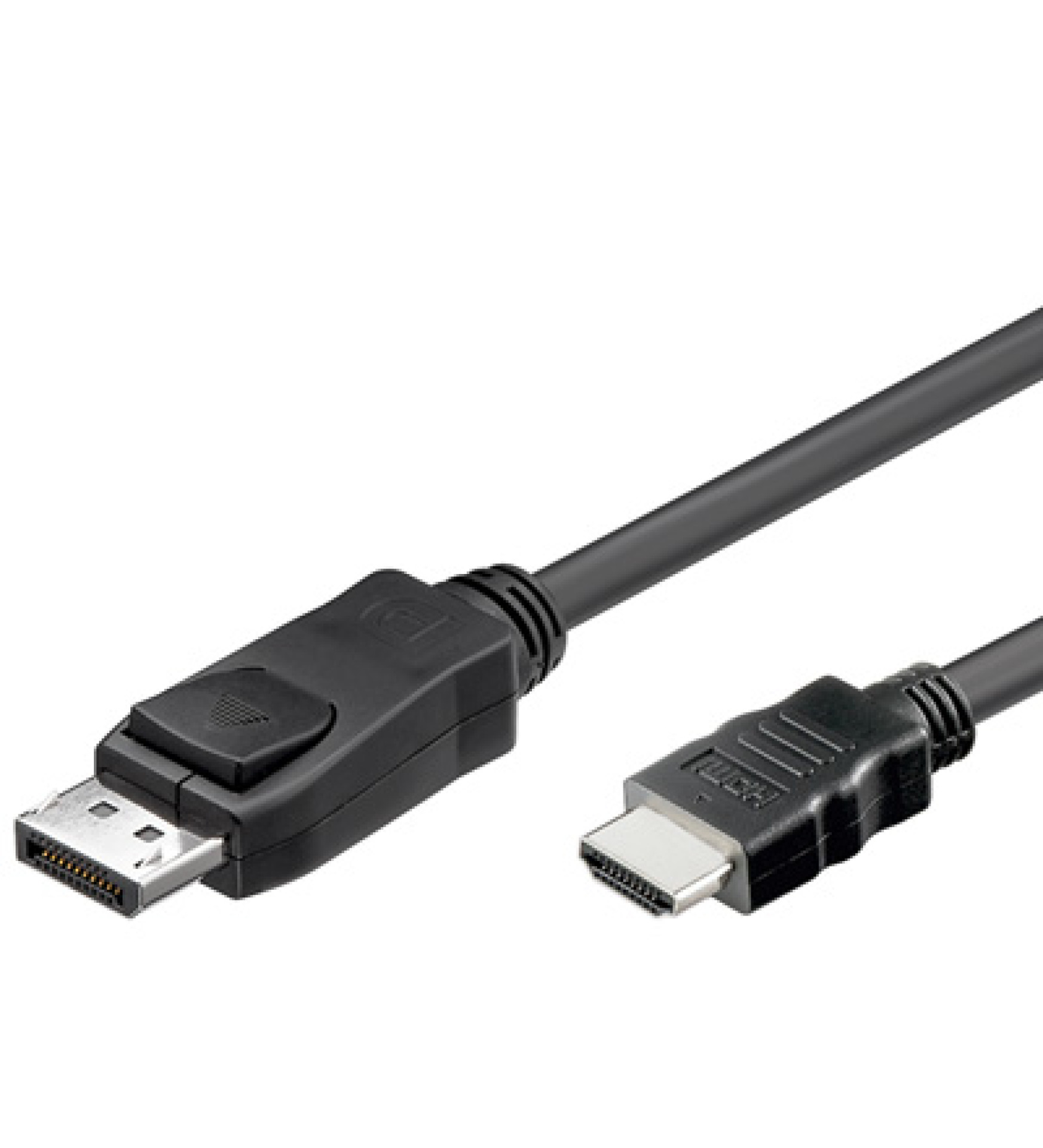

DisplayPort 1.2 to HDMI Connecting cable, black
DisplayPort 1.2 to HDMI Connecting cable, black, 1 m
Varenummer:
ICOC-DSP-H12-010
EAN Nr.:
8054529020812
Produktinformation til DisplayPort 1.2 to HDMI Connecting cable, black, 1 m
• Converts the DisplayPort 1.2 signal to a HDMI signal
• Provides a high-quality digital video signal - ideal for using the new DisplayPort sources with an existing HDMI monitor
• Supports Deep Color, application bandwidth of 10.8 Gbps and resolutions of up to 4Kx2K
• Integrated design for easy connection and eliminating cable clutter
Technical specifications
• Supports input DisplayPort 1.2 and HDMI 1.4b
• Supports a maximum video resolution of 4Kx2K
• Supports Deep Color 10/12-bit video formats of up to 1080p and 3D 2.25 Gbps (720p / 50/59.94/60Hz, 1080i / 50/59.94/60Hz, 1080p / 23.98/24Hz, 1080P / 50/59.94/60Hz) up to 2.97 Gbps
Connections

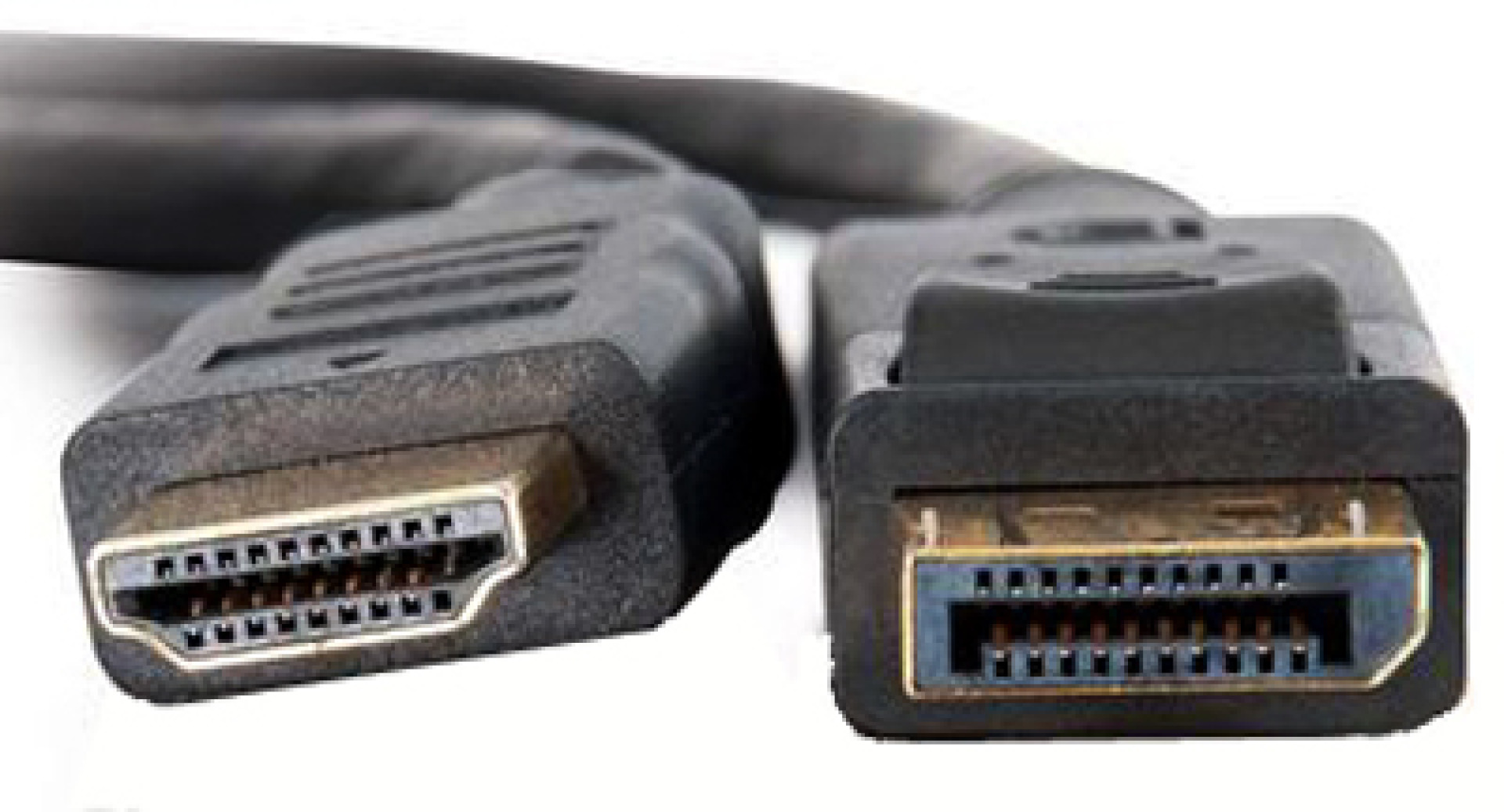

• 1x DisplayPort 20-pin male

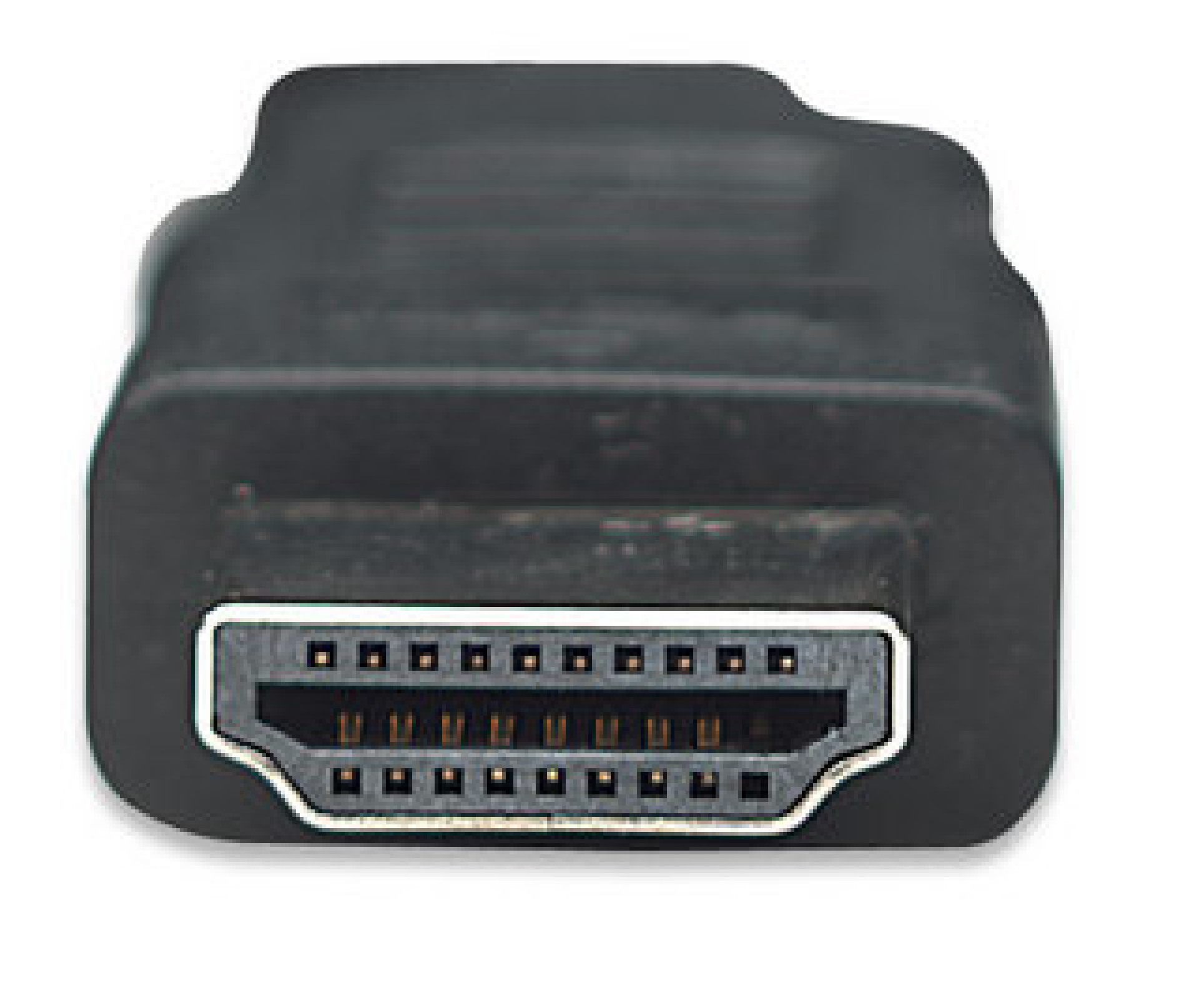

• 1x HDMI 19-pin male
• Material of contacts: nickel-plated
• Molded PVC boot with cable gland
Cable
• Inner conductor: AWG 30
• Withstanding voltage: 300 V DC
• Shielded
General information
• Supports 8-bit and 10-bit Deep Color
• Bandwidth 10.8 Gbps
Standards and certifications
• UL 20276
Package Contents
• 1x Converter cable DisplayPort 1.2 to HDMI
• Provides a high-quality digital video signal - ideal for using the new DisplayPort sources with an existing HDMI monitor
• Supports Deep Color, application bandwidth of 10.8 Gbps and resolutions of up to 4Kx2K
• Integrated design for easy connection and eliminating cable clutter
Technical specifications
• Supports input DisplayPort 1.2 and HDMI 1.4b
• Supports a maximum video resolution of 4Kx2K
• Supports Deep Color 10/12-bit video formats of up to 1080p and 3D 2.25 Gbps (720p / 50/59.94/60Hz, 1080i / 50/59.94/60Hz, 1080p / 23.98/24Hz, 1080P / 50/59.94/60Hz) up to 2.97 Gbps
Connections
• 1x DisplayPort 20-pin male
• 1x HDMI 19-pin male
• Material of contacts: nickel-plated
• Molded PVC boot with cable gland
Cable
• Inner conductor: AWG 30
• Withstanding voltage: 300 V DC
• Shielded
General information
• Supports 8-bit and 10-bit Deep Color
• Bandwidth 10.8 Gbps
Standards and certifications
• UL 20276
Package Contents
• 1x Converter cable DisplayPort 1.2 to HDMI
Varianten
Art. Nr. | Bezeichnung | Colour | Length | |
---|---|---|---|---|
ICOC-DSP-H12-010 | DisplayPort 1.2 to HDMI Connecting cable, black, 1 m | black | 1.0 m | |
ICOC-DSP-H12-020 | DisplayPort 1.2 to HDMI Connecting cable, black, 2 m | black | 2.0 m | |
ICOC-DSP-H12-030 | DisplayPort 1.2 to HDMI Connecting cable, black, 3 m | black | 3.0 m |
