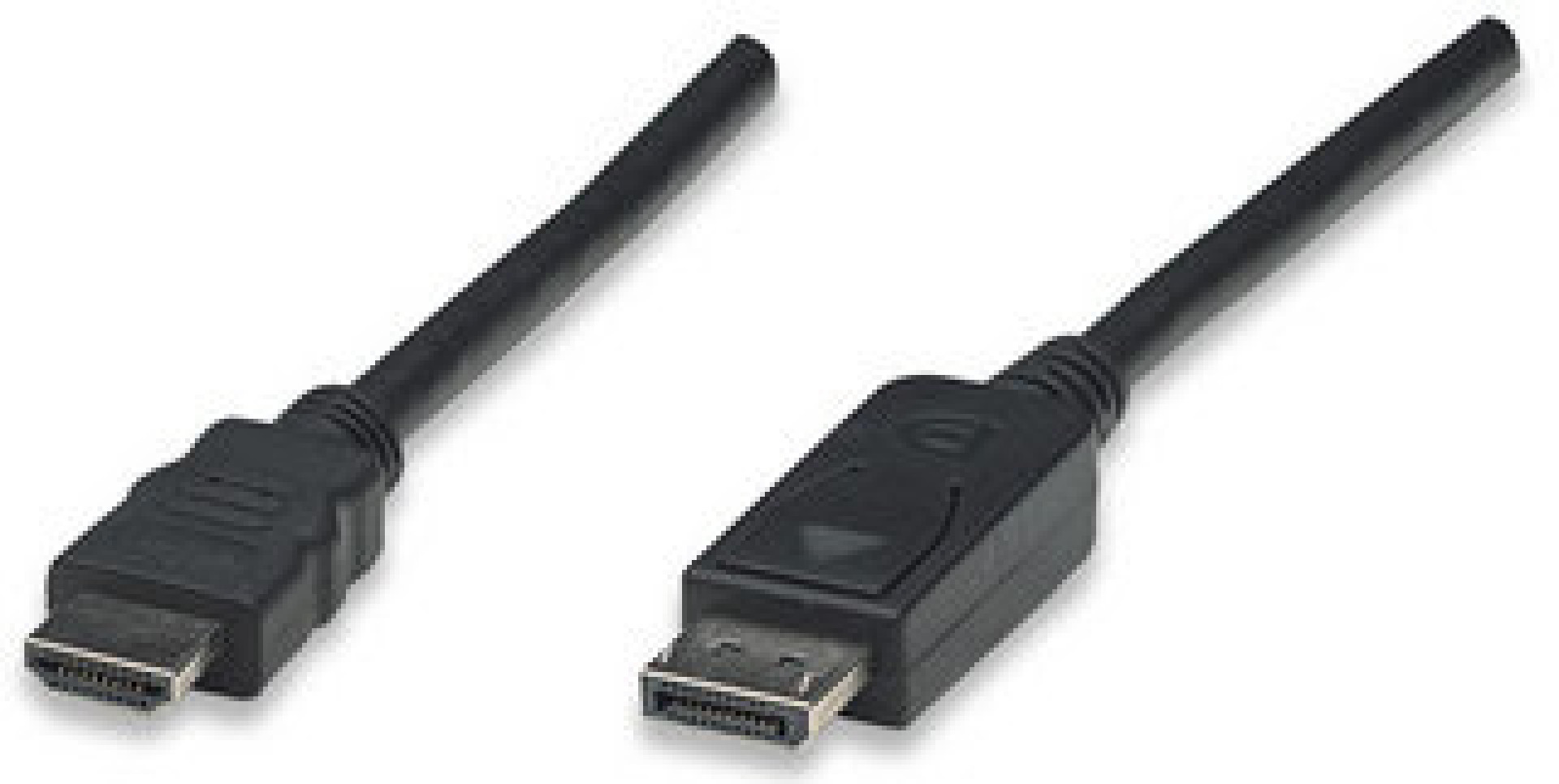

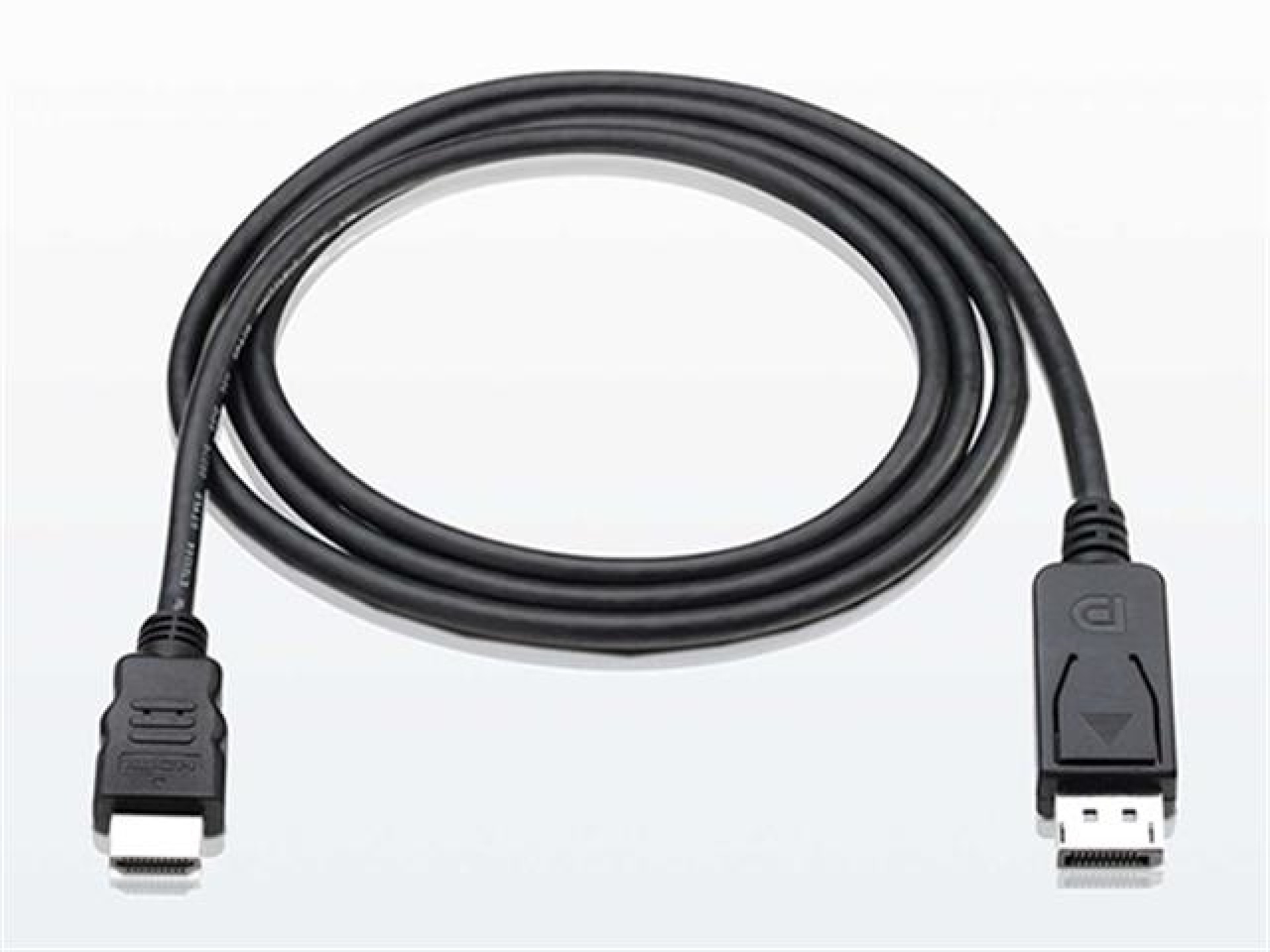

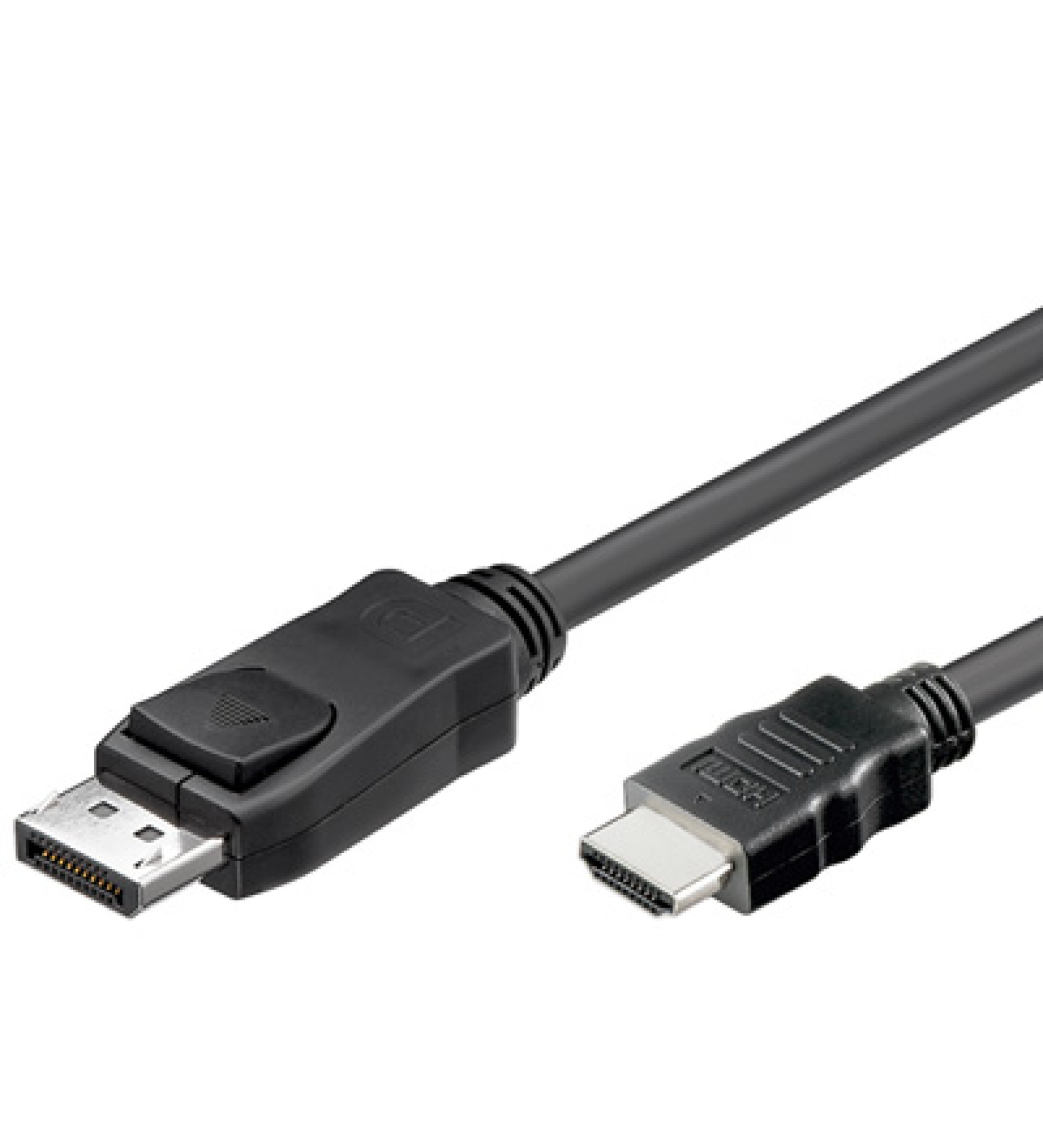

DisplayPort 1.2 to HDMI Connecting cable, black

Priser kun synlige for indloggede brugere

DisplayPort 1.2 to HDMI Connecting cable, black, 3 m
Varenummer: ICOC-DSP-H12-030
EAN nr.: 8054529020836
1

Produktinformation für DisplayPort 1.2 to HDMI Connecting cable, black, 3 m

• Converts the DisplayPort 1.2 signal to a HDMI signal
• Provides a high-quality digital video signal - ideal for using the new DisplayPort sources with an existing HDMI monitor
• Supports Deep Color, application bandwidth of 10.8 Gbps and resolutions of up to 4Kx2K
• Integrated design for easy connection and eliminating cable clutter

Technical specifications
• Supports input DisplayPort 1.2 and HDMI 1.4b
• Supports a maximum video resolution of 4Kx2K
• Supports Deep Color 10/12-bit video formats of up to 1080p and 3D 2.25 Gbps (720p / 50/59.94/60Hz, 1080i / 50/59.94/60Hz, 1080p / 23.98/24Hz, 1080P / 50/59.94/60Hz) up to 2.97 Gbps

Connections

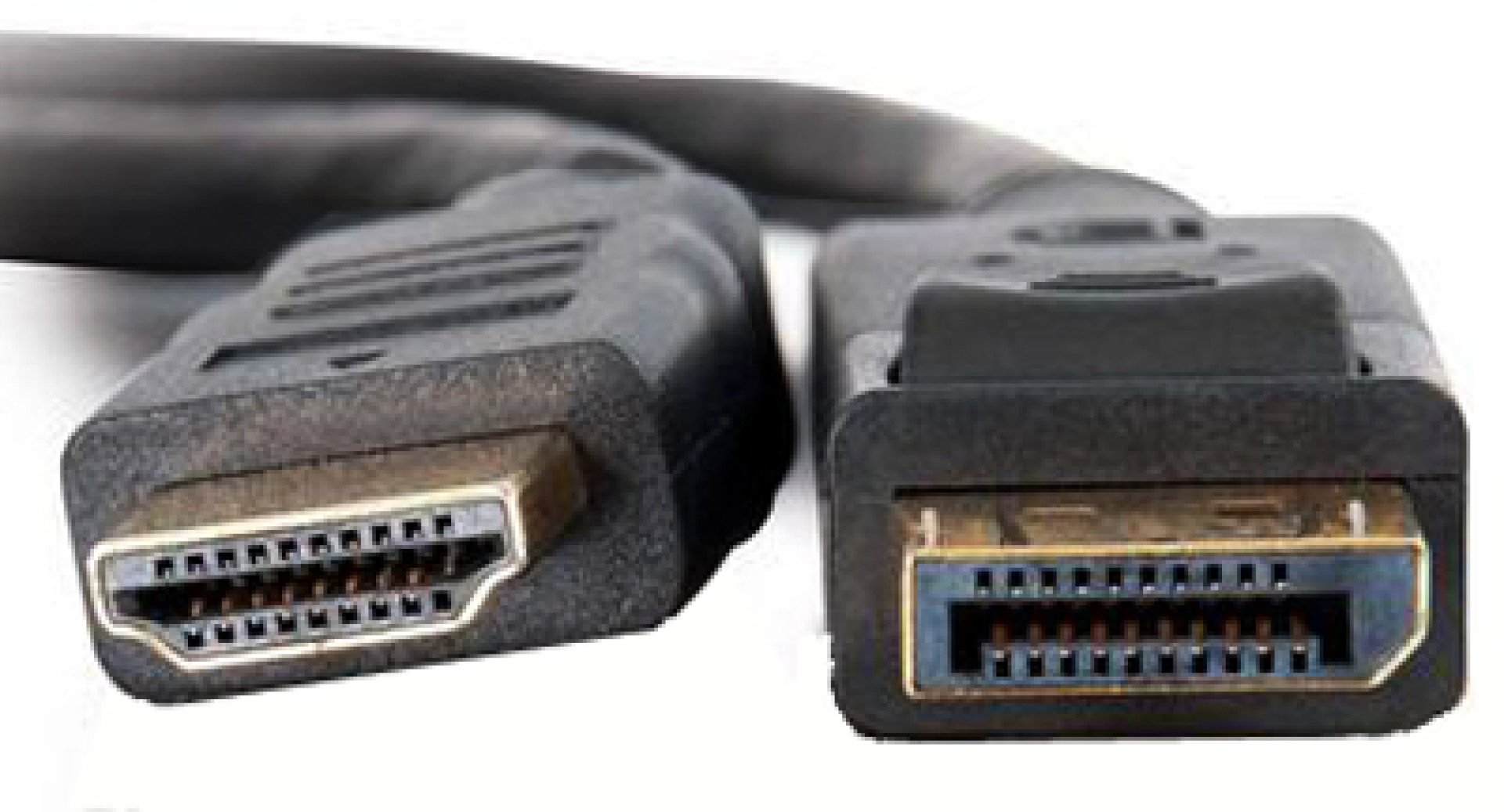

• 1x DisplayPort 20-pin male

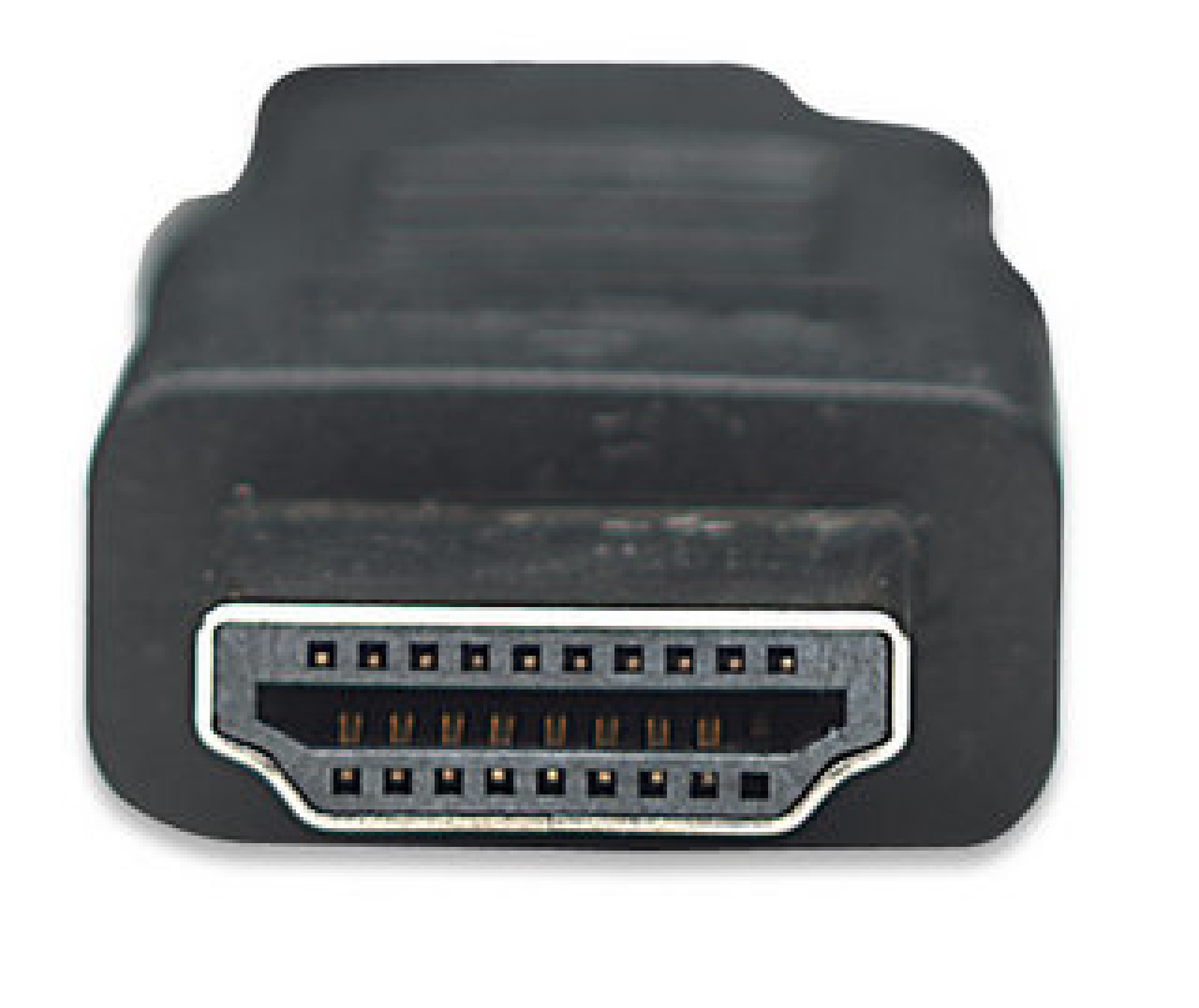

• 1x HDMI 19-pin male
• Material of contacts: nickel-plated
• Molded PVC boot with cable gland

Cable
• Inner conductor: AWG 30
• Withstanding voltage: 300 V DC
• Shielded

General information
• Supports 8-bit and 10-bit Deep Color
• Bandwidth 10.8 Gbps

Standards and certifications
• UL 20276

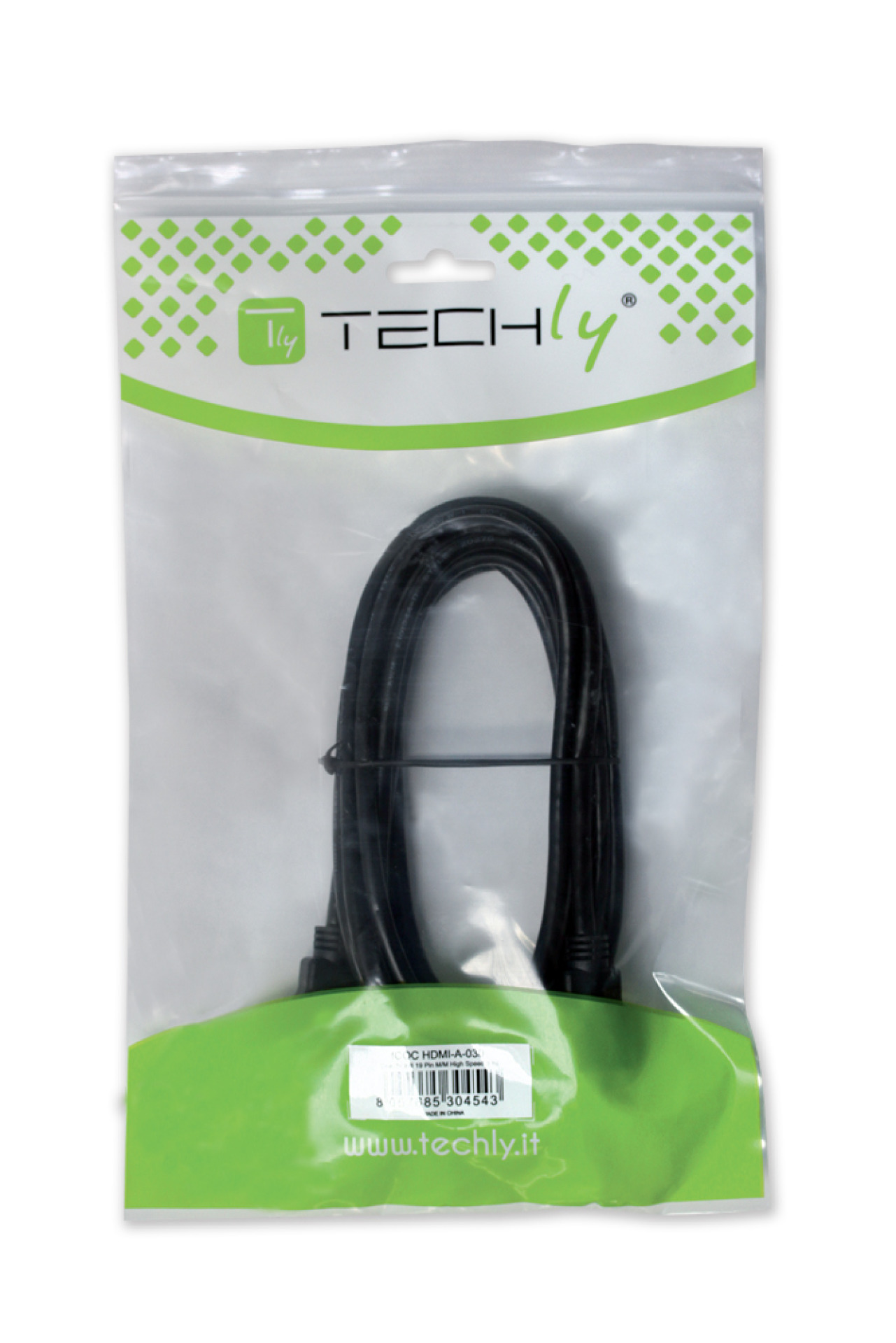

Package Contents
• 1x Converter cable DisplayPort 1.2 to HDMI

Varianter

Art. Nej. Betegnelse Colour Length
ICOC-DSP-H12-010 DisplayPort 1.2 to HDMI Connecting cable, black, 1 m black 1.0 m
ICOC-DSP-H12-020 DisplayPort 1.2 to HDMI Connecting cable, black, 2 m black 2.0 m
ICOC-DSP-H12-030 DisplayPort 1.2 to HDMI Connecting cable, black, 3 m black 3.0 m
