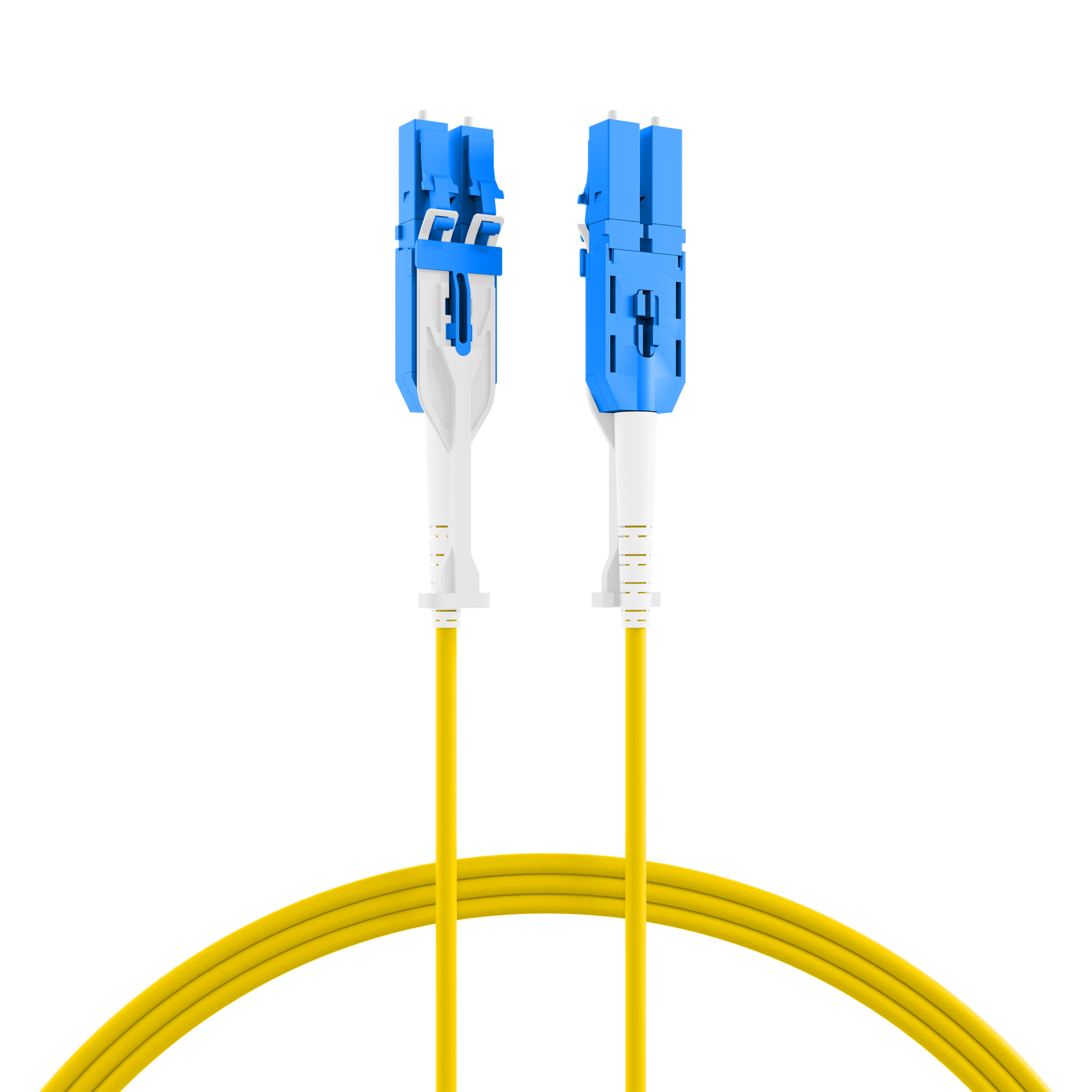

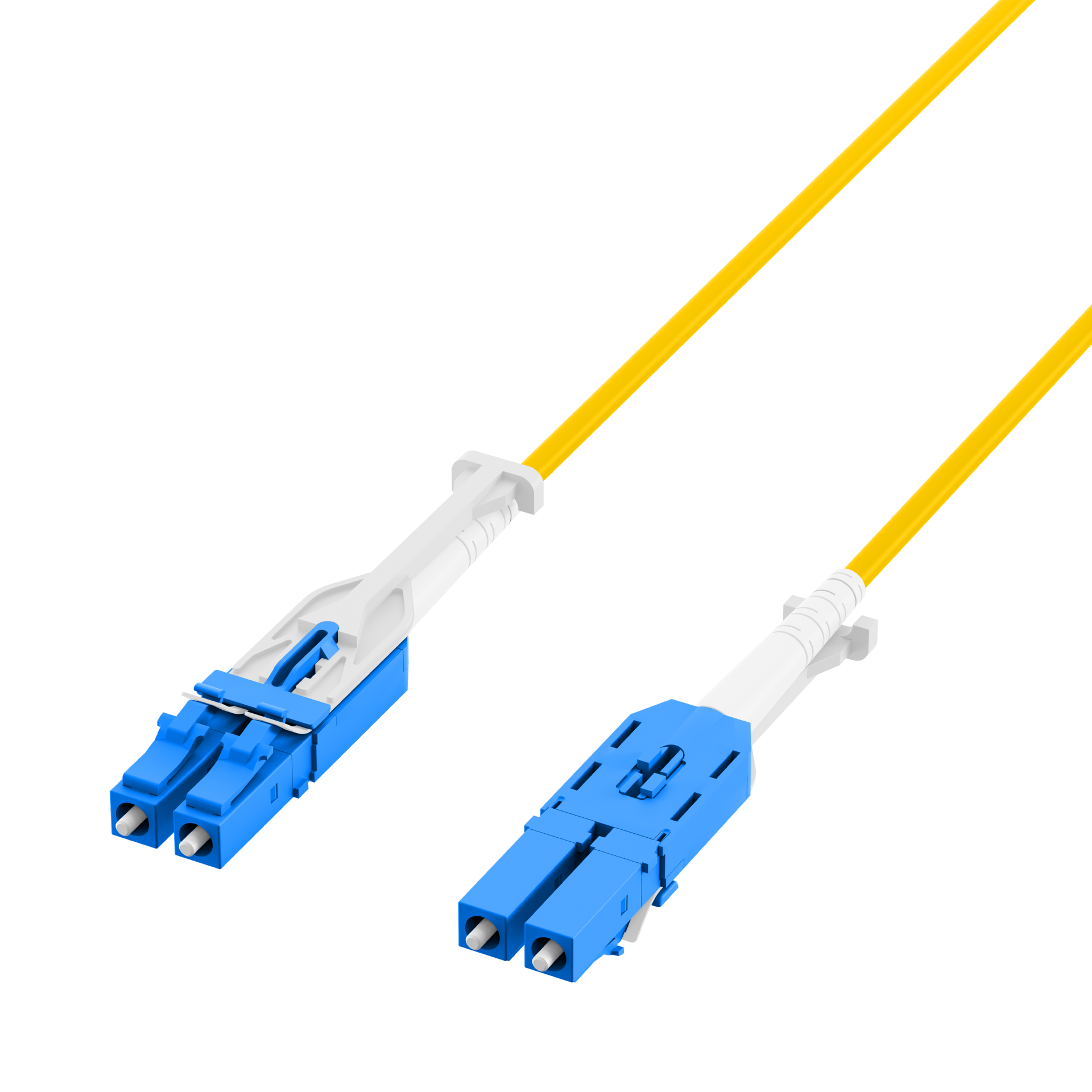

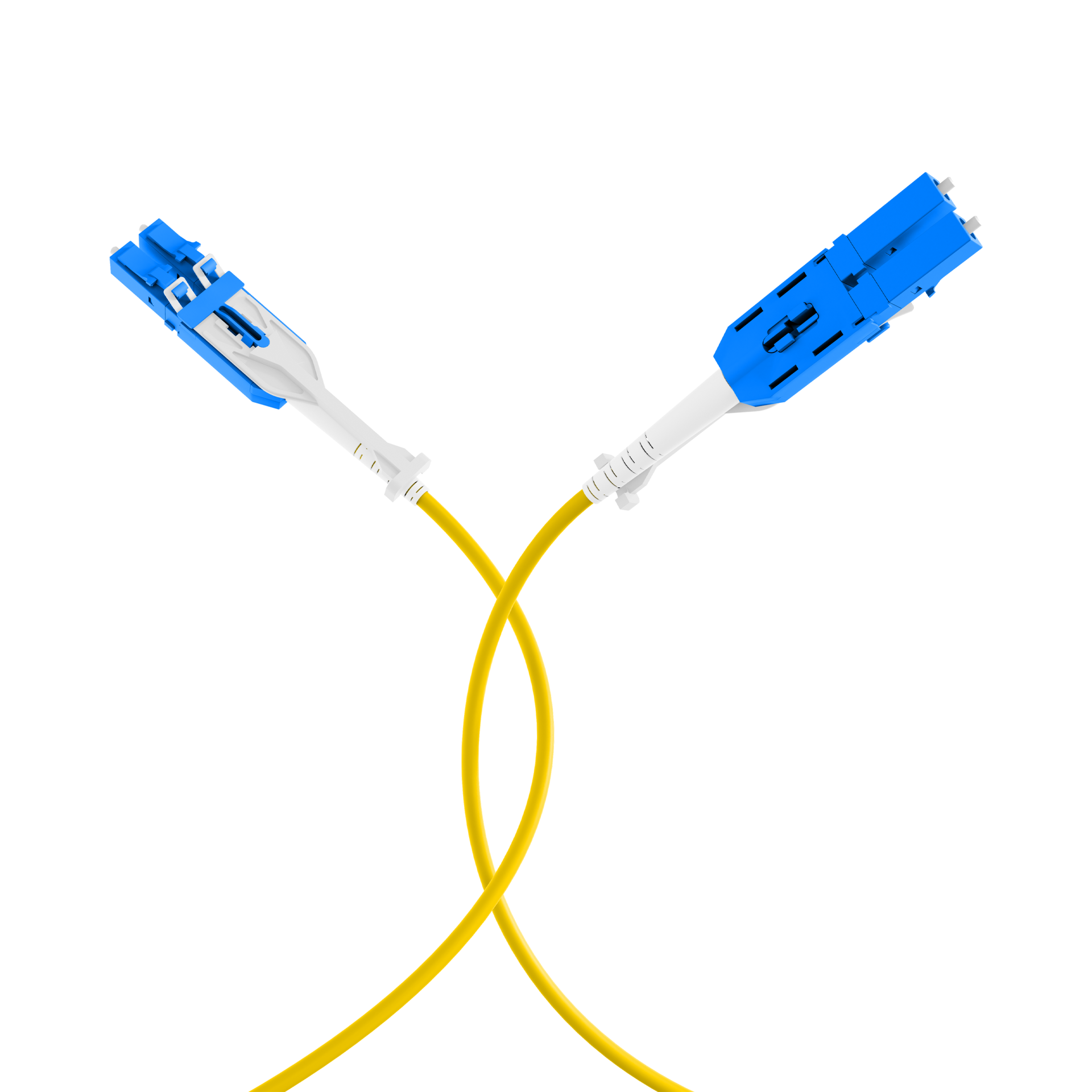

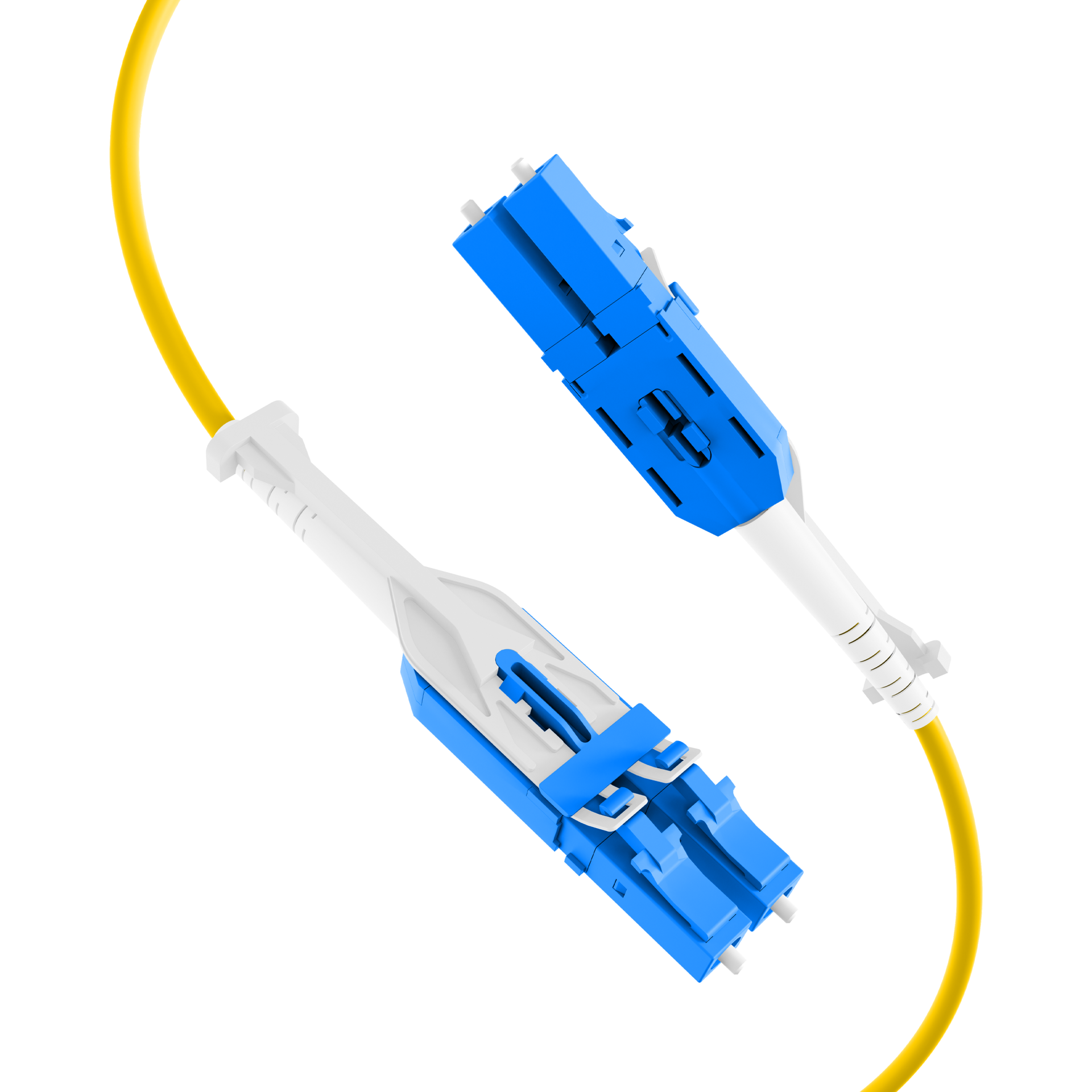

Duplex Patchcable LC-LC Uniboot G657A1
Duplex Patchcable Push/Pull LC-LC OS2 G657A1 0,5m LSZH 3mm yellow
Varenummer:
DJP-LCLCOS2-UNI-0,5
EAN Nr.:
4049759193744
Produktinformation til Duplex Patchcable Push/Pull LC-LC OS2 G657A1 0,5m LSZH 3mm yellow
The LC HD Uniboot Jumper has a long unlock latch, due to unlock in the easiest way in HD patchpanel. The Polarity or Coding of the Duplex connector can be changed in the easiest way that it can reach the requirements of the application. The Jumper is available in the categories OM3, OM4 and G657A1.
Tekniske egenskaber
(Halogenfree): | acc. IEC60754-1 |
---|---|
APC-version: | False |
Anti-kink sleeve: | put-on |
Bend optimized fiber: | yes |
Cable Conform to Standard: | IEC 60793-2 |
Cable Construction: | Duplex |
Cable type: | I-V(ZN) H |
Cable Ø: | 3.0 mm |
Category: | G657A1 acc. to ITU-T G.657 |
Colour outer sheath: | yellow |
Connector Conform to Standard: | IEC 61754-20 |
Connector colour 1: | blue |
Connector colour 2: | blue |
Fibre type: | Single mode 9/125 |
Insertion loss 1310nm: | < 0.3 dB |
Jacket Material: | LSZH |
Low smoke: | acc. IEC61034-1 |
Max. Tension: | 160 N |
Min. Bending radius (Dynamic): | 20xOD |
Min. Bending radius (Static): | 10xOD |
Number of fibres: | 2 |
Operating Temperature: | -20 – 70 °C |
Quality class singlemode: | B/2 acc. IEC 61753-1 |
Storage Temperature: | -20 – 70 °C |
Type of connector connection 1: | LC |
Type of connector connection 2: | LC |
Varianten
Art. Nr. | Bezeichnung | Length | Length tolerance | |
---|---|---|---|---|
DJP-LCLCOS2-UNI-0,5 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 0,5m LSZH 3mm yellow | 0.5 m | ±5 % | |
DJP-LCLCOS2-UNI-1 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 1m LSZH 3mm yellow | 1.0 m | ±5 % | |
DJP-LCLCOS2-UNI-2 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 2m LSZH 3mm yellow | 2.0 m | ±5 % | |
DJP-LCLCOS2-UNI-3 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 3m LSZH 3mm yellow | 3.0 m | ±5 % | |
DJP-LCLCOS2-UNI-5 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 5m LSZH 3mm yellow | 5.0 m | ±5 % | |
DJP-LCLCOS2-UNI-7,5 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 7,5m LSZH 3mm yellow | 7.5 m | ±5 % | |
DJP-LCLCOS2-UNI-10 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 10m LSZH 3mm yellow | 10.0 m | ±5 % | |
DJP-LCLCOS2-UNI-15 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 15m LSZH 3mm yellow | 15.0 m | ±5 % |
