Duplex Patchcable LC-LC Uniboot G657A1

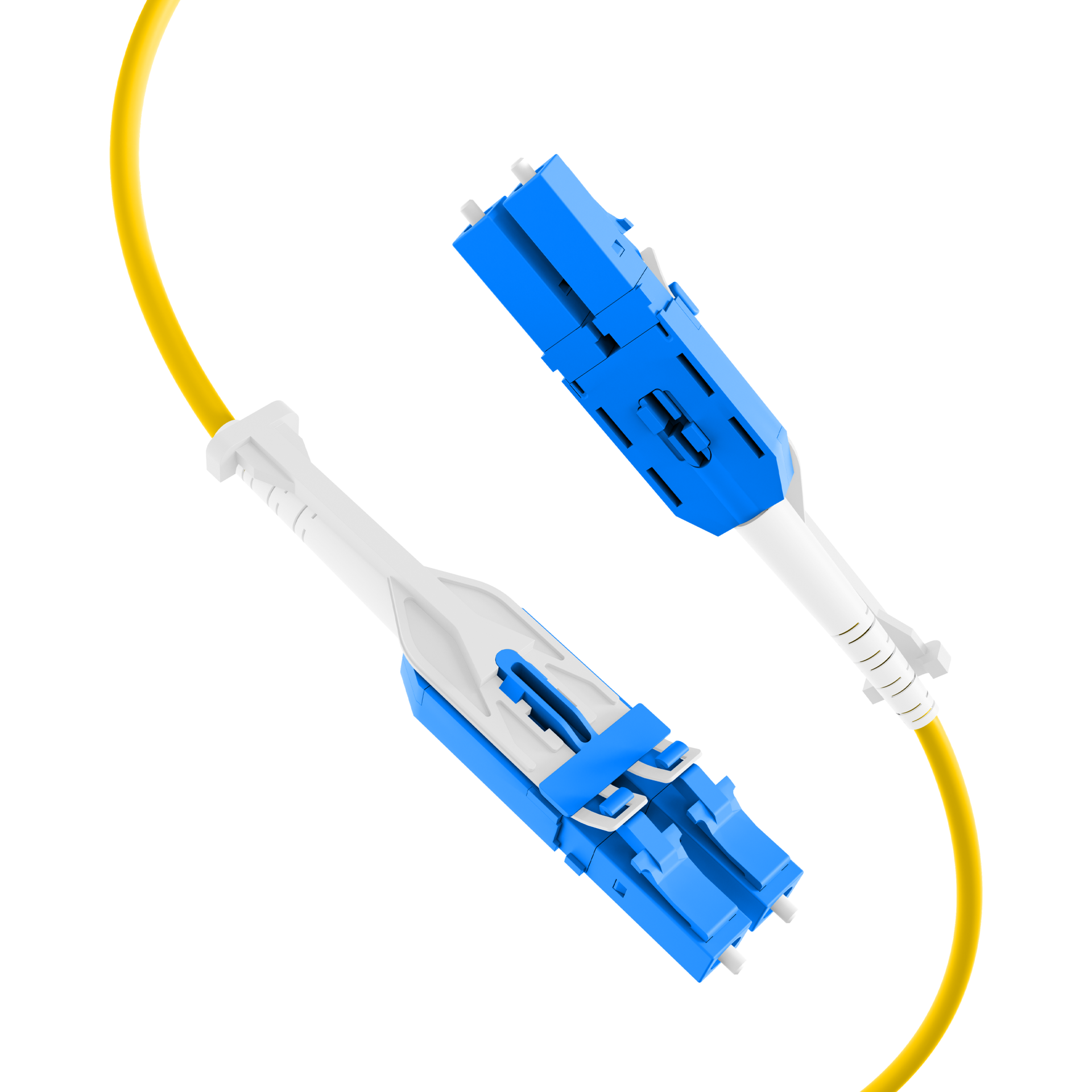

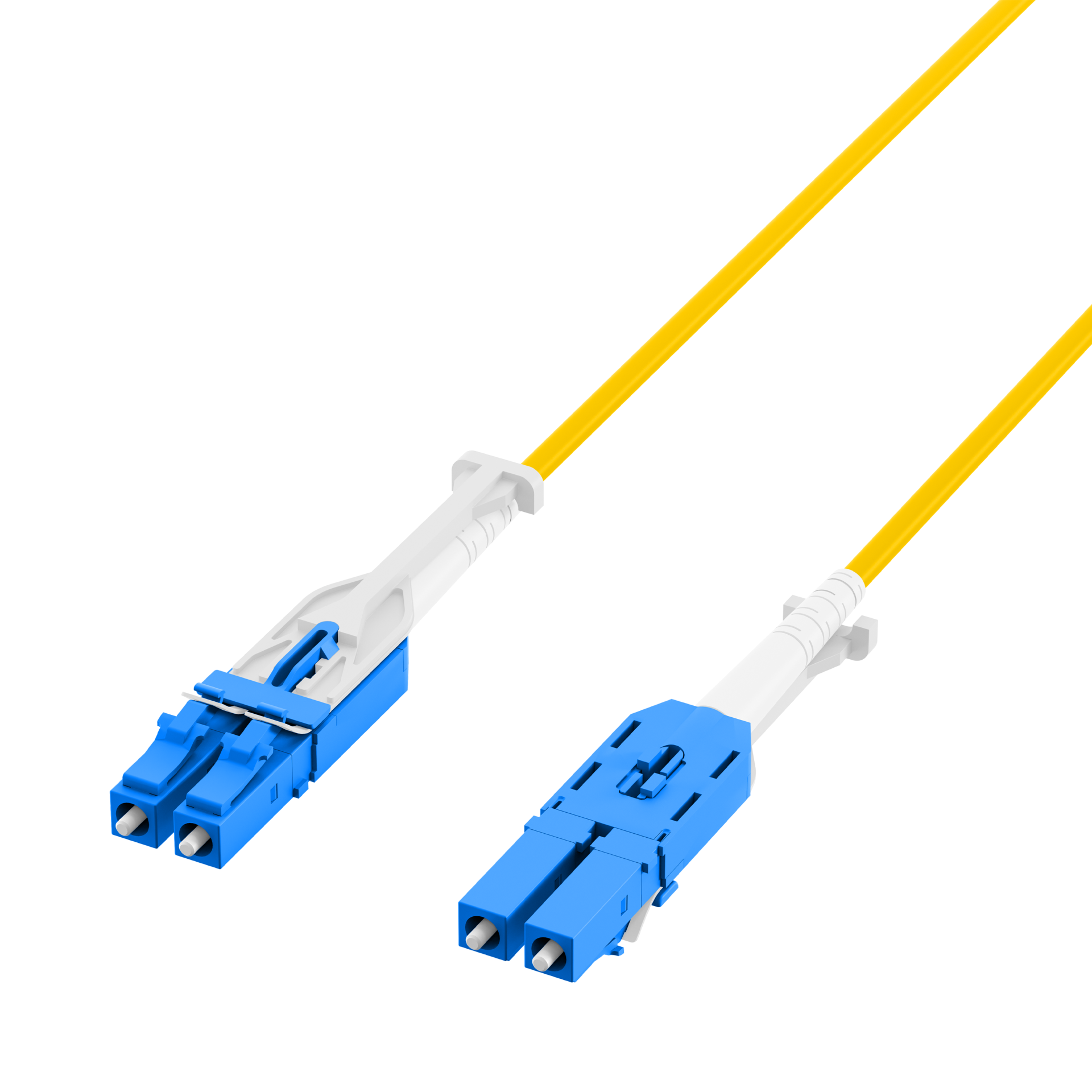

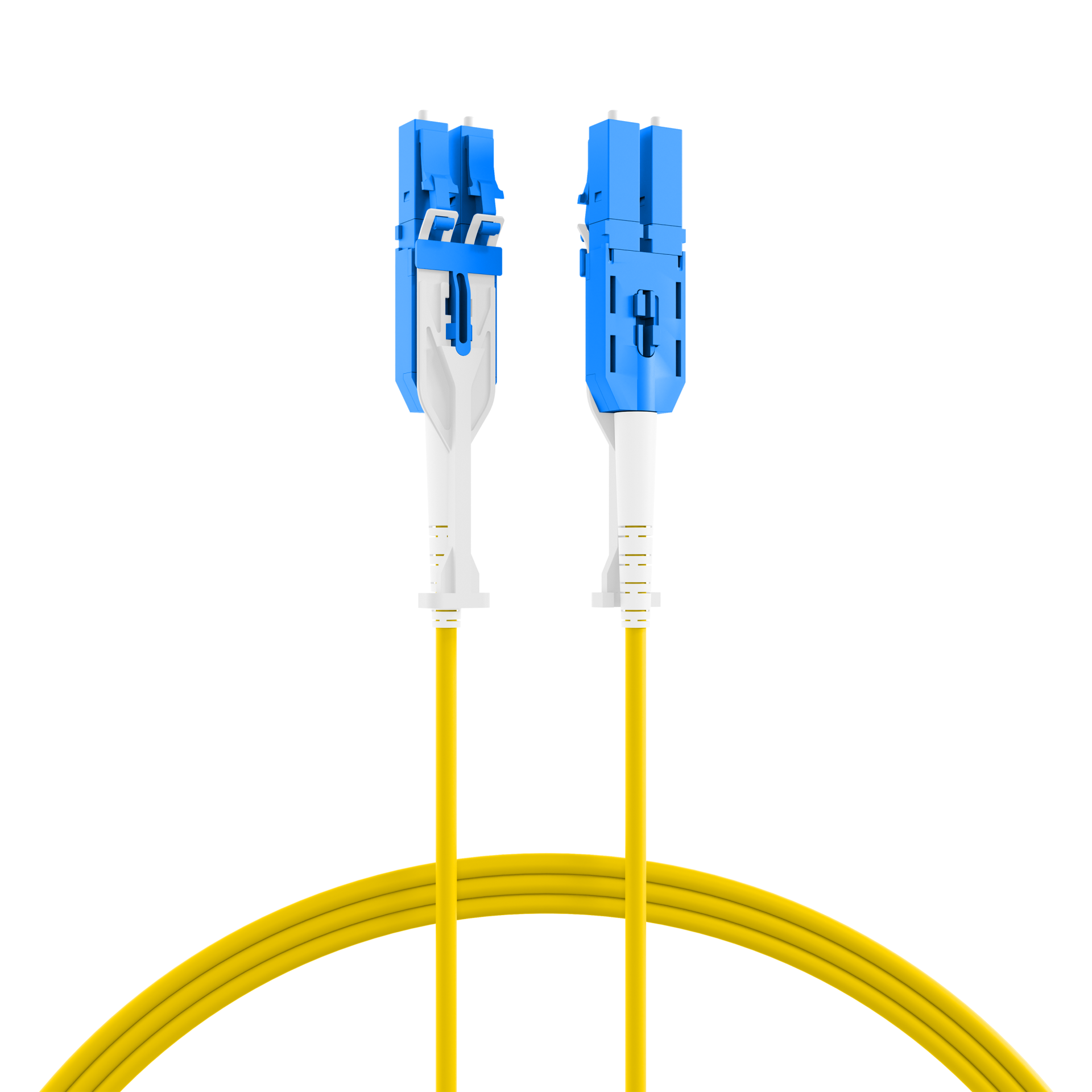

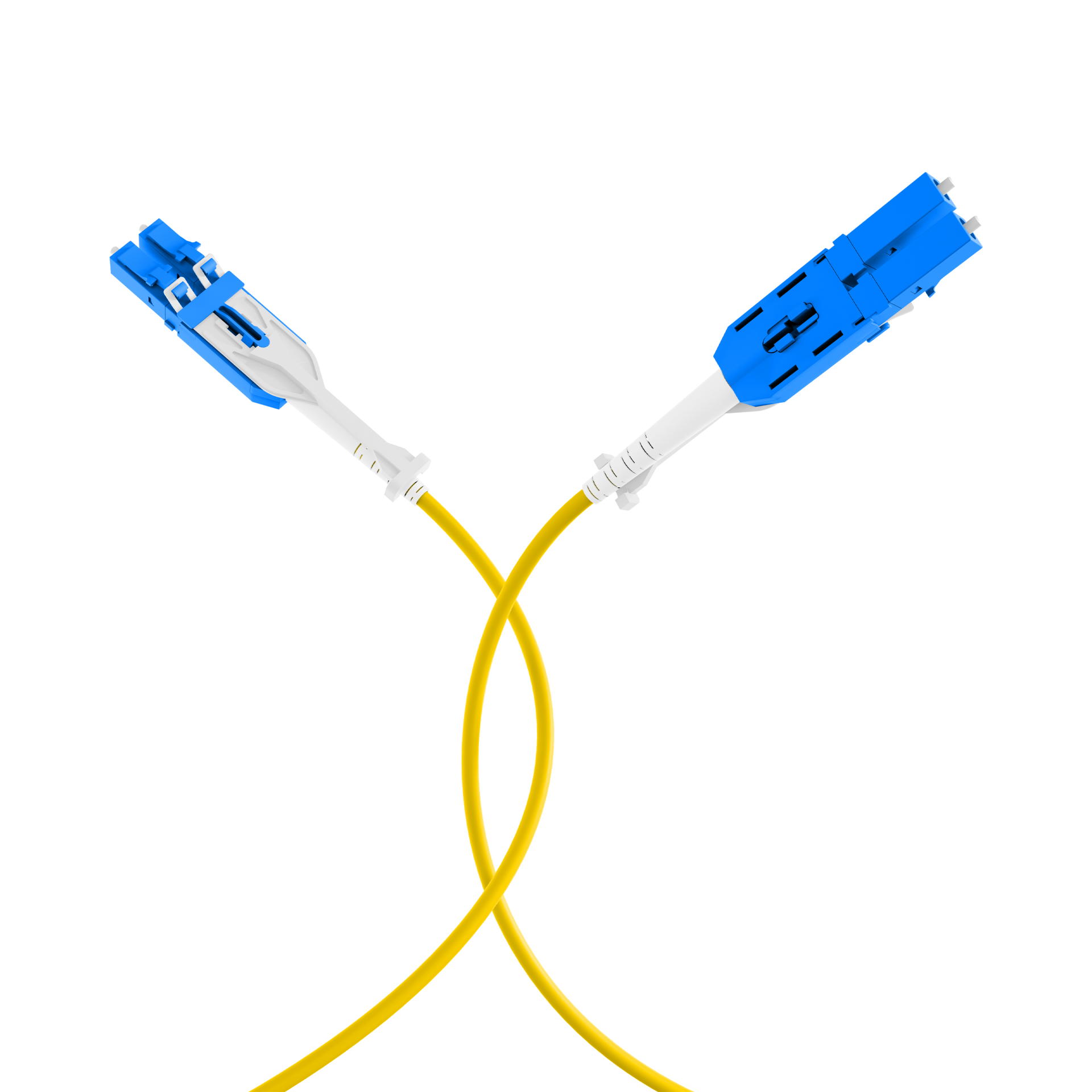

Duplex Patchcable Push/Pull LC-LC OS2 G657A1 5m LSZH 3mm yellow
Varenummer:
DJP-LCLCOS2-UNI-5
EAN-nr.:
4049759193805
Produktinformation til Duplex Patchcable Push/Pull LC-LC OS2 G657A1 5m LSZH 3mm yellow
The LC HD Uniboot Jumper has a long unlock latch, due to unlock in the easiest way in HD patchpanel. The Polarity or Coding of the Duplex connector can be changed in the easiest way that it can reach the requirements of the application. The Jumper is available in the categories OM3, OM4 and G657A1.
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | yes |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable structure: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 3 mm |
| Category: | OS2 G657A1 |
| Colour outer sheath: | yellow |
| Connector Conform to Standard: | IEC 61754-20 |
| Connector colour 1: | blue |
| Connector colour 2: | blue |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. to IEC 60332-1-2 |
| Halogen free: | acc. to. IEC 62821 |
| Insertion loss 1310nm: | ≤0.15 dB |
| Jacket material: | LSZH |
| Low smoke: | acc. to. IEC 61034 |
| Max. Tension: | 160 N |
| Min. Bending radius (Dynamic): | >20xOD |
| Min. Bending radius (Static): | >10xOD |
| Number of fibers: | 2 |
| Operating Temperature: | -20 – 75 °C |
| Packaging: | EFB-Electronics poly bag (resealable) |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Reinforcment: | Aramid |
| Scope of delivery: | 1x Patchcable, 2x Duplex Clip, 1x Measurement Report, 1x Information Sheet |
| Storage Temperature: | -20 – 70 °C |
| Type of connector connection 1: | LC (Push/Pull) |
| Type of connector connection 2: | LC (Push/Pull) |
Variants
| ON | Label | Length | Length tolerance | |
|---|---|---|---|---|
| DJP-LCLCOS2-UNI-0,5 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 0,5m LSZH 3mm yellow | 0.5 m | ±5 % | |
| DJP-LCLCOS2-UNI-1 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 1m LSZH 3mm yellow | 1.0 m | ±5 % | |
| DJP-LCLCOS2-UNI-2 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 2m LSZH 3mm yellow | 2.0 m | ±5 % | |
| DJP-LCLCOS2-UNI-3 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 3m LSZH 3mm yellow | 3.0 m | ±5 % | |
| DJP-LCLCOS2-UNI-5 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 5m LSZH 3mm yellow | 5.0 m | ±5 % | |
| DJP-LCLCOS2-UNI-7,5 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 7,5m LSZH 3mm yellow | 7.5 m | ±5 % | |
| DJP-LCLCOS2-UNI-10 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 10m LSZH 3mm yellow | 10.0 m | ±5 % | |
| DJP-LCLCOS2-UNI-15 | Duplex Patchcable Push/Pull LC-LC OS2 G657A1 15m LSZH 3mm yellow | 15.0 m | ±5 % | |
| DJP-LCLCOS2-UNI-20 | Duplex Patchcable LC-LC Uniboot G657A1 | 20.0 m | ±5 % |
Sikkerhedsanvisninger
Warning: Proper disposal of fiberglass residues! Fiberglass residues must be disposed of immediately and with due care in the containers provided for them. If handled improperly, there is a risk of injury due to fiber residues penetrating the skin. Warning: Danger of swallowing The product must not be put in the mouth. If swallowed, there is a risk of suffocation, internal blockage of the digestive tract and a possible risk of poisoning from ingredients that may be contained in the products.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
