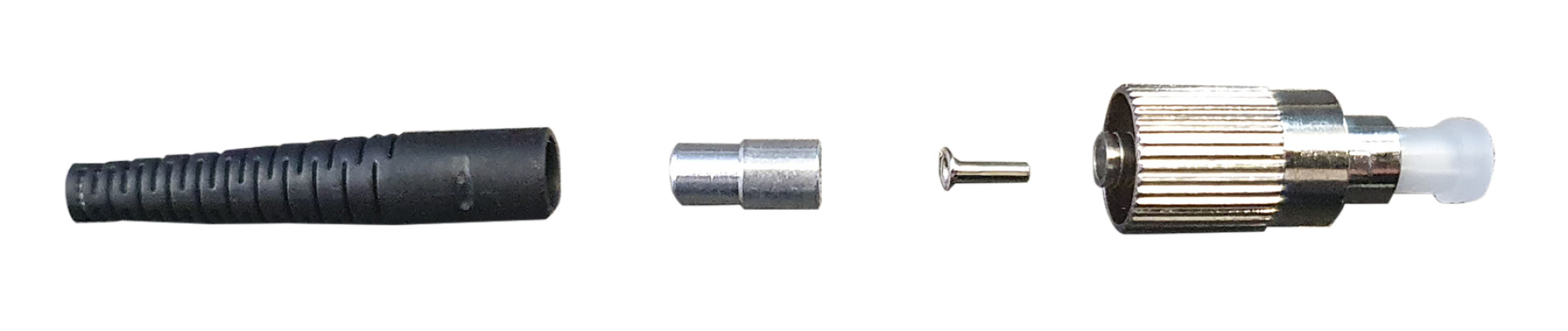

FC Connector Set with plug, ferrule and boot
FC Connector Set with plug, ferrule and boot
Varenummer:
53227.4
EAN Nr.:
4049759078928
Produktinformation til FC Connector Set with plug, ferrule and boot
FC plug set different versions
Tekniske egenskaber
| Connection type: | Crimping |
|---|---|
| Durchmesser Ferrulenöffnung: | 127 µm |
| Material of ferrule: | Ceramics |
| Model: | Plug |
| Operating temperature: | -40 – 75 °C |
| Storage Temperature: | -55 – 85 °C |
| Type of connector: | FC |
Varianten
| Art. Nr. | Bezeichnung | Color | Suitable for type of fibre | APC version | Cable Ø | Insertion Loss | Return Loss | Fibre class | |
|---|---|---|---|---|---|---|---|---|---|
| 53216.3 | FC/PC-connector Multimode ceramic, black boot | black | Multimode | False | 3.0 mm | 0.3 dB | - | - | |
| 53227.3 | FC/PC-connector Singlemode black boot | black | Single mode | False | 3.0 mm | typ. 0.15 dB | 50 dB | OS2 | |
| 53227.5 | FC/APC8°-connector Singlemode | Green | Single mode | True | 3.0 mm | typ. 0.15 dB | 50 dB | OS2 | |
| 53216.4 | FC Connector Set with plug, ferrule and boot | red | Multimode | False | 2.0 mm | 0.3 dB | - | - | |
| 53227.4 | FC Connector Set with plug, ferrule and boot | red | Single mode | False | 3.0 mm | typ. 0.15 dB | 50 dB | OS2 |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
