FC Connector Set with plug, ferrule and boot
FC/PC-connector Multimode ceramic, black boot
Varenummer:
53216.3
EAN Nr.:
4049759023447
Produktinformation til FC/PC-connector Multimode ceramic, black boot
FC plug set different versions
Tekniske egenskaber
| Connection type: | Crimping |
|---|---|
| Durchmesser Ferrulenöffnung: | 127 µm |
| Fibre class: | - |
| Material of ferrule: | Ceramics |
| Model: | Plug |
| Operating Temperature: | -40 – 75 °C |
| Return Loss: | - |
| Storage Temperature: | -55 – 85 °C |
| Type of connector: | FC |
Varianten
| Art. Nr. | Bezeichnung | Cable Ø | Colour | APC-version | Fibre class | Suitable for type of fibre | Insertion Loss | Return Loss | |
|---|---|---|---|---|---|---|---|---|---|
| 53216.3 | FC/PC-connector Multimode ceramic, black boot | 3.0 mm | black | False | - | Multimode | 0.3 dB | - | |
| 53227.3 | FC/PC-connector Singlemode black boot | 3.0 mm | black | False | OS2 | Singlemode | typ. 0.15 dB | 50 dB | |

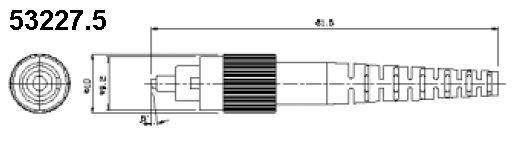

| 53227.5 | FC/APC8°-connector Singlemode | 3.0 mm | green | True | OS2 | Singlemode | typ. 0.15 dB | 50 dB |
