Fire Protection Boxes VKA E30

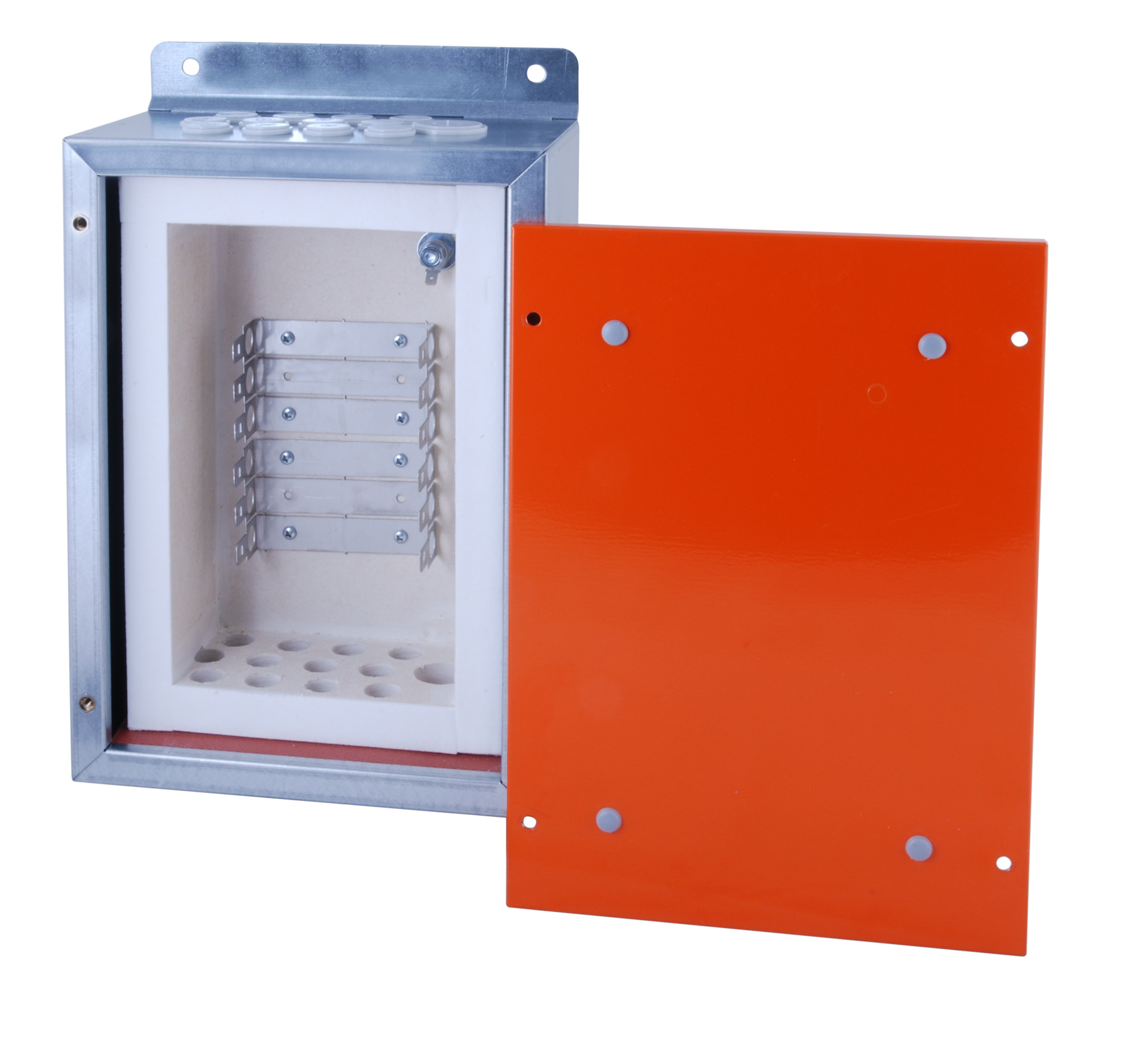

Fire Protection Box VKA E30/20 for 20pairs
Varenummer:
46042.1
EAN Nr.:
4049759070236
Produktinformationen für Fire Protection Box VKA E30/20 for 20pairs
With built-in LSA backmount frame 2/10
Galvanised sheet steel housing
Protection degree IP43
Lining with fire protection panels and intumescence material in cable entry area
Inner depth enables plug-in of surge protection magazines
Tested acc. to DIN 4102 Part 2
Building approval by the DIBT-Berlin Z-86.1-39
Galvanised sheet steel housing
Protection degree IP43
Lining with fire protection panels and intumescence material in cable entry area
Inner depth enables plug-in of surge protection magazines
Tested acc. to DIN 4102 Part 2
Building approval by the DIBT-Berlin Z-86.1-39
Technische Eigenschaften
| 110-compatible: | False |
|---|---|
| Colour: | other |
| DIN-compatible: | False |
| Degree of protection: | IP43 |
| LSA: | True |
| Material: | Steel plate |
| Model: | Wall-mounted distributor |
| Mounting dimension: | 96 mm |
| Mounting method: | Surface mounted (plaster) |
| With connecting lugs: | False |
Varianten
| Art. Nr. | Bezeichnung | Max. number of dual cores | Type | Width | Height | Depth | Weight | Cable Entry | Inside depth | Inside width | Inside height | Module Slots | in Pairs | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46042.1 | Fire Protection Box VKA E30/20 for 20pairs | 20 | VKA E30/20 | 200 mm | 250 mm | 130 mm | 5.1 kg | 2 x PG29, 8 x PG16 | 90 mm | 105 mm | 155 mm | 2 | 20 | |
| 46042.2 | Fire Protection Box VKA E30/60 for 60pairs | 60 | VKA E30/60 | 250 mm | 350 mm | 130 mm | 7.9 kg | 2 x PG29, 24 x PG16 | 90 mm | 155 mm | 255 mm | OM5 | 60 | |
| 46042.3 | Fire Protection Box VKA E30/100 for 100pairs | 100 | VKA E30/100 | 250 mm | 450 mm | 130 mm | 10 kg | 2 x PG29, 24 x PG16 | 90 mm | 155 mm | 355 mm | 10 | 100 | |
| 46042.4 | Fire Protection Box VKA E30/200 for 200pairs | 200 | VKA E30/200 | 450 mm | 450 mm | 130 mm | 16.3 kg | 4 x PG29, 40 x PG16 | 90 mm | 355 mm | 355 mm | 20 | 200 |
