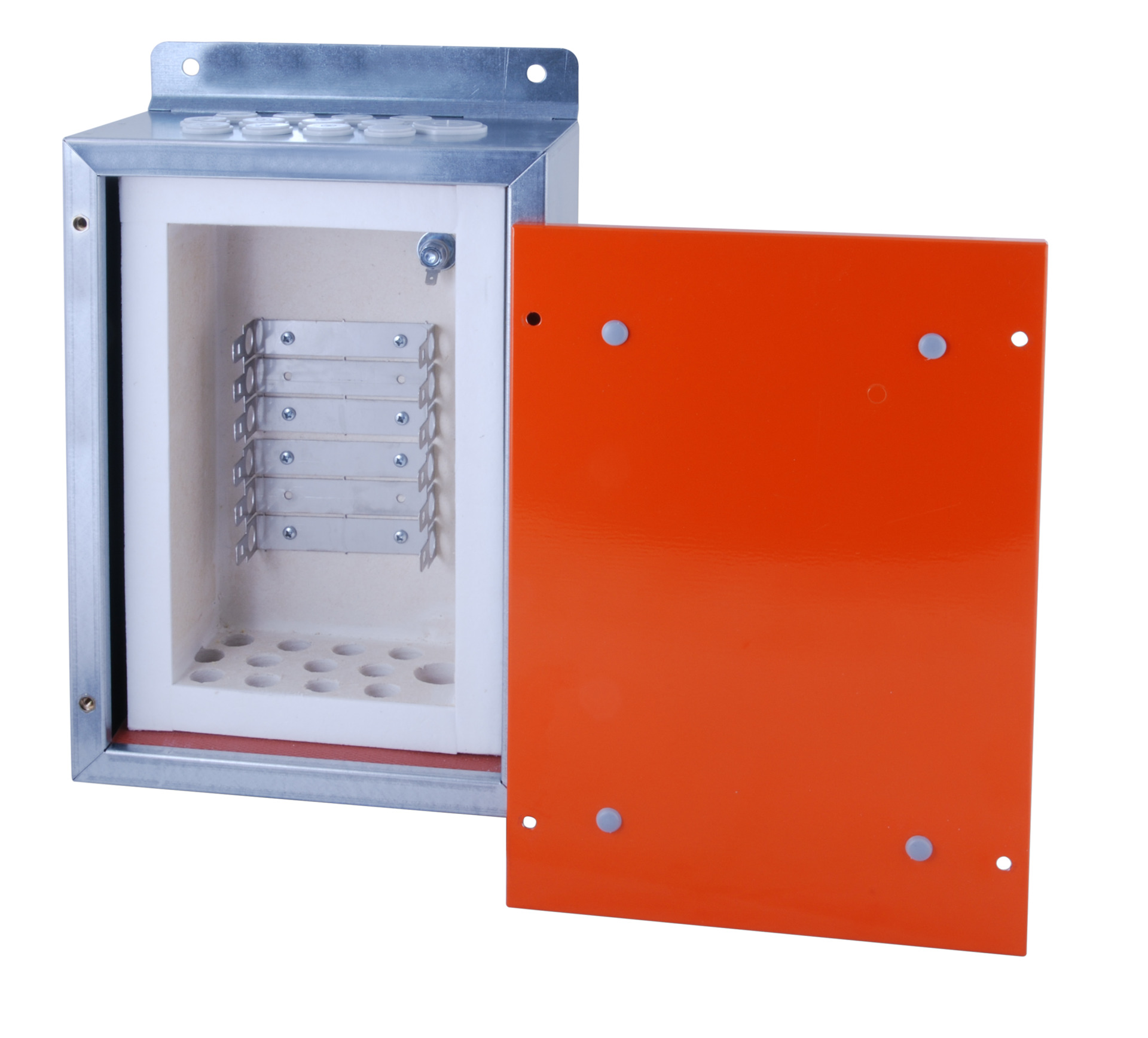

Fire Protection Boxes VKA E30
Fire Protection Boxes VKA E30
Varenummer:
46042.5
EAN Nr.:
4049759070274
Produktinformation til Fire Protection Boxes VKA E30
With built-in LSA backmount frame 2/10
Galvanised sheet steel housing
Protection degree IP43
Lining with fire protection panels and intumescence material in cable entry area
Inner depth enables plug-in of surge protection magazines
Tested acc. to DIN 4102 Part 2
Building approval by the DIBT-Berlin Z-86.1-39
Galvanised sheet steel housing
Protection degree IP43
Lining with fire protection panels and intumescence material in cable entry area
Inner depth enables plug-in of surge protection magazines
Tested acc. to DIN 4102 Part 2
Building approval by the DIBT-Berlin Z-86.1-39
Tekniske egenskaber
| 110-compatible: | False |
|---|---|
| Color: | other |
| DIN-compatible: | False |
| Degree of protection: | IP43 |
| LSA: | True |
| Material: | Steel plate |
| Model: | Wall-mounted distributor |
| Mounting dimension: | 96 mm |
| Mounting method: | Surface mounted (plaster) |
| With connecting lugs: | False |
Varianten
| Art. Nr. | Bezeichnung | Type | Max. number of dual cores | Width | Height | Depth | Weight | Cable Entry | Inside depth | Inside width | Inside height | Module Slots | in Pairs | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46042.1 | Fire Protection Box VKA E30/20 for 20pairs | VKA E30/20 | 20 | 200 mm | 250 mm | 130 mm | 5.1 kg | 2 x PG29, 8 x PG16 | 90 mm | 105 mm | 155 mm | 2 | 20 | |
| 46042.2 | Fire Protection Box VKA E30/60 for 60pairs | VKA E30/60 | 60 | 250 mm | 350 mm | 130 mm | 7.9 kg | 2 x PG29, 24 x PG16 | 90 mm | 155 mm | 255 mm | OM5 | 60 | |
| 46042.3 | Fire Protection Box VKA E30/100 for 100pairs | VKA E30/100 | 100 | 250 mm | 450 mm | 130 mm | 10 kg | 2 x PG29, 24 x PG16 | 90 mm | 155 mm | 355 mm | 10 | 100 | |
| 46042.4 | Fire Protection Box VKA E30/200 for 200pairs | VKA E30/200 | 200 | 450 mm | 450 mm | 130 mm | 16.3 kg | 4 x PG29, 40 x PG16 | 90 mm | 355 mm | 355 mm | 20 | 200 | |
| 46042.5 | Fire Protection Boxes VKA E30 | VKA E30/400 | 400 | 450 mm | 700 mm | 130 mm | 24.2 kg | 4 x PG29, 40 x PG16 | 90 mm | 355 mm | 605 mm | 40 | 400 |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
