FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2
FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2, 10m
Varenummer:
53670.10
EAN Nr.:
4049759181710
Produktinformation til FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2, 10m
Pre Assembled House Connection Box with a 4 fiber installation cable
Bend insensitive fiber for smaller bending radii
Cable entry: rear side

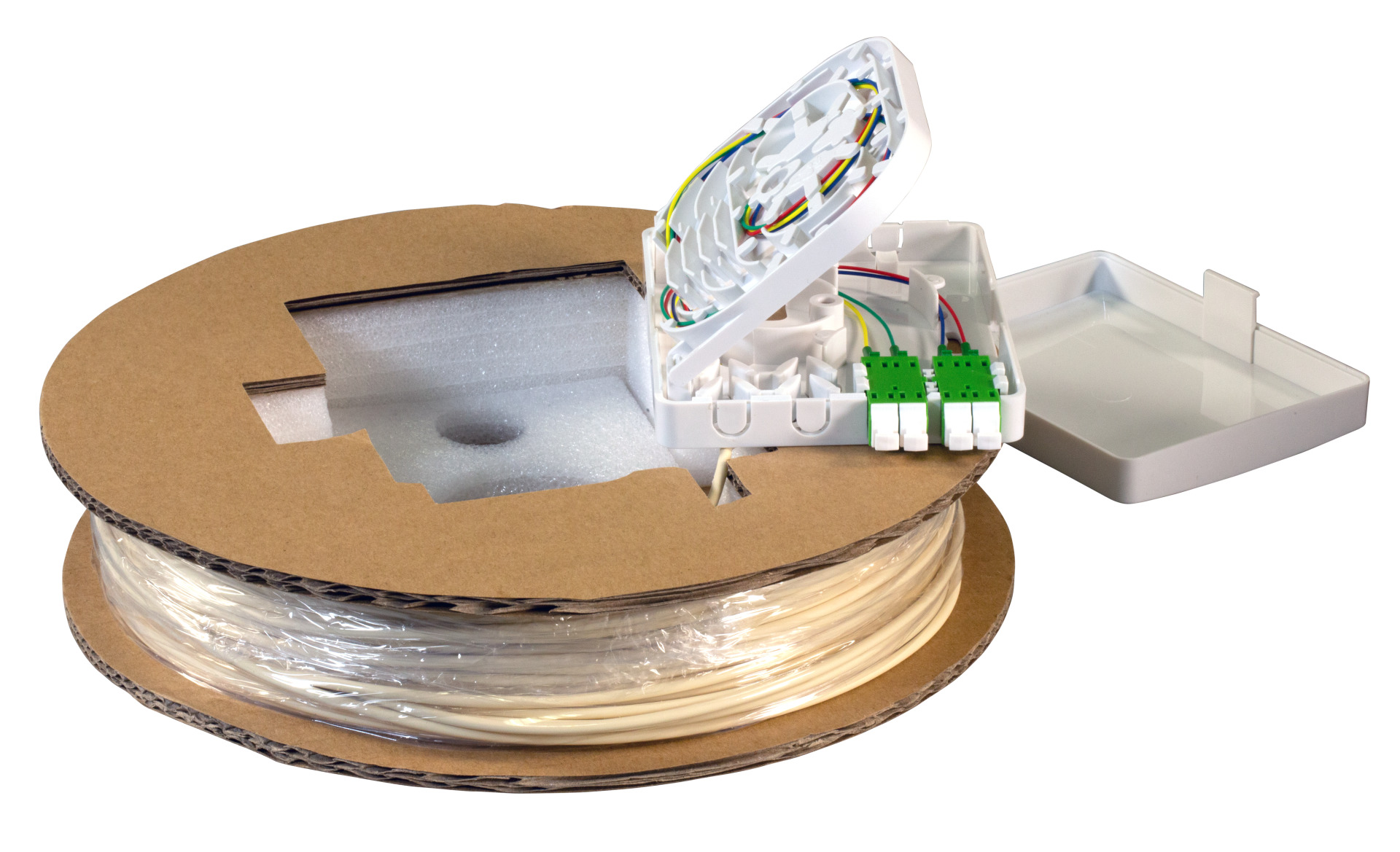

Pigtails spliced and connected
Outgoing Port: 4

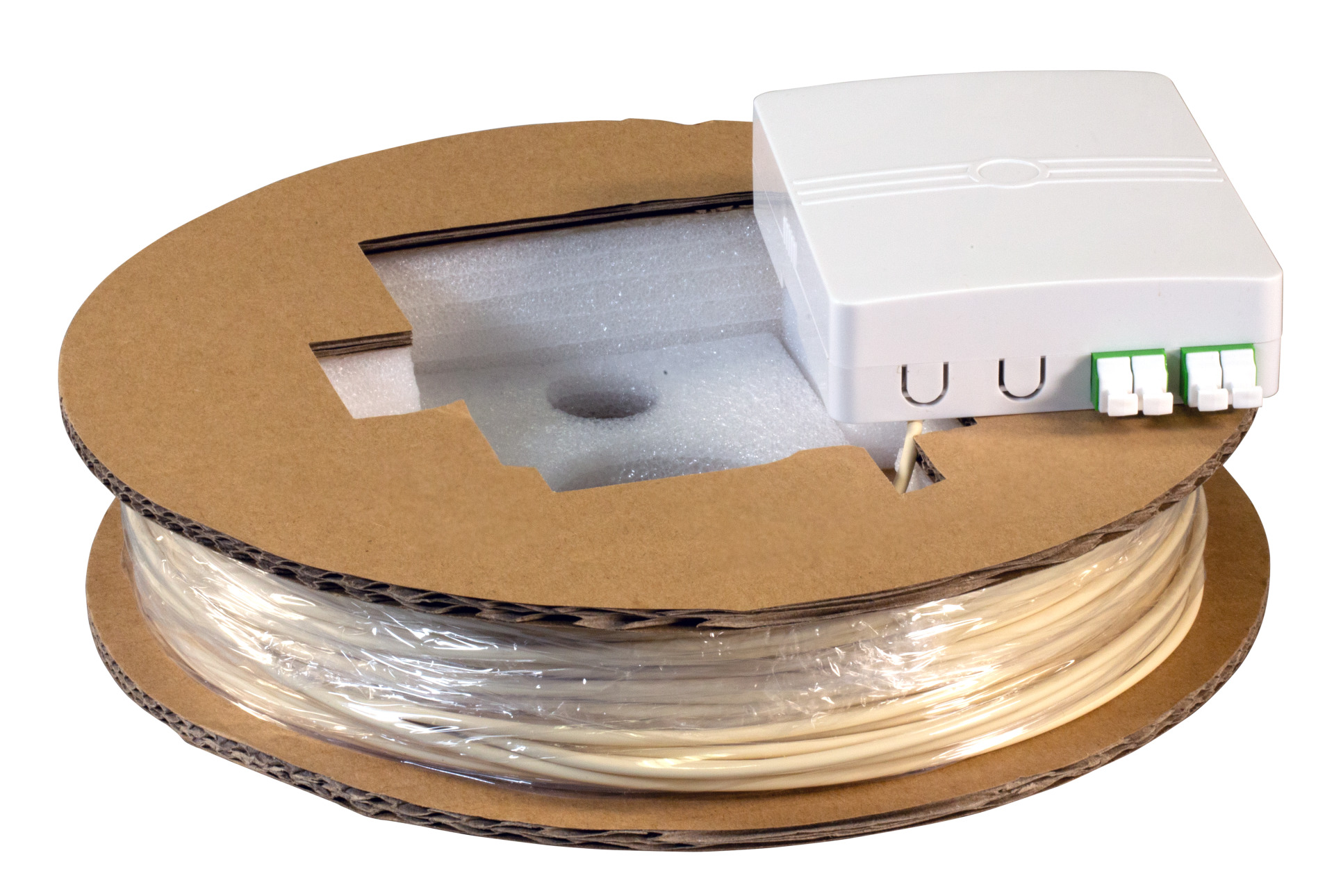

Installation cable coiled on cardboard roll
Bend insensitive fiber for smaller bending radii
Cable entry: rear side
Pigtails spliced and connected
Outgoing Port: 4
Installation cable coiled on cardboard roll
Tekniske egenskaber
(Halogenfrei): | Ja |
---|---|
APC Ausführung: | Ja |

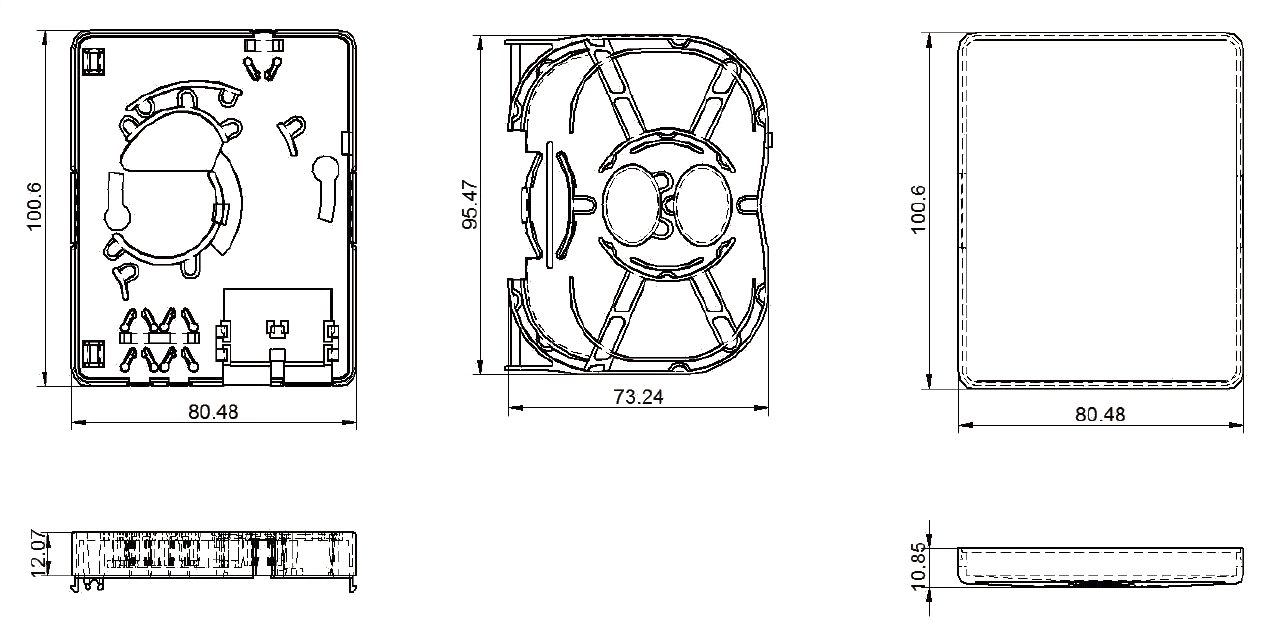

Abmessungen: | 100 x 80 x 22 mm |
Anwendungsbereich: | Innen |
Anzahl Kupplungen: | 2 |
Anzahl Pigtails: | 4 |
Aufnahme für Gasblocker: | Nein |
Aufnahme für Splitter: | Nein |
Dämpfung max. (dB/km) 1310nm: | 0,35 dB/km |
Dämpfung max. (dB/km) 1550nm: | 0,21 dB/km |
Einblasbar: | Ja |
Farbe: | weiß |
Faserart: | Singlemode 9/125 |
Faserkategorie: | G657.A2 |
Flammwidrig: | Ja |
Fremdkörper- und Berührungsschutz: | Schutz gegen mittelgroße Fremdkörper |
IP Schutzart: | IP20 |
Kabel & Fasern: | IEC 60794-2-20 |
Kabeldurchmesser: | 2,2 mm |
Kabeleinführung ohne Verschraubung: | 2 |
Kabelmantelabfangung: | Nein |
Kupplung: | LC Duplex |
Kupplungsfarbe: | grün |
Mantel-Farbe: | weiß |
Mantel-Material: | LSZH |
Material: | Kunststoff halogenfrei |
Mit Faserüberlängenaufnahme: | Ja |
Mit Steckschutzvorrichtung: | Nein |
Montageart: | Wandmontage |
Möglichkeit zur Mastmontage: | Nein |
Raucharm: | Ja |
Schwenkbare Spleißkassette: | Ja |
Temperaturbereich: | -20 – 60 °C |
Verkabelungsstandards: | ISO/IEC 11801 |
Verkabelungsstandards: | EN 50173-1 |
Wasserschutz: | Kein Schutz |
Zugentlastung: | Ja |
Varianten
Art. Nr. | Bezeichnung | Länge | |
---|---|---|---|
53670.10 | FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2, 10m | 10,0 m | |
53670.20 | FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2, 20m | 20.0 m | |
53670.30 | FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2 | 30,0 m | |
53670.40 | FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2 | 40.0 m | |
53670.50 | FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2 | 50.0 m | |
53670.60 | FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2 | 60.0 m | |
53670.70 | FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2 | 70.0 m | |
53670.80 | FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2 | 80,0 m |
