FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2
Priser kun synlige for indloggede brugere
FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2, 20m
Varenummer:
53670.20
EAN nr.:
4049759181727
Produktinformation für FTTX Compact Box pre assembled, 2x LC/APC Duplex, G.657.A2, 20m

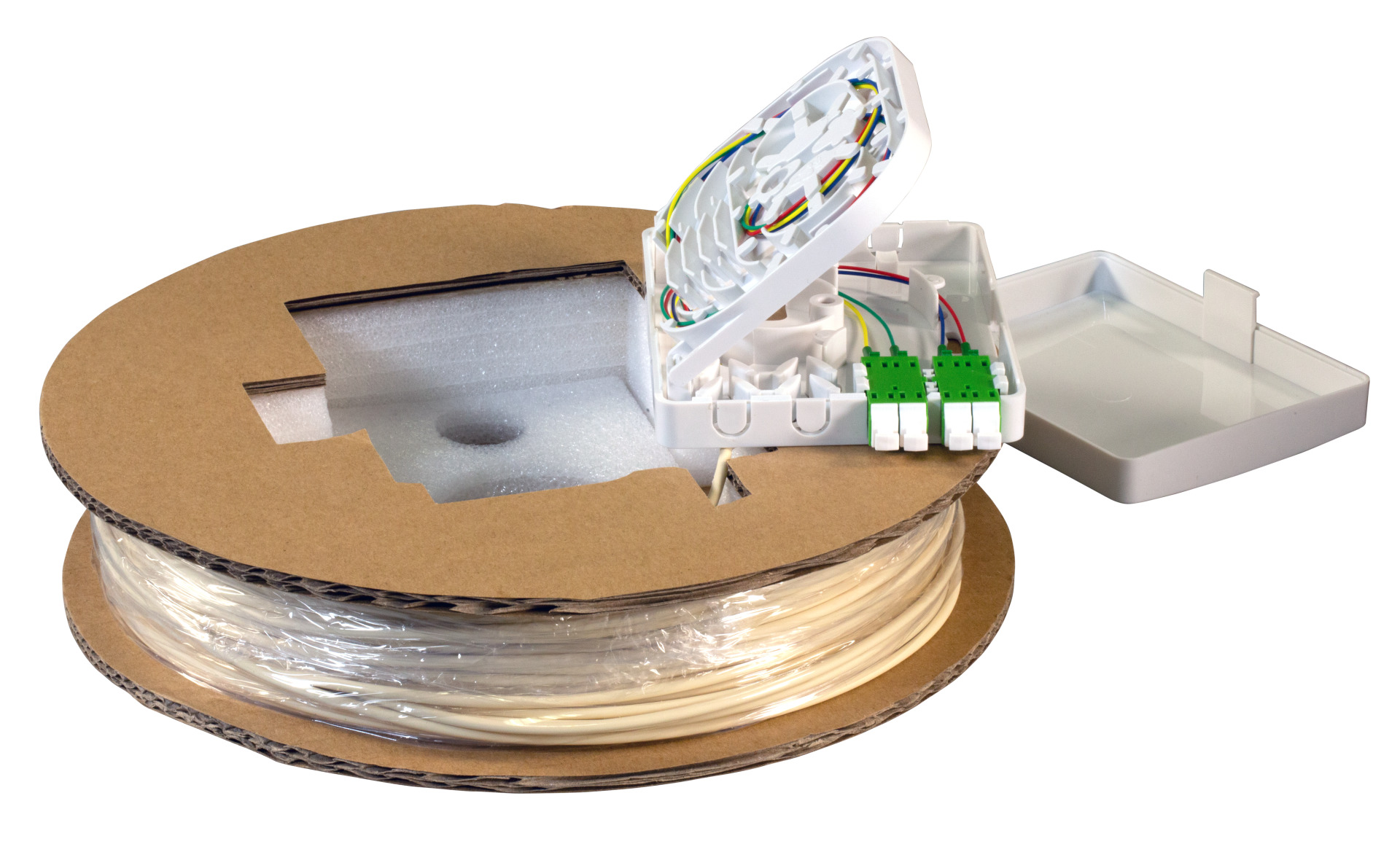

Pre Assembled House Connection Box with a 4 fiber installation cable
Bend insensitive fiber for smaller bending radii
Cable entry: rear side
Pigtails spliced and connected
Outgoing Port: 4
Installation cable coiled on cardboard roll
Bend insensitive fiber for smaller bending radii
Cable entry: rear side
Pigtails spliced and connected
Outgoing Port: 4
Installation cable coiled on cardboard roll
Tekniske egenskaber
| (Halogenfree): | True |
|---|---|
| APC-version: | True |
| Adapter: | LC Duplex |
| Adapter colour: | green |
| Blow in: | True |
| Cable & Fiber: | IEC 60794-2-20 |
| Cable Diameter: | 2.2 mm |
| Cable entry without cable gland: | 2 |
| Cable sheath support: | False |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Colour: | white |
| Colour outer sheath: | white |
| Dimensions: | 100x80x22 mm |
| Fiber type: | Single mode |
| Fibre category: | G657.A2 |
| Flame-retardant: | True |
| Foreign body and contact protection: | Protection against medium-sized foreign bodies |
| Hinged splice cassette: | True |
| Holder for gas blocker: | False |
| Holder for splitter: | False |
| IL max. (dB/km) 1310nm: | 0.35 dB/km |
| IL max. (dB/km) 1550nm: | 0.21 dB/km |
| IP Protection: | IP20 |
| Jacket material: | LSZH |
| Low smoke: | True |
| Material: | Plastic halogen free |
| Mounting method: | Wall mounting |
| Number of pigtails: | 4 |
| Possibility of mast mounting: | False |
| Quantity adapter: | 2 |
| Scope of application: | Indoor |
| Strain relief: | True |
| Temperature range: | -20 – 60 °C |
| Water protection: | Without protection |
| With Fiber overlength cassette: | True |
| With plug protection: | False |
