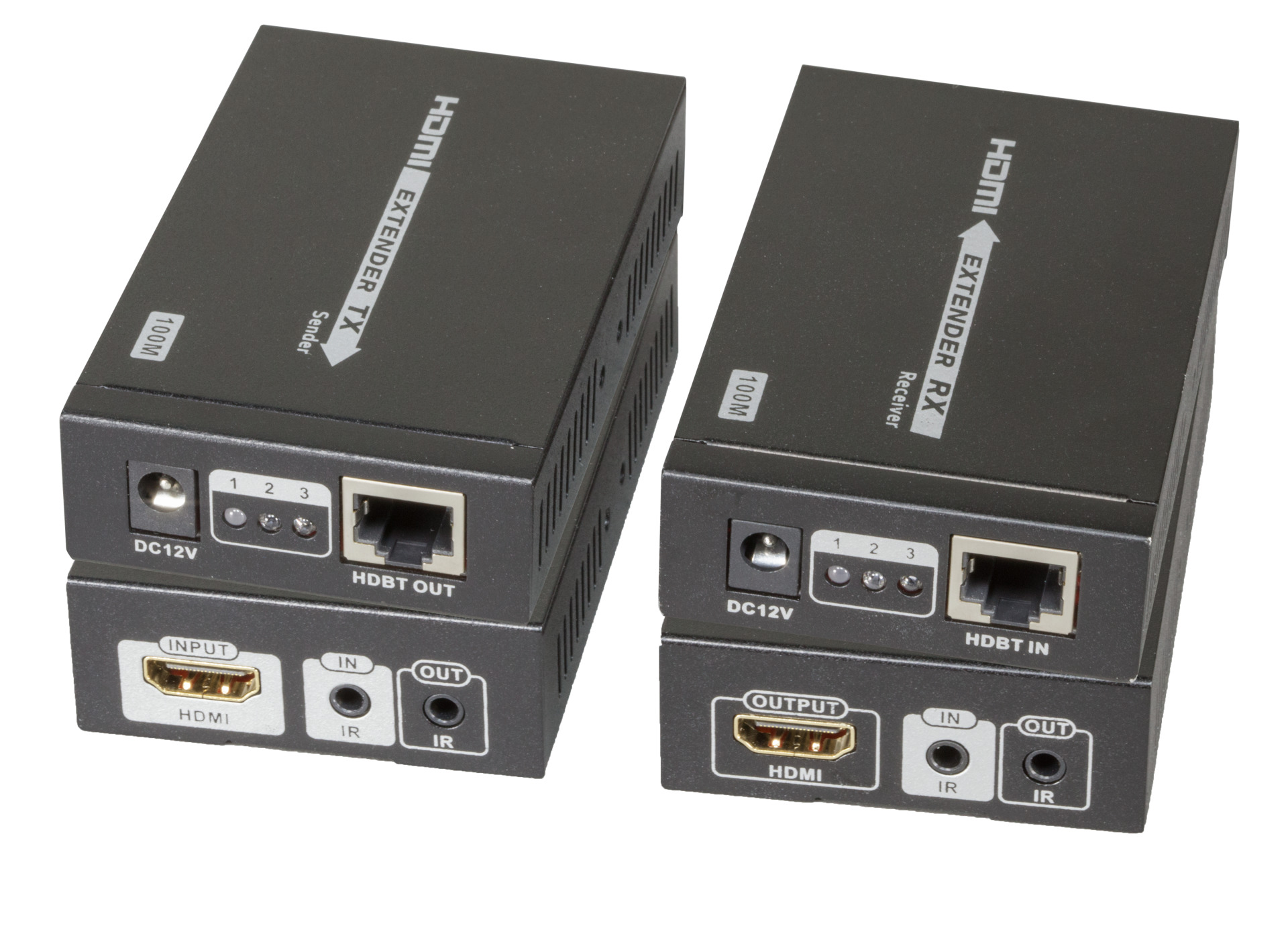

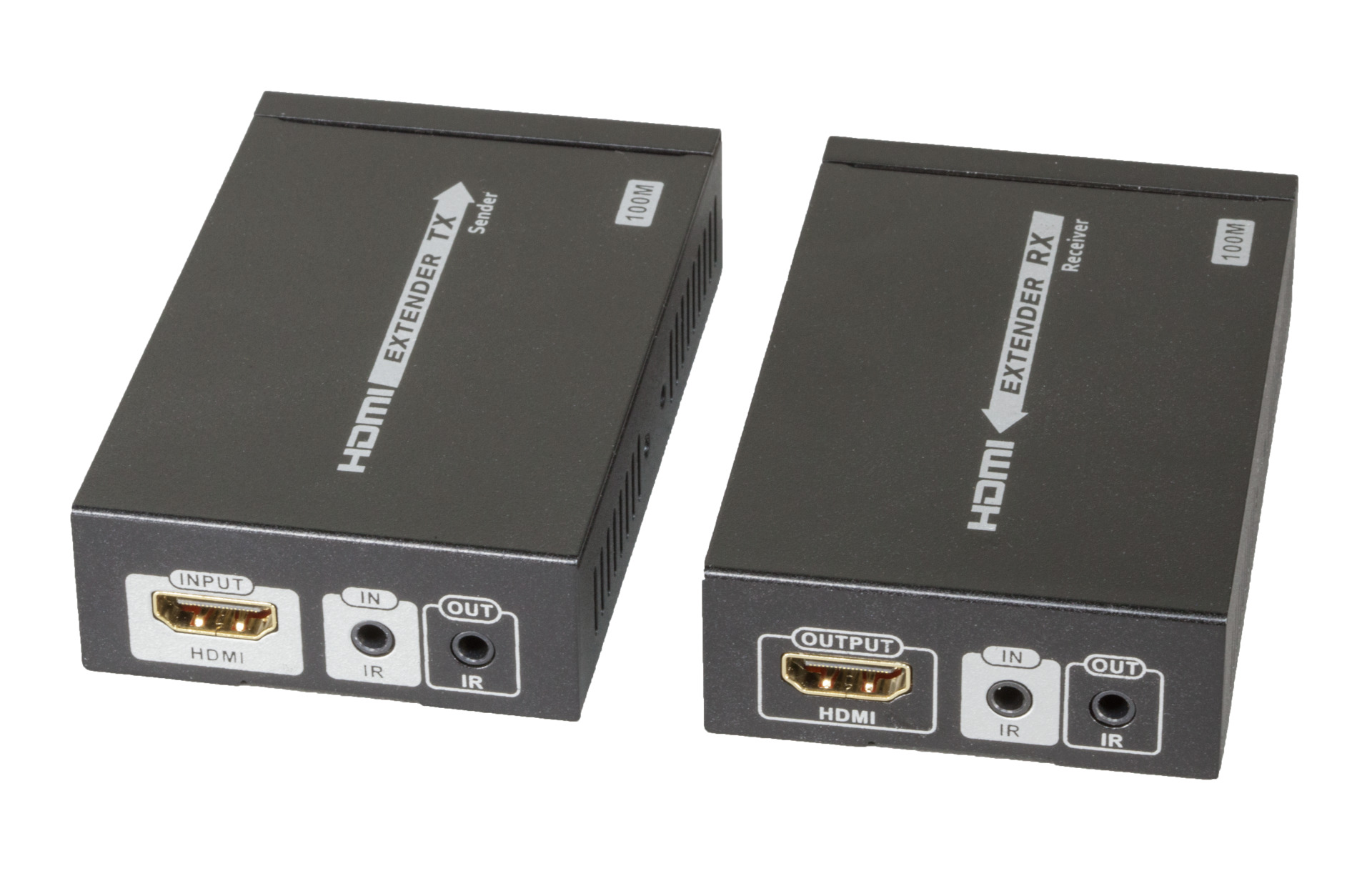

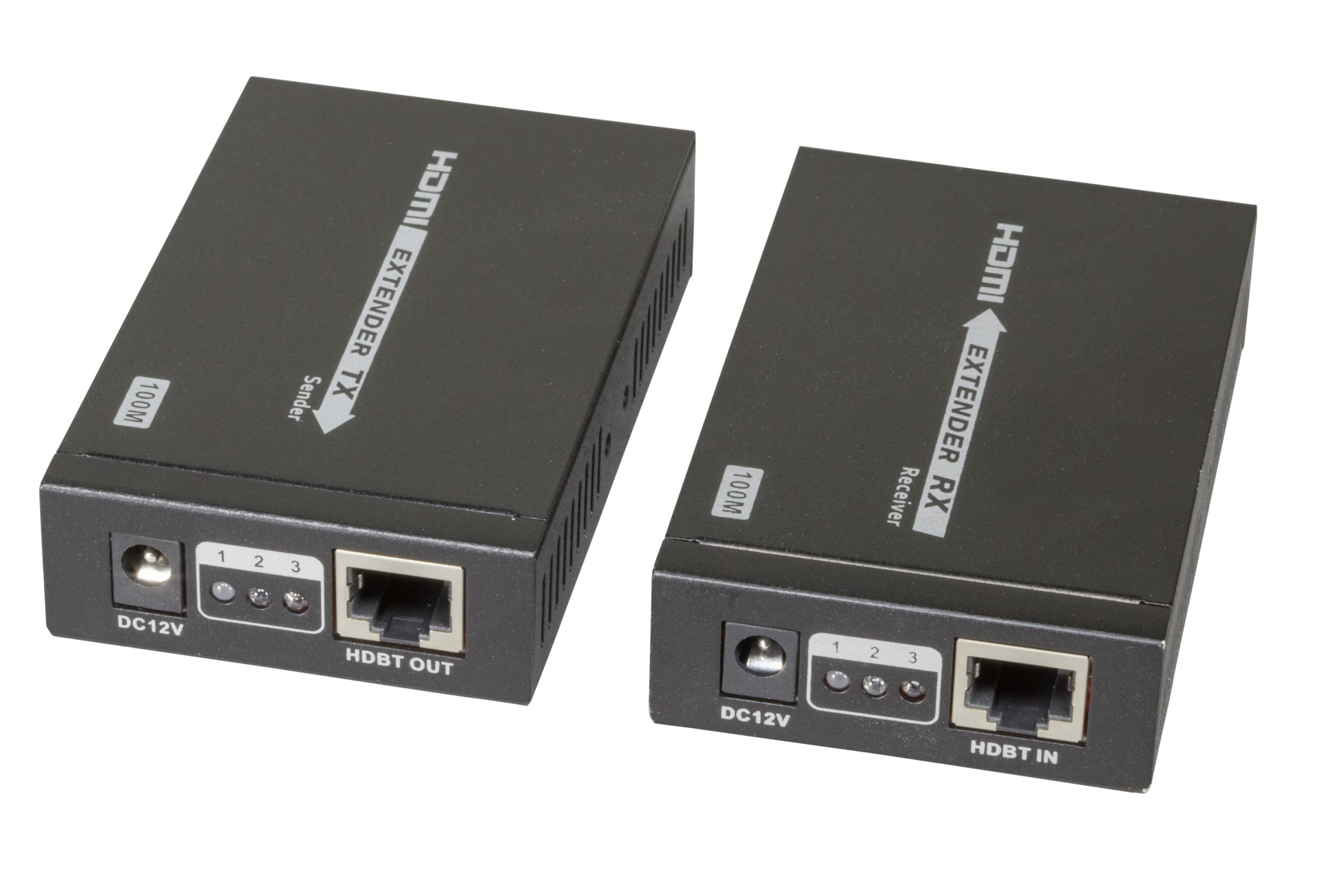

HDBT-100V2, HDBaseT Extender up to 100m
HDBaseT Extender up to 100m, over RJ45., 4k
Varenummer:
HDBT-100V2
EAN Nr.:
4049759255251
Produktinformation til HDBaseT Extender up to 100m, over RJ45., 4k
HDMI™ Extender with HDBaseT extend technology
Uncompressed video and audio signal over 1 x Cat.5/6/6a network cable
Support for resolutions up to UltraHD (4Kx2K, Full HD 1080P@60Hz, 3D)
Extend the video signal over one network cable up to 100 m
Support bi-directional IR pass back
Support HDCP, CEC, 24 deep color, uncompressed LPCM audio and compressed DTS-HD, Dolby True HD
Without PoH/PoC
Including: HDBaseT Extender Set (Transmitter/Receiver), 2 x IR cable, 2 x power supply, quick manual
Uncompressed video and audio signal over 1 x Cat.5/6/6a network cable
Support for resolutions up to UltraHD (4Kx2K, Full HD 1080P@60Hz, 3D)
Extend the video signal over one network cable up to 100 m
Support bi-directional IR pass back
Support HDCP, CEC, 24 deep color, uncompressed LPCM audio and compressed DTS-HD, Dolby True HD
Without PoH/PoC
Including: HDBaseT Extender Set (Transmitter/Receiver), 2 x IR cable, 2 x power supply, quick manual

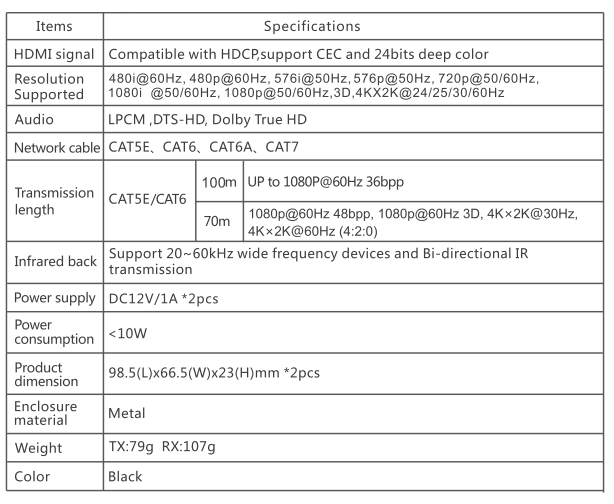

Tekniske egenskaber
| Max. resolution: | 3840x2160 |
|---|---|
| Suitable for 19 inch mounting: | False |
Sikkerhedsanvisninger
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
