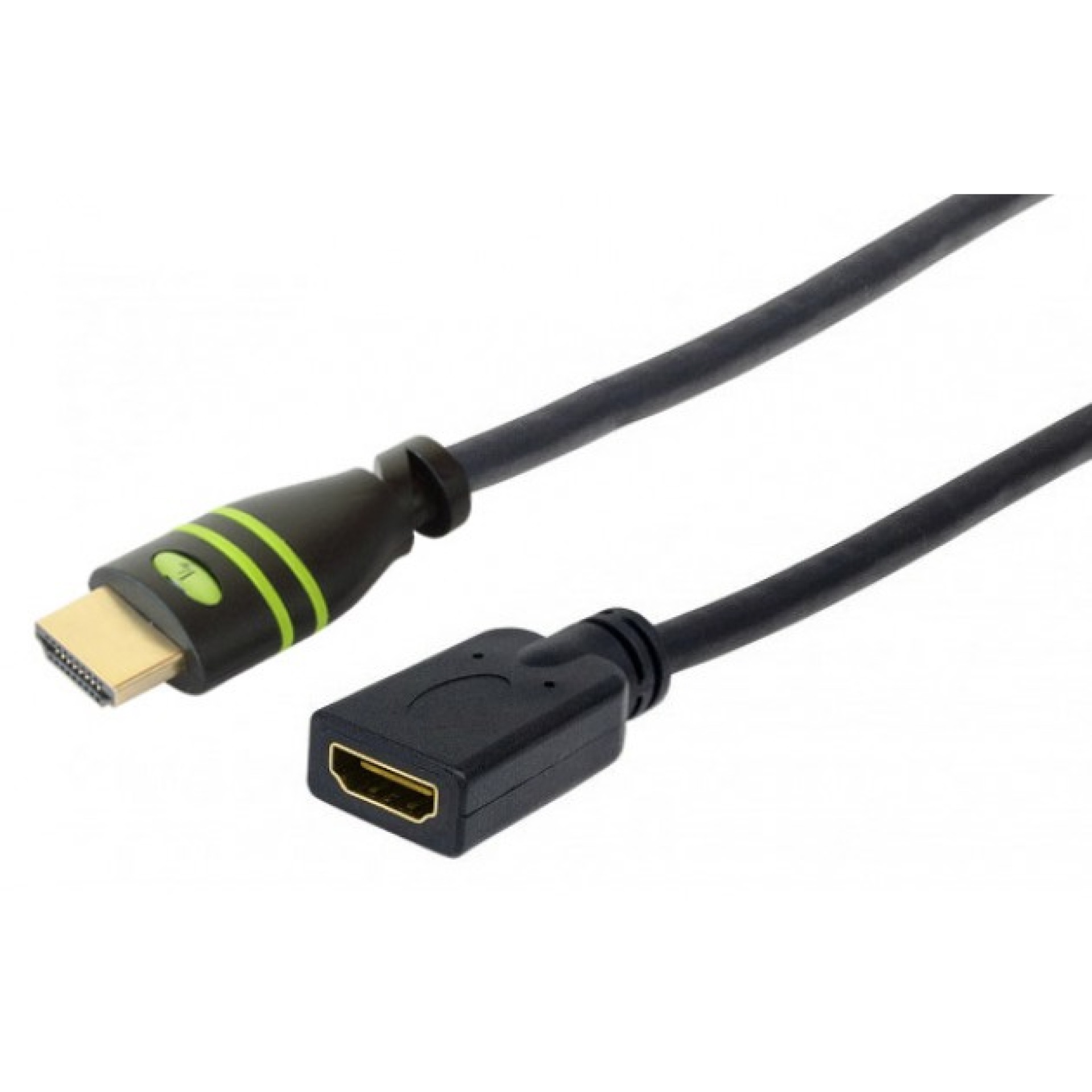

HDMI High Speed with Ethernet Extender Cable 4K 30Hz

Priser kun synlige for indloggede brugere

HDMI High Speed with Ethernet Extender Cable 4K 30Hz 3m
Varenummer: ICOC-HDMI-4-EXT030
EAN nr.: 8051128106367
1

Produktinformation für HDMI High Speed with Ethernet Extender Cable 4K 30Hz 3m

  • HDMI 19-pin male to HDMI 19-pin female
  • Ensures signal integrity between HDMI devices
  • Supports HDMI Ethernet, Audio Return, 3D Video, 4K @ 30Hz video resolution and Deep Color
  • Conforms to HDMI High Speed specifications with Ethernet
  • Up to 10.2 Gbps at 340 MHz bandwidth
  • Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
  • Die-cast PVC connector cover


  • Standards and certifications:
  • UL 20276
  • RoHS
  • EC


  • General Information:
  • Bandwidth: 10.2 Gbps
  • 340 MHz
  • Compliant or superior to existing HDMI standards
  • Length: 1.8 m


  • Hardware specification
  • 1 x HDMI 19-pin male
  • 1 x HDMI 19-pin female
  • Gold contacts
  • PVC die-cast connector covers
  • Shielded, braided and aluminum foil
  • 30 AWG connectors


  • Electrical Information:
  • Current index: 0.5 A DC
  • Withstanding voltage: 300 V DC
  • Insulation resistance: 10 MOhms
  • Conductive resistance: 2 Ohms


  • Package Contents:

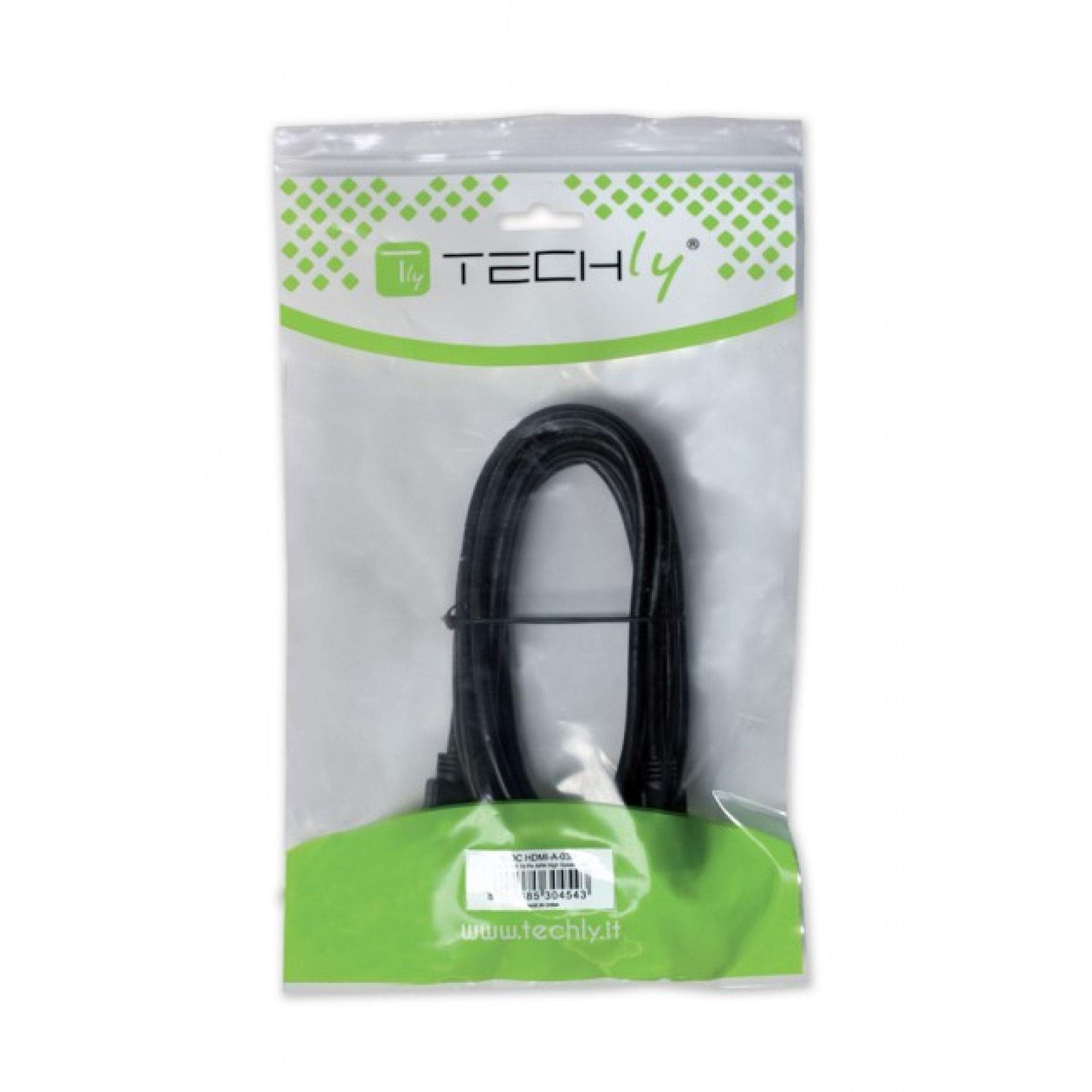

  • High Speed HDMI extension cable with Ethernet M / F
  • Varianter

    Art. Nej. Betegnelse Colour Length
    ICOC-HDMI-4-EXT010 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 1m black 1.0 m
    ICOC-HDMI-4-EXT018 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 2m black 2.0 m
    ICOC-HDMI-4-EXT030 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 3m black 3.0 m
    ICOC-HDMI-4-EXT050 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 5m black 5.0 m
    ICOC-HDMI-4-EXT075 HDMI High Speed with Ethernet Extender Cable 4K 30Hz 7,5m black 7.5 m
